KitchenAid KTRC22KAWH00 Manuel utilisateur

c1992 KITCHENAID

REFRIGERATOR

MODEL

KTRC22KAWH00

WH−White,

AL−Almond

11−92 Litho In U.S.A. Part No. 4361366

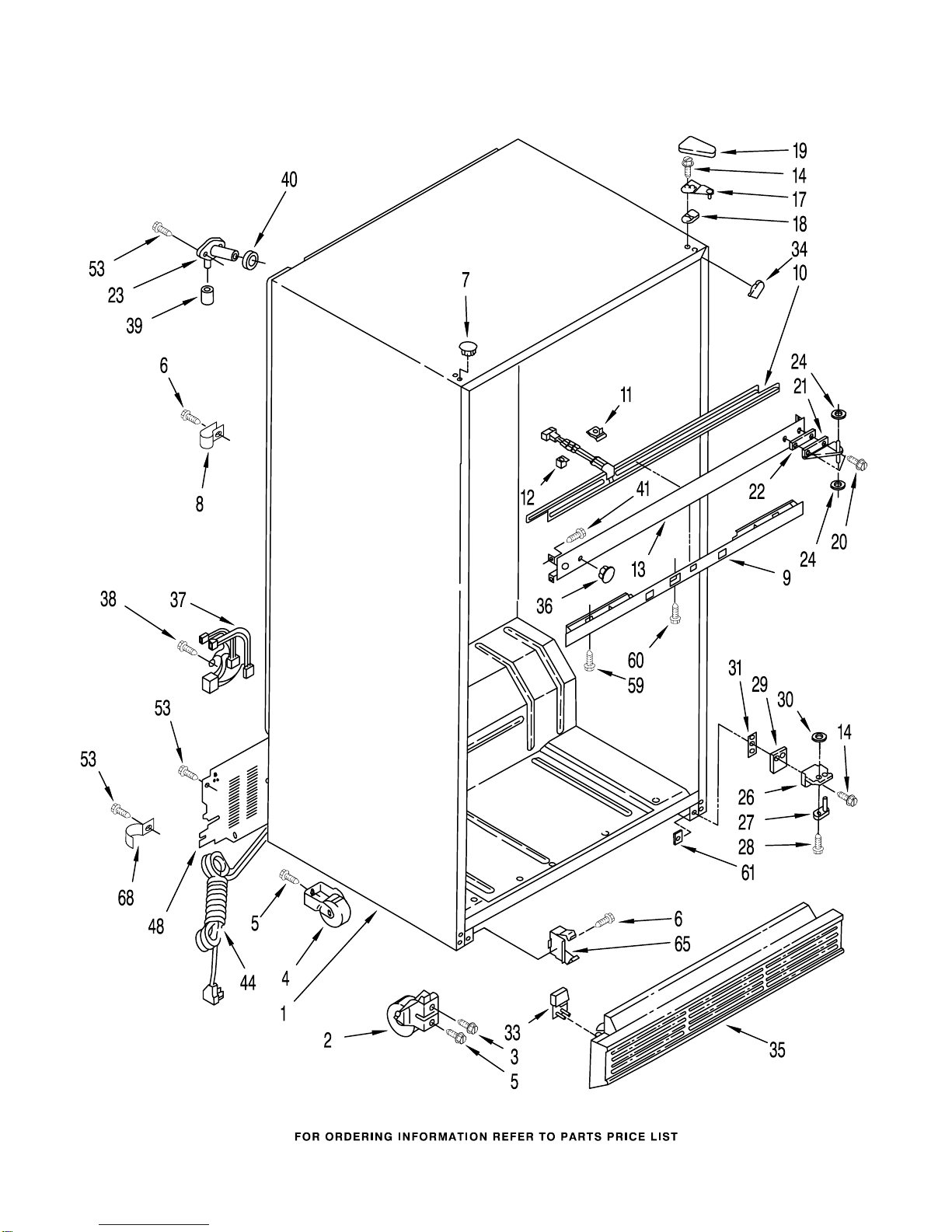

CABINET PARTS

For Model: KTRC22KAWH00, KTRC22KAAL00

(White) (Almond)

4361366

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

CABINET PARTS

For Model: KTRC22KAWH00, KTRC22KAAL00

(White) (Almond)

1 Cabinet (Not A

Serviceable Part)

2 2152011 Roller, Front

3 489393 Screw,

5/16−24 x 1−1/4

4 981122 Roller, Rear (2)

5 489339 Screw (6)

6 489242 Screw

7 Hole Plug

2151652 White

2151653 Almond

8 489385 Clamp, Tube

9 1126276 Control, Front

Cover

10 2154065 Heater, Mullion

11 1129018 Clip, Center

Rail (4)

12 2149077 Spacer (3)

13 Center Rail

1122566 White

1122569 Almond

14 489327 Screw

17 2157593 Hinge, Top

18 1123517 Shim, Hinge Top

19 Hinge Cover

2160403 White

2160404 Almond

20 489105 Screw

21 2147335 Hinge, Center

22 836155 Shim, Hinge

Center

23 2154070 Fitting−Water Tube

24 487802 Washer, 11/64

26 2148563 Hinge Butt,

Bottom

27 654366 Hinge Pin,

Bottom

28 488714 Screw,

10−32 x 5/16

29 1123379 Shim, Bottom

30 488184 Washer, 7/32

31 1121117 Spacer

33 Corner Filler,

Grille

1125665 White

1125670 Almond

34 Filler, Wrap

Corner

1118058 White

1118059 Almond

35 Grille

1125663 White

1125667 Almond

36 Hole Plug (5)

1129062 White

1129063 Almond

37 2153994 Wiring Assy.

Intermediate

38 489048 Screw, 8−32 x 1/2

39 487996 Cap

40 1106508 Gasket

41 488725 Screw

44 937360 Cord, Service

48 1105531 Cover, Unit

53 489084 Screw

59 488725 Screw,

8 x 13/16 (2)

60 489174 Screw (2)

61 2147310 Tap−Plate,

Bottom Hinge

65 2155013 Clip, Grille

Retainer (2)

68 549193 Clamp

4361366

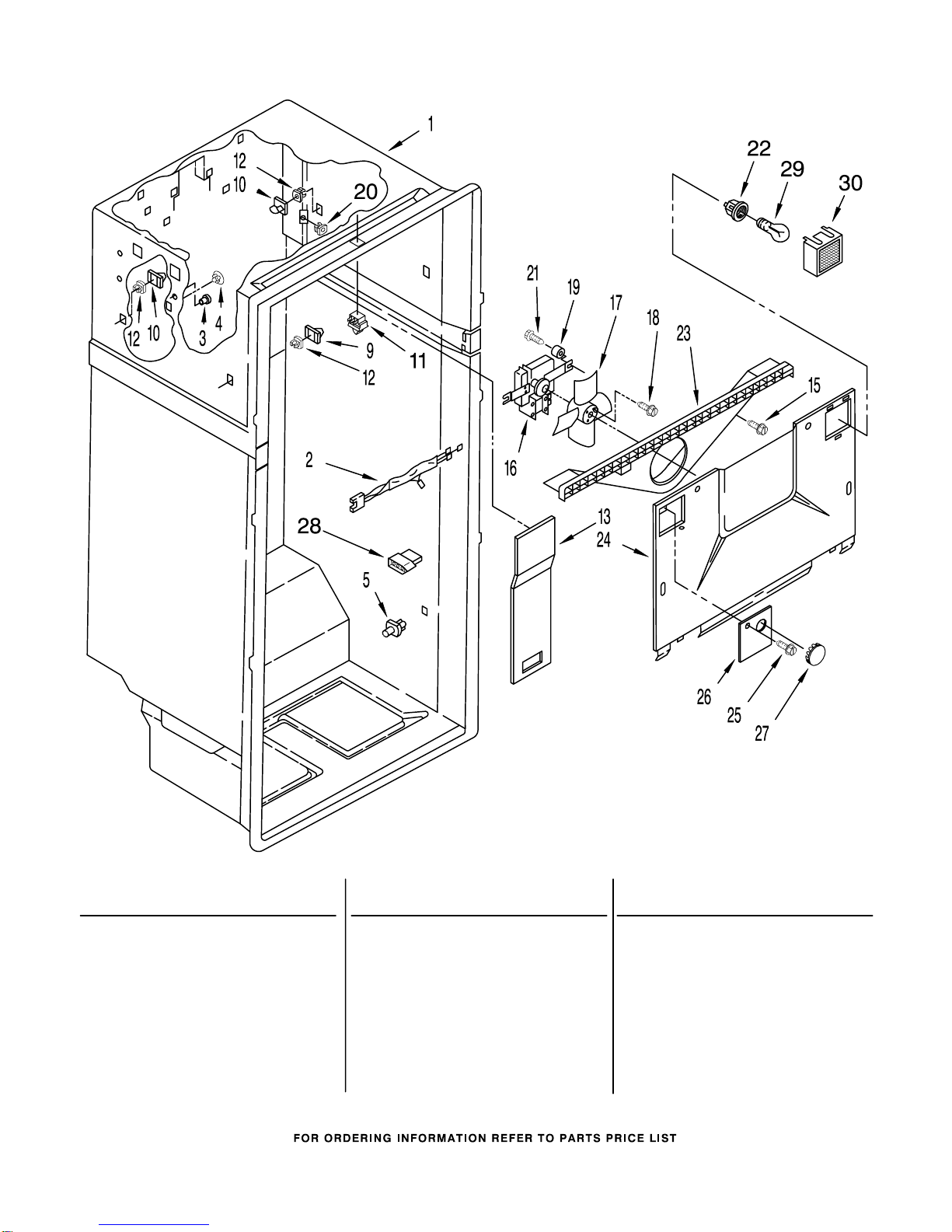

LINER PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Model: KTRC22KAWH00, KTRC22KAAL00

(White) (Almond)

1 Liner (Not A

Serviceable Part)

2 1127626 Wiring, Fan Motor

3 1110779 Grommet (4)

4 941839 Hole Plug (3)

5 1106612 Stud (2)

9 946356 Stud (3)

10 946357 Saddle Stud, R.S.

946358 Saddle Stud, L.S.

11 1108112 Rocker Arm Switch

12 946355 Support, Stud (6)

13 2157410 Cover, Air Duct

15 489242 Screw

16 2154977 Motor, Fan

17 1127752 Blade, Fan

18 487887 Screw,

3−48 x 1/4 (2)

19 531933 Grommet (2)

20 848445 Grommet (2)

21 489168 Screw

22 2155597 Socket, Light

23 2160644 Scroll, Fan

24 2157427 Evaporator Cover

25 489196 Screw (5)

26 1125567 Hole Cover,

Evaporator

27 1103725 Hole Plug

28 934326 Housing Plug

29 946059 Light Bulb

30 981365 Light Lens

4361366

COMPARTMENT SEPARATOR PARTS

Illus. Part

No. No. DESCRIPTION

For Model: KTRC22KAWH00, KTRC22KAAL00

(White) (Almond)

1 1125507 Bottom,

Compartment

Separator

2 1125510 Box, Control

3 1116849 Switch, Light

4 2162044 Timer, Defrost

(10 Hour)

5 488693 Screw

6 1125964 Switch, Toggle

7 851067 Socket (2)

8 946059 Bulb, Light (2)

9 940014 Hole Plug

10 2161676 Thermostat

Assembly

11 489214 Screw (2)

12 1125511 Light Pipe (R.S.)

14 1125512 Light Pipe (L.S.)

15 1125515 Connecting Rod,

Short

16 1125514 Rod, Connecting

17 2159698 Air Diffuser

Assembly

18 2157255 Gasket, Air

Diffuser

19 1125941 Cover, Air

Diffuser

20 1125581 Pivot Arm

22 2153995 Wiring Assembly,

Control Box

23 2159684 Gasket, Bottom

Separator

24 489048 Screw,

8−32 x 1/2 (2)

25 488540 Screw

26 1108196 Insulation, Filler

27 1105464 Insulation,

Compartment

Separator

28 1125513 Slide, Thermostat

29 1125578 Slide, Air Control

30 1125579 Window, Air

Control

31 1125580 Window,

Thermostat

33 2151663 Separator,

Compartment (Top)

34 937065 Cup, Drain

36 489242 Screw

4361366

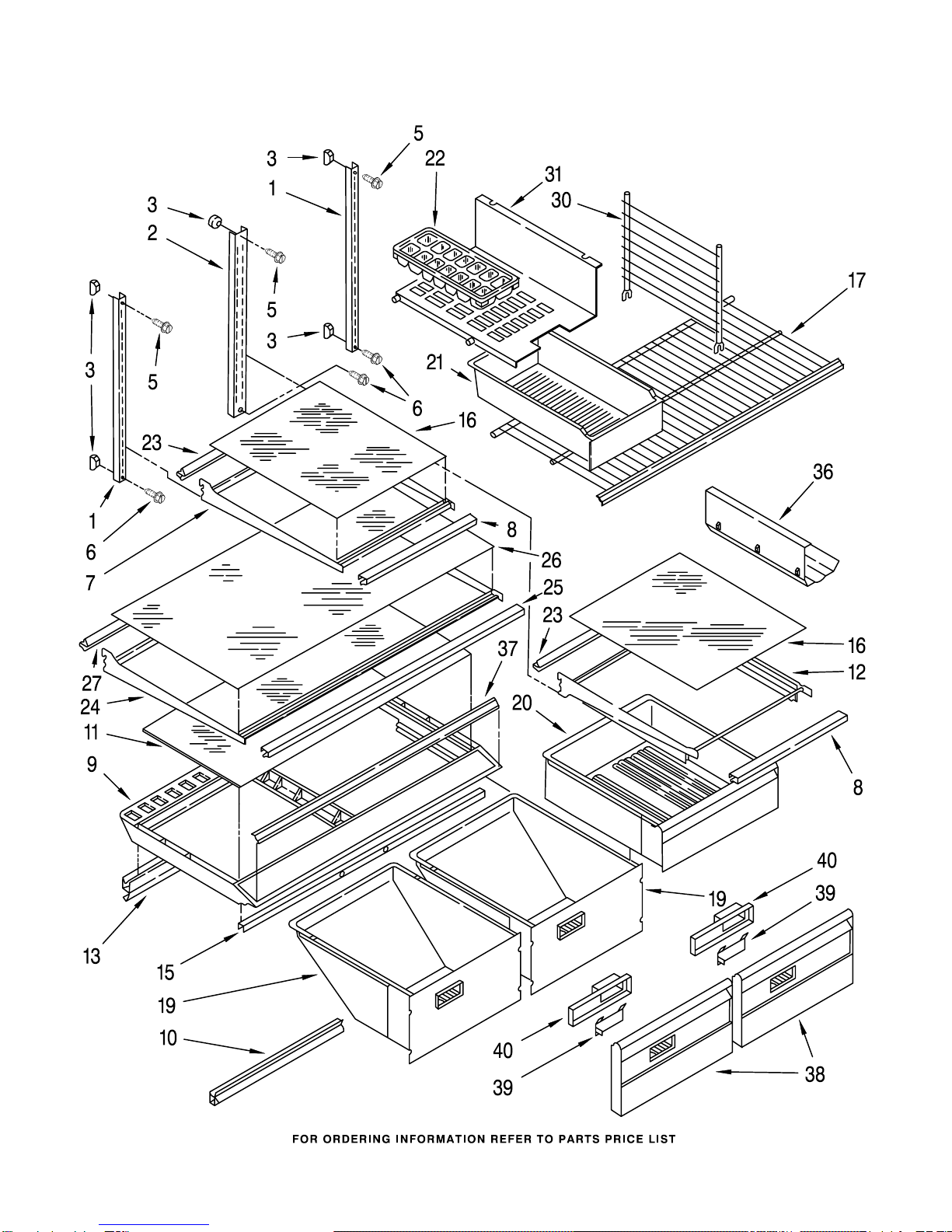

SHELF PARTS

For Model: KTRC22KAWH00, KTRC22KAAL00

(White) (Almond)

4361366

SHELF PARTS

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

Customer Touch−Up Material

REFINISHING MATERIAL

Caution: The Spray Paint Is Not

To Be Used Where The Paint

May Make Contact With The

Door Gaskets

LITERATURE PARTS

FIELD INSTALLABLE

ICE MAKER

TORX SCREW WRENCH

MISCELLANEOUS 799344 Enamel, White

(1 Qt. Uncut)

978883 Enamel, Almond

(1 Qt. Uncut)

833938 Kit, Terminal

Connector

KIMS8

Part No. 1129318

1117510 Torx Key

350942 Primer, White

(13 Oz. Spray Can)

350941 Leveler, Enamel

(13 Oz. Spray Can)

350939 Enamel, Black

(13 Oz. Spray Can)

350930 Enamel, White

(13 Oz. Spray Can)

350956 Enamel, Almond

(13 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

72032 Brush Touch−Up Kit

(Black)

72107 Brush Touch−Up Kit

(Almond)

978941 Insulation,

Fiberglass

(63−1/2" x 35−1/2"

x 2−5/8")

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4" x 108")

876305 Kit, Insulation

(14 Pcs.

3" x 24" x 48")

876370 Kit, Insulation

(2 Pcs.

3" x 24 " x 48")

876029 Kit, Foam Slab

(30" x 32−1/2" x

1−1/2")

505587 Sealer, Mastic

(1 Qt.)

511873 Touch−Up, White

Porcelain (2 Oz.)

542638 Grease, Silicone

(1/2 Oz.)

542639 Cement,

Alumilastic

(1−1/4 Oz.)

606755 Bag, Insulation

(36−5/8" x 46")

799833 Kit, Evaporator

Repair

(Aluminum Epoxy)

503695 Cork Sealer

(1/4 Pound)

LIT2161697 Energy Guide

LIT1126426 Care & Use Guide

LIT2154861 Service & Wiring

Sheet

677969 Do−It Yourself

1 1114466 Shelf, Ladder (2)

2 1114465 Shelf, Ladder

Center

3 520965 Screw, Support (4)

5 489345 Screw (3)

6 488163 Screw,

8 x 1−1/4 (3)

7 1125520 Shelf,

Cantilever (2)

8 1125782 Gasket (Front)

9 1126311 Pan Cover Assembly

10 1116512 Gasket, Pan Cover

(Front)

11 1126310 Glass, Pan Cover

12 1126267 Pan Shelf,

Cantilever

13 1105653 Gasket, Pan Cover

(Rear) (2)

15 1106613 Crisper, Support

16 1125521 Glass, Shelf

17 1125540 Shelf, Freezer

19 1108688 Pan, Crisper

20 1126270 Pan, Meat

21 1125561 Ice Cube Pan

22 841180 Ice Tray (4)

23 1110744 Retainer, Shelf

24 1125523 Shelf, Full

Cantilever

25 1125783 Gasket (Front)

26 1125524 Glass, Full Shelf

27 1125525 Retainer, Shelf

30 1125542 Divider

31 1125543 Shelf, Ice Tray

36 1125913 Wine & Egg Rack

37 1119480 Trim, Crisper

38 1126307 Front, Crisper

39 1124819 Slide, Humidity

Control

40 1124820 Housing, Control

For Model: KTRC22KAWH00, KTRC22KAAL00

(White) (Almond)

4361366

LIT4361366 Parts List

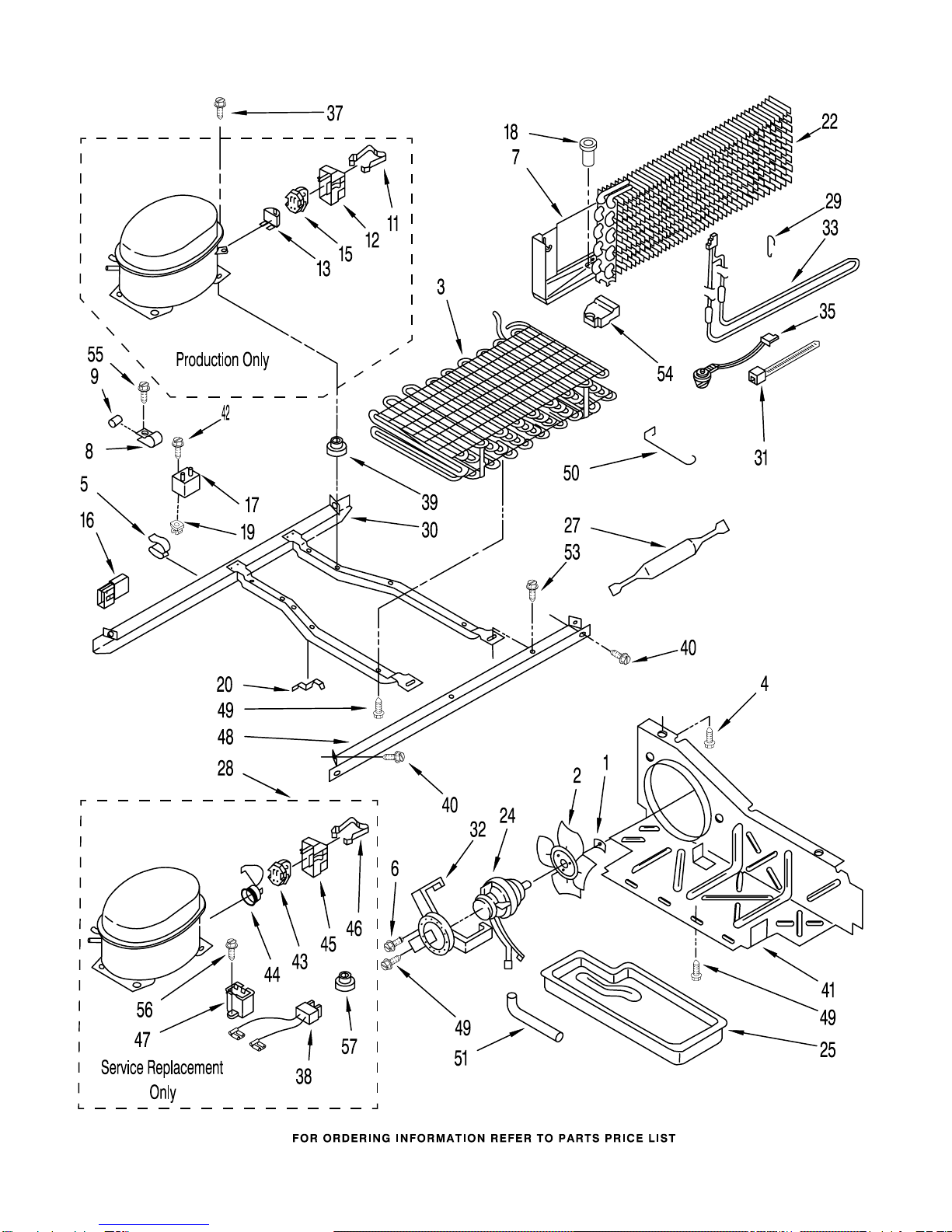

UNIT PARTS

For Model: KTRC22KAWH00, KTRC22KAAL00

(White) (Almond)

4361366

UNIT PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Model: KTRC22KAWH00, KTRC22KAAL00

(White) (Almond)

1 486692 Speed Nut

2 851732 Fan, Blade

3 2154010 Condenser

Assembly

4 489337 Screw

5 548745 Clip, Wire (2)

6 489019 Screw,

8−32 x 3/8

7 2153974 Drain Pan &

Heat Shield

8 2159720 Tube Clamp (2)

9 2149670 Dampener

11 938384 Spring, Relay

Case

12 1108115 Case, Relay

13 2159596 Overload

15 1108143 Relay

16 1118850 Housing Plug

17 2154565 Running Capacitor

18 981629 Drain Fitting

19 509812 Grommet, Screw

20 548744 Clip, Unit

Cover (2)

22 2153978 Evaporator

24 2154798 Fan, Motor

25 2154114 Tray, Evaporator

27 2154002 Drier

28 4317961 Compressor

(Includes Items 43,

44, 45, 46, 47,

56, 57 & 59)

(Also Order

876765 Tube Kit)

29 2149120 Support−Heater

30 1127944 Unit Mounting

Frame

31 2155774 Strap

32 2162062 Fan, Motor Bracket

33 2162019 Heater−Defrost

35 2149643 Bi−Metal, Defrost

37 489373 Screw, 1/4−28 x 1

38 1127675 Wire Asm.

39 1100826 Grommet (4)

40 489340 Screw

41 2155566 Air Baffle

42 488687 Screw, 8 x 5/8

43 1108143 Relay

44 1108114 Overload

45 1108115 Cover

46 938384 Strap

47 1118581 Capacitor

48 2149717 Unit Mounting

Rail

49 489337 Screw

50 1105612 Guard, Fan

51 2154119 Drain Extension

53 488454 Screw,

1/4−28 x 1/2 (2)

54 Support−Evaporator

1118805 R.S.

2159708 L.S.

Baffle (2)

55 488687 Screw,

8−32 x 1/2 (2)

56 487240 Screw

57 1100826 Grommet

59 1114190 Overload Spring

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

4361366

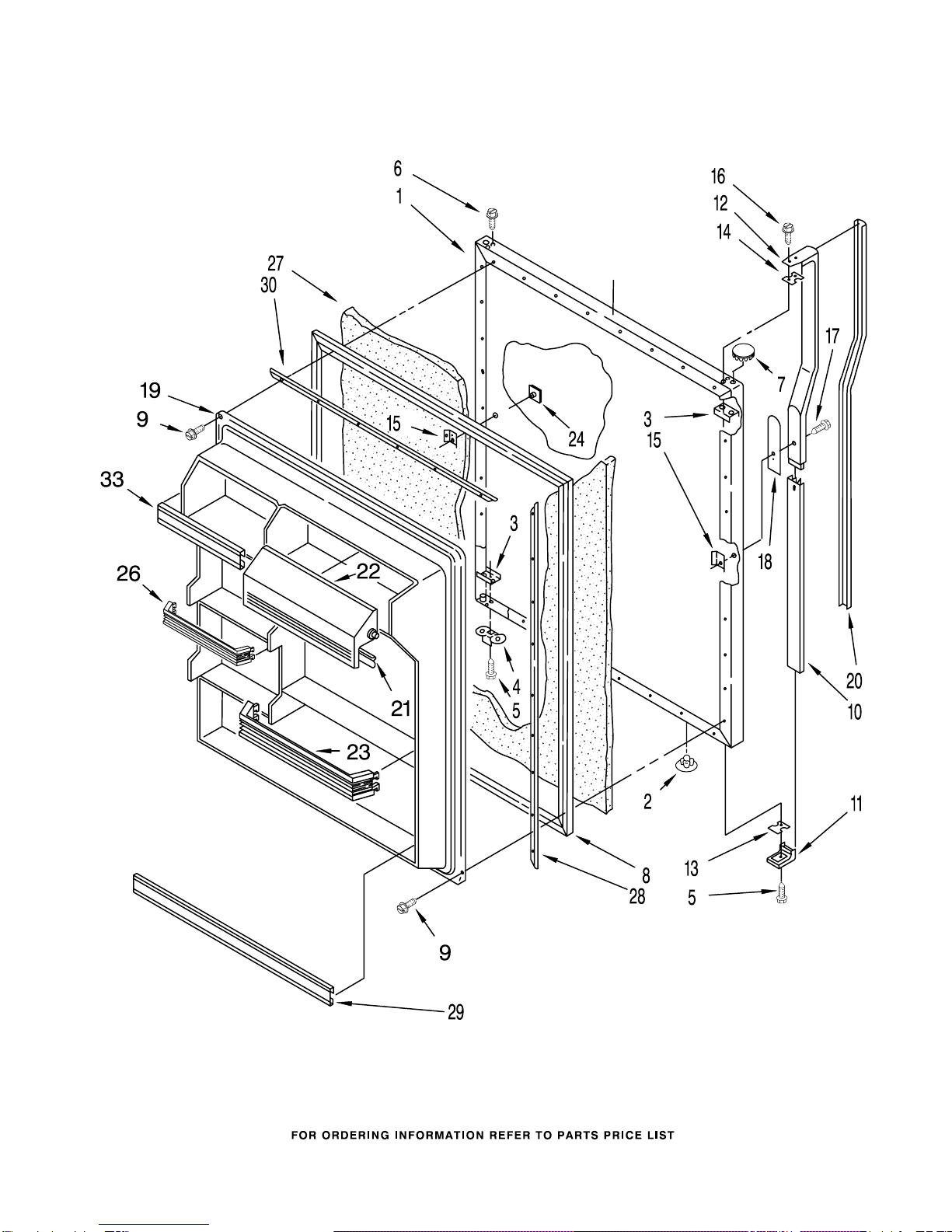

REFRIGERATOR DOOR PARTS

For Model: KTRC22KAWH00, KTRC22KAAL00

(White) (Almond)

4361366

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels KitchenAid Réfrigérateur

KitchenAid

KitchenAid KSRS25CKBL02 Manuel utilisateur

KitchenAid

KitchenAid FOR THE WAY IT'S MADE KSSS48MDX03 Manuel utilisateur

KitchenAid

KitchenAid KSSC36FKB00 Manuel utilisateur

KitchenAid

KitchenAid KFIL27CXMS Manuel utilisateur

KitchenAid

KitchenAid KSRF42DT Manuel utilisateur

KitchenAid

KitchenAid KBLO36FTX00 Manuel utilisateur

KitchenAid

KitchenAid KSRJ25FXMS Instructions de montage

KitchenAid

KitchenAid K2TLEFFWMS - 21.7 cu. Ft. Top-Freezer... Manuel utilisateur

KitchenAid

KitchenAid KUDR204KSB Manuel utilisateur

KitchenAid

KitchenAid KSSC36QMS01 Manuel utilisateur

KitchenAid

KitchenAid KBBX104EPA Manuel utilisateur

KitchenAid

KitchenAid KSCK23FVBL - 23.1 cu. Ft Instructions de montage

KitchenAid

KitchenAid KSSS42DAX03 Manuel utilisateur

KitchenAid

KitchenAid KFCS22EVBL - 21.8 cu. Ft. Refrigerator Manuel utilisateur

KitchenAid

KitchenAid KTRC22KKBL03 Manuel utilisateur

KitchenAid

KitchenAid KSSP48QJS00 Manuel utilisateur

KitchenAid

KitchenAid KSRS25QDAL01 Manuel utilisateur

KitchenAid

KitchenAid KSSO42QTX - 42" - Refrigerator Instructions de montage

KitchenAid

KitchenAid KSSSS36MWX01 Manuel utilisateur

KitchenAid

KitchenAid KURR104EPA Manuel utilisateur

KitchenAid

KitchenAid KFIS29BBMS03 Manuel utilisateur

KitchenAid

KitchenAid KSSO48QTB03 Manuel utilisateur

KitchenAid

KitchenAid FOR THE WAY IT'S MADE KSSS36MDX00 Manuel utilisateur

KitchenAid

KitchenAid KSSS42QKB01 Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur

Teledyne

Teledyne 6712FR and Mode d'emploi
