KitchenAid KSCS25MVMK - 23.7 cu. ft. Refrigerator Instructions d'utilisation

Counter Depth, Side by Side Refrigerator

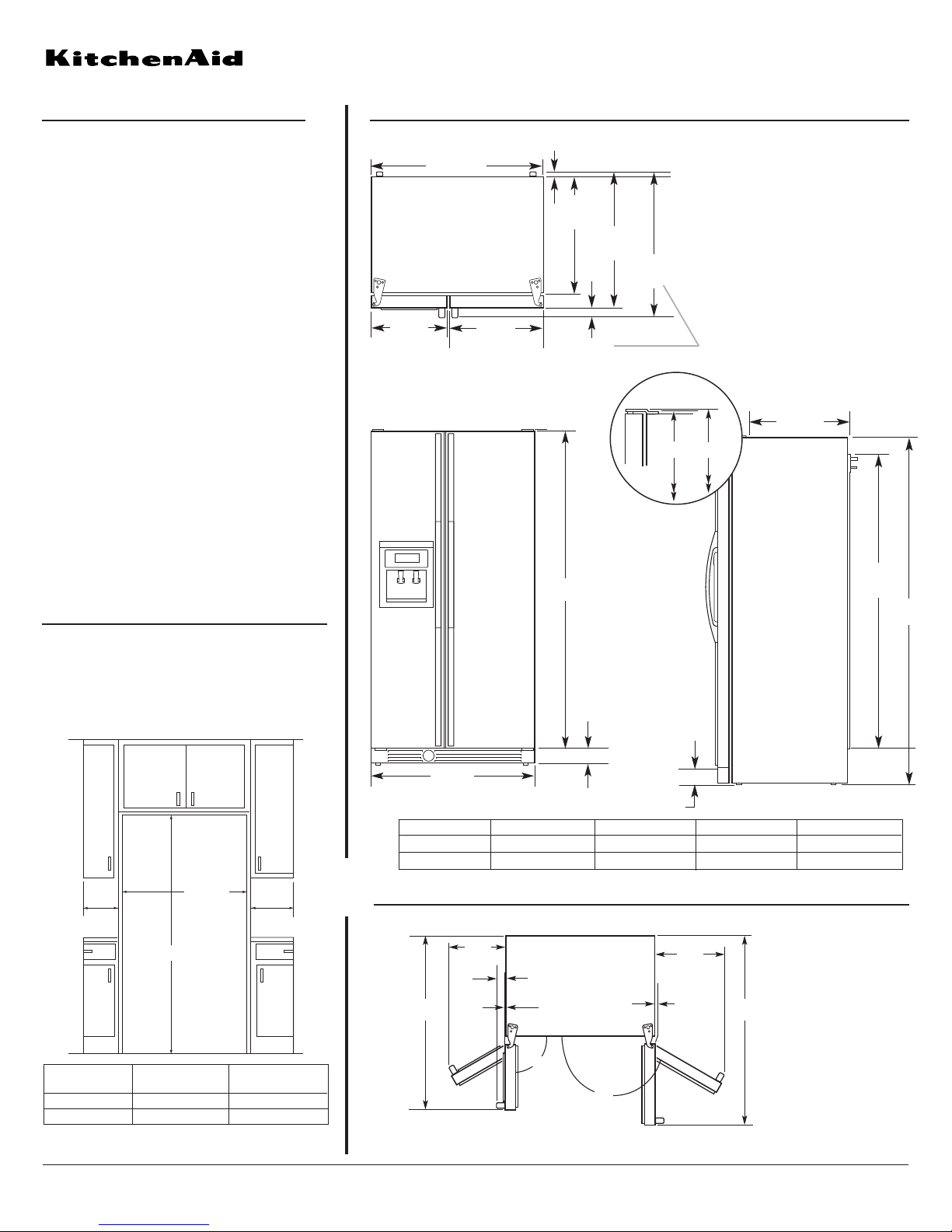

PRODUCT MODEL NUMBERS PRODUCT DIMENSIONS

DOOR SWING DIMENSIONS

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. 2318477

10-14-08

KSCS25MS

KSCS25MT

KSCS25MV

36"

(91.5 cm)

13¹⁄₄"

(34 cm)

16¹⁄₂"

(42 cm)

13⁵⁄₈"

(34.5 cm)

41³⁄₄"

(106 cm)

2⁵⁄₈"

(6.6 cm)

¹⁄₂"

(12.7 mm)

17"

(43.0 cm)

(0.1 mm)

45¹⁄₂"

(115.6 cm

)

90˚

150˚

A. Dimensions may vary based on the model

24"

(61.0 cm)

27¹⁄₂"

(69.7 cm)

30¹⁄₈"

(76.4 cm) max.

35⁵⁄₈"

(90.5 cm)

15⁵⁄₈"

(39.6 cm)

19¹⁄₂"

(49.5 cm) 2⁵⁄₈"

(6.7 cm) max.

³⁄₈"

(95.3 mm)

21¹⁄₄"

(54.1 cm)

66"

(167.7 cm)

3⁵⁄₈" (9.2 cm)

35¹¹⁄₁₆"

(90.6 cm)

3⁵⁄₈"

(9.2 cm)

Model size Door Height "A" "B" "C" "D"

23 cu.ft. (654 L) 64-7/8" (164.8 cm) 68-3/4" (174.6 cm) 68-7/8" (175.0 cm) 68-1/2" (174.0 cm)

25 cu.ft. (694 L) 67-3/4" (172.1 cm) 71-3/4" (182.2 cm) 71-7/8" (182.5 cm) 71-1/2" (181.6 cm)

Height "A" Height "A"

Model size Standard Cabinet Full-overlay*

23 cu.ft. (654 L) 69" (175.3 cm) 69-1/8" (175.6 cm)

25 cu.ft. (694 L) 72" (182.9 cm) 72-1/8" (183.2 cm)

■Height dimensions are shown with the

leveling legs extended to the minimum

height of 1/4" (6.35 mm) below the

refrigerator.

When leveling legs are fully extended

to 1" (25 mm) below the refrigerator,

add 3/4" (19 mm) to the height

dimensions.

■The power cord is 66" (167.7 cm) long.

■The water line attached to the back of

the refrigerator is 78" (198.1 cm) long.

■Height dimensions are shown with the leveling legs

extended to the minimum height of 1/4" (6.35 mm) below

the refrigerator.

NOTE: When leveling legs are fully extended to 1"

(25 mm) below the refrigerator, add 3/4" (19 mm) to the

height dimensions.

■Minimum fixed wall position is 13-1/4" (34 cm) from the

freezer door and 16-1/2" (42 cm) from the refrigerator door.

*For full-overlay cabinet doors with a trim kit, the opening height

must be adjusted as shown.

CABINET OPENING DIMENSIONS

Electrical: A 115 Volt, 60 Hz., AC only 15- or

20-amp fused, grounded electrical supply is

required. It is recommended that a separate circuit

serving only your refrigerator be provided. Use an

outlet that cannot be turned off by a switch. Do not

use an extension cord.

IMPORTANT: The pressure of the water supply

coming out of a reverse osmosis system going to

the water inlet valve of the refrigerator needs to be

between 30 and 120 psi (207 and 827 kPa).

Water Supply: A cold water supply with water

pressure of between 30 and 120 psi (207 and

827 kPa) is required to operate the water dispenser

and ice maker. If you have questions about your

water pressure, call a licensed, qualified plumber.

If a reverse osmosis water filtration system is

connected to your cold water supply, the water

pressure to the reverse osmosis system needs to

be a minimum of 40 to 60 psi (276 to 414 kPa).

The cabinet depth refrigerator can be installed into

a recessed opening, at the end of cabinets or as a

freestanding refrigerator.

Do not install the refrigerator near an oven, radiator,

or other heat source, nor in a location where the

temperature will fall below 55°F.
