KitchenAid KSSS42QJB00 Manuel utilisateur

CABINET PARTS

For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00

(White) (Black) (Biscuit)

7−00 Litho In U.S.A. (mek) Part No. 4398746

42" BUILT IN

REFRIGERATOR

CABINET PARTS

For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00

(White) (Black) (Biscuit)

4398746

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 LITERATURE PARTS

LIT2209249

Use & Care Guide

LIT2209468

Energy Label

LIT2209309

Service & Wiring

Sheet

LIT628370

Modular Icemaker

Service Sheet

LIT2209250

Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2005004 Grommet, Tube

Crossover

4 1112023 Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

2004506 Refrigerator Side

2004505 Freezer Side

6 2005006 Grommet, Wiring

7 2005007 Grommet,

Flexible

8 Cap, Water Filter

2186494W White

2186494B Black

2186494T Biscuit

9 2006442 Mounting Stud,

Grill

10 2005237 Clip, Wire

11 1112849 Cap, Grommet

12 2209022 Housing, Water

Filter

13 1113122 Grommet, Wiring

14 2209060 Wiring Harness,

Cabinet

15 2203220 Filter, Water

16 488946 Tube, Clamp

17 2005378 Screw, Door Stop

18 2005295 Hinge (Top)

19 489478 Screw

20 489464 Screw

21 2004994 Lock, Adjustable

Bushing

22 2002903 Bushing

23 2209090 Clamp, Filter

Housing

24 Spring, Door

Closure

2004566 Refrigerator Side

2004567 Freezer Side

25 486194 Screw

26 2005008 Retaining Ring,

Adjustable Bushing

27 1113227 Fastener (3)

28 2006342 Gap, Cover

Assembly (Bottom)

29 Hinge (Bottom)

2006780 Freezer Side

2006779 Refrigerator Side

30 2004992 Bushing,

Adjustable

31 2001415 Screw

32 Skirt−Grille,

Bottom

2209025W White

2209025B Black

2209025T Biscuit

33 2004516 Linkage, Door

Closure

34 Grille Bottom,

Front

2209428W White

2209428B Black

2209428T Biscuit

35 489238 Screw

36 2004512 Cover, Rear

37 2209203 Grommet, Wiring

39 2006346 Washer

40 2004565 Bushing, Door

Closure

41 1163283 Screw

42 2196152 Union

43 2001415 Screw (4)

CABINET TRIM PARTS

For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00

(White) (Black) (Biscuit)

4398746

Illus. Part

No. No. DESCRIPTION

1 Cabinet, Trim (2)

2006790 White

2006793 Black

2006792 Biscuit

2 2003857 Screw

3 1163283 Screw

4 2209074 Cabinet, Trim

(Bottom)

5 486194 Screw

6 2003646 Cabinet, Trim Top

8 487944 Washer (2)

9 2005925 Seal−Trim, Side

10 489464 Screw

FREEZER LINER PARTS

Illus. Part

No. No. DESCRIPTION

For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00

(White) (Black) (Biscuit)

4398746

1 Liner (Not A

Serviceable Part)

2 2005567 Bracket, Light

3 1113650 Lens

4 2005042 Light, Socket

5 548049 Light, Bulb

6 538533 Support Clip,

Icemaker (2)

7 2000193 Grommet, Screw (2)

8 488552 Screw

12 486194 Screw

13 1112591 Spacer, Control

Panel (3)

14 842534 Clip, Air Duct (4)

16 1112260 Support,

Evaporator

17 2004068 Stud, Shelf (20)

18 487559 Screw

REFRIGERATOR LINER PARTS

For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00

(White) (Black) (Biscuit)

4398746

REFRIGERATOR LINER PARTS

For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00

(White) (Black) (Biscuit)

4398746

Illus. Part

No. No. DESCRIPTION

1 LINER (Not A

Serviceable Part)

2 1112591 Spacer, Control

Panel (3)

5 2001117 Ladder, Shelf (2)

6 520965 Screw Support,

Ladder (8)

7 488357 Screw

8 486194 Screw

9 1112257 Hole Plug

10 2003579 Meat Pan, Air

Duct Cover

11 2000337 Meat Pan, Air Duct

12 2003299 Inlay, Control

Meat Pan

13 2001326 Seal, Air Duct

14 1112218 Damper Control,

Meat Pan

15 2003811 Control Knob,

Meat Pan

16 2003841 Retainer, Knob

17 2004484 Air Baffle

Assembly

21 2208996 Seal

22 1116793 Cover, Thermistor

23 1116959 Thermistor

25 2208953 Air Baffle Cover

26 2003577 Guard, Air Return

REFRIGERATOR CONTROL PANEL PARTS

For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00

(White) (Black) (Biscuit)

4398746

Illus. Part

No. No. DESCRIPTION

1 2209226 Control Panel

2 2209002 Inlay, Control

Panel

3 2208995 Circuit Board

4 2003842 Control Knob

5 2003841 Retainer, Knob

6 1118894 Switch, Rocker Arm

7 1113135 Seal, Control

Panel

8 489260 Screw (3)

9 2000153 Hole Plug (3)

10 2209173 Shield, Control

Panel

11 2005043 Socket, Light

12 548049 Light Bulb (2)

13 486194 Screw

14 2006223 Wire, Light

15 2001141 Channel, Wiring

16 1115375 Clip, Wiring (3)

17 2200096 Lens, Indicator

Light

18 2200097 Retainer, Lens

19 2203384 Circuit Board,

Filter Indicator

20 489214 Screw

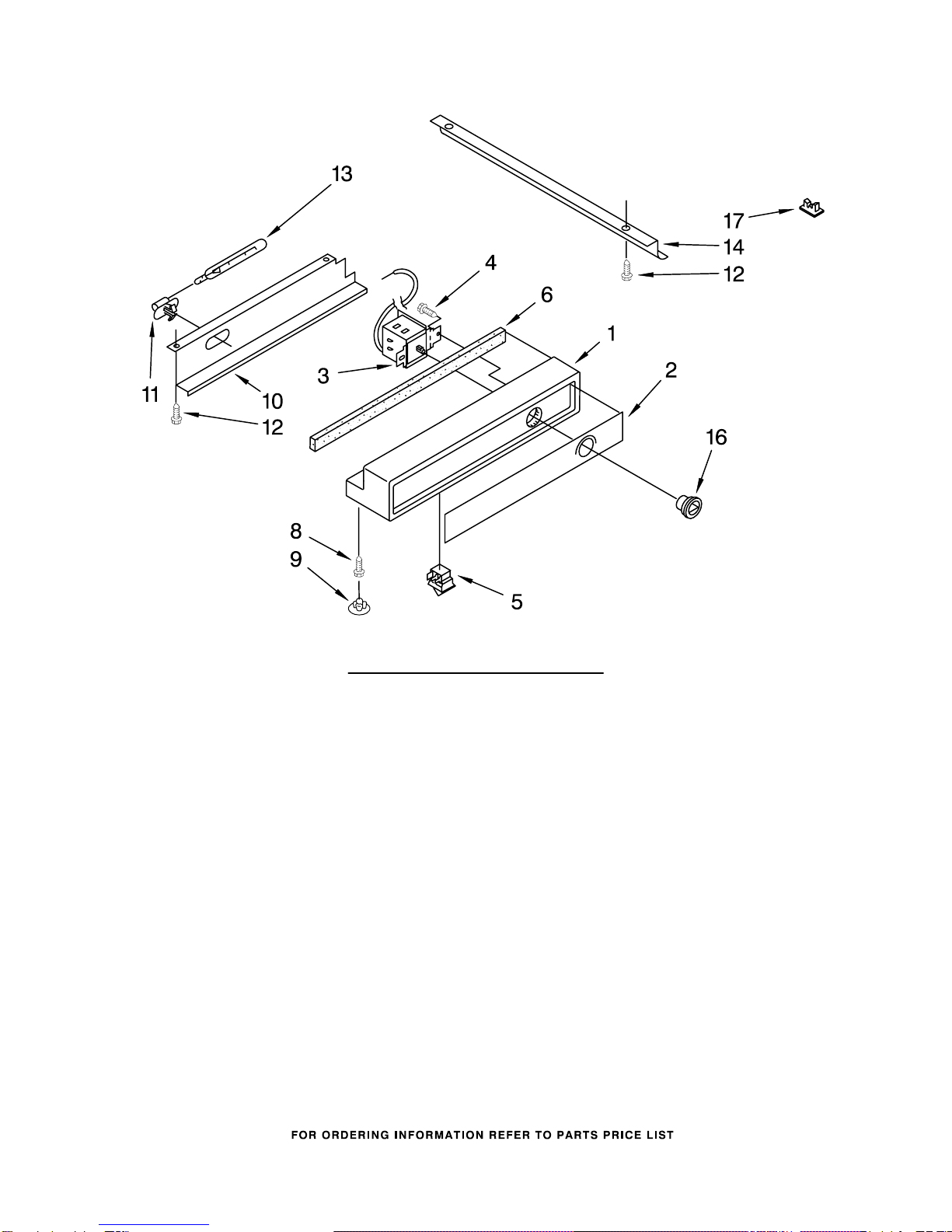

FREEZER CONTROL PANEL PARTS

For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00

(White) (Black) (Biscuit)

4398746

Illus. Part

No. No. DESCRIPTION

1 1113626 Control Panel

2 2003308 Inlay, Control

Panel

3 1113466 Thermostat &

Barrier Assembly

4 488974 Screw (2)

5 1115373 Switch, Rocker Arm

6 1113134 Seal, Control

Panel

8 489260 Screw (3)

9 2000153 Hole Plug (3)

10 2209253 Shield, Control

Panel

11 2005042 Socket, Light

12 486194 Screw

13 548049 Light Bulb

14 2001973 Channel, Wiring

16 2182112 Knob, Thermostat

17 1115375 Clip, Wiring

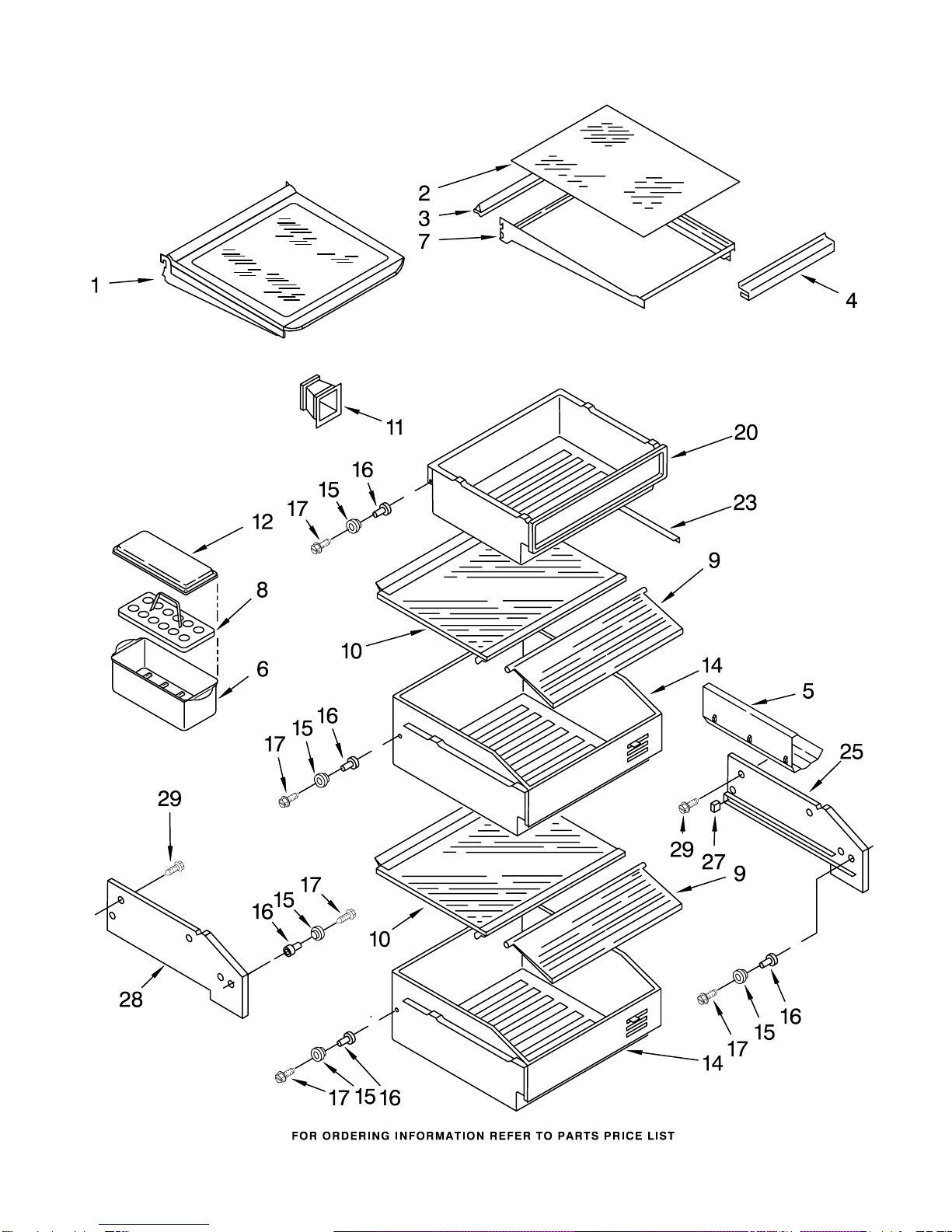

REFRIGERATOR SHELF PARTS

For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00

(White) (Black) (Biscuit)

4398746

REFRIGERATOR SHELF PARTS

For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00

(White) (Black) (Biscuit)

4398746

Illus. Part

No. No. DESCRIPTION

1 2174403 Frame, Shelf

2 2003376 Glass, Shelf

3 1113547 Reflector, Shelf

4 1113791 Gasket, Glass (2)

5 2179375 Rack, Wine

6 2169933 Egg Bin

7 2006524 Frame, Assembly

Meat Pan

8 2164373 Egg Carrier

9 1113894 Cover, Crisper

10 2003379 Glass, Crisper

(Includes #9)

11 2000742 Meat Pan,

Connector

12 2169935 Cover

14 2006545 Crisper Pan (2)

15 2188212 Roller

16 2174478 Eyelet, Roller

17 2003478 Screw

20 2006530 Meat Pan

23 2002181 Retainer, Glass

25 2003411 Crisper Spacer,

Right Side (2)

27 1113169 Stop, Roller

28 2003410 Crisper Spacer,

Left Side (2)

29 486194 Screw
