KitchenAid KSSO36QTB00 Manuel utilisateur

CABINET PARTS

For Models: KSSO36QTB00, KSSO36QTX00

(Black) (Etched Aluminum)

10−07 Litho In U.S.A. (dmm) Part No. W10138599 Rev. B

36" BUILT IN

REFRIGERATOR

CABINET PARTS

For Models: KSSO36QTB00, KSSO36QTX00

(Black) (Etched Aluminum)

W10138599

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2316571 Use & Care Guide

2316572 Energy Guide

2316566 Service & Wiring

Sheet

2306424 Icemaker and

Ingredient Care

Center Service

Sheet

2318069 Main Control

Service Sheet

2316565 Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2260503B Button, Filter

W10138054

Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

2318194 Refrigerator Side

2318193 Freezer Side

8 Cap, Water Filter

2260518B Black

9 2307640 Mounting Stud,

Grille

10 2307584 Grommet, Crossover

Tube

11 2005783 Cam, Door Closer

12 2260526 Housing, Water

Filter

13 2318189 Tray, Drip Filter

14 3400525 Screw

15 4396841 Filter, Water

16 489399 Screw

17 3400230 Screw, Door Stop

18 Hinge (Top)

2252292B RC, Black

2252292 RC, Chrome

2252291B FC, Black

2252291 FC, Chrome

19 2318190 Bracket, Mtg

(Water Filter)

20 489464 Screw

21 2004994 Lock, Adjustable

Bushing

22 2300082 Bushing

23 487522 Screw

24 Spring, Door

Closure

2221242 Right Side

2004517 Left Side

25 486194 Screw

26 2005008 Retaining Ring,

Adjustable Bushing

W10129069

Wire Clip (5)

28 2006342 Gap, Cover

Assembly (Bottom)

29 Hinge (Bottom)

2309472 Freezer Side

2309471 Refrigerator Side

30 2302876 Bushing,

Adjustable

31 8533913 Screw 1/4−20 x 5/8

32 Skirt−Grille,

Bottom

2209024B Black

33 Extension Arm,

Door Closer

2267192B Right, Black

2267192 Right, Chrome

2267193B Left, Black

2267193 Left, Chrome

34 Grille Bottom,Front

2325184B Black

35 2005921 Screw

36 Bracket, Support

Base (Front)

2006616 Left

2006556 Right

37 1157158 Screw

38 2006617 Bracket, Support

Base (Rear) (2)

39 2006346 Washer

40 2266880 Bushing,

Extension Arm

41 1163283 Screw

42 Connector, Water

Tube

2320322 5/16−1/4"

2300868 1/4"

43 8281163 Screw

44 Switch, Rocker Arm

1118894 Refrigerator Door

Side

1115373 Freezer Door Side

45 2215938 Cover, Switch (2)

46 487415 Screw (2)

47 Bracket, Switch

2221097 Right

2221096 Left

48 2215612 Cover, Rear

CABINET TRIM PARTS

For Models: KSSO36QTB00, KSSO36QTX00

(Black) (Etched Aluminum)

W10138599

Illus. Part

No. No. DESCRIPTION

1 Cabinet, Trim

(Right Side)

W10132410

Black

W10132411

Stainless Steel

3 1163283 Screw

4 2316686 Cabinet, Trim

(Bottom)

5 486194 Screw

6 Cabinet, Trim Top

2313960B Black

2313960S Stainless Steel

7 Cabinet Trim

(Left Side)

W10132415

Black

W10132416

Stainless Steel

W10121451

Nutsert (4)

9 2005925 Seal−Trim, Side

10 489464 Screw

FREEZER SHELF PARTS

For Models: KSSO36QTB00, KSSO36QTX00

(Black) (Etched Aluminum)

W10138599

Illus. Part

No. No. DESCRIPTION

1 2302867 Wire, Shelf (4)

3 2302882 Shelf, Fixed (2)

4 2259081 Basket

5 2256269 Front, Basket

6 Slide, Basket

2259317 Right Side

2259318 Left Side

7 8533928 Screw

REFRIGERATOR LINER PARTS

For Models: KSSO36QTB00, KSSO36QTX00

(Black) (Etched Aluminum)

W10138599

REFRIGERATOR LINER PARTS

For Models: KSSO36QTB00, KSSO36QTX00

(Black) (Etched Aluminum)

W10138599

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2306010 Thermistor

3 2208970 Air Duct

5 2259077 Ladder, Shelf (2)

6 520965 Screw Support,

Ladder (8)

7 2006475 Screw

8 487539 Screw

9 2302937 Thermistor

10 2302986 Lid, Meat Pan

Baffle

11 2320635 Baffle Control

Assembly

12 2171846 Release Valve

13 2310205 Jumper, Air Baffle

14 488357 Screw

15 486194 Screw

17 2221296 Air Baffle

Assembly

18 2327509 Reservoir

19 488280 Screw

21 2309222 Diffuser Assembly

22 2317105 Cover, Thermistor

23 2188820 Thermistor

24 2302992 Spacer, Air−

Baffle

25 2309087 Cover, Diffuser

27 2259412 Seal, Air Duct

(Round Hole)

28 2259398 Seal, Air Duct

(Square Hole)

CONTROL PANEL PARTS

For Models: KSSO36QTB00, KSSO36QTX00

(Black) (Etched Aluminum)

W10138599

Illus. Part

No. No. DESCRIPTION

1 2316544 Control Box Assy

2 2317000 Clip, Box

4 2310390 Wire, Jumper

5 2324971 Bracket,

Control Box

6 2307594 Shield,

Control Box

7 487539 Screw (2)

8 2306086 Display,

Ingredient Care

Center

9 2223857 Socket, Light

10 2326255 Light Bulb (2)

11 8281185 Screw

TOP GRILLE AND UNIT COVER PARTS

For Models: KSSO36QTB00, KSSO36QTX00

(Black) (Etched Aluminum)

W10138599

Illus. Part

No. No. DESCRIPTION

1 Top Grille Assy

2313977B Black

2313977S Stainless Steel

2 2320502 Cover, Unit

3 486194 Screw

4 2256466 Back Panel

W10121229

Cover, Unit Front

6 487415 Screw

7 2310194 Wire Assembly

RC/FC Light Switch

9 489348 Clamp

10 2003347 Tee Bolt (4)

11 1161548 Nut (4)

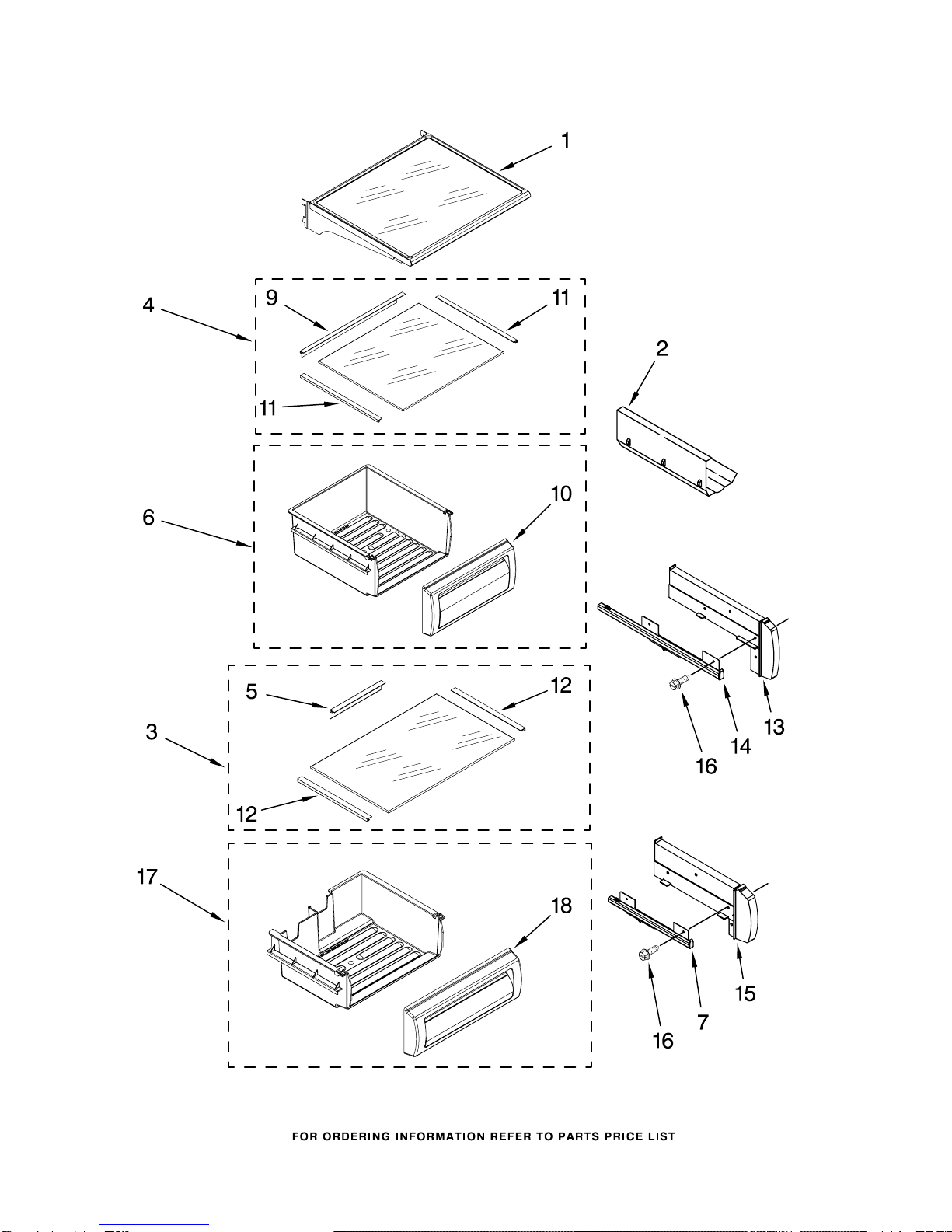

REFRIGERATOR SHELF PARTS

For Models: KSSO36QTB00, KSSO36QTX00

(Black) (Etched Aluminum)

W10138599

REFRIGERATOR SHELF PARTS

For Models: KSSO36QTB00, KSSO36QTX00

(Black) (Etched Aluminum)

W10138599

Illus. Part

No. No. DESCRIPTION

1 2222591 Shelf Assy (4)

2 2179404 Rack, Wine

3 2302841 Assembly, Meat Pan

Cover

4 2302834 Assembly, Crisper

Cover

5 2257581 Trim, Glass Rear

6 2252411 Crisper Pan (2)

7 Slide, Meat Pan

2302954 Left Side

2302955 Right Side

9 2256253 Trim, Glass Rear

10 2256247 Front, Crisper

Pan

11 2252255 Trim, Glass Side

Crisper Pan

12 2256250 Trim, Glass Side

Meat Pan

13 Spacer, Crisper

2256222 Right Side (2)

2256223 Left Side (2)

14 Slide, Crisper

2302956 Right Side

2302957 Left Side

15 Spacer, Meat Pan

2256243 Left Side

2256244 Right Side

16 Screw

8533929 Right Side−

(8−18 x 1.375)

8533928 Left Side−

(8−18 x .750)

17 2256368 Pan Assembly

Meat

18 2256365 Front, Meat Pan
