KitchenAid KBLS22EVMS00 Manuel utilisateur

CABINET PARTS

For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00

(White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH)

10−08 Litho In U.S.A (mat) (psw)(bay) Part No. W10234663 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00

(White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH)

W10234663

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10137649

Use & Care Guide

W10212714

Energy Guide

W10168777

Tech Sheet

2 Cabinet (Not a

Serviceable Part)

3 Plug, Button (3)

67001130 White

67001131 Black

4 67003729 Tube, Plastic

12580304KVF

Roller Foot

Assembly

6 12627302 Clip, Grille

7 67006642 Pin, Center Hinge

9 67006287 Screw

10 12456801 Bracket, Roller

11 67006380 Screw

12 67006473 Screw

13 A3076901 Plug, Button

14 67006303 Screw

15 Hinge, Center

67006960 White

67007043 Black

12607103AP

Apollo Grey

16 67003868 Foot Brake (2)

17 Cover, Corner

67003484 White

67003485 Black

12587703AP

Apollo Grey

12566606ED

Hinge, Top Left

W10208641

Bracket, Foot (2)

20 67006564 Screw (8)

21 Cover, Hinge

67001014 White

67001012 Black

12477601AP

Apollo Grey

22 Grille Assembly

(Includes Clips)

67007004 White

67006954 Black

25 67006425 Screw

27 12751507 Cover, Water Valve

12575101WD

Cover, Unit

30 67003796 Insulation, Sound

W10164397

Tube, Drain

W10157973

Clip, Drain Tube

33 M0286708 Nut, Speed

34 67005127 Roller

35 M1205302 Pin

36 67006737 Screw

W10137519

Elbow, Fill Tube

40 B5759649 Gasket

42 67004092 Block, Filter

43 67006287 Screw

44 67003331 Cover, Water Line

REFRIGERATOR LINER PARTS

For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00

(White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH)

W10234663

REFRIGERATOR LINER PARTS

For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00

(White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH)

W10234663

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

Y67003896

Bracket, Control

and Lights

W10209973

Overlay

W10185585

Module, Control

W10207861

Board, Control

6 C3680310 Switch, Light

7 67003897 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light (2)

Y12570701

Socket, Light (2)

11 67003900 Insert,

Damper Cover

12 67006602 Screw (2)

13 67003899 Cover, Damper

14 67006604 Insulation

W10127429

Control, Damper

(Includes Harness)

16 12002355 Thermistor

12707205SP

Guide, Water

18 67001668 Plate

W10153958

Tank, Water

12706909SP

Dispenser

21 67006400 Screw

22 B8390302 Clip

23 67006524 Head, Water

Filter Assembly

24 12568001 Cover, Filter

UKF8001AXX

Filter, Water

26 12664501 Plug, Filter

Bypass

12707303SP

Plate, Switch

28 67006415 Screw

29 67005674 Cover

30 12575501 Switch, Limit

31 61006182 Union

32 67002816 Clip, Water Tube

Following Parts Not Illustrated

67005644 Harness, Controls

(Refrigerator)

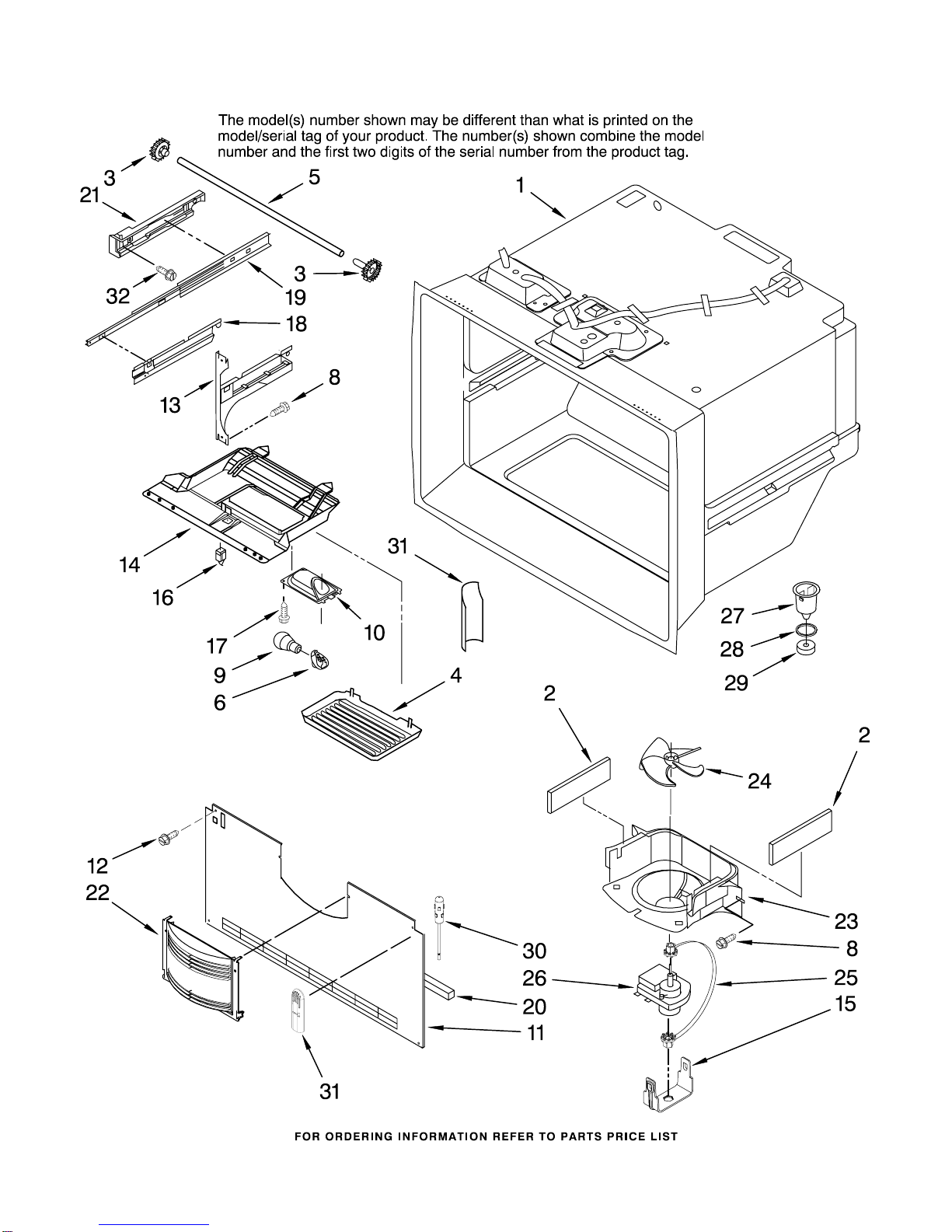

FREEZER LINER PARTS

For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00

(White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH)

W10234663

FREEZER LINER PARTS

For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00

(White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH)

W10234663

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam

3 12002497 Gear (2)

(Includes RT & LT)

4 67003905 Cover, Light

5 67004261 Shaft

Y12570701

Socket, Light

8 67006737 Screw

9 A0282812 Bulb, Light

10 67001035 Housing, Light

11 67005872 Cover, Evaporator

12 67006425 Screw (7)

13 Bracket, Door

W10122147

Left

W10122148

Right

14 67003906 Housing, Lighting

15 10623002 Clip, Evap. Motor

16 67005653 Switch, Light

17 67006530 Screw

18 Cradle, Basket

W10187668

Left

W10187667

Right

W10120018

Slide, Drawer

20 67001776 Gasket, Bottom

21 Adapter, Slide

W10149390

Left

W10149391

Right

W10175909

Grille, Fz Air

W10167023

Shroud, Evap.Fan

24 2169142 Blade, Fan

(Evaporator)

W10150583

Grommet

W10199049

Motor, Evaporator

27 D7753903 Funnel, Drain

28 M0500703 Seal

29 B8381501 Gasket

30 12002355 Thermistor

31 67003924 Cover, Thermistor

32 67006406 Screw (6)

Following Parts Not Illustrated

67006095 Harness, Lights

(Freezer)

REFRIGERATOR DOOR PARTS

For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00

(White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH)

W10234663

REFRIGERATOR DOOR PARTS

For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00

(White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH)

W10234663

Illus. Part

No. No. DESCRIPTION

1 Door, Refrigerator

12658583WQ

White

12658583BQ

Black

13023869SQ

Stainless−RH

13023870SQ

Stainless−LH

2 Plug, Vent

67001130 White

67001131 Black

3 67003819 Door, Dairy

(Includes #4)

4 67001279 Tray, Dairy

5 67005672 Bucket, Shelf (3)

(Medium)

12567321SP

Gripper, Bucket(4)

7 Nameplate

W10046670

White

W10046640

Black

W10046610

Grey

8 Gasket, Door

W10164034

White

W10164035

Black

W10180621

Apollo Grey

9 Handle, Door

W10119642

White

W10119643

Black

W10119644

Stainless

10 67006901 Screw, Handle

11 Closure, Door

67003638 White

67003639 Black

12 67005724 Bucket, Shelf (1)

(Small)

13 Bushing

67004977 White

67004978 Black

14 12690502 Retainer, Door

15 67006287 Screw

16 Plug, Button

10712401 White

67004838 Black

17 Stop, Door

67003779 White

67003780 Black

10447114 Apollo Grey

18 67006113 Mount, Handle

19 67005626 Caddy, Can

FREEZER DOOR PARTS

For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00

(White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH)

W10234663

FREEZER DOOR PARTS

For Models: KBRS22EVWH00, KBRS22EVBL00, KBRS22EVMS00, KBLS22EVMS00

(White)(Black)(Monochromatic Stainless−RH)(Monochromatic Stainless−LH)

W10234663

Illus. Part

No. No. DESCRIPTION

1 Door, Freezer

13092244WQ

White

13092244BQ

Black

W10165719

Stainless

2 Handle, Door

W10119642

White

W10119643

Black

W10119644

Stainless

3 67006113 Mount, Handle

4 Gasket, Door

W10164036

White

W10164037

Black

W10180623

Apollo Grey

5 67006901 Screw

6 Plug, Vent (2)

10712401 White

67004838 Black
