CABINET PARTS

For Model: KSSC42FMS01

(Stainless Steel)

8−05 Litho In U.S.A. (mek) Part No. 8199053

42" BUILT IN

REFRIGERATOR

CABINET PARTS

For Model: KSSC42FMS01

(Stainless Steel)

8199053

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2266808 Use & Care Guide

2306413 Energy Label

2306324 Service & Wiring

Sheet

2306337 Icemaker and

Ingredient Care

Care Center

Service Sheet

2302865 Service Sheet,

Main Control

2266811 Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2004514 Clamp, Tube

4 1112023 Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

2004506 Refrigerator Side

2004505 Freezer Side

6 2005006 Grommet, Wiring

7 2005007 Grommet,

Flexible

8 2186494B Cap, Water Filter

9 2006442 Mounting Stud,

Grill

10 2005004 Grommet, Crossover

Tube

11 2005783 Cam, Door Closer

12 2209022 Housing, Water

Filter

14 3400525 Screw

15 2255709 Filter, Water

16 489399 Screw

17 3400230 Screw, Door Stop

18 2257644 Hinge (Top)

20 489464 Screw

21 2004994 Lock, Adjustable

Bushing

22 2002903 Bushing

23 2209090 Clamp, Filter

Housing

24 Spring, Door

Closure

2221242 Right Side

2004517 Left Side

25 486194 Screw

26 2005008 Retaining Ring,

Adjustable Bushing

27 1113227 Fastener (3)

28 2006342 Gap, Cover

Assembly (Bottom)

29 Hinge (Bottom)

2006780 Freezer Side

2006779 Refrigerator Side

30 2302876 Bushing,

Adjustable

31 8533913 Screw

32 2209025B Skirt−Grille,

Bottom

33 Extension Arm,

Door Closer

2266882 Right

2266881 Left

34 2209428B Grille Bottom,

Front

35 2005921 Screw

36 Bracket, Support

Base (Front)

2006616 Left

2006556 Right

37 1157158 Screw

38 2006617 Bracket, Support

Base (Rear) (2)

39 2006346 Washer

40 2266880 Bushing,

Extension Arm

41 1163283 Screw

43 488500 Screw

44 Switch, Rocker Arm

1118894 Refrigerator Door

Side

1115373 Freezer Door Side

45 2215938 Cover, Switch (2)

46 487415 Screw

47 Bracket, Cover

2221097 Right

2221096 Left

48 2215612 Cover, Rear

49 488937 Clamp, Tube

CABINET TRIM PARTS

For Model: KSSC42FMS01

(Stainless Steel)

8199053

Illus. Part

No. No. DESCRIPTION

1 Cabinet, Trim

(Right Side)

2222552S Stainless Steel

3 Screw

8281250 Stainless Steel

4 2254725 Cabinet, Trim

(Bottom)

5 486194 Screw

6 2257367 Cabinet, Trim Top

7 Cabinet Trim

(Left Side)

2222553S Stainless Steel

9 2005925 Seal−Trim, Side

10 489464 Screw

FREEZER SHELF PARTS

For Model: KSSC42FMS01

(Stainless Steel)

8199053

Illus. Part

No. No. DESCRIPTION

1 2302868 Wire Shelf

2 2266934 Front, Ice

Compartment

3 2302883 Shelf, Fixed (2)

4 2259082 Basket

5 2256270 Front, Basket

6 Slide, Basket

2259317 Right Side

2259318 Left Side

7 486194 Screw

8 2266955 Spacer

10 2266931 Ice Bucket

18 2302871 Cover, Shelf

REFRIGERATOR LINER PARTS

For Model: KSSC42FMS01

(Stainless Steel)

8199053

REFRIGERATOR LINER PARTS

For Model: KSSC42FMS01

(Stainless Steel)

8199053

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2306010 Thermistor

3 2208970 Air Duct

4 2209204 Clip, Thermistor

5 2259077 Ladder, Shelf (2)

6 520965 Screw Support,

Ladder (4)

7 2006475 Screw

8 486194 Screw

10 2302986 Lid−Baffle,

Meat Pan

11 2302987 Baffle Assembly

Control

12 2171846 Release Valve

13 2187619 Air Baffle,

Jumper Harness

14 488357 Screw

15 486194 Screw

17 2221296 Air Baffle

Assembly

20 2302937 Thermistor

21 2208997 Diffuser Assembly

22 1116793 Cover, Thermistor

23 2188820 Thermistor

24 2302992 Spacer, Air Baffle

25 2215728 Cover, Diffuser

26 2259066 Cover, Air Return

27 2259412 Seal, Air Duct

(Round Hole)

28 2259398 Seal, Air Duct

(Square Hole)

CONTROL PANEL PARTS

For Model: KSSC42FMS01

(Stainless Steel)

8199053

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2302772 Control Box

2 2215670 Insert, Control

Box

3 2266951 Circuit Board,

Housing Control

4 2187424 Control Box

Wire Harness

6 2221121 Support, Control

Bracket

7 489006 Screw

9 2306086 Display Assembly,

Ingredient Care

Center

11 2162085 Socket, Light (2)

12 2255743 Light Bulb (2)

13 486194 Screw

14 8281185 Screw

15 2257519 Overlay

16 2302717 Shield, Light

TOP GRILLE AND UNIT COVER PARTS

For Model: KSSC42FMS01

(Stainless Steel)

8199053

Illus. Part

No. No. DESCRIPTION

1 Panel, Decorator

2257411S Stainless steel

2 2259320 Cover, Unit

3 487415 Screw

4 2256466 Back Panel

5 2302974 Cover−Unit, Front

6 2005292 Nameplate

7 2215910 Grommet

9 2004333 Nut

11 2254759 Bracket, Louver

12 Grille, Louver

2254761S Stainless steel

13 488879 Screw

14 487415 Screw

15 2187429 Wire Assembly,

RC/FC Light Switch

16 489348 Clamp

REFRIGERATOR SHELF PARTS

For Model: KSSC42FMS01

(Stainless Steel)

8199053

REFRIGERATOR SHELF PARTS

For Model: KSSC42FMS01

(Stainless Steel)

8199053

Illus. Part

No. No. DESCRIPTION

1 2222592 Shelf Assembly

5 2179404 Rack, Wine

6 2221071 Egg Bin

9 2302842 Glass, Meat Pan

Assembly

10 2302835 Glass, Crisper

Assembly

11 2257611 Trim, Glass (Side)

12 2169935 Cover

13 2257582 Trim, Glass (Rear)

14 2252412 Crisper Pan (2)

17 Slide, Meat Pan

2302955 Right Side

2302954 Left Side

18 Trim, Glass−Front

(Not Serviced

Seperately)

19 2256254 Trim, Glass (Rear)

21 2256248 Front, Crisper Pan

23 2256250 Trim, Glass (Side)

(Meat Pan)

24 2252255 Trim, Glass (Side)

(Crisper Pan)

25 Spacer, Crisper

2256222 Right Side (2)

2256223 Left Side (2)

27 Slide, Crisper

2302957 Right Side

2302956 Left Side

28 Spacer, Meat Pan

2256244 Right Side (2)

2256243 Left Side (2)

29 Screw

8533929 Right Side

8533928 Left Side

30 2256369 Meat Pan Assy

31 2256366 Front, Meat Pan

Table des matières

Autres manuels KitchenAid Réfrigérateur

KitchenAid

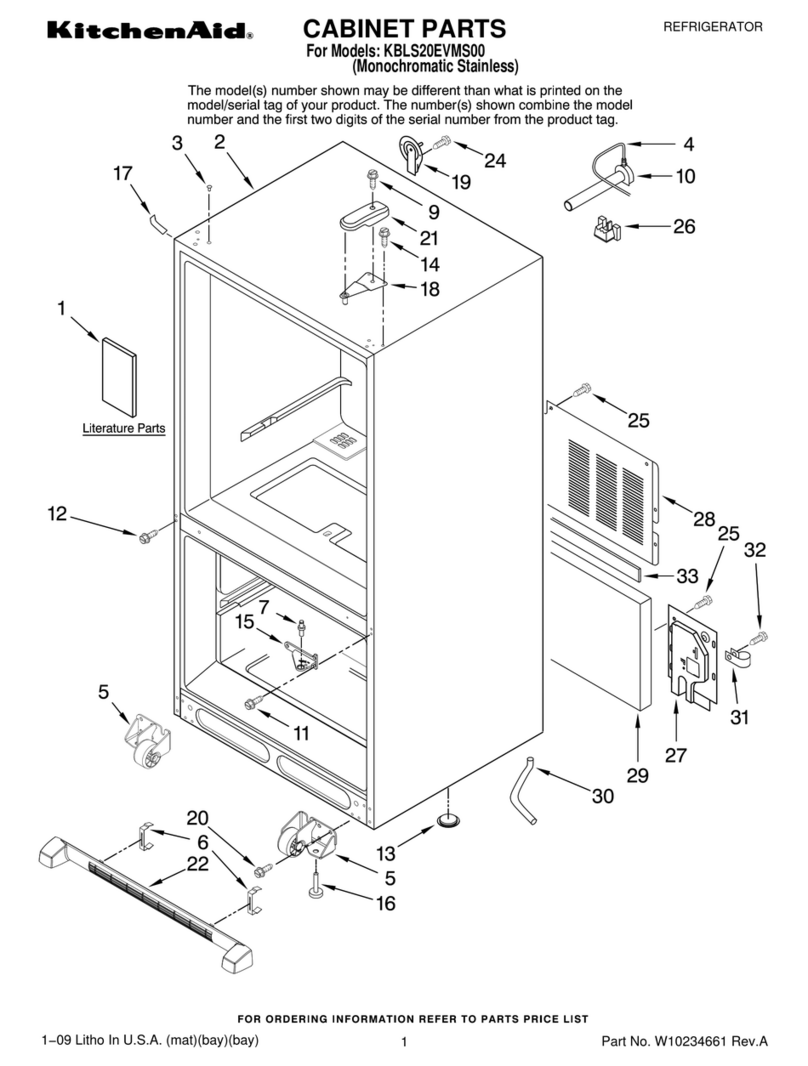

KitchenAid KBLS20EVMS00 Manuel utilisateur
