KitchenAid KSRS25QDAL01 Manuel utilisateur

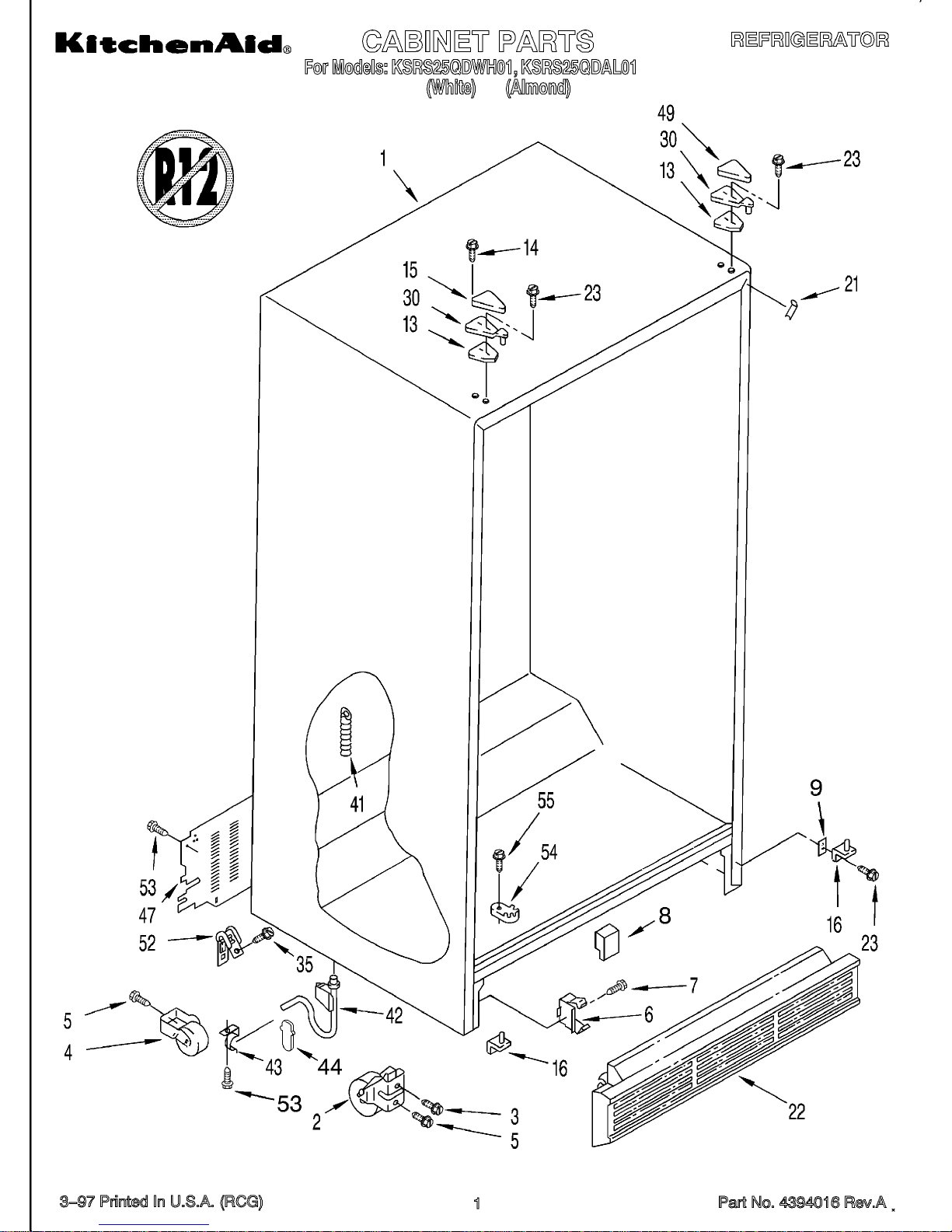

1 Cabinet (Not A Serviceable Part)

2 2174748 Front Roller (2)

3 489456 Screw

4 981122 Roller (Rear) (2)

5 489427 Screw

6 2155013 Clip, Grille

7 489242 Screw

8 2176796 Insert, Air Baffle

9 2156056 Shim

13 2171868 Shim, Hinge Top

14 489284 Screw

15 Hinge Cover

1129262 White

2150343 Almond

16 2171851 Hinge Bottom (2)

21 Filler, Wrapper

1110708 White

1110709 Almond

22 Grille

2155486 White

2155487 Almond

23 489367 Screw

30 2171865 Hinge, Top (2)

35 489337 Screw

41 940139 Drain Fitting

42 2172932 Tube, Extension

43 1108439 Clip, Drain Tube

44 2172957 Flapper, Drain Extension

47 2176140 Cover, Unit

49 Hinge Cover

1119787 White

1119789 Almond

52 549193 Clamp, Service Cord

53 489084 Screw

54 2155311 Door Closer, Lower Cam (2)

55 489420 Screw

1 Liner (Not A Serviceable Part)

2 2182761 Escutcheon, Meat Pan Control

3 2182757 Slide Meat Pan Control

5 2171846 Release Valve

6 2172943 Stud (2)

8 1110718 Stud (10)

9 2181796 Ladder, Shelf (2)

11 486298 Screw (2)

12 487539 Screw

16 2179375 Rack, Wine & Egg

22 1123919 Bracket Retainer

23 489290 Screw (2)

24 2161467 Air Diffuser Assembly

25 2161470 Air Diffuser Cover

26 2150331 Cover, Conduit

29 2162085 Socket

30 842534 Clip, Air Duct

31 2155290 Reservoir

33 527949 Light Bulb

34 2174436 Light Lens

37 488280 Screw (2)

1 2172930 Control Box

2 2172948 Tube Barrier, Thermostat

3 489214 Screw (3)

4 2149705 Light Switch

5 2161461 Thermostat (FC)

6 2169267 Adaptive Defrost Control

7 489398 Screw (2)

9 2161460 Thermostat (R.C.)

10 2172940 Window

11 2172906 Grommet, Light Bar

12 2161466 Slide, Thermostat

13 489084 Screw (2)

14 2179920 Light Bar (RC)

16 489290 Screw (2)

17 2162085 Light Socket

18 2172931 Heat Shield

19 946059 Light Bulb

20 2172953 Control Box Harness

21 1115374 Clip, Wiring

22 1115375 Clip, Wiring

25 2161486 Escutcheon, Control Box

26 2179921 Light Bar (FC)

27 2172941 Window

1 2174023 Shelf Assembly, Cantilever (2)

2 2174253 Button, Humidity

3 2174252 Slide, Humidity

4 2174273 Gasket, Side (2)

5 2161491 Cover, Meat Pan (Includes Items 13, 14 & 15)

8 2189526 Glass, Cover

9 2174250 Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14 & 19)

11 2174272 Gasket (Front)

12 2174274 Gasket (Rear)

13 2174478 Eyelet, Roller

14 2174388 Roller

15 489211 Screw

16 2179227 Crisper Pan (Includes 13, 14, 18, 19 & 21)

17 2179231 Meat Pan (Includes 13, 14, 19 & 22)

18 2174076 Window, Crisper

19 489261 Screw

20 2176095 Deflector

21 Cap, Crisper Pan

2174259 Right Side

2174258 Left Side

22 2174362 Window, Meat Pan

23 2169933 Egg Bin

24 2164373 Egg Carrier

25 2169935 Cover

26 2174387 Frame And Roller Asm. (Cantilever)

27 2174021 Shelf & Roller Assembly

28 489439 Screw

30 2168792 Carriage

31 2179486 Roller, Front (2)

32 2179487 Roller, Rear (2)

33 2168793 Round Pan

34 2174363 Divider (1/2)

35 2174364 Divider (1/4)

1 Liner (Not A Seviceable Part)

2 2174493 Shelf, Top Compartment

3 2171713 Door, Ice Compartment

4 940014 Hole Plug

5 946356 Stud, R.S. Front

6 842534 Clip, Air Duct (2)

7 1115317 Support, Stud (4)

8 946355 Support, Stud (2)

9 2176134 Grommet (2)

10 Slide, Container

1119237 Left Side

1119293 Right Side

11 2174267 Shelf

12 489100 Screw (4)

14 2155572 Cover, Wiring

15 489355 Screw

17 Shelf Track

2181760 Right Side (3)

2181759 Left Side (3)

18 487042 Screw

19 1115373 Switch, Rocker Arm

20 489242 Screw

21 2181763 Basket, Shallow

22 2171767 Front, Basket

23 2181765 Basket, Square

24 2171766 Front, Basket

25 2181764 Basket, Sloped

27 1115386 Stud, Shelf (4)

29 2171705 Light Lens

30 1106982 Stud, R.S. Rear

32 2162085 Socket, Light

33 527949 Bulb, Light
