CABINET PARTS
1
For Models: KSRS25ILWH13, KSRS25ILBT13, KSRS25ILBL13, KSRS25ILSS13
(White) (Biscuit) (Black) (Stainless Steel)
10−03 Printed In U.S.A. (kdj) Part No. 8198773
REFRIGERATOR
CABINET PARTS
2
For Models: KSRS25ILWH13, KSRS25ILBT13, KSRS25ILBL13, KSRS25ILSS13
(White) (Biscuit) (Black) (Stainless Steel)
8198773
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
LITERATURE PARTS
1
LIT2261499
Energy Guide
LIT2255706
Owner’s Manual
LIT2255376
Service & Wiring
Sheet
LIT2220407
Modular Icemaker
Service Sheet
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
LIT787316
Icemaker
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8 Shim
2156056 (2)
9 2203771 Hinge Top (RC)
10 2203098 Plate, Screw
11 8281227 Screw
12 Hinge Cover
2203407W White
2203407T Biscuit
2203407B Black
13 2217075 Hinge Bottom (2)
14 Filler, Wrapper
2196094 White
2196150 Biscuit
2196097 Black
15 Grille
2186881W White
2186881T Biscuit
2186881B Black
16 489497 Screw
17 489464 Screw
18 940139 Drain Fitting
19 1108438 Extension Tube
20 1108439 Clip, Drain Tube
21 2188739 Cover, Unit
22 Cabinet (Not A
Serviceable Part)
23 Hinge Cover
2203408W White
2203408T Biscuit
2203408B Black
24 549193 Clamp, Service
Cord
25 489084 Screw
26 2155311 Door Closer,
Lower Cam (2)
27 489483 Screw
28 2186443 Housing, Water
Filter
29 2203220 Water Filter
30 Cap, Water
Filter
2186494W White
2186494T Biscuit
2186494B Black
31 489500 Screw
32 3400113 Screw
33 3400103 Screw
36 2203770 Hinge Top (FC)
REFRIGERATOR LINER PARTS
3
For Models: KSRS25ILWH13, KSRS25ILBT13, KSRS25ILBL13, KSRS25ILSS13
(White) (Biscuit) (Black) (Stainless Steel)
8198773
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2194744 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2182147 Louver
6 2256035 Bracket,
Dual Crisper
7 2216113 Thermistor
8 2256037 Wire Harness,
Dual Crisper
9 2206273 Shelf Ladder
10 487539 Screw
11 486298 Screw (2)
15 2216112 Air Diffuser
Assembly
16 2212240 Air Diffuser
Cover
17 2150331 Cover, Wiring
18 2162085 Socket
19 2217199 Reservoir
20 527949 Light Bulb
21 2209769 Light Lens
22 488280 Screw
23 2179404 Rack, Wine & Egg
REFRIGERATOR SHELF PARTS
4
For Models: KSRS25ILWH13, KSRS25ILBT13, KSRS25ILBL13, KSRS25ILSS13
(White) (Biscuit) (Black) (Stainless Steel)
8198773
Illus. Part
No. No. DESCRIPTION
1 2195978 Shelf Assembly,
Cantilever (2)
2 2174253 Button, Humidity
3 2174252 Slide, Humidity
4 2174273 Gasket, Side (2)
5 2223357 Cover, Meat Pan
(Includes Items
13, 14, & 15)
6 2255144 Glass, Cover
7 8281158 Screw
8 2255143 Glass, Cover
9 2256153 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14, & 19)
10 2196483 Stud Assembly
11 2223361 Gasket, (Front)
12 2223362 Gasket, (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 2223358 Crisper Pan
(Includes 13,
14, 18, 19, & 21)
17 2223359 Meat Pan
(Includes 13,
14, 19, & 22)
18 2174076 Window, Crisper
19 489261 Screw
20 2176095 Deflector
21 Cap, Crisper Pan
2223286 Right Side
2223285 Left Side
22 2174362 Window, Meat Pan
23 2216624 Egg Bin
24 2174021 Shelf & Roller
Assembly
25 489439 Screw
26 3400894 Screw
27 2196485 Stud Assembly
32 2188669 Snack, Pan
33 2179243 Trim, Handle
34 2206346 Shelf, Snack Pan

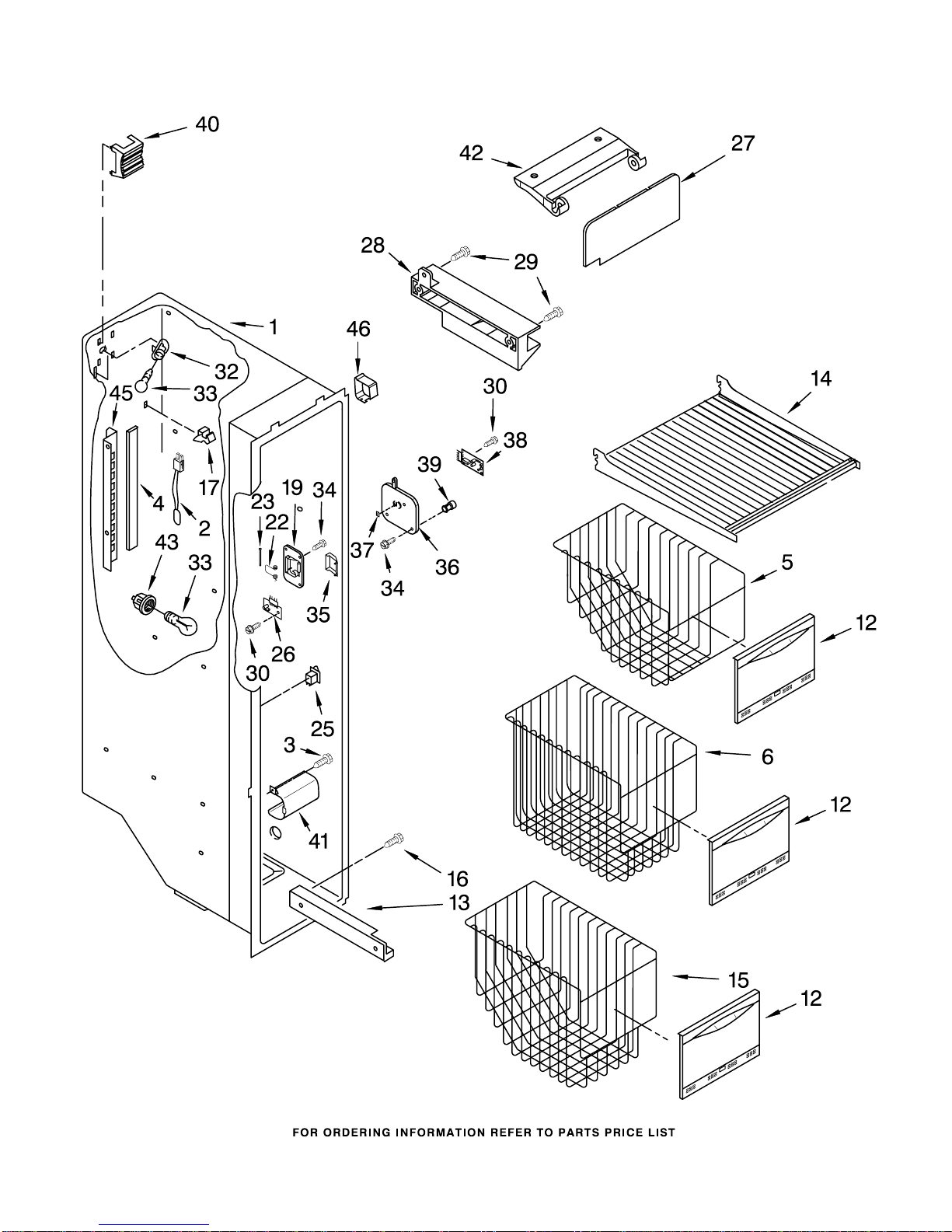

FREEZER LINER PARTS
5
For Models: KSRS25ILWH13, KSRS25ILBT13, KSRS25ILBL13, KSRS25ILSS13
(White) (Biscuit) (Black) (Stainless Steel)
8198773
FREEZER LINER PARTS
6
For Models: KSRS25ILWH13, KSRS25ILBT13, KSRS25ILBL13, KSRS25ILSS13
(White) (Biscuit) (Black) (Stainless Steel)
8198773
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2216113 Thermistor
3 3400893 Screw
4 2198697 Gasket
5 2223538 Basket, Top
6 2223541 Basket, Tall
12 2205826 Basket, Front
13 Shelf Track
2261449 Right Side
2261448 Left Side
14 2205837 Shelf
15 2223536 Basket, Sloped
16 486298 Screw (8)
17 842534 Clip, Air Duct (2)
19 2198587 Cover, Emitter
22 2198635 Spring
23 2198634 Pin
25 1115373 Switch, Rocker Arm
26 2220398 P.C. Board
Emitter
27 2198642 Cover, Ice Maker
28 2212321 Slide, Ice Maker
Mounting
29 489478 Screw
30 489214 Screw
32 2162085 Light Socket
33 527949 Light Bulb
34 8281185 Screw
35 2198633 Flipper
36 2198588 Cover, Receiver
37 2198637 Slide, Ice Maker
Shut Off
38 2255114 P.C. Board,
Receiver
39 2198643 Lens
40 2198589 Light Shield
41 2212340 Light Lens
42 2198641 Bracket, Ice Maker
Cover
43 2155597 Socket, Light
45 Ladder
2198609 Left Side
2198610 Right Side
46 2219878 Shield, Wiring
MOTOR AND ICE CONTAINER PARTS
7
For Models: KSRS25ILWH13, KSRS25ILBT13, KSRS25ILBL13, KSRS25ILSS13
(White) (Biscuit) (Black) (Stainless Steel)
8198773
MOTOR AND ICE CONTAINER PARTS
8
For Models: KSRS25ILWH13, KSRS25ILBT13, KSRS25ILBL13, KSRS25ILSS13
(White) (Biscuit) (Black) (Stainless Steel)
8198773
Illus. Part
No. No. DESCRIPTION
1 2198573 Ice Bin
2 2212367 Crusher Bin
3 2211590 Auger
4 2198603 Blade, Stirring
5 1119007 Spacer, Flat (6)
6 2255460 Cover, Crusher
7 1119013 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2198601 Blade, Fixed
10 1119012 Blade, Rotary
11 2198602 Block, Blade
12 489229 Roll Pin
13 1119006 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2220457 Coupling
17 8281164 Screw
18 3400065 Screw
19 2198605 Button, Bin
20 2212371 Latch, Bin
21 2198608 Spring, Latch
22 2198671 Screw (2)
23 8281163 Screw
24 2212369 Holder
25 2220458 Coupling, Bottom
26 2198628 Seal
27 2212370 Washer
29 2198607 Spring
30 999536 Drive Shaft
31 2198655 Bracket, Motor
32 2198594 Dispenser, Motor
33 2198626 Cover
34 8281162 Screw
35 489478 Screw
36 2212365 Sleeve, Coupling
REFRIGERATOR DOOR PARTS
9
For Models: KSRS25ILWH13, KSRS25ILBT13, KSRS25ILBL13, KSRS25ILSS13
(White) (Biscuit) (Black) (Stainless Steel)
8198773
REFRIGERATOR DOOR PARTS
10
For Models: KSRS25ILWH13, KSRS25ILBT13, KSRS25ILBL13, KSRS25ILSS13
(White) (Biscuit) (Black) (Stainless Steel)
8198773
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item #6)
2207183W White
2207183T Biscuit
2207183B Black
2207183S Stainless
2 2218122 Compartment Door
3 2205821 Shelf Bin (4)
4 3400012 Screw
6 Door Gasket,
Magnetic
2221302 Mist Beige
2221313 Black
7 2193409 Beverage Holder
8 Handle
2207112W White
2207112T Biscuit
2207112B Black
2207112S Stainless Steel
10 2182178 Door Closer,
Upper Cam
11 489420 Screw
12 Bracket, Door Stop
2200082 Chrome
2200082B Black
13 Screw
3400898 White
8281135 Biscuit
3400899 Black
3400897 Chrome
18 2165792 Butter, Dish
20 2159124 Gasket
21 Endcap
2207111W White
2207111T Biscuit
2207111B Black
