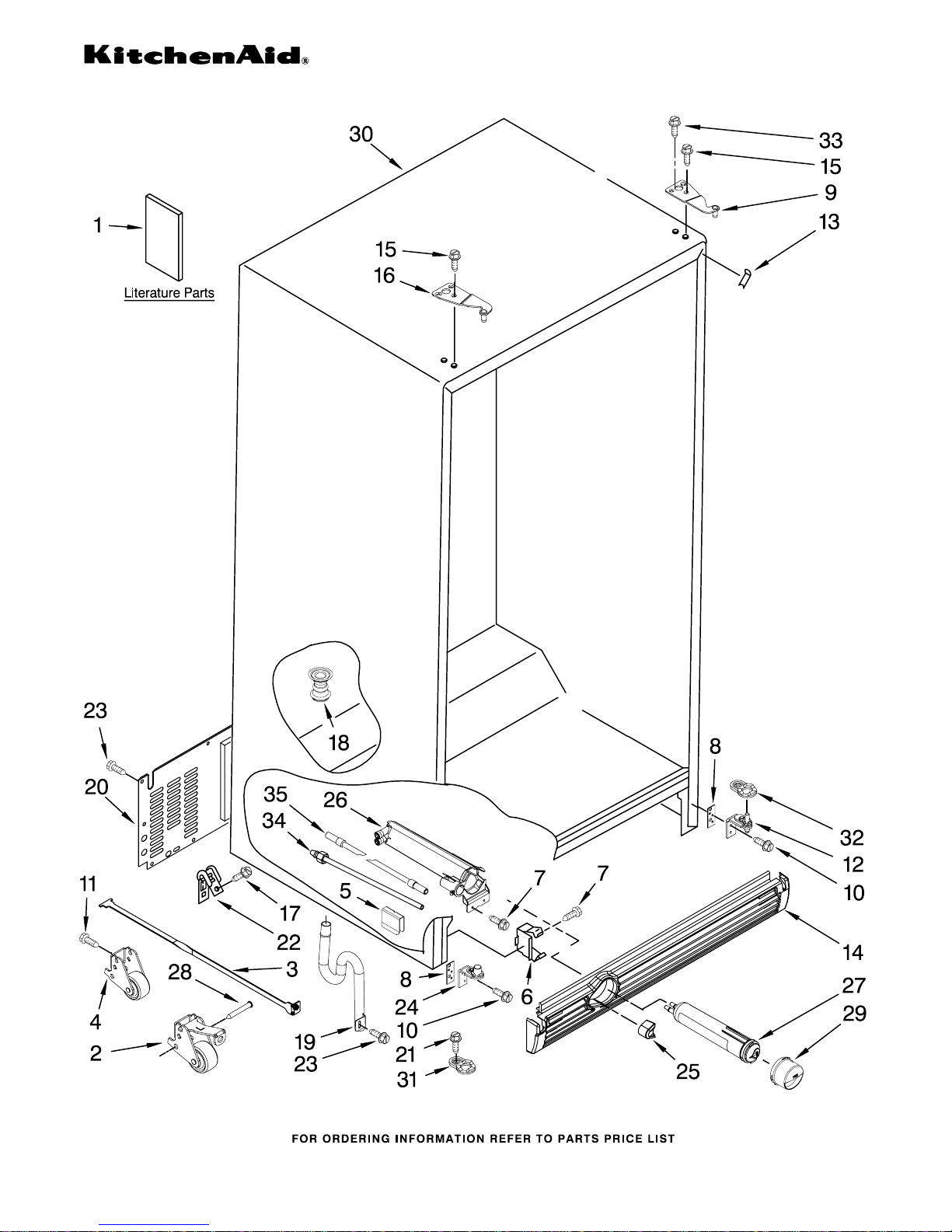

CABINET PARTS
1
For Models: KSBS25IVWH00, KSBS25IVBL00, KSBS25IVSS00
(White) (Black) (Stainless Steel)
04−08 Printed In U.S.A. (jdc) (psw) Part No. W10205706 Rev.A
REFRIGERATOR
CABINET PARTS
2
For Models: KSBS25IVWH00, KSBS25IVBL00, KSBS25IVSS00
(White) (Black) (Stainless Steel)
W10205706
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10162434
Use & Care Guide
W10142175
Service & Wiring
Sheet
W10194146
Energy Guide
628370 Modular Icemaker
Service Sheet
2223996 Installation
Instructions
2 Front Roller Asm
2306950 Left Side
2306951 Right Side
3 2223263 Strap, Roller
4 2306949 Roller, Rear (2)
5 2223388 Clip, Retainer (4)
6 2155013 Clip, Grille
7 489478 Screw
8 2223545 Shim
9 Hinge Top, RC
2307008W White
2307008B Black
10 3400113 Screw
11 3400243 Screw
12 2307179 Hinge Assembly,
Bottom−RC
Includes # (34)
13 Filler, Wrapper
2223893W White
2223893B Black
14 Grille
W10194047
White
W10194057
Black
15 3400108 Screw
16 Hinge, Top FC
2307007W White
2307007B Black
17 489464 Screw
18 2304888 Drain Fitting
19 2254566 Tube, Extension
20 2223409 Cover, Unit
21 489483 Screw
22 549193 Clamp, Service
Cord
23 489084 Screw
24 2307152 Hinge Assembly,
Bottom−FC
Includes #31
25 Button, Water
Filter
2260503W White
2260503B Black
26 2260526 Housing, Water
Filter
27 4396841 Water Filter
28 2223387 Pin, Roller(4)
29 Cap, Water
Filter
2260502W White
2260502B Black
30 Cabinet (Not A
Serviceable Part)
31 2307051 Door Closer (FC)
32 2307049 Door Closer (RC)
33 3400858 Screw
34 2224020 Tube, Filter
Outlet
35 2319867 Tube, Filter
Inlet

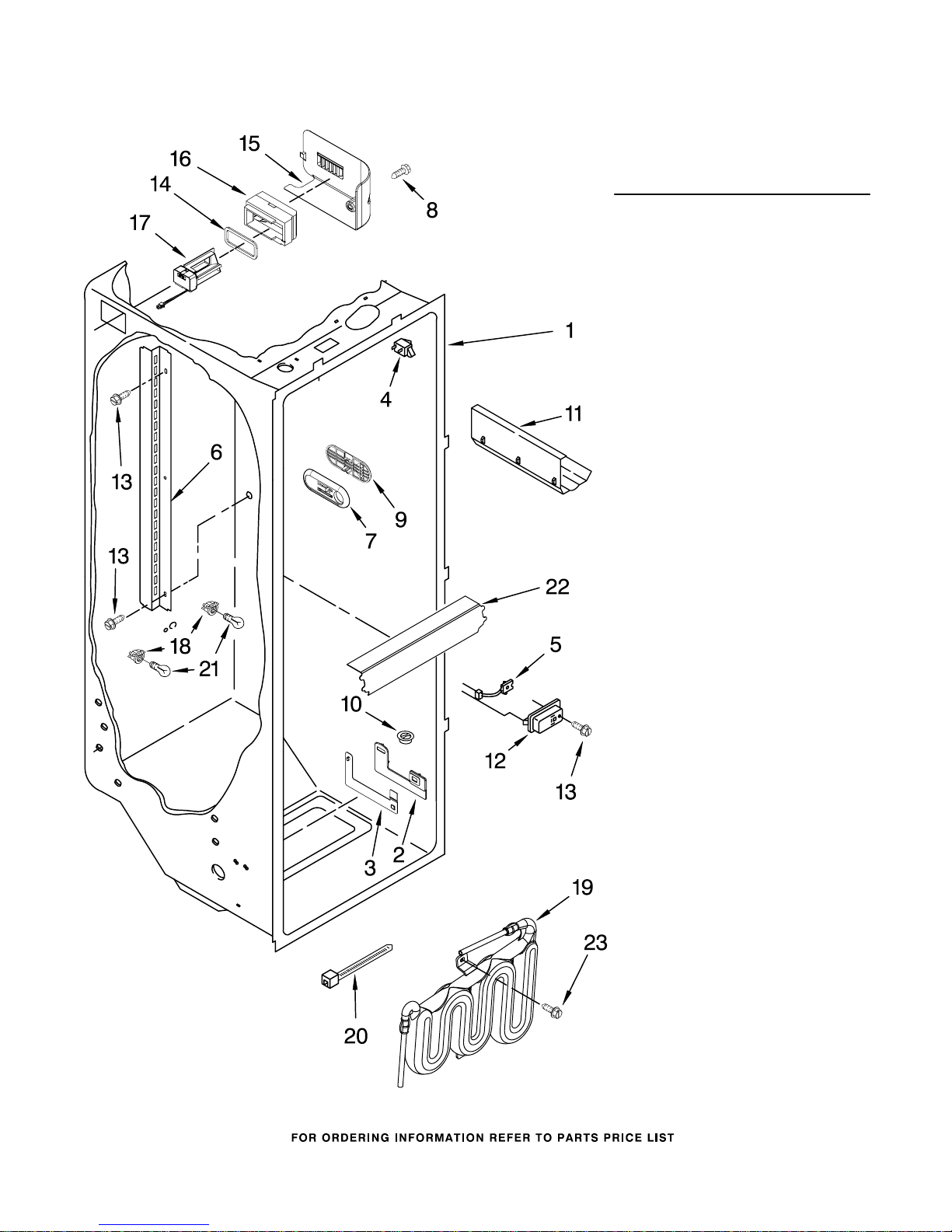

REFRIGERATOR LINER PARTS
3
For Models: KSBS25IVWH00, KSBS25IVBL00, KSBS25IVSS00
(White) (Black) (Stainless Steel)
W10205706
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2223524 Escutcheon, Meat
Pan Control
3 2223339 Slide Meat
Pan Control
4 1118894 Switch, Rocker
Arm
5 2188820 Thermistor
6 2223456 Ladder, Shelf (2)
7 2301234 Housing, Door
Control
8 489084 Screw
9 2301235 Slide, Door
Control
10 2171846 Release Valve
11 2179375 Rack, Wine & Egg
12 2317105 Cover, Thermistor
13 489478 Screw
14 2304597 Gasket,
Air Baffle
15 2223403 Cover,
Air Baffle
16 2224076 Air Diffuser
Assembly
17 2220377 Air Baffle
18 2162085 Socket
19 2307107 Reservoir
20 2205813 Strap
21 2255743 Light Bulb
22 2223663 Light Lens
23 488280 Screw

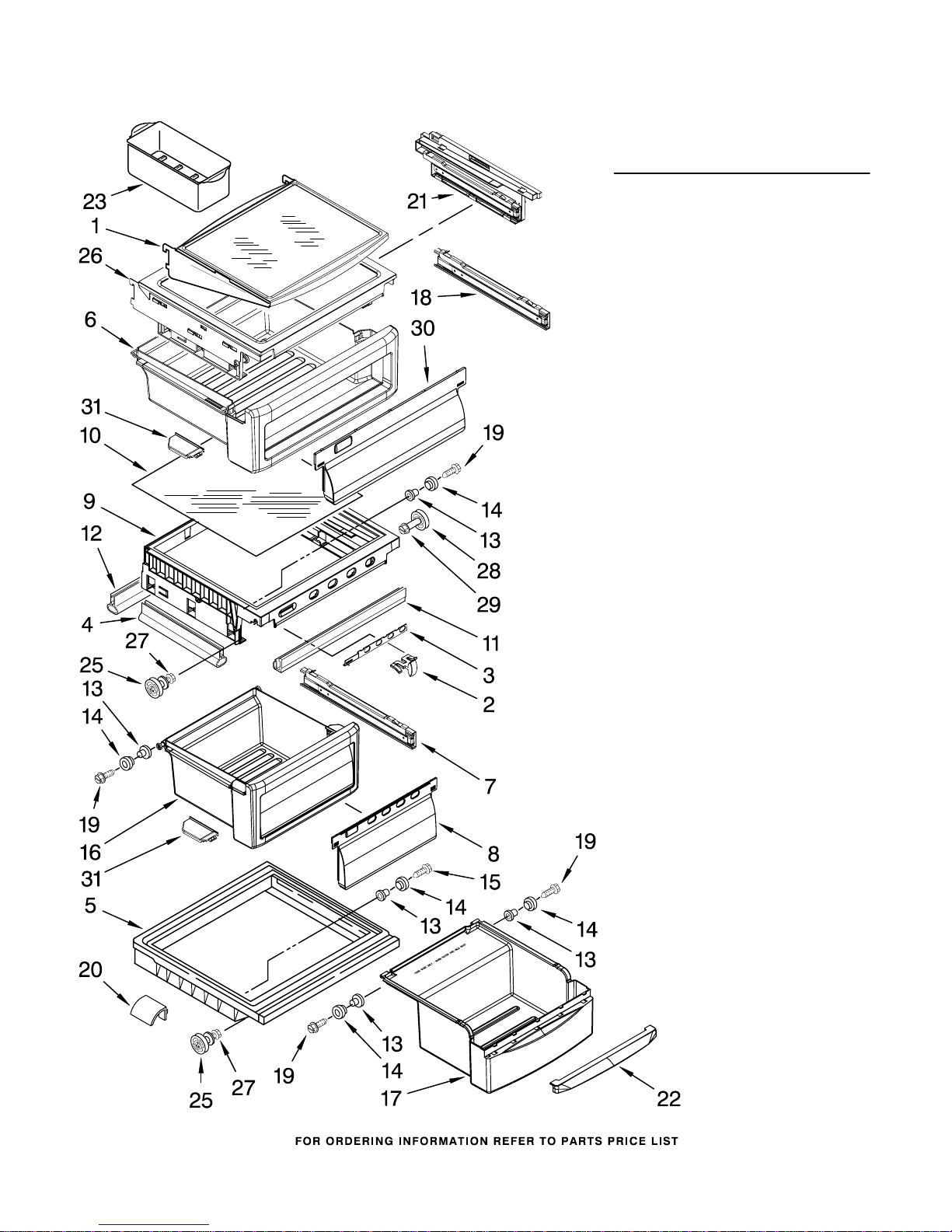

REFRIGERATOR SHELF PARTS
4
For Models: KSBS25IVWH00, KSBS25IVBL00, KSBS25IVSS00
(White) (Black) (Stainless Steel)
W10205706
Illus. Part
No. No. DESCRIPTION
1 2224061 Shelf Assembly,
Cantilever (2)
2 2301025 Button, Humidity
3 2301026 Slide, Humidity
4 2301117 Gasket, Side (2)
5 2203027 Cover, Meat Pan
(Includes Items
13, 14, 15 & 20)
6 2301023 Snack Pan
(Includes 30 & 31)
7 Glide Assembly,
Crisper Pan
2301548 Right Side
2301549 Left Side
8 2301001 Window,
Crisper Pan
9 2301567 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14 & 19)
10
W10141754
Glass, Cover
11 2301116 Gasket (Front)
12 2301115 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 2301031 Crisper Pan
(Includes 8, 13,
14, 19 & 31)
17 2223790 Meat Pan
(Includes 13,
14, 19 & 22)
18 Glide Assembly,
Snack Pan
2301550 Right Side
2301551 Left Side
19 489261 Screw
20 2223487 Deflector
21 Support Assembly
2301569 Right Side
2301570 Left Side
22 2203031 Handle
23 2216625 Egg Bin
25 2196485 Stud Assembly
26 2301566 Shelf, Snack Pan
27 3400894 Screw
28 2196483 Stud Assembly
29 8281158 Screw
30 2301006 Window, Snack Pan
31 Cap, Snack Pan
2301016 Right Side
2301017 Left Side

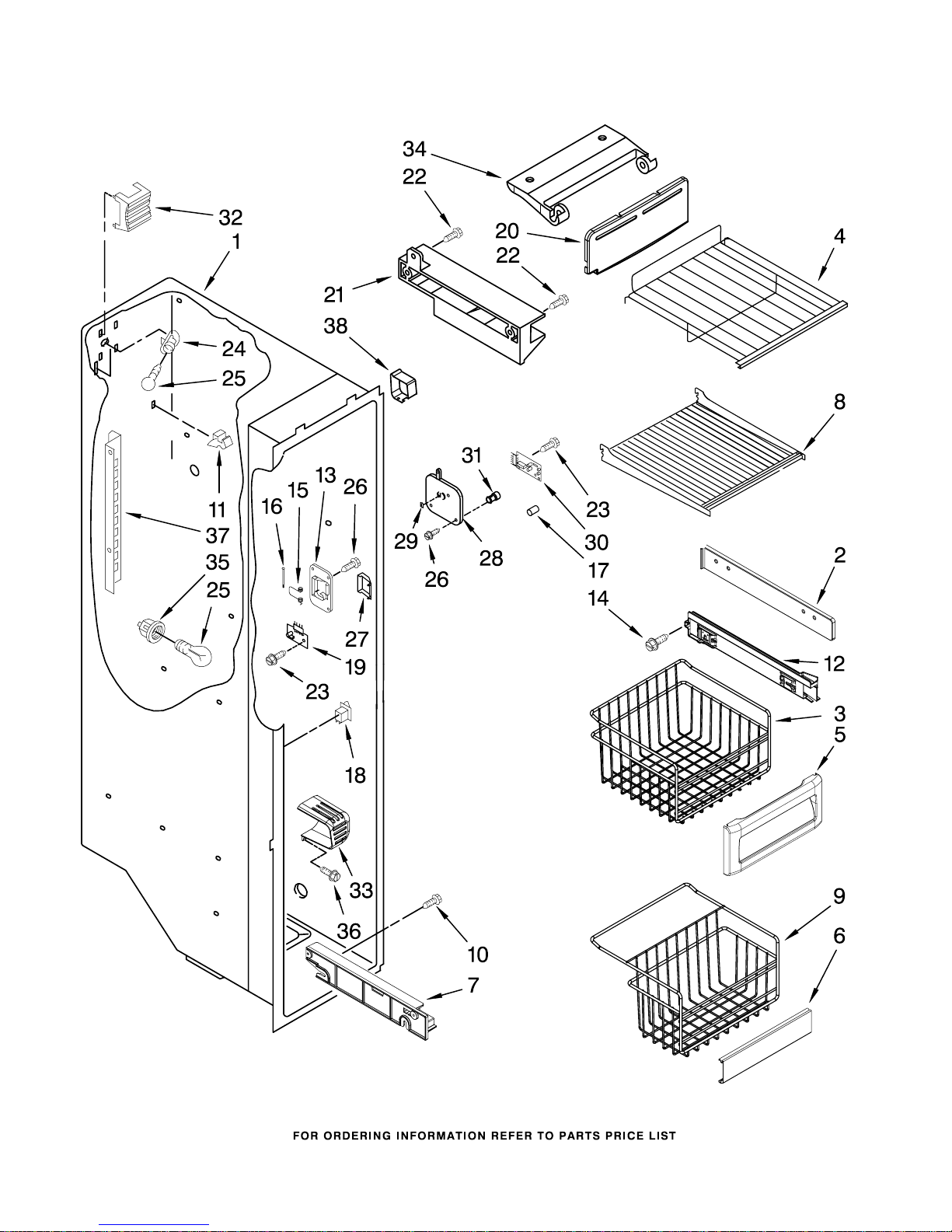

FREEZER LINER PARTS
5
For Models: KSBS25IVWH00, KSBS25IVBL00, KSBS25IVSS00
(White) (Black) (Stainless Steel)
W10205706
FREEZER LINER PARTS
6
For Models: KSBS25IVWH00, KSBS25IVBL00, KSBS25IVSS00
(White) (Black) (Stainless Steel)
W10205706
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2223777 Spacer, Slide (2)
3 2223691 Basket, Deep (2)
4 2223500 Shelf Assembly,
Cantilever (2)
5 2224053 Front, Basket
6 2224053 Front−Frzr.Basket
7 Shelf Track
2223787 Right Side
2223788 Left Side
8 2254615 Shelf, Fixed
9 2223694 Basket, Lower
10 489427 Screw
11 842534 Clip, Air Duct (2)
12 Glide Assembly,
Basket (2)
2301544 Right Side
2301545 Left Side
13 2259487 Cover, Emitter
14 8534064 Screw
15 2198635 Spring
16 2198634 Pin
17 2198665 Tube, P.C. Board
18 1115373 Switch, Rocker Arm
19
W10193840
P.C. Board
Emitter
20
W10185438
Cover, Ice Maker
21 Slide, Ice Maker
Mounting
2212321 Right Side
2306900 Left Side
22 489478 Screw
23 489214 Screw
24 2162085 Light Socket
25 2255743 Light Bulb
26 8281185 Screw
27 2198633 Flipper
28
W10173569
Cover, Receiver
29 2315398 Slide, Ice Maker
Shut Off
30
W10193666
P.C. Board,
Receiver
31 2198643 Lens
32 2198589 Light Shield
33 2212340 Light Lens
34 2198641 Bracket, Ice Maker
Cover
35 2155597 Socket, Light
36 3400893 Screw
37 Ladder
2223414 Left Side
2223415 Right Side
38 2303378 Shield, Wiring

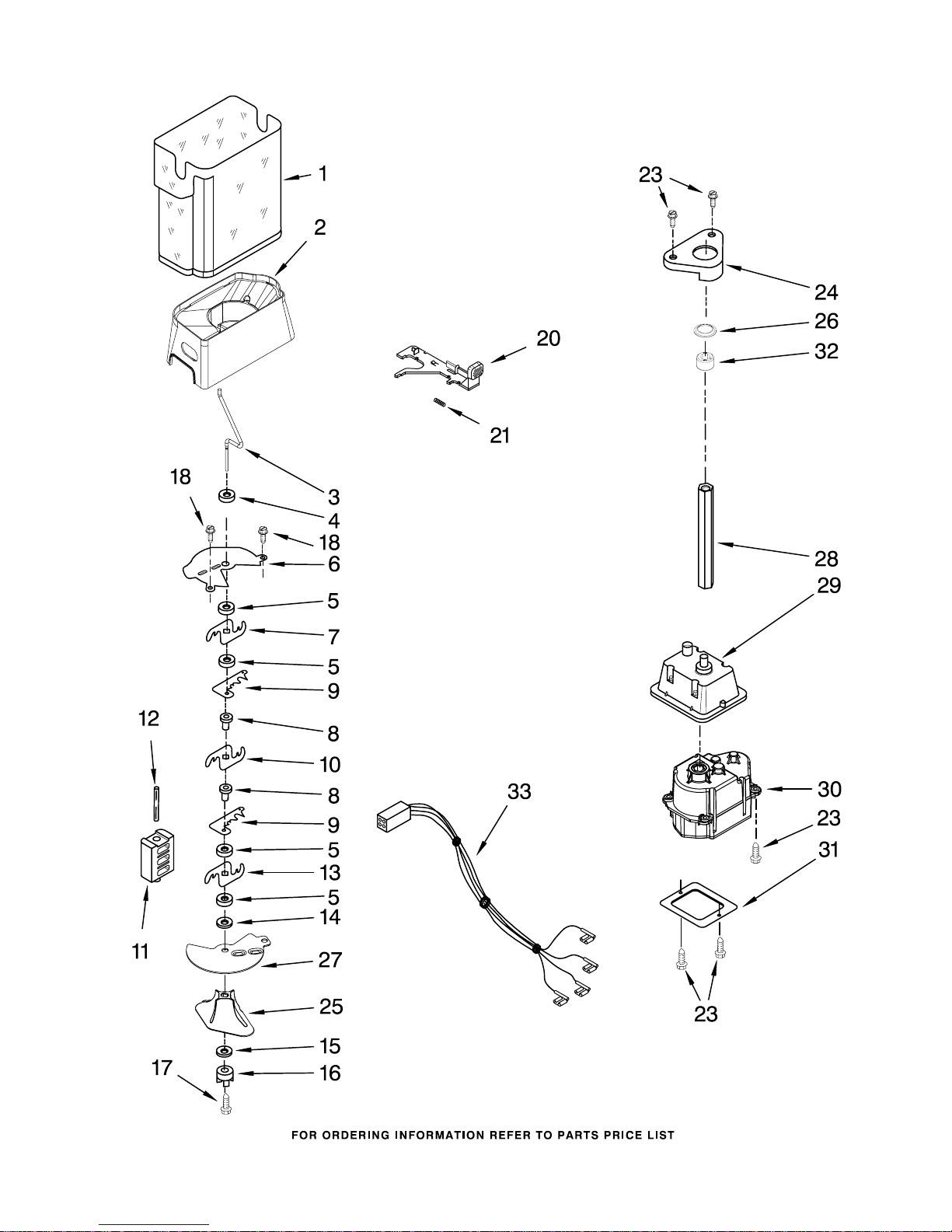

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSBS25IVWH00, KSBS25IVBL00, KSBS25IVSS00
(White) (Black) (Stainless Steel)
W10205706
MOTOR AND ICE CONTAINER PARTS
8
For Models: KSBS25IVWH00, KSBS25IVBL00, KSBS25IVSS00
(White) (Black) (Stainless Steel)
W10205706
Illus. Part
No. No. DESCRIPTION
1 2223317 Ice Bin
2 2317256 Crusher Bin
3 2317240 Auger
4 2258220 Washer
5 1119007 Spacer, Flat (6)
6 2317248 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2317239 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2188918 Coupling
17 8281164 Screw
18 3400065 Screw
20 2317277 Latch, Bin
21 2198608 Spring, Latch
23 8281163 Screw
24 2188919 Holder
25 2317243 Wiper
26 2198628 Seal
27 2317250 Divider−Chamber
28 2188916 Drive Shaft
29 2256154 Enclosure, Motor
30 2315547 Dispenser, Motor
31 2212305 Cover
32 2315559 Sleeve, Coupling
33 2187725 Wire Harness,
IDI Motor
100 2317268 Ice Container
Assembly

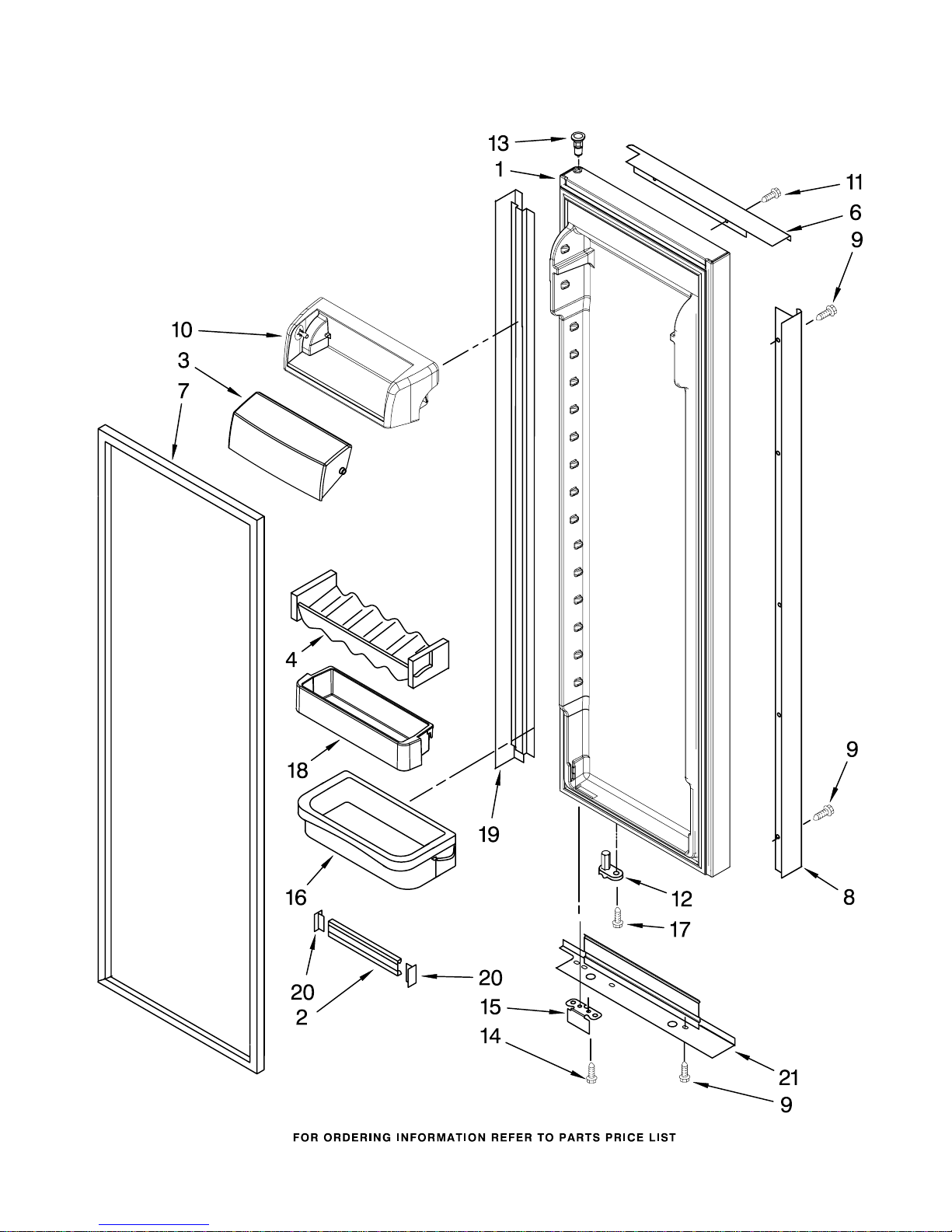

REFRIGERATOR DOOR PARTS
9
For Models: KSBS25IVWH00, KSBS25IVBL00, KSBS25IVSS00
(White) (Black) (Stainless Steel)
W10205706
REFRIGERATOR DOOR PARTS
10
For Models: KSBS25IVWH00, KSBS25IVBL00, KSBS25IVSS00
(White) (Black) (Stainless Steel)
W10205706
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
2307195W White
2307195B Black
2 2203087K Trim, Shelf
3 2255421 Dairy Door
4 2223883 Caddy, Can
6 Trim, Top
2224096W White
2224096B Black
2224096S Stainless Steel
7 Door Gasket,
Magnetic
2223326 Mist Beige
2223909 Black
8 Handle
2223821W White
2223821B Black
2223821S Stainless Steel
9 3196537 Screw
10 2223879 Dairy Compartment
11 3196180 Screw
12 2307048 Door Closer,
Upper Cam
13 2308091 Thimble, Top
14 489420 Screw
15 Bracket, Door Stop
2306940 Chrome
2306940B Black
16 2223860 Door Bin (3)
17 3400012 Screw
18 2224173 Door Bin,
Shallow
19 Trim, Hinge Side
2223824W White
2223824B Black
2223824S Stainless Steel
20 2156006K Plug, Trim
21 Trim, Bottom
2223823W White
2223823B Black
2223823S Stainless Steel
