CABINET PARTS

For Models: KTRC22KVSS00

(Stainless Steel)

2−08 Litho In U.S.A. (rrm) Part No. W10188034 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: KTRC22KVSS00

(Stainless Steel)

W10188034

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10142142

Service &

Wiring Sheet

W10181229

Energy Label

2314464 Use & Care Guide

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677969 Do−It−Yourself

Manual, Ref./Fzr.

2 2189410 Hinge (Top)

3 2166108 Roller, Front (2)

4 489442 Screw

5 489385 Clamp, Tube

(Water Supply Line)

6 3400504 Screw

7 549193 Clamp, Cord

8 2179826 Rivet

9 489497 Screw

10 2254618 Hinge, Center

11 2183852 Shim, Hinge

Center

12 8281265 Screw

13 2254473 Hinge Butt

14 Fitting, Water Tube

(NOT SERVICED)

15 Hole Plug (6)

2183998 Black

16 Corner Filler (2)

2201017 Black

17 Grille

(Includes

Illus. 20)

2254315 Black

18 489341 Washer, Plain

19 487576 Washer, Nylon

20 2189356 Clip, Grille (2)

21 Cover, Hinge

2213363 Black

22 Rail, Center

(NOT SERVICED)

23 2254576 Cover, Unit

24 Cabinet (Not a

Serviceable Part)

LINER PARTS

For Models: KTRC22KVSS00

(Stainless Steel)

W10188034

LINER PARTS

For Models: KTRC22KVSS00

(Stainless Steel)

W10188034

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2197380 Grommet (2)

3 2254360 Gasket, Evaporator

Cover

4 2314156 Adaptive,

Defrost Control

5 2212485 Thermostat Tube

Barrier

6 488208 Screw

7 2310055 Wire Assembly,

Control Box

8 2162085 Socket, Light

9 2179858 Damper, Air

10 2214986 Fan Motor

11 2163777 Fan Blade

12 2200820 Control Box

13 2200859 Thermostat Assembly

(Includes

Illus. 5 & 18)

15 941839 Hole Plug

16 2320193 Cover, Evaporator

17 527949 Light Bulb (2)

18 2200831 Weight, Thermal

19 1118894 Rocker Arm

Switch

W10129803

Wire Assembly,

Freezer Compartment

(Includes

Illus. 54)

21 2176281 Cover, Air

Diffuser

22 2200863 Knob, Thermostat

23 2254354 Air Tower

24 2189452 Air Diffuser,

Bottom

26 2212439 Air Separator

Assembly

27 2205003 Cover−Inlet Tube

29 2254453 Bracket,

Fan Motor

30 2320183 Retainer−Screw

31 2254454 Bracket

Evap. Fan, Rear

32 487996 Plastic Closure

33 489478 Screw

34 2302536 Knob, Damper

36 2205079 Seal, Rear

Thermostat

37 2210509 Valve−Tube, Body

38 2176341 Clip−Defrost Timer

39 2300418 Housing Base

41 2187601 Wiring Harness,

Freezer Light

42 2193491 Electrical Shield,

Freezer Light

43 850166 Light Bulb

45 2204639 Shield, Heat

46 2179859 Post, Damper

47 2163810 Bracket,

Damper Knob

48 2166284 Gasket, Rear

49 2321800 Defrost, BI−Metal

SHELF PARTS

For Models: KTRC22KVSS00

(Stainless Steel)

W10188034

SHELF PARTS

For Models: KTRC22KVSS00

(Stainless Steel)

W10188034

Illus. Part

No. No. DESCRIPTION

1 2210522 Shelf, Ladder (2)

2 2300520 Shelf, Ladder

Center

3 2163762 Cup, Shelf Mtg.

5 489478 Screw

7 2225721 Shelf Assembly

9 2314504 Crisper Cover

11 2210573 Glass, Crisper

Cover

12 2205162 Frame Assembly,

Meat Shelf

15 2314478 Crisper, Support

17 2184667 Shelf, Freezer

18 2225698 Frame Assy−

Cantilever

19 2218139 Pan, Crisper

(Includes

Illus. 21,22 & 23)

20 2218132 Pan, Meat

21 2176222 Slide, Crisper

22 2212446 Body, Humidity

Control

23 2195341 Trim, Crisper Pan

24 2176357 Trim, Meat Pan

REFRIGERATOR DOOR PARTS

For Models: KTRC22KVSS00

(Stainless Steel)

W10188034

REFRIGERATOR DOOR PARTS

For Models: KTRC22KVSS00

(Stainless Steel)

W10188034

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes

Illus. 8 & 12)

2218278 Stainless Steel

4 2189202 Bracket, Door

Stop

5 Hole Plug, Endcap

2204840 Black

6 489276 Screw, 8−18 x 3/4

7 Hole Plug

Hinge Sleeve

2212651 Black

8 Door Gasket,

Magnetic

2202882 Black

11 2210566 Housing Compartment

12 2183003 Thimble

13 2195388 Tray, Door

14 Endcap, Handle

2221628 Black

15 2179606 Bin, Door Shelf (3)

16 2195948 Trim, Door Shelf

17 2218109 Door Compartment

18 2159306 Trim, Door Shelf

19 2177340 Endcap, Door Trim

20 2156006 Plug−Trim

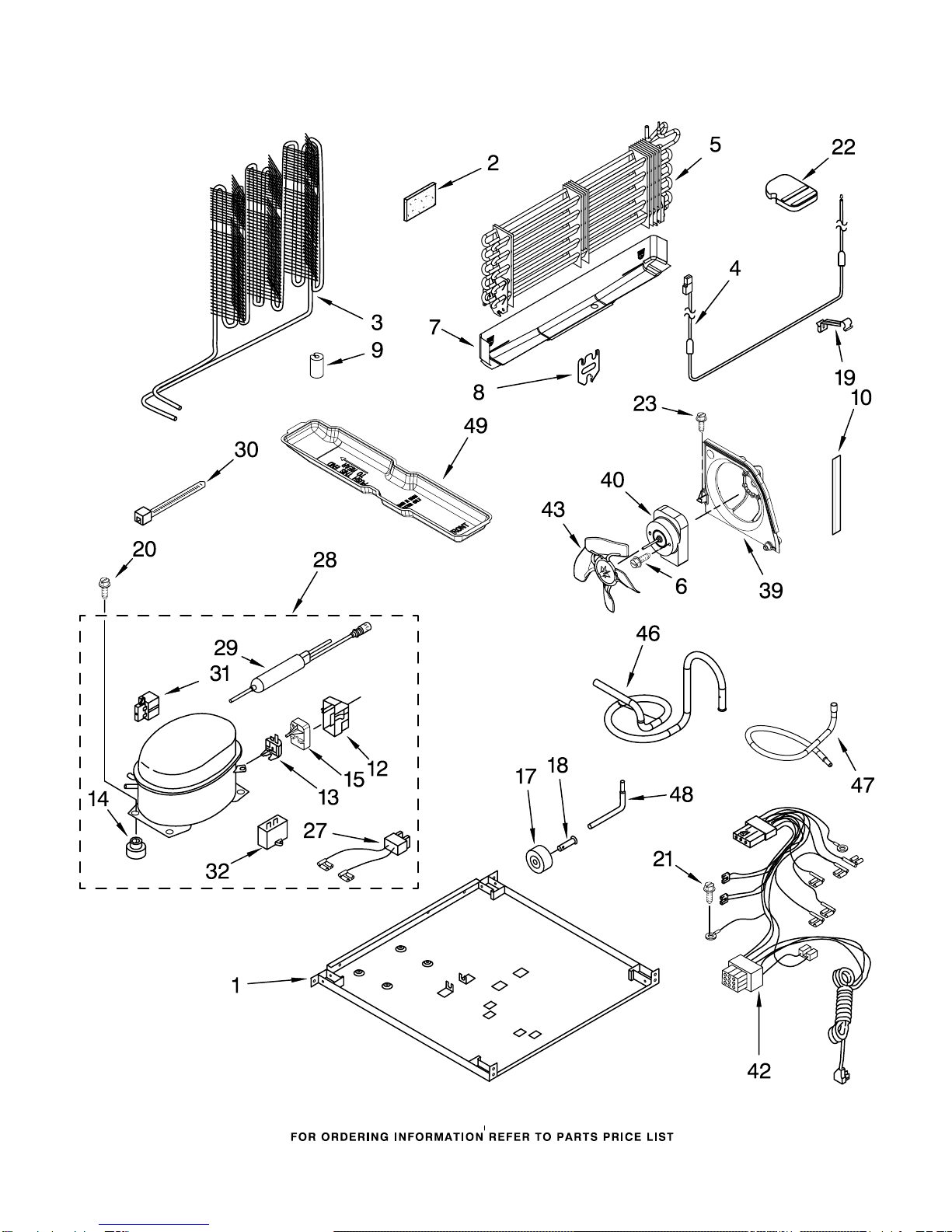

UNIT PARTS

For Models: KTRC22KVSS00

(Stainless Steel)

W10188034

UNIT PARTS

For Models: KTRC22KVSS00

(Stainless Steel)

W10188034

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2320187 Plate, Unit

Mounting

2 2169104 Insulation,

Sound Dampening

3 2214960 Condenser

4 2314157 Heater, Defrost

5 2254249 Evaporator Assy.

6 8533859 Screw

7 2254295 Drain Pan

8 2176301 Bracket, Heater

9 2319835 Grommet−Cond (4)

10 2300638 Extension, Air

Baffle

12 Cover

4387731 (Service Only)

2162358 Production

13 Overload

4390624 (Service Only)

2302290 Production

14 Grommet (4)

1100826 Production

4387558 Service

15 2258450 Start−Device

Combination

(Start Relay and

Overload for

Production

Compressor Only)

17 2150304 Roller (2)

18 2221797 Rivet

19 2182338 Clip, Heater

20 489373 Screw

21 488500 Screw

22 2201185 Support Block

23 3400518 Screw

27 4387765 Wire Assembly

(Service Only)

28 2225647 Compressor

(Includes Items

12,13,14,27,29,

31 & 32)

29 Drier

W10177049

Production

W10143759

Service

30 2155774 Wire Tie

31 2183454 Relay

(Service Only)

32 Capacitor

2169373 Production

1118576 Service

39 2315541 Air Baffle

40 2188874 Motor, Condenser

42 2187764 Wire Assy. Unit

43 2225834 Fan Blade

46 2205294 Tube, Discharge

47 2205293 Tube, Suction

48 2212848 Tube, Process

49 2254574 Evaporator Tray

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

4.0 Ozs.

(R134A)
