OVEN PARTS

For Model:KDRP407HSS3

(Stainless Steel)

3−01 Litho in U.S.A. (cre) Part No. 8185704

30" KITCHENAID

FREE STANDING RANGE

DUAL FUEL

OVEN PARTS

For Model:KDRP407HSS3

(Stainless Steel)

8185704

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Literature Parts

LIT4452762

Installation

Instructions

LIT4452761

Use & Care Guide

LIT4453057

Tech Sheet

LIT4453152

Conversion

Instructions

LIT3191638

Safer Cooking Tips

2 4449809 Screw, 8−18 x 3/8

3 4452224 Solenoid

4 4452312 Switch, Micro

5 4451426 Switch, Micro

6 4451537 Spring, Latch

7 4455472 Top, Chassis

8 4448520 Bumper, Door

9 4452158 Tube, Vent

10 4452163 Lens, Light

11 4448972 Oven Light Assy

4449748 Screw

12 4452164 Bulb, Light

13 Hinge Receiver

4455520 Left Hand

4455521 Right Hand

14 4455612 Frame, Front

15 4455382 Gasket, Door

19 4451478 Support, Insulation

21 4455510 Bracket, Support

24 4451896 Latch Assy

25 4455641 Side, Chassis

26 4452234 Back, Chassis

27 Liner, Oven

(Not serviceable)

29 4455636 Sensor

30 4449154 Screw, 8−32 x .440

31 4449040 Screw, 8−18 x 3/8

32 3196176 Screw, 8−18 x 1/2

37 4451442 Thermostat (TOD)

(Temp.) SPST

43 4455649 Base, Chassis

49 4448933 Retainer, Gasket

50 4451747 Cover, Back

56 4448982 Button, Plug

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449316 Insulation, Wrap

4450365 Insulation, Back

4452337 Insulation,

Bottom Vent

OVEN DOOR PARTS

For Model:KDRP407HSS3

(Stainless Steel)

8185704

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4455618 Door Liner

2 4455526 Hinge, Door

3 4449259 Glass, Inner

4 4451722 Insulation, Door

5 4451671 Retainer, Glass

7 4449263 Glass, Inner

8 4449743 Screw, 8−32 x 3/8

9 4451668 Retainer, Glass

12 4452316 Assy, Door Glass

13 4455851 Door Handle

14 Bracket, Handle

4455803 Right Hand

4455804 Left Hand

3400832 Screw

19 4450362 Shield, Heat

20 4449809 Screw, 8−18 x 3/8

21 4452326 Seal, Door Top

23 4451432 Retainer, Clip

3400832 Screw

24 3196184 Screw, 8−32 x .548

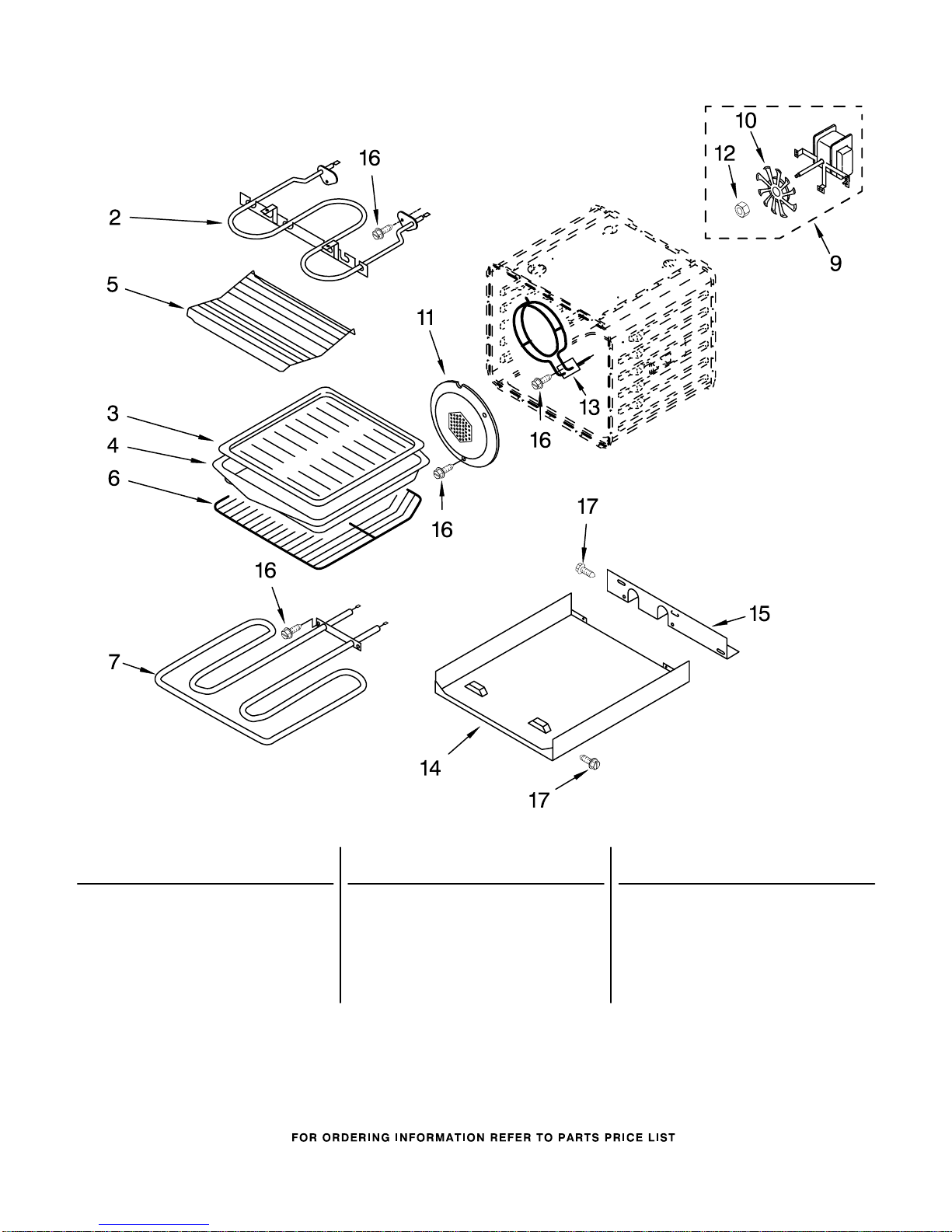

INTERNAL OVEN PARTS

For Model:KDRP407HSS3

(Stainless Steel)

8185704

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 4452154 Element, Broil

4449154 Screw

3 3147563 Grill, Broiler

4 3147845 Pan, Broiler

5 3181534 Rack, Roasting

6 4452807 Rack, Oven

7 4452155 Element, Hidden

Bake

9 4451583 Motor, Convection

10 4452226 Blade, Fan

11 4448418 Cover, Fan

12 4452227 Nut

13 4452157 Element,

Convection

14 4455037 Tray, Hidden

Bake

15 4450039 Cover, Access

16 4449154 Screw, 8−32 x .440

17 4449809 Screw, 8−18 x 3/8

CONTROL PANEL PARTS

For Model:KDRP407HSS3

(Stainless Steel)

8185704

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4453188 Panel, Control

2 4453000 Bracket, Display

3 4453120 Bracket, Display

Mounting

4 3196537 Screw, 8−18 x 3/8

5 4452443 Control, Zodiac

6 4449899 Screw, 6−19 x 1

7 4453199 Escutcheon,

Control Panel

8 4452999 Module, Display

9 2004333 Palnut

10 2005292 Nameplate

11 4455211 Face, Control

Panel

12 4455192 Bezel, Knob

13 4454970 Knob, Control

14 4455115 Knob, Temp/Time

15 4455141 Knob, Selector

16 4452998 Button, Cancel

17 4452997 Button, Enter

18 4455719 Spacer Ring

TOP VENTING PARTS

For Model:KDRP407HSS3

(Stainless Steel)

8185704

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4451438 Elbow, Vent−Top

3 4452811 Blower 60MM

4449809 Screw (4)

3400015 Screw (1)

4 4451752 Elbow, Vent−Bottom

5 6610122 Transformer, Light

6 8300642 Transformer,

Control

7 4449809 Screw, 8−18 x 3/8

8 4455352 Bracket, Blower

11 4449868 Block, Terminal

14 4452442 Side, Control Top

21 4451758 Seal, Foam

22 4452489 Deflector, Vent

Box

23 4452441 Bracket, Control

Mounting

24 4452444 Control, Zodiac

25 4451985 Suppressor

3400080 Screw (4)

26 4453207 Insulator,

Control Board

COOKTOP PARTS

For Model:KDRP407HSS3

(Stainless Steel)

8185704

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4455032 Cooktop

2 9754181 Burner Head

3 3368921 Screw, 7−18 x 3/4

4 4455243 Cap, Burner

5 9754188 Orifice Holder

(Includes Orific &

Ignitor)

3400843 Screw

6 3177991 Screw, 8−18 x 1/4

7 4454963 Grate, Burner

8 4454964 Grate, Filler

9 4454961 Trim, Island

10 4455031 Support,

Backsplash

11 4454959 Trim, Backsplash

12 3400837 Screw, 8−18 x 3/8

15 4455109 Plate, Simmer

BURNER BOX AND MANIFOLD PARTS

For Model:KDRP407HSS3

(Stainless Steel)

8185704

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4455078 Tubing, Gas

Burner − RF

2 4455079 Tubing, Gas

Burner − RR

3 4455148 Tubing, Gas

Burner − LF

4 4455149 Tubing, Gas

Burner − LR

5 4452814 Manifold Assembly

Left Side

6 4452815 Tube, Manifold

7 4452816 Manifold Assembly

Right Side

8 3192157 Valve, Burner

3185829 Bolt (4)

9 3185829 Bolt, Gas Valve

10 4453032 Burner Switch &

Harness Assembly

3191387 Seal, Switch

11 4453033 Pressure Regulator

12 4455647 Box, Burner

15 Side, Burner Box

4454953 Right Side

4454954 Left Side

16 4455027 Support, Rear

17 4455646 Support, Cooktop

18 3192811 Bracket, Burner

19 3177991 Screw, 8−18 x 1/4

20 4454974 Rail, Support

RH & LH

21 4455645 Tube, Manifold

22 4453119 Cover, Manifold

23 Adapter

4453116 1/2" Female

4453115 1/2" Male

4450118 Nut, 6−32 U Type

24 4453036 Cover, Burner

Box

25 8053421 Module, Spark

CHASSIS PARTS

For Model:KDRP407HSS3

(Stainless Steel)

8185704

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4452802 Vent, Bottom

Lower

2 4449809 Screw, 8−18 x 3/8

3 4452798 Backer, Trim Lower

4 3400837 Screw, 8−18 x 3/8

5 4452800 Deflector, Center

6 4452420 Vent, Bottom Upper

7 4452425 Vent, Center

4453323 Gasket

3400805 Screw (4)

8 3196537 Screw, 8−18 x 3/8

9 4455604 Bracket, Mounting

Regulator

10 4452430 Foot Assembly

11 3400518 Screw,

5/16−12 x 5/8

12 4455644 Gusset

13 4455643 Support, Channel

3400080 Screw (8)

14 4452433 Brace, Rear

15 Trim, Front

4452804 Right Side

4453205 Left Side

16 3196537 Screw, 8−18 x 3/8

17 Side Chassis

4452418 Right Side

4452419 Left Side

MISCELLANEOUS PARTS

For Model:KDRP407HSS3

(Stainless Steel)

8185704

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242829 Wire (12 Ga.

150 c Red)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242826 Wire (14 Ga.

150 c White)

242827 Wire (14 Ga.

150 c Yellow)

242832 Wire (14 Ga.

200 c Yellow)

WIRING HARNESS PARTS

4448444 Grommet, Rail

4455742 Harness, Wire

(Main)

4455642 Harness, Wire

(Spark Module)

4453003 Harness, Wire

(Ignitor 39")

3192230 Harness, Wire

(Ignitor 28")

3191506 Bushing, Conduit

1129449 Bushing

4450952 Conduit

4449809 Screw

112432 Nut

4450800 Screw, Ground

4454835 Tie, Cable

4452222 Spacer, Harness

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

4453192 Seal, Ribbon

Cable

4453191 Seal, Access

Panel

Miscellaneous

814381 Pin Hinge Kit

4455353 Spud Kit

4453141 Bracket, Anti−Tip

4453202 Bracket, Anti−Tip
