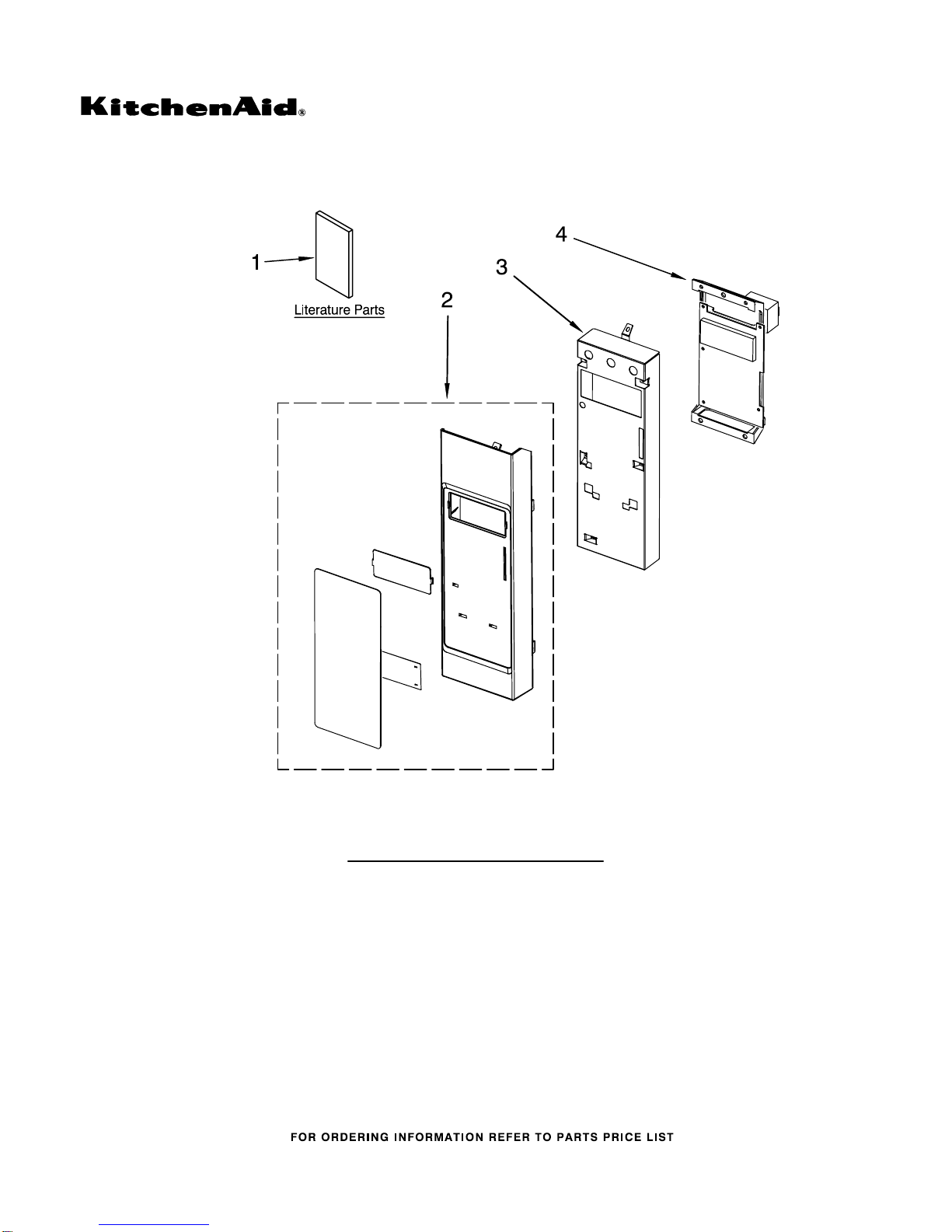

CONTROL PANEL PARTS

For Models: KHMS1857WWH0, KHMS1857WBL0, KHMS1857WSS0

(White) (Black) (Stainless)

01−09 Litho in U.S.A. (MMS) (eeb) Part No. W10252674 Rev. A

MICROWAVE OVEN/HOOD

2.0 Cu. Ft.

Illus. Part

No. No. DESCRIPTION

1 Literature

W10208005

U & C Guide

W10249229

Tech Sheet, Slim

W10217357

Inst, Operating

W10238252

Install,Instruct.

2 Panel Asy, Control

Includes Lens and

Membrane Switch

W10250592

White

W10250591

Blk/Stnls Mdls

W10247749

Bracket, Control

W10250589

Microcomputer

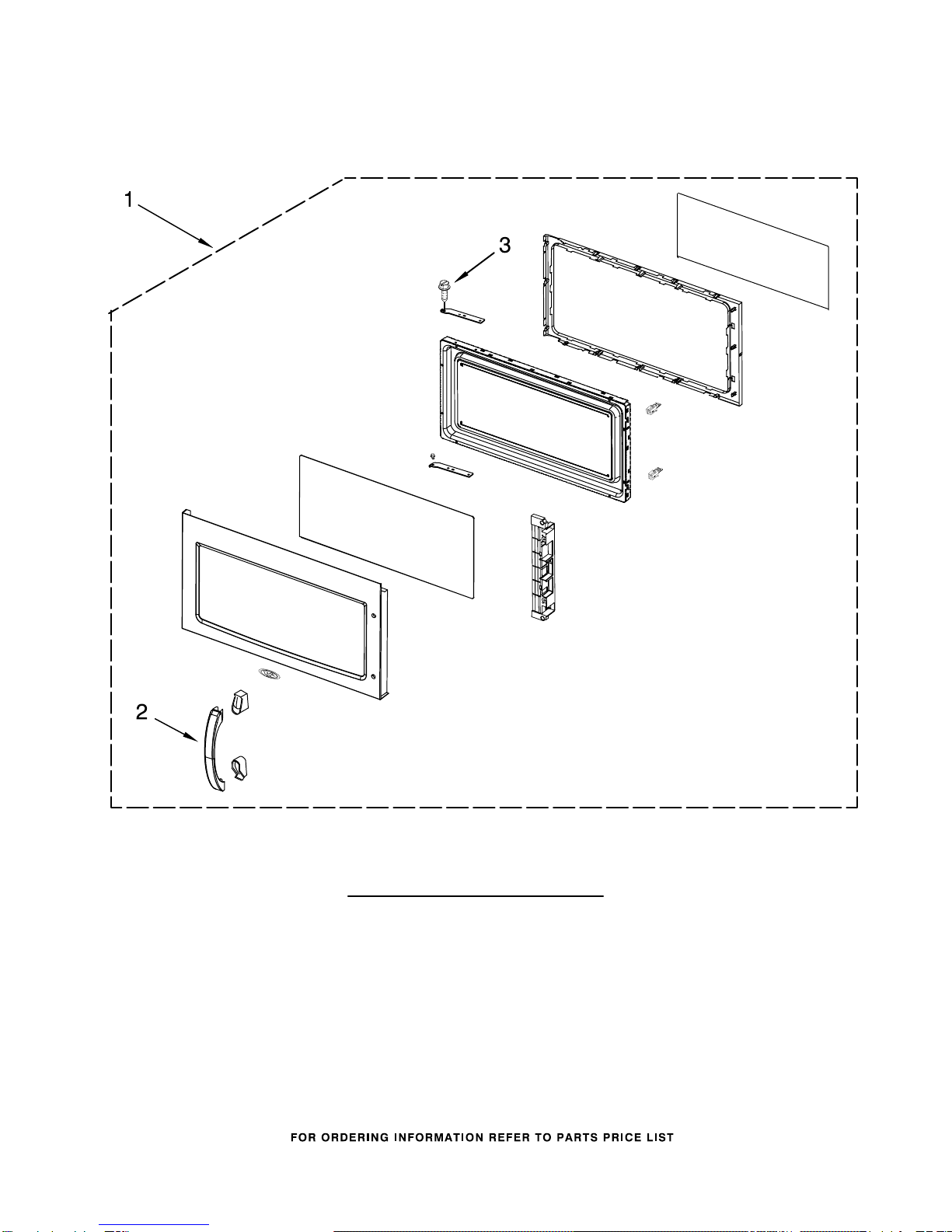

DOOR PARTS

For Models: KHMS1857WWH0, KHMS1857WBL0, KHMS1857WSS0

(White) (Black) (Stainless)

W10252674

Illus. Part

No. No. DESCRIPTION

1 COMPLETE DOOR

W10250602

White

W10250599

Black

W10250603

Stainless

2 Handle

8206501 White

W10110267

Black

W10250604

Stainless

W10138802

Screw

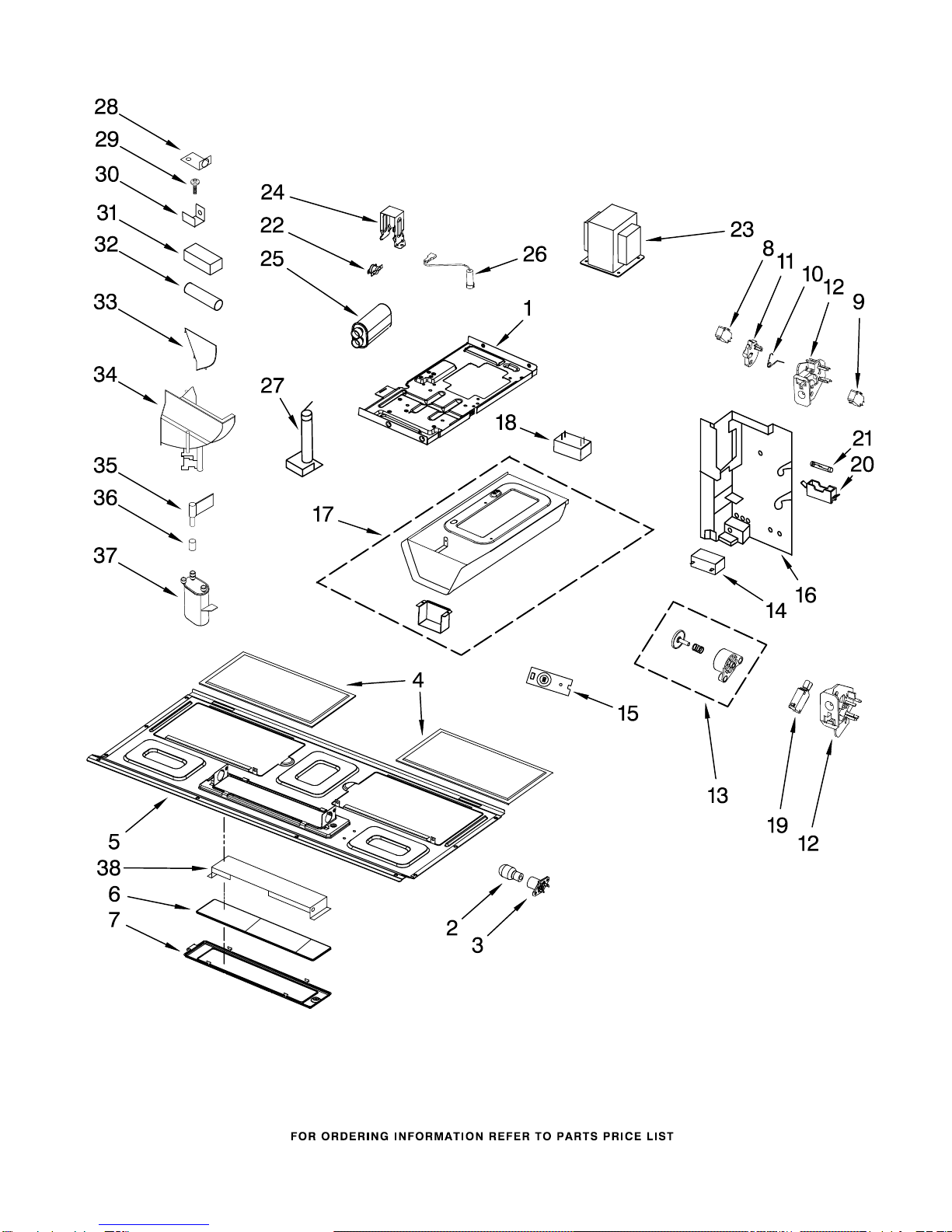

INTERIOR AND VENTILATION PARTS

For Models: KHMS1857WWH0, KHMS1857WBL0, KHMS1857WSS0

(White) (Black) (Stainless)

W10252674

INTERIOR AND VENTILATION PARTS

For Models: KHMS1857WWH0, KHMS1857WBL0, KHMS1857WSS0

(White) (Black) (Stainless)

W10252674

Illus. Part

No. No. DESCRIPTION

W10248270

Chassis

W10208564

Lamp

W10250585

Holder, Lamp

W10208631

Filter, Grease

W10250588

Plate, Bottom

W10210875

Glass, Lamp

W10210873

Holder, Glass

W10211972

Switch, Micro

V15T16−CZ200

W10211973

Switch, Micro

V15T16−CC200

W10156812

Spring, Interlock

W10156811

Plate, Cam

12 Support, Interlock

8206419 Top

W10156813

Bottom

W10197758

Piston Assembly

W10245191

Capacitor, 125 V

W10163422

Thermistor (PCBA)

W10245193

Plate, Side

W10245189

Chassis Assembly

W10245190

Resistor, Cement

W10211974

Switch, Micro

V15T16−CP200

W10245194

Holder, Fuse

W10138793

Fuse

W10248275

Thermostat (2)

W10248271

Transformer, H.V.

W10156817

Bracket, Capacitor

W10138798

Capacitor, H.V.

W10245187

Diode, H.V.

W10245188

HV Diode Support

28 8206224 Cover, Thermostat

29 8206068 Thermostat

30 8206223 Clip, Thermostat

W10245194

Holder, Fuse

W10138793

Fuse

W10248274

Plate, Housing

W10248276

Housing, Valve

W10248277

Valve

W10248278

Screw

37 8206082 Thermocutout

W10250586

Reflector

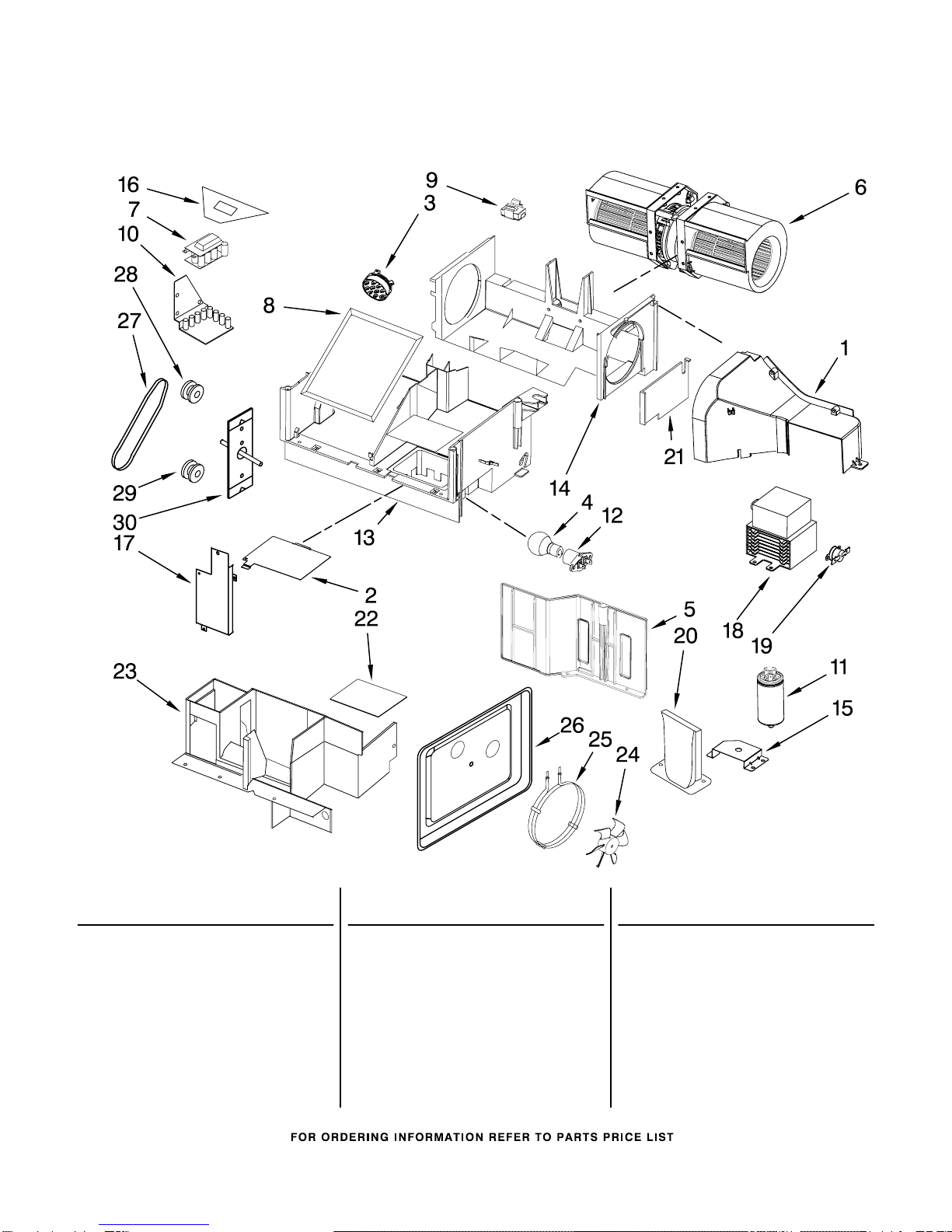

AIR FLOW PARTS

For Models: KHMS1857WWH0, KHMS1857WBL0, KHMS1857WSS0

(White) (Black) (Stainless)

W10252674

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10248269

Deflector, Air

2 8206382 Cover, Lamp

W10245178

Sensor, Humidity

4 4393681 Lamp

W10245192

Cover, Side Inlet

W10249323

Motor, Fan Assy

W10249326

Motor, FC

8 8206230 Filter, Charcoal

W10110862

Mounting, Nut (2)

W10249327

Bracket, Motor

11 8206624 Filter

W10210878

Holder, Lamp

W10249325

Base Plate,

Air Guide

W10249324

Holder

W10248273

Brkt−Mntg,Filter

W10139750

Socket, Motor Wire

W10249328

Cover, Inlet

Air Cavity Guide

W10245183

Magnetron

19 8206342 Thermostat

W10164716

Plate, Water Proof

W10245182

Cover, Right Duct

W10249511

Cavity Lamp Foil

W10249329

Sealing Plate

W10249510

Wheel, Fan

W10249509

Heater

W10249508

Assy, Chamber

W10249504

Belt

W10249505

Wheel, Pulley

W10249506

Wheel, Pulley

W10249507

Assy, Bearing

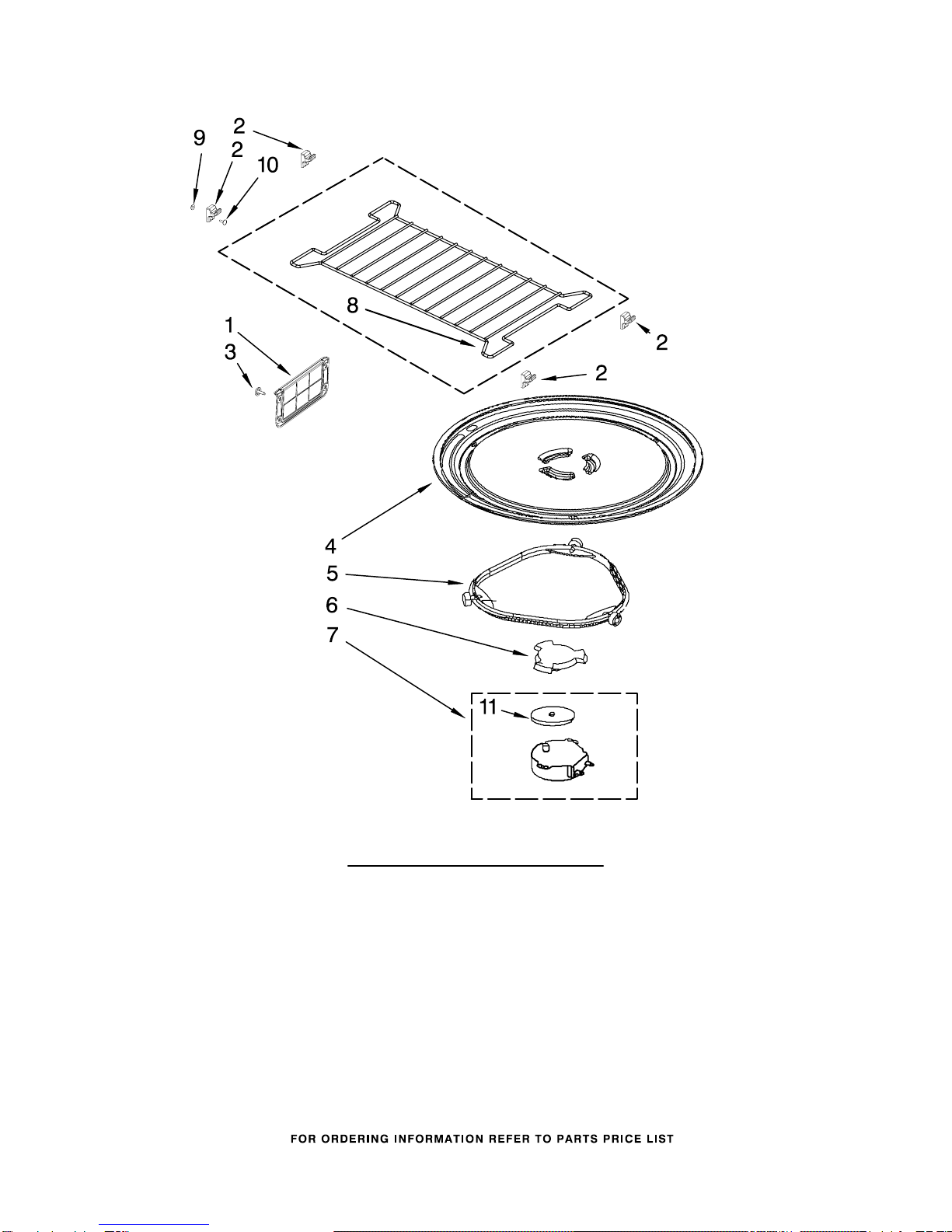

TURNTABLE PARTS

For Models: KHMS1857WWH0, KHMS1857WBL0, KHMS1857WSS0

(White) (Black) (Stainless)

W10252674

Illus. Part

No. No. DESCRIPTION

W10249516

Cover, Inlet

Includes Nails

and Bushings

W10245207

Hook (4)

W10138801

Plastic Rivets(4)

4 4393799 Turntable

5 8206227 Ring, Turntable

6 8206228 Driver, Turntable

W10143959

Motor, Turntable

W10249618

Rack

W10107790

Washer

10 8206618 Screw

11 8184109 Seal, Waterproof

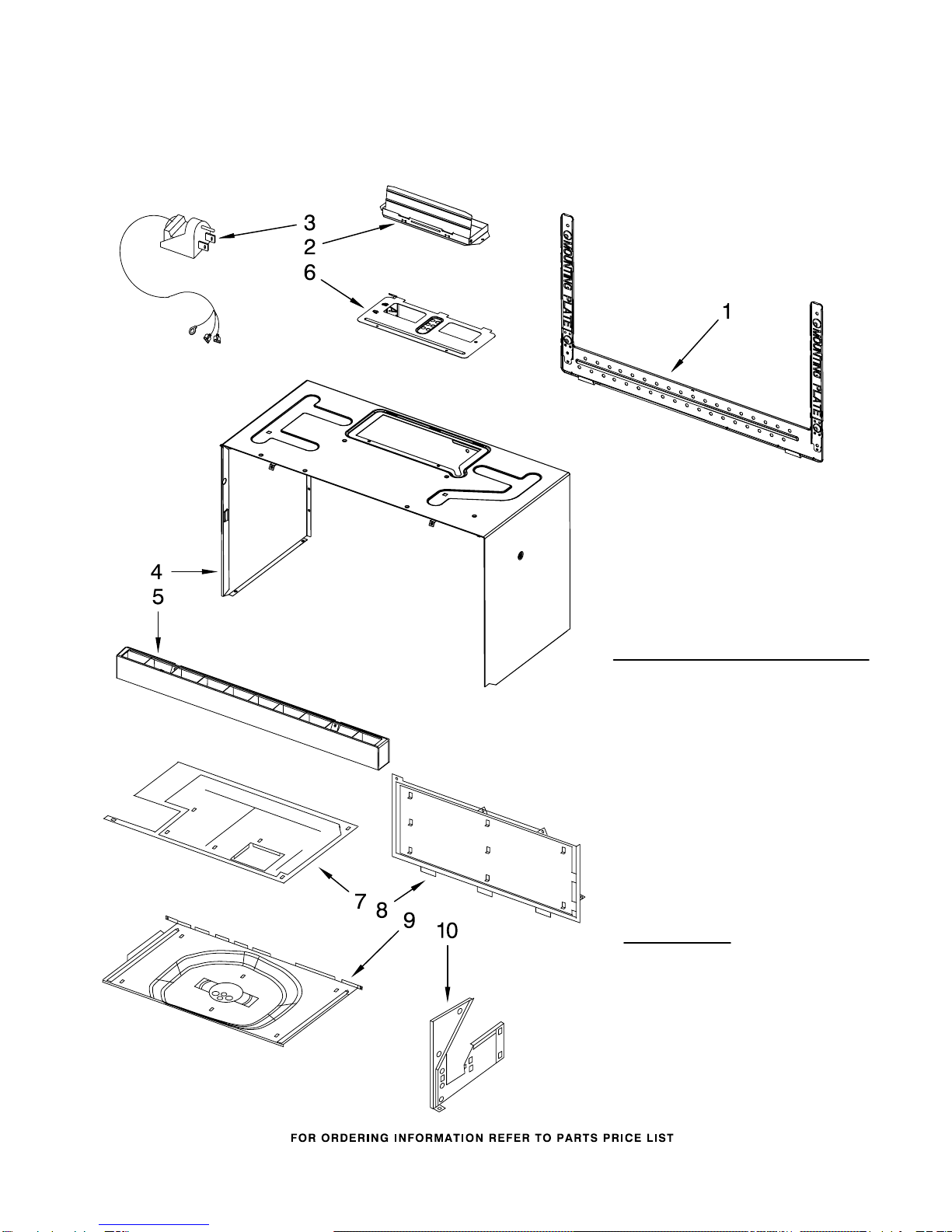

CABINET AND INSTALLATION PARTS

For Models: KHMS1857WWH0, KHMS1857WBL0, KHMS1857WSS0

(White) (Black) (Stainless)

W10252674

Illus. Part

No. No. DESCRIPTION

W10245177

Plate, Mounting

2 8206442 Damper Assembly

3 8206388 Cord, Power

4 Case, Outer

W10250584

Black

W10250583

White

5 Grille, Vent

W10245218

Black

W10245216

Stainless

W10245217

White

W10210832

Plate, Damper

W10248268

Assy, Top Plate

W10248267

Assy, Back Plate

W10249318

Assy, Bottom Plate

W10248279

Assy, Right Plate

Miscellaneous

8205948 Installation,

Hardware

W10190018

Template, Upper

8169704 Screw, Top Mountng

W10249635

Main Harness

8205696 Ground Wire Assy

W10107760

Grnd Wire, Filter

W10250605

Hdlmp/TT Wire Assy
