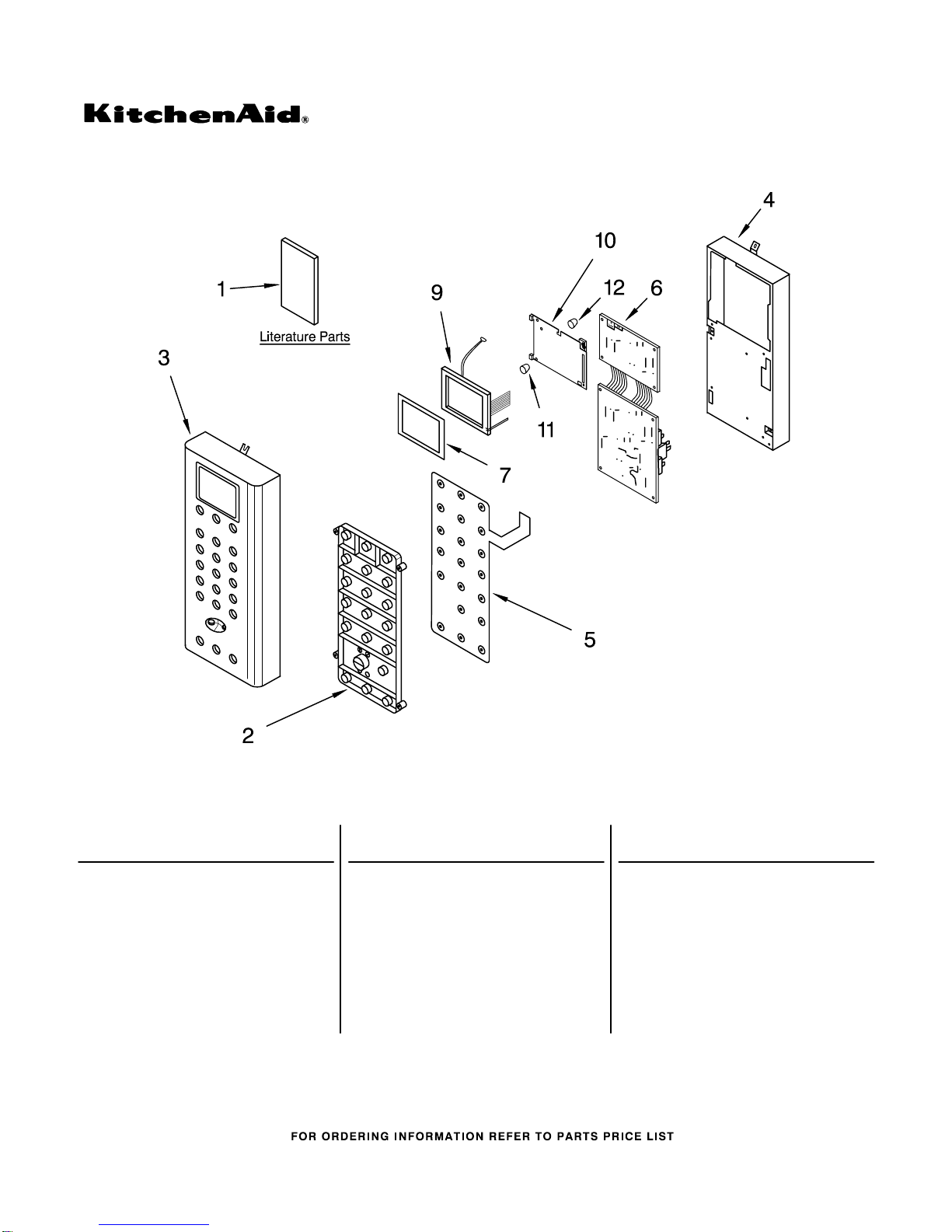

CONTROL PANEL PARTS
1
For Models: KHHS179LWH5, KHHS179LBT5, KHHS179LBL5, KHHS179LSS5
(White) (Biscuit) (Black) (Stainless Steel)
11−05 Litho In U.S.A. (dmm) Part No. 8206290
MICROWAVE
HOOD
COMBINATION
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8205975 Use & Care Guide
8205622 Tech Sheet
8205574 Tech Sheet,
Insert
8205139 Installation
Instructions
8184803 Cook Book
8184723 Cook Guide Label
2 Button Assembly
8205434 White
8205437 Black
8205436 Biscuit
8205092 Stainless
3 Control Panel
8185164 White
8185167 Black
8185166 Biscuit
8185165 Stainless
4 8185174 Bracket, Control
5 8185172 Touch Pad
6 8205423 Microcomputer
7 8184913 Ring, Rubber
9 8204689 LCD Assembly
10 8184915 Bracket, LCD
11 8185058 Bushing, Rubber
12 8184919 Sensor, Light Lens

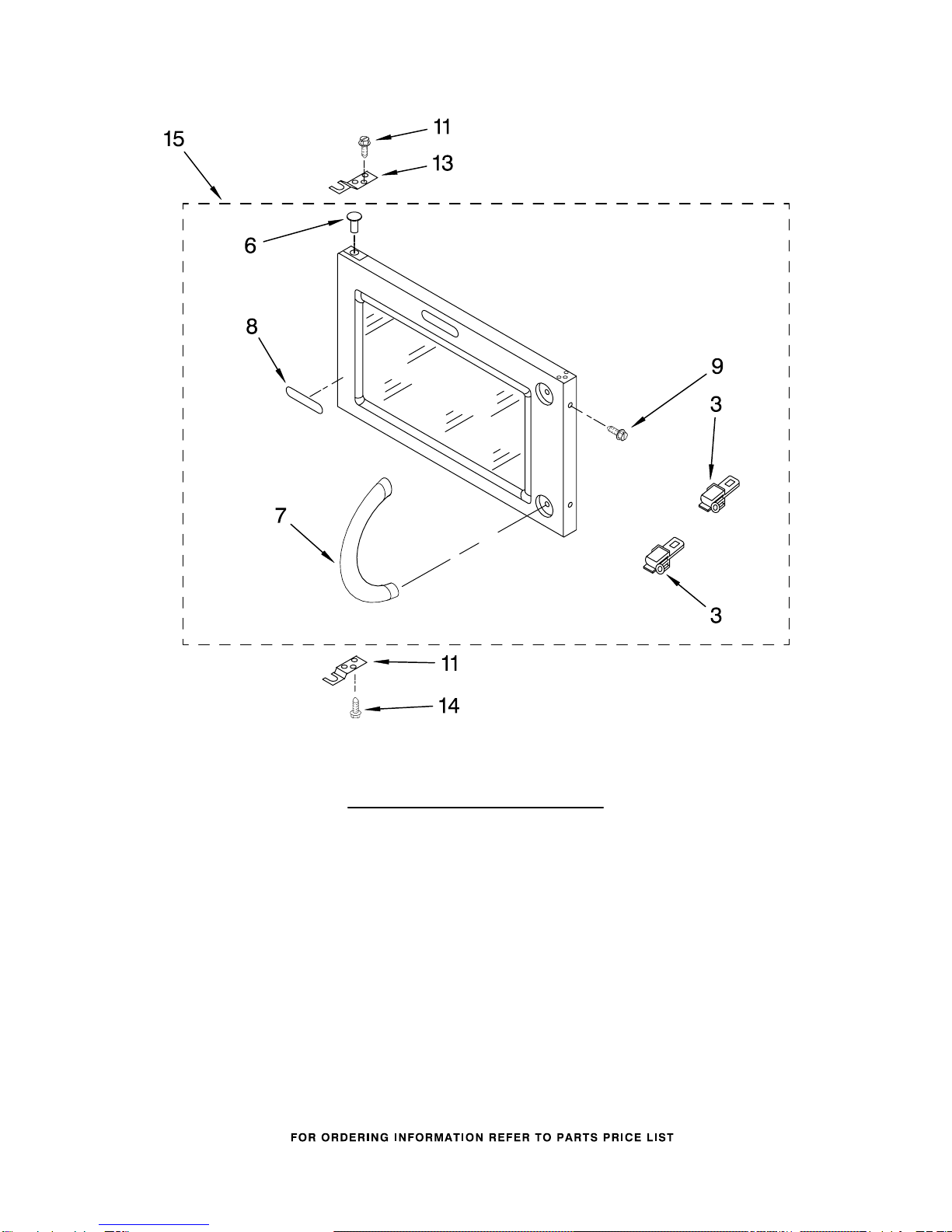

DOOR PARTS
2
For Models: KHHS179LWH5, KHHS179LBT5, KHHS179LBL5, KHHS179LSS5
(White) (Biscuit) (Black) (Stainless Steel)
8206290
Illus. Part
No. No. DESCRIPTION
3 8184113 Latch, Door
6 8184922 Pivot, Door
7 Handle
8205431 White
8205433 Black
8205432 Biscuit
8185156 Stainless
8 8185157 Nameplate
9 8169479 Screw
11 8205438 Screw
13 8204679 Hinge, Upper
14 8204678 Hinge, Lower
15 Complete Door
8185160 White
8185163 Black
8185162 Biscuit
8185161 Stainless Steel
INTERIOR AND VENTILATION PARTS
3
For Models: KHHS179LWH5, KHHS179LBT5, KHHS179LBL5, KHHS179LSS5
(White) (Biscuit) (Black) (Stainless Steel)
8206290

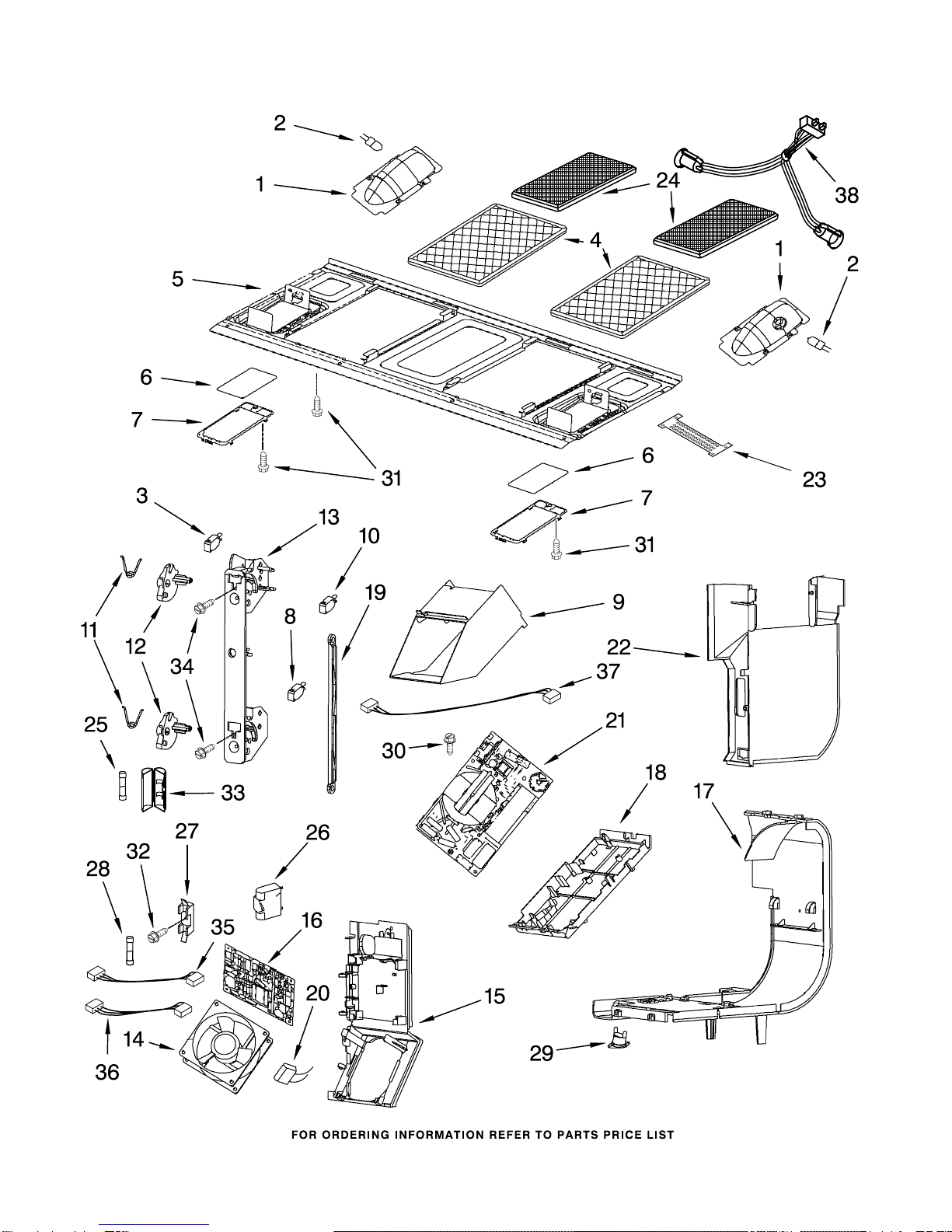

INTERIOR AND VENTILATION PARTS
4
For Models: KHHS179LWH5, KHHS179LBT5, KHHS179LBL5, KHHS179LSS5
(White) (Biscuit) (Black) (Stainless Steel)
8206290
Illus. Part
No. No. DESCRIPTION
1 Reflector, Lamp
8184194 Left
8184132 Right
2 8204670 Lamp
3 4393598 Switch, Micro
4 8184003 Filter, Grease
5 8205381 Plate, Bottom
8204960 (SS Model)
6 8184141 Glass, Lamp
7 8184889 Holder, Glass
8 4393599 Switch, Micro
Primary/Secondary
9 8184124 Cover, Inverter
10 4393697 Switch, Micro
11 8169438 Spring, Interlock
12 8205211 Plate, Cam
13 8185189 Support, Interlock
14 8184875 Fan, DC 12 Volt
15 8184894 Housing, Fan
16 8204989 Inverter 40 W
17 8185032 Bracket, Holder
18 8184670 Holder, Inverter
19 8185190 Rod−Locking Link
20 8184093 Capacitor, 125 V
21 8205093 Inverter 1100 W
22 8185031 Plate, Side
23 8184887 Cable
24 8184002 Filter, Charcoal
25 8184579 Fuse (2)
4 Amp/250 Volt
26 8184204 Capacitor, Motor
27 8184312 Holder, Fuse
28 4393308 Fuse
29 8183998 Thermostat
30 8184199 Screw
31 4393835 Screw
32 8184200 Screw
33 8185177 Fuse Holder (2)
34 8169477 Screw
35 8205021 Ribbon Cable
(P27 To CN153 On
40 W Inverter)
36 8205022 Ribbon Cable
(P4 To CN151 On
40 W Inverter)
37 8205014 Ribbon Cable
(P2 To CN701 On
1100 W Inverter)
38 8184603 Wire Assembly

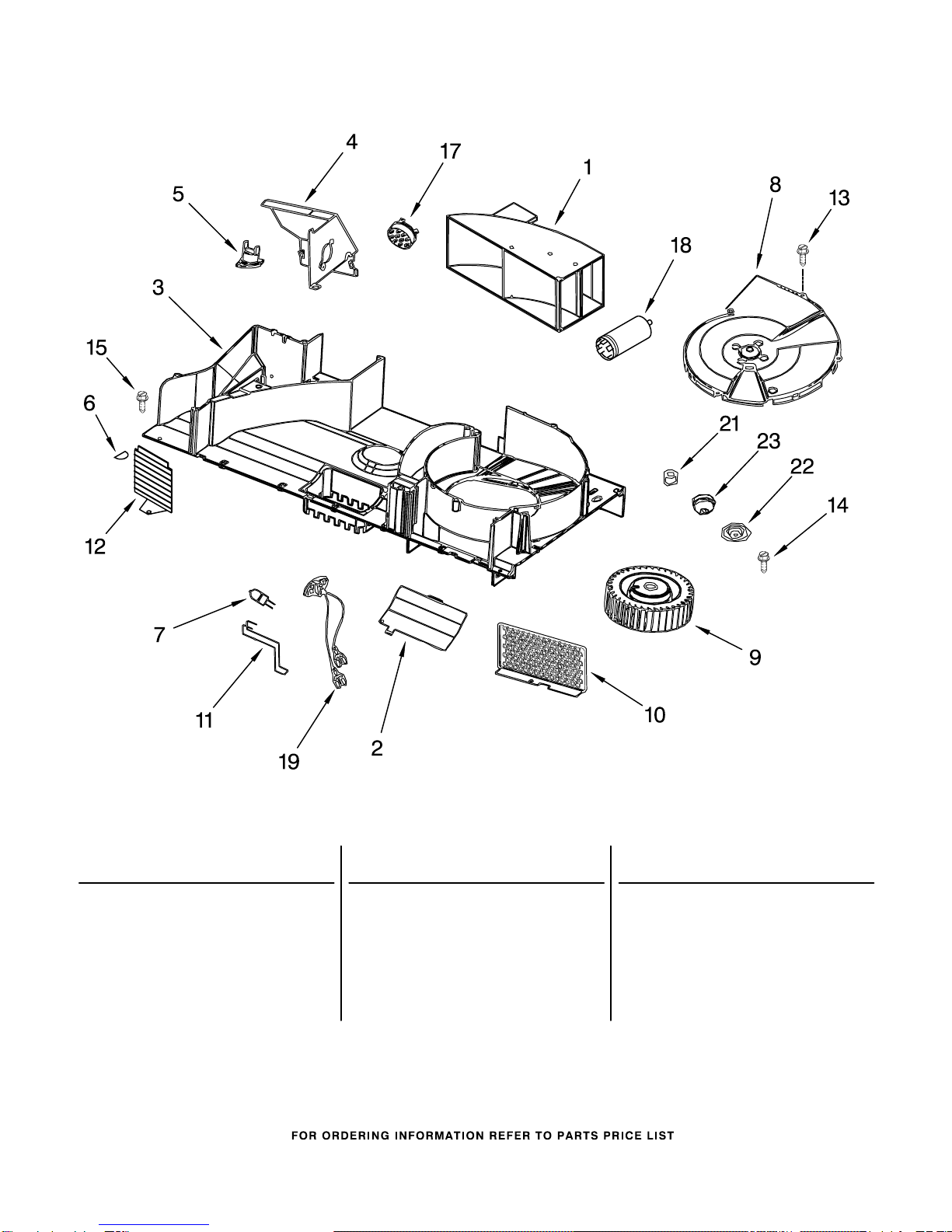

AIR FLOW PARTS
5
For Models: KHHS179LWH5, KHHS179LBT5, KHHS179LBL5, KHHS179LSS5
(White) (Biscuit) (Black) (Stainless Steel)
8206290
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8184667 Deflector, Air
2 8184885 Cover, Lamp
3 8205402 Duct, Air
4 8205401 Bracket, Thermostat
5 8183999 Thermostat
6 8204676 Air Guide Cover
7 8185188 Lamp
8 8184884 Cover, Fan
9 8184876 Motor, Fan Assy
10 8204754 Shield
11 8169647 Spring
12 8204790 Shield
13 4393834 Screw
14 8184198 Screw
15 8169474 Screw
17 4393808 Humidity, Sensor
18 8205853 Filter
19 8204669 Holder, Lamp
21 8184129 Spacer−Copper Pipe
22 8204674 Plate, Damper
23 8169635 Cushion, Mtr

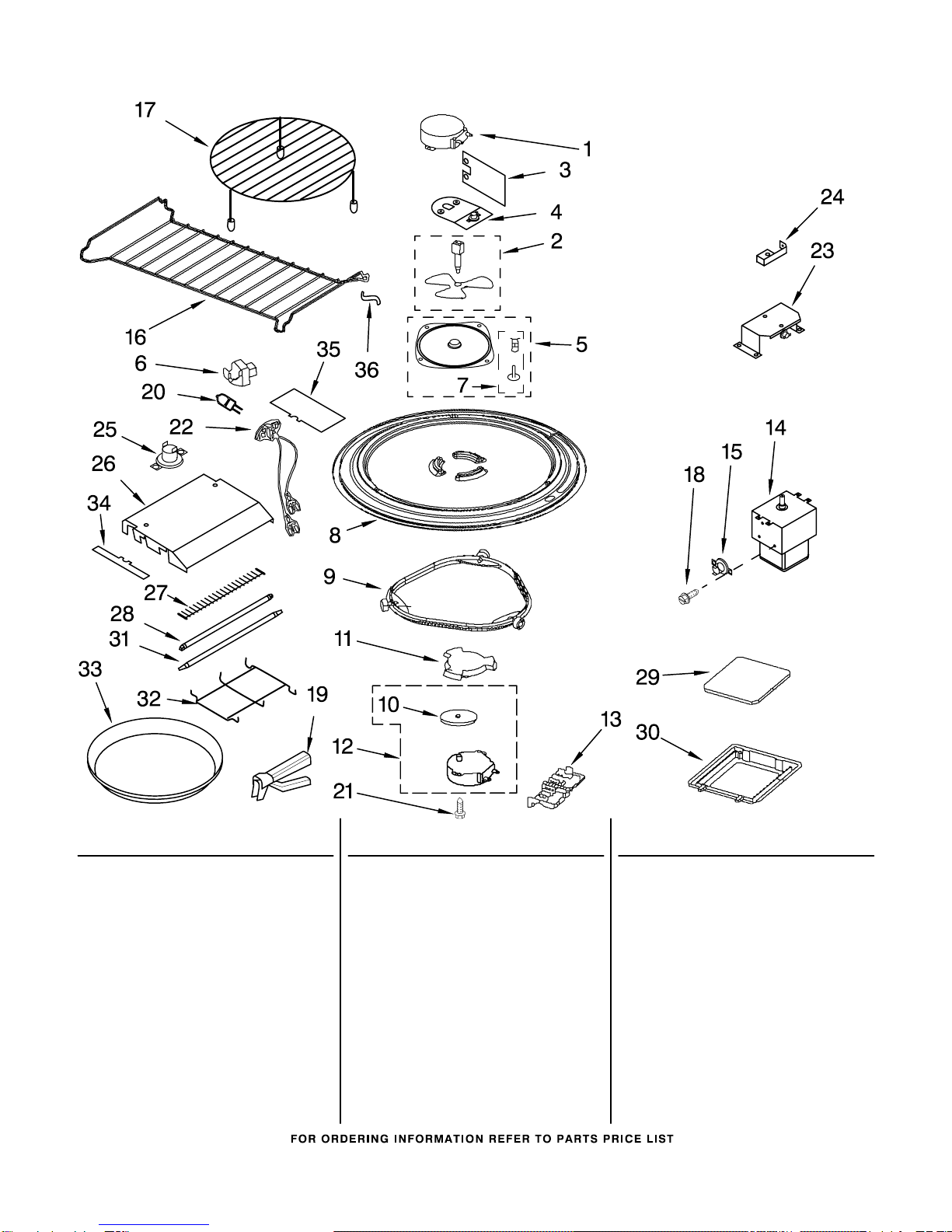

MAGNETRON AND TURNTABLE PARTS
6
For Models: KHHS179LWH5, KHHS179LBT5, KHHS179LBL5, KHHS179LSS5
(White) (Biscuit) (Black) (Stainless Steel)
8206290
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 4393746 Motor, Stirrer
2 8205202 Stirrer
Shaft/Blade
3 8184485 Shield, Nomex
4 8184585 Thermostat/Bracket
5 8185059 Cover, Inlet
Includes Nails
and Bushings
6 4393849 Hook, Rack (4)
7 8184549 Nails/Bushings
(5 of each)
8 4393799 Turntable
9 8205778 Ring, Turntable
10 8184109 Spacer, Waterproof
11 8205779 Driver, Turntable
12 8183953 Motor, Turntable
13 4393756 Cover, Terminal
14 8184139 Magnetron
15 8184951 Thermostat
16 8205042 Rack
17 8184862 Grill
18 4393838 Screw
19 8204652 Handle,
Crisper Plate
20 8204670 Halogen Light
21 4393832 Screw
22 8204669 Socket,
Halogen Light
23 8184586 Thermostat/Bracket
24 8184669 Bracket, Plug
25 8204995 Thermostat
26 8205409 Grill, Insulation
Plate
27 8184837 Browner, Halogen
28 8184838 Quartz Tube,
Soft Start
29 8169499 Glass, Lamp
30 8169646 Frame, Glass
31 8184839 Heater, Quartz
32 8205239 Cover, Protector
33 8204983 Plate, Crisp
34 8185175 Insulation, Front
35 8185176 Insulation, Rear
36 8205039 Spacer

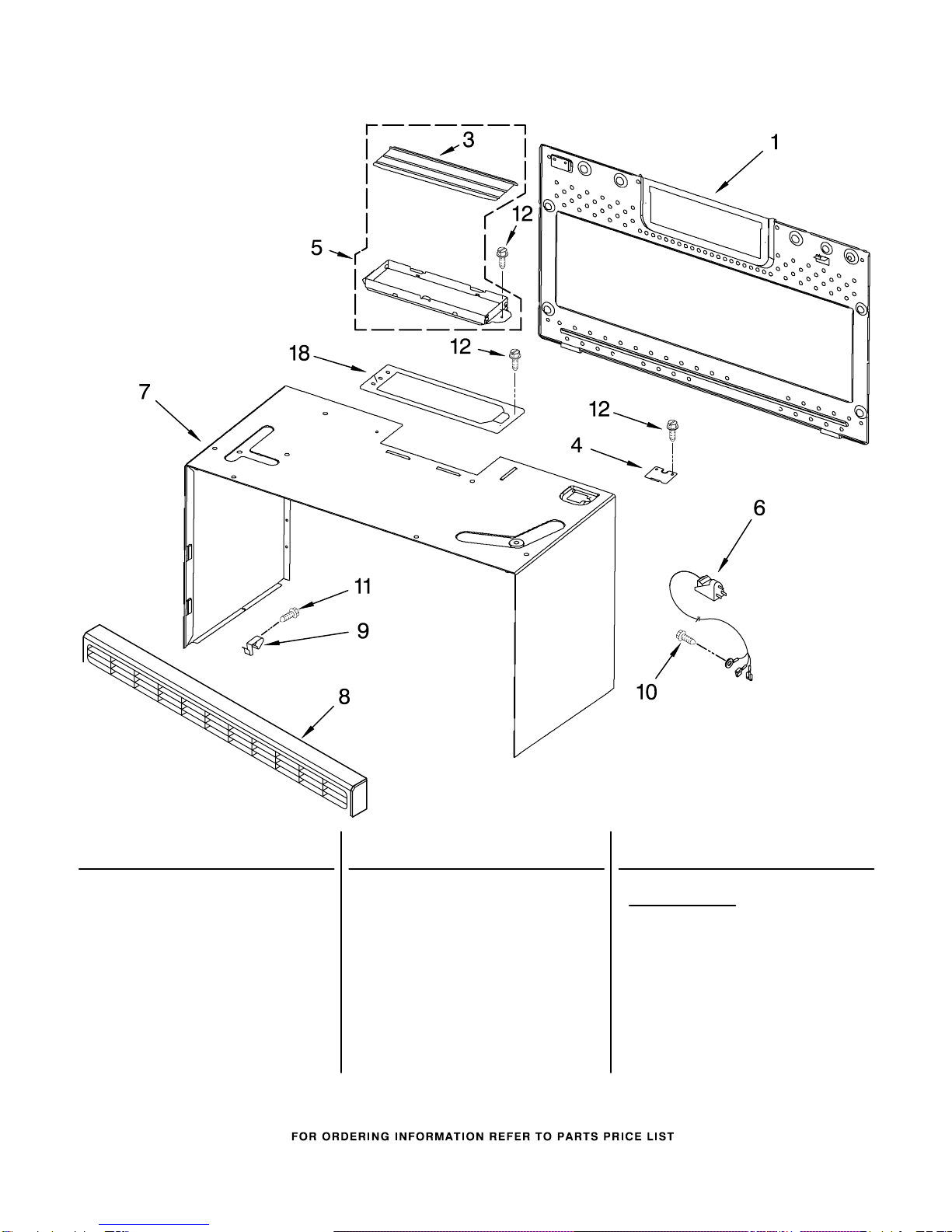

CABINET AND INSTALLATION PARTS
7
For Models: KHHS179LWH5, KHHS179LBT5, KHHS179LBL5, KHHS179LSS5
(White) (Biscuit) (Black) (Stainless Steel)
8206290
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8206173 Plate, Mounting
3 4393713 Door, Damper
4 8184897 Lid, Power Cord
5 8205772 Damper Assembly
6 8184898 Cord, Power
7 Case, Outer
8205397 White
8205398 Black
8205399 Biscuit
8 Grille, Vent
8205427 White
8205430 Black
8205429 Biscuit
8205428 Stainless
9 8184190 Clip, Grille
10 4393836 Screw
11 8169475 Screw
12 4393472 Screw
18 8184902 Plate, Damper
Miscellaneous
8205947 Installation,
Hardware
8184781 Template, Upper
8169704 Screw, Top Mountng
8184603 Wire Harness
(Includes light
sockets)
8206231 Harness from
Magnetron to
CN703
