KitchenAid KUIS185S Manuel utilisateur

1 758908 Shell

2 758652 Front, Shell

3 756330 Door, Inner Bin

4 758655 Liner, Door

5 593192 Plug, Hinge

6 593104 Strip, Tapping (2)

7 758748 Trim, Door (2)

8 593184 Rail, R.S.

593185 Rail, L.S.

9 681459 Screw, 8-32 x 1/2 (6)

10 680930 Thumbscrew

11 681036 Screw, Ground

12 756350 Liner (Includes Illus. 17, 18, 19, 20 & 21)

13 758169 Gasket, Bottom

14 596023 Clamp (2)

15 756663 Gasket

16 595431 Screw, 8-32 x 3/8

17 596807 Grommet

18 758492 Washer

19 681542 Nut, 1/4 Hex

20 758752 Pocket, Handle

21 758220 Stud (2)

22 593183 Well, Bin Thermostat

23 596812 Clip, Panel (12)

24 758622 Handle, Recessed

25 Panel, Exterior

758746 White & Black

758745 Almond & Harvest Gold

758740 Toast & Platinum

27 489016 Screw, 8-32 x 3/8

28 593577 Connector, Hose

29 585158 Scoop

30 680811 Screw, 10-32 x 3/8

34 681419 Thumbscrew, 10-1/2

35 596715 Well Nut (3)

36 758400 Trim, Door (Lower)

37 758608 Insulation, Door

38 681196 Screw

39 758718 Support, Front Panel

40 758720 White & Black Panel

41 758721 Toast & Platinum Panel

42 758722 Almond & Harvest Gold Panel

43 758769 Grille Font, Panel

44 758717 Trim Front, Panel (Top & Bottom)

45 758714 Trim Front, Panel (Side)

46 681347 Screw (4)

47 758770 Filler Panel

48 758771 Panel, Iner

Miscellaneous

503695 Cork Sealer

206922 *Primer, White (12 Oz. Spray Can)

206925 *Leveler, Enamel (12 Oz. Spray Can)

350956 *Enamel, Almond (13 Oz. Spray Can)

758469 Grid Assembly Complete (Standard Cube)

758470 Grid Assembly Complete (Cubelets 3/4 x 3/4)

876649 Leg Kit

702354 Ice Deflector Kit

978025 Valve, Access (1/4")

978026 Valve, Access (5/16")

876764 Valve Access (3/16")

DRAIN PUMP KIT

758840 Model # EKDP1

LITERATURE PARTS

LIT758801 Tech Sheet

LIT758559 Instructions, Installation

LIT758491 Instructions, Owner's

LIT879567 List, Parts

*Note: DO NOT Spray Paints Where They May Come In Contact With Door Gaskets.

1 759194 Valve, Complete Water

2 585856 Tube, Plastic

3 758597 Plug (2)

4 585813 Dispenser, Water

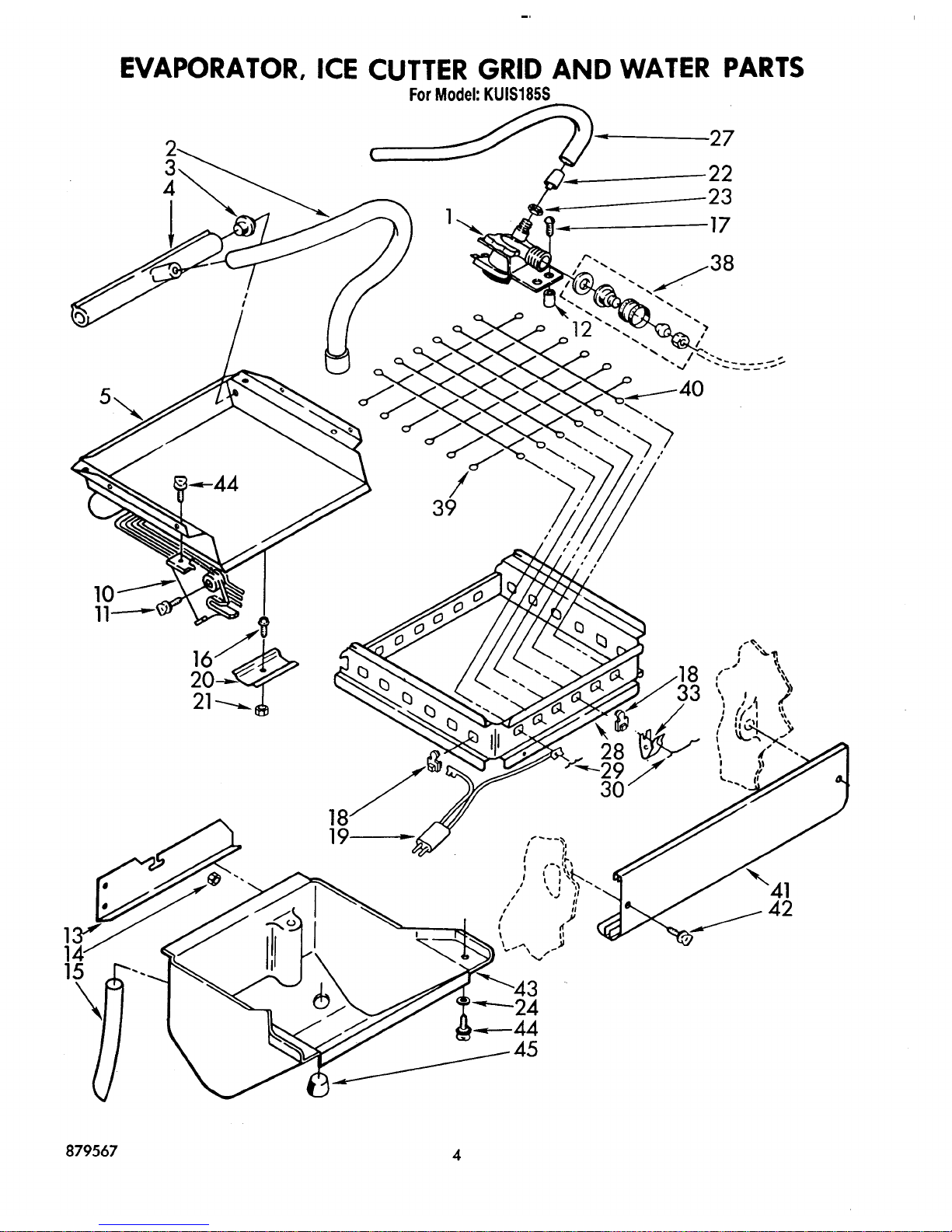

5 758028 Evaporator

10 756564 Bracket, Grid Mounting (2)

11 681611 Thumbscrew

12 758737 Spacer, (2) Water Valve

13 585853 Shelf, Water Pan

14 681770 Nut, Acorn (3)

15 593369 Hose, Overflow

16 596037 Screw, 10-32 x 1/2

17 681688 Screw, 1/4 x 20x13/4

18 598277 Insulator (38)

19 587639 Cord, Grid

20 587662 Clamp

21 681676 Nut, Hex 10-32

22 841707 Insert

23 627018 Nut & Sleeve Assembly

24 681245 Washer

27 758037 Tube, Plastic

28 758458 Frame, Grid (Not A Service Item)

29 587111 Pin (17)

30 587112 Pin (4)

33 564072 Clip (19)

38 533238 Adapter (Supplied In Literature Package)

39 587503 Wire Grid Cutter (9)

40 587504 Wire Grid Cutter (10)

41 593171 Panel, Grid

42 681534 Thumbscrew, 10-32 x 3/4

43 756659 Pan

44 681419 Thumbscrew, 10 x 1/2

45 593572 Stopper, Water Pan

1 569434 Plug, Pump

2 756124 Cover, Plug

3 681391 Screw, 8-18 x 3/4

4 593702 Housing, Motor

5 587096 Blade, Fan

6 756950 Motor, Pump

7 593060 Washer

8 756122 Bracket, Pump

9 596016 Grommet (2)

10 593229 Sleeve

11 681390 Screw, 8-32 x 3/8

12 756782 Pump, Water Complete Assembly

13 583518 Pump Assembly

14 569513 Impeller (Includes Retaining Ring 15)

15 681301 Ring, Retainer

1 757955 Shroud

3 572728 Blade, Fan

4 593363 Motor, Fan

5 560817 Bracket

6 681305 Screw, 1/4-20 x 1/2 (5)

7 485780 Compressor

8 680233 Screw (4)

9 595230 Washer (4)

10 585564 Sleeve (4)

11 596355 Grommet (4)

13 938384 Clamp (Used W/Original Compressor)

14 564234 Clamp, Coil Retainer

15 587970 Coil, Solenoid

16 598086 Valve Body

17 758638 Overload (Used W/Original Compressor)

18 549478 Overload (Used W/Service Compressor)

19 549086 Spring (Used W/Service Compressor)

20 549337 Relay (Used W/Service Compressor)

21 549336 Case (Used W/Service Compressor)

22 549342 Strap, Bale (Used W/Service Compressor)

23 755649 Drier

24 756299 Condenser

25 680811 Screw

26 587971 Harness, Coil

27 758811 Deflector, Front

29 681167 Screw

30 758810 Base, Unit

31 585219 Plug, Fan Motor

32 681650 Washer, Conical (Included With Fan Motor)

33 681656 Screw, 8-36 x 1/2 (Included With Fan Motor)

34 1108115 Cover, Terminal (Used W/Original Compressor)

35 758637 Relay, Start (Used W/Original Compressor)

36 756298 Accumulator
