Automatic Ice Maker@

lMode’ KU’s’85S

I’

CHANGING THE BIN DOOR AND LOWER PANEL

The storage bin door and lower panel are designed to

accept an optional decorative wood panel of your

choice.

The wood panel should be no more than V4inch (6 mm)

thick. Cut it to the same size as the production metal

panel. See Figure 1.

To change the bin door panel:

1. Open the bin door.

2. Remove the two screws on top of the door which

hold the handle.

3. Remove the handle.

4. Slide the metal panels out.

5. Break off the ribs on the door insulation to allow

for the wood thickness. See Figure 2.

6. Slide the wood panel into the door frame.

7. Replace handle and screws.

To change the lower panel:

1. Remove the two screws at the bottom that hold the

lower panel assembly to the ice maker.

2. Remove the two screws on the top of the pane!

assembly.

3. Slide the metal panels and spacers out.

4. Slide the wood panel into the door frame.

5. Replace the top of the panel assembly.

NOTE: Make sure the galvanized panel is replaced in

back of the panel assembly.

DOOR LOWER

BIN PANEL

WOOD

PANEL

DIMENSIONS

- 17-w

FIGURE 1

REMOVE ALL DOOR INSULATION

RIBS TO ACCEPT WOOD PANEL

THICKNESS

FIGURE 2

THERMOSTAT CALIBRATIONS

If ice maker is installed above two thousand feet of

altitude, the bin and evaporator thermostats must

be adjusted to a warmer setting. Disconnect

electricity, remove thermostat and follow the

directions for turning the altitude adjustment

screw as shown in the label on each thermostat.

SHIPBOARD OPERATION

When this ice cube maker is installed aboard a ship,

it will be necessary to purchase and install a water

deflector. This deflector hangs between the lower

edge of the evaporator and the cutter grid. It keeps

the water flowing over the evaporator from spilling

into the storage bin area. Order the necessary parts

from your local ice maker dealer.

&l/4”

GENERAL INFORMATION

UNPACK

REMOVE

INTERIOR

PACKING

OPEN BOTTOM FLAPS

FIGURE 3 FIGURE 4

Lay carton on rear face and break open bottom

flaps

2 Set carton upright with all four flaps outward.

See Figure 3.

Lift carton up

and off of machine.

4 Remove all tape and packaging material from the

outside and inside of the cabinet. See Figure 4.

5R emove the front grill: take out the screws secur-

ing the grill at the bottom and Ilft It free of cabinet

Turn the fan by

hand to make certain It moves

freely.

oosen thumb screws holding cutter grid and water

pan

to “thumb tight.”

. UTILITIES

ELECTRICITY DRAIN

OBSERVE LOCAL CODES

Each installation is unique but will require:

2 Either a

gravity drain system or a sump pump

to lift

Ihe water lo an existing drain.

3 An electrical branch circuit

of 115 Volt, 60 Hz, 1 phase,

with

a 15 Amp delayed action fuse or circuit breaker.

LOCATE UNIT

THIS UNIT MUST BE

I-J

INSTALLED IN AN

gooFlYlI

AREA PROTECTED FROM ( BEST

THE ELEMENTS, SUCH

AS WIND, RAIN, WATER 7oo F \ RANGE

SPRAY OR DRIP.

CR 66A

Place unit so the front side WIII be .completely

unobstructed. lo provide proper air flow

2 Area should be well ventilated with temperature

above 55-F and below 110°F. Best results are

obtained between 70°F and 90°F.

3 ProvIsIon for electrlclty, water and drain connec

tlons should be determlned

4 The unit may be closed tn on the top and three

sides. but the front

MUST BE

unobstructed for air

clrculatlon and proper operation Installation

should be such that the cabinet can be moved

forward for servlclng. If necessary

LEVEL UNIT

After placing unit In posItIon. check to make

certain the unit

level side to side and front to

back.

2 Accurate leveling

essential for proper

operation.

3 Unit should be shimmed so that it

solid as well as

level. The shims should

be of hard permanent type

material such as masonite.

Compliance with National Sanitation Foundation stan-

dards require that this type of product be sealed to the

floor at the bottom rail in order to prevent contamination

from spills or the entrance of vermin. Therefore, we

recommend that when installing this product you seal it

to the floor in accordance with those standards. A

silicone-type sealer is recommended.

A cold water inlet of 1/4”OD soft copper tubing and

a shut-off valve.

FOR THE PLUMBER

CONNECT TO WATER

(observe local codes)

Use l/o” OD soft copper tubing for the cold water

SUPPlY.

‘d

rove e

convenient manual shut-off valve tn the

water lrne

3 Position the tubing so It can enter the access hole

located in the right-hand rear of the cabrnet. The

tubing should extend beyond the cabinet front

when the cabinet is pushed back into position. See

Figure 5.

NOTE:

Always purge the water line before making the final

connection to the inlet of the water valve to prevent

possible water valve malfunction.

After the cabinet is in place, bend the tubing to meet

the connection at the water valve. The garden hose

threaded compression fitting is found in the parts

bag. This joint provides a convenient disconnect for

service. Be sure the tubing is clear of compressor, to

prevent rattle.

CONNECT THE DRAIN

(observe local codes)

1 Th e unrt IS provrded with a gravity drain

2 The ideal installation has a standpipe (1’14”

mrnimum) installed directly below the outlet of the

drawn tube. Refer lo Figure 5 for the proper location

of the standpipe.

3 It may be desirable to insulate drain line thoroughly

up to drain Inlet.

CONDENSATE PUMP

1. When drain connection below the level of the unit is

not available a condensate pump may be used to lift

the water to an available drain.

2. Install condensate pump on floor behind ice maker with

discharge tube to the rear. Run bin drain directly into

pump as shown in Figure 5A.

3. Run power cord thru hole into unit compartment (See

Figure 5A)

4. Remove lower grille assembly. (See Figure 5B)

5. Remove shunt from receptable and plug in condensate

pump. (See Figure 5C)

NOTE:

Do not discard shunt that is removed from

receptable. This must be replaced if unit is to be

operated without condensate pump.

CONDENSATEPUMPHASPRESSURE ADD PLASTIC HOSE

SWITCH THAT CYCLES FROM BIN DRAIN

ITS PUMP. / DIRECTLY TO PUMP

a %” ID TUBE

R CORD

THIS HOLE

SUPPLIED

R LINE

THIS HOLE

RIGHT END VIEW BACK VIEW

FIGURE 5

I /

VALVE

1/4”O.D. WATER

LINE COMPRESSION

FITTING AT WATER ------I<

VALVE

BEND FIELD SUPPLIED WATER LINE

4 4” LONG 5/0” I.D. RUBBEF

DRAIN TUBE - RUN TO

I , OPEN DRAIN

l-1/4” MINIMUM

HOLE FOR FIELD

3” SUPPIED WATER

TO CONNECT TO WATER VALVE FITTING /

. SCREWS

FIG. 58

. REMOVE SHUNT

PLUG IN

-CONDENSATE

PUMP

FIG. 5C

FOR THE ELECTRICIAN

ELECTRICAL REQUIREMENTS

A 115 Volt, 60 Hz, AC only, 15 Amp fused electrical supply is

required (time delay fuse or circuit breaker is recommended).

It is recommended that a separate circuit, serving only this

appliance, be provided. DO NOT use an extension cord.

ELECTRICAL GROUND IS REOUIRED ON THIS

APPLIANCE.

RECOMMENDED

GROUNDING MtrnOD

DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE

THE POWER SUPPLY CORD GROUND PRONG.

For your personal safety, this appliance must be grounded.

This appliance is equipped with a power supply cord having a

3-prong grounding plug. To minimize possible shock hazard,

the cord must be plugged into a mating 3.prong grounding

type wall receptacle, grounded in accordance with the National

Electrical Code and local codes and ordrnances. If a mating

wall receptacle is not available, it is the personal responsibility

and obligation of the customer to have a properly grounded

3-prong wall receptacle installed by a qualified electrician.

See Figure 6.

3.PRONG

GROUNDING TYPE

WALL RECEPTACLE

GROUNDING

POWER SUPPLY

FIGURE 6

ALTERNATE

GROUNDING MtrnOD

DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE

THE POWER SUPPLY CORD GROUND PRONG.

If changing and properly grounding the wall recepta-

cle

impossible and where local codes permit

(consult your electrical inspector), a temporary

adapter may be plugged into the existing 2-prong wall

receptacle to mate wrth the Z&prong power supply

cord. See Figure 7.

THIS, HOWEVER, IS NOT RE-

COMMENDED.

If this is done, you must connect the grounding eyelet on the

adapter to the wall receptacle cover plate screw and from this

same screw, you must connect a separate copper ground wire

(No. 4 minimum) to a grounded cold water pipe’. See Figure

7. Do not ground to a gas supply pipe Do not connect to

electrical supply until appliance is permanently grounded.

‘Cold water pipe must have metal conttnurty to electrrcal

ground and not be Interrupted by plastrc. rubber or other

electrrcally tnsulatrng connectors (tncludrng water meter or

pump) wrthout addrng a lumper wrre al these connectrons

GROUND ASSEMBLY

(ATTACH TO GROUNDED

COLD WATER PIPE)

MUST BE TIGHT ELECTRICALLY

GROUNDED COLD

WATER PIPE (REMOVE

GROUND WIRE tit4 MINIMUM)

3-PRONG

GROUNDING

PLUG

WALL R

POWER SUPPLY CORD

FIGURE 7

ECEPTACLE

HOW IT

WORKS

0 Compressor runs

0 Condenser fan runs

0 Water pump runs (circulates water)

0 Cutter grid is warm to touch

WHEN THE DESIRED ICE SLAB

THICKNESS IS REACHED, THE

HARVEST CYCLE BEGINS AND THE

FOLLOWING HAPPENS:

0 Evaporator thermostat is satisfied

0 Compressor keeps running

0 Condenser fan stops or turns very slowly

0 Water pump stops

0 Hot gas solenoid opens

0 Water inlet valve opens

0 Excess water is flushed out of the drain pan

0 Cutter grid is warm to the touch

NOTE:

Normal harvest cycle takes 60 to 120

seconds.

MACHINE RESUMES FREEZING AFTER

SLAB IS RELEASED FROM

EVAPORATOR AND THE CUTTING

PROCESS BEGINS.

WHEN THE STORAGE BIN IS FILLED,

BIN THERMOSTAT OPENS.

0 Cutter grid remains on

THINGS TO

REMEMBER

0 Water enters only during the defrost cycle. There-

fore the first cycle will be completed without

water in the system.

0 As the room and water temperatures vary, so will

the amount of ice produced. This means that

higher operating temperatures will result in re-

duced ice production.

0 The unit will shut off when ice in the storage bin

touches the bin thermostat well and will auto-

matically cycle to keep the bin full.

0 The storage bin is not refngerated and some

meltage will occur. This, too, varies with the room

temperature.

0 The unit needs good air circulation to perform

efficiently. Keep the front grill and the condenser

clean.

0 The water system, including filter screen in the

water inlet solenoid valve, needs to be cleaned

periodically for good circulation. Instructions are

located on the inner door panel.

OPERATING

INSTRUCTIONS

0 For complete operating information, refer to the

Use and Care Guide.

0 Before starting, wash out interior

cabinet

with a

Baking Soda solution (2 tablespoons soda to a

quart of warm water). Rinse thoroughly.

0 Make certain the water is turned on

0 Turn switch to the “ON” position.

IMPORTANT:

Allow unit to run for 3 hours before expecting ice and

for 24 hours before trying to set the thickness

control.

If installed above 2,000 feet altitude, see page 2 for

thermostat adjustments.

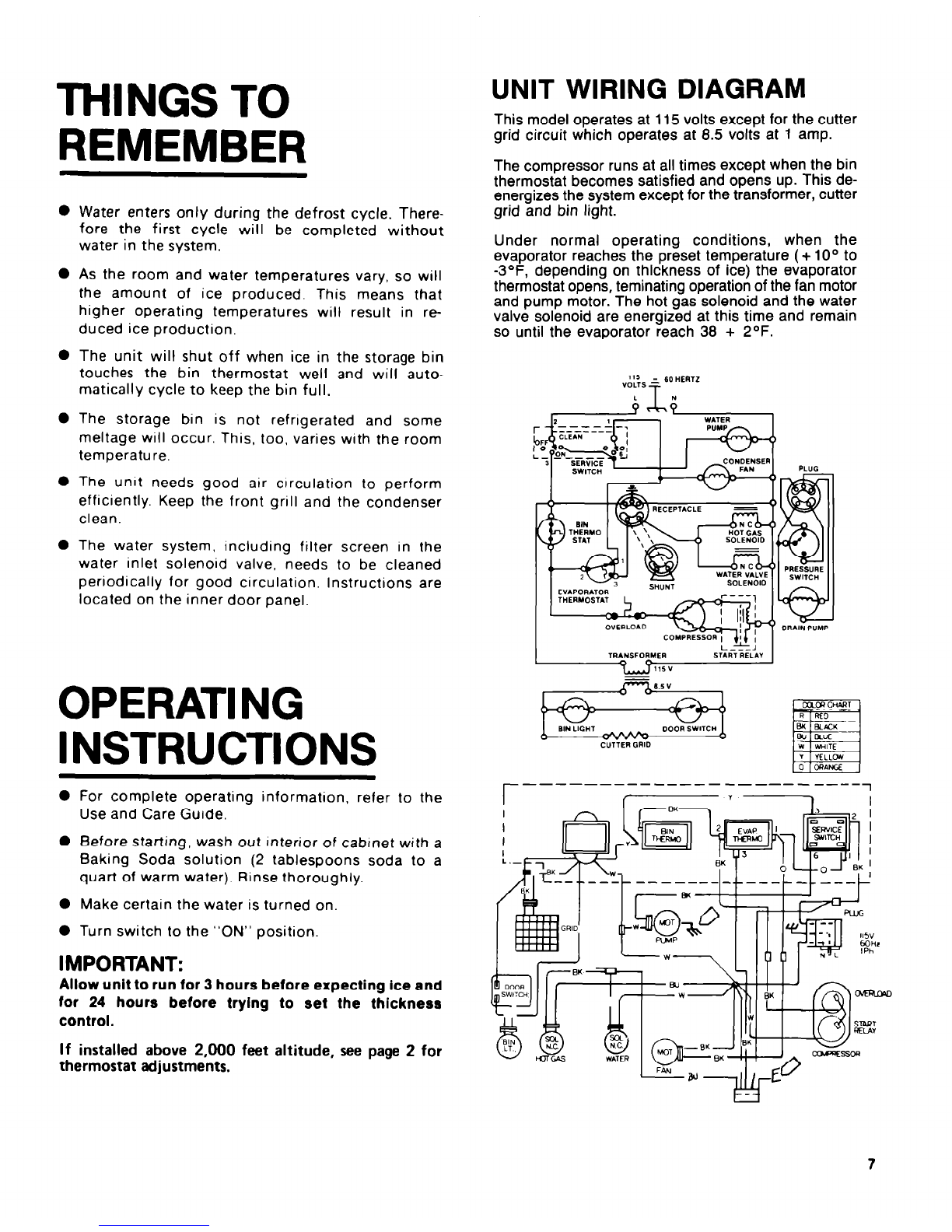

UNIT WIRING DIAGRAM

This model operates at 115 volts except for the cutter

grid circuit which operates at 8.5 volts at 1 amp.

The compressor runs at all times except when the bin

thermostat becomes satisfied and opens

up.

This de-

energizes the system except for the transformer, cutter

grid and bin light.

Under normal operating conditions, when the

evaporator reaches the preset temperature (+ loo to

-3OF, depending on thickness of ice) the evaporator

thermostat opens, teminating operation of the fan motor

and pump motor. The hot gas solenoid and the water

valve solenoid are energized at this time and remain

so until the evaporator reach 38 + 2OF.

r---- ----- ---------------~ I

CUBELET CUTTER GRIDS

i- 9.l/2”-1

h CUBE CUTTER GRID

1%” x 1X” Cube Grid

CHECK OPERATION

Start the unit by turning the service switch to

“ON” and opening the line water valve.

If NOTE: Left is “OFF” - Middle is “ON” - Right

is “CLEAN.” In “CLEAN” position, only the

pump operates.

If Check condenser fan to make sure it is revolving.

v Water will not enter pump pan until freezing

plate gets cold and machine goes into a harvest

cycle.

v Check for even water flow over freezrng plate.

Unit must be level for proper operation.

v Check for desired cube thtckness and after 24

hours adjust if necessary. Maximum ice yield

will be obtained with Ice thickness at

‘/2”

to 3%“.

Replace grill.

Part No. 758842-U

Printed in U.S.A.

Autres manuels pour KUIS185S

Table des matières

Autres manuels KitchenAid Machine à glaçons

KitchenAid

KitchenAid KUIC18PNTS1 Manuel utilisateur

KitchenAid

KitchenAid KUIC15N - 15 in. ARCHITECT Series II Ice... Manuel utilisateur

KitchenAid

KitchenAid KUIC15PHZS Manuel utilisateur

KitchenAid

KitchenAid KUIC15NRTS Manuel utilisateur

KitchenAid

KitchenAid 5KSMSIA Manuel utilisateur

KitchenAid

KitchenAid KUIC15NHZS Manuel utilisateur

KitchenAid

KitchenAid KUIS155HPB2 Manuel utilisateur

KitchenAid

KitchenAid 2181092 Manuel utilisateur

KitchenAid

KitchenAid KUIS15NRTB3 Manuel utilisateur

KitchenAid

KitchenAid KUIO18NNVS0 Manuel utilisateur

KitchenAid

KitchenAid KUIC18PNTS1 Manuel utilisateur

KitchenAid

KitchenAid KUIO18NNVS1 Manuel utilisateur

KitchenAid

KitchenAid KUIS18NNJS Guide de l'utilisateur

KitchenAid

KitchenAid W10515677B Manuel utilisateur

KitchenAid

KitchenAid 2313684A Manuel utilisateur

KitchenAid

KitchenAid KUIS155HBL2 Manuel utilisateur

KitchenAid

KitchenAid KUIS185EAL1 Manuel utilisateur

KitchenAid

KitchenAid KUIS18NNJB3 Manuel utilisateur

KitchenAid

KitchenAid OUTDOOR ICE MAKER Manuel utilisateur

KitchenAid

KitchenAid KUIS185JBL1 Manuel utilisateur

KitchenAid

KitchenAid W10493416B Manuel utilisateur

KitchenAid

KitchenAid KUIS15PRHW4 Manuel utilisateur

KitchenAid

KitchenAid KUID308HPS Manuel utilisateur

KitchenAid

KitchenAid OUTDOOR ICE MAKER Manuel utilisateur

Manuels Machine à glaçons populaires d'autres marques

Hoshizaki

Hoshizaki KMD-460MWJ Manuel utilisateur

Sub-Zero

Sub-Zero 315I Instructions d'utilisation

Unold

Unold 48945 Manuel utilisateur

Kenmore

Kenmore 2217402A Manuel utilisateur

Cornelius

Cornelius WM600 Mode d'emploi

GE XPIO43SCSS Manuel utilisateur

Hoshizaki

Hoshizaki KMD-901MAH Manuel utilisateur

Whynter

Whynter FIM-450HA Manuel utilisateur

U-Line

U-Line UMCR014-SC01A Manuel d'installation

Andrew James

Andrew James AJ000522 Manuel utilisateur

Scotsman

Scotsman CME1356 Manuel utilisateur

Scotsman

Scotsman ACM 25 Manuel utilisateur

Kärcher

Kärcher IP 120 Manuel utilisateur

U-Line

U-Line SS1095 Manuel utilisateur

Maytag

Maytag MIM1554WRS - Ice Maker Manuel utilisateur

Hoshizaki

Hoshizaki KM-630MAH Manuel utilisateur

Princess

Princess Yonanas Manuel utilisateur

Unold

Unold 48946 Manuel utilisateur
