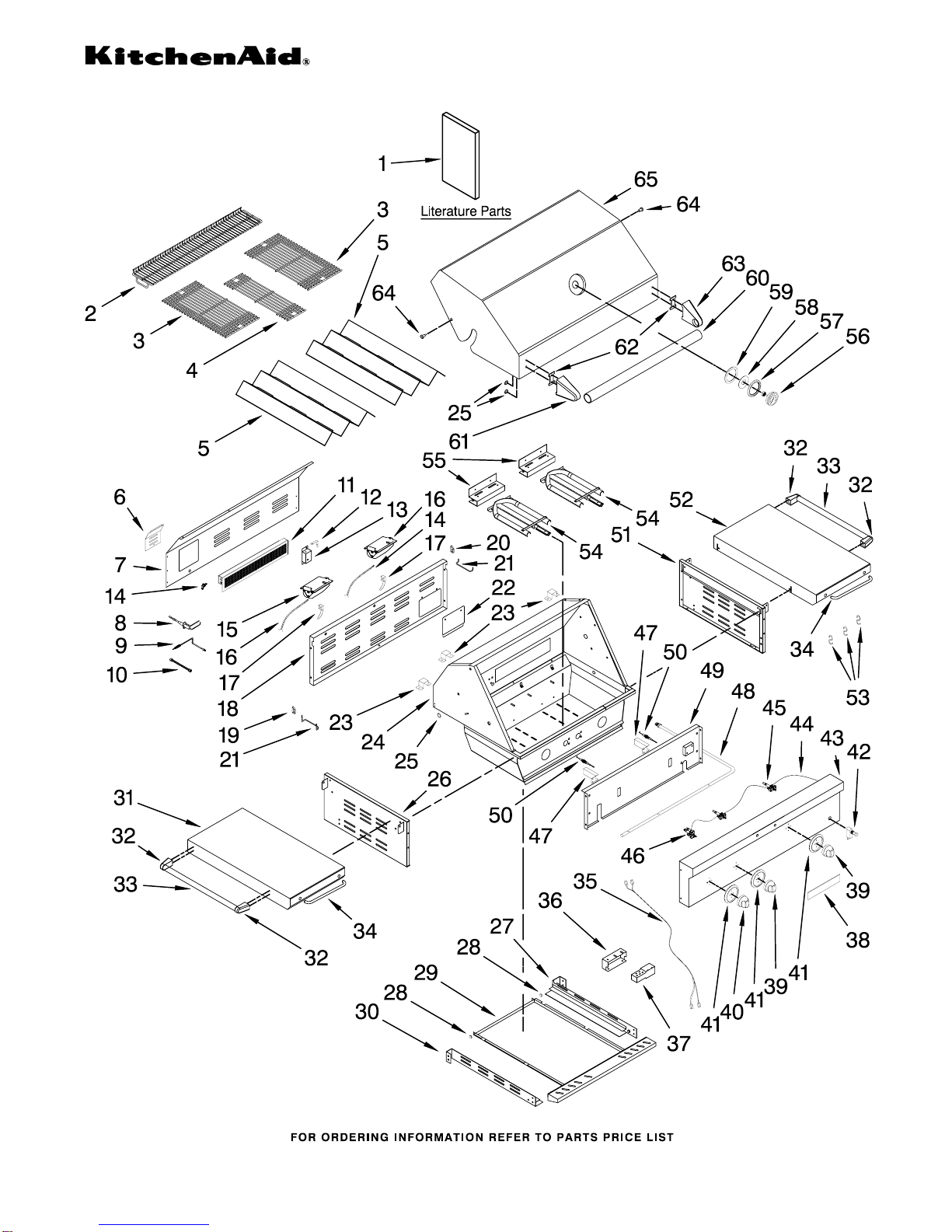

GRILL PARTS

For Models: KFRS271TSS00

(Stainless Steel)

3−07 Litho In U.S.A. (cre) Part No. W10130454 Rev.A

27" CARTED GRILL

KitchenAid

GRILL PARTS

For Models: KFRS271TSS00

(Stainless Steel)

W10130454

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10110724

Use & Care Guide

W10110730

Conversion Instr.

(LP to Natural)

W10128611

Rack, Warming

W10128614

Grate, Large

W10128616

Grate, Small

W10128618

Plate, Sear

W10128619

Cover, Rear

W10128620

Panel, Rear

W10128621

Electrode, Rear

Burner

W10128622

Thermocouple,

Rear,Burner

W10128623

Flex Tube,

Rear Burner

W10128624

Burner, Rear

W10128625

Bracket, Rear

Thermocouple

W10128626

Cover, Rear

Thermocouple

W10128627

Orifice, Rear

Burner

W10128628

Light, Grill

W10128630

Light, Grill (Set)

W10128631

Socket, Light

W10128632

Panel, Access

W10128634

Bracket, Panel

Left

W10128635

Bracket, Panel

Right

W10128636

Bracket, Warming

Rack

W10128637

Cover, Access

Panel

W10128638

Clip, Wire

W10128639

Hood Assy

W10128640

Hole Plug

W10128642

Panel, Side Left

W10128644

Bracket, Grease

Tray (Right)

W10128655

Roller, Drip Tray

W10128656

Drip Tray Assy

(Includes Rollers)

W10128657

Bracket, Grease

Tray (Left)

W10128658

Shelf, Side (Lf)

W10128659

Bracket, Handle

W10128660

Handle, Shelf

W10128662

Bar, Tool

W10128663

Harness, Wire

Light

W10128664

Cover, Igniter

W10128665

Igniter

W10128751

Nameplate

W10128753

Knob, Main Burner

W10128756

Knob, Rear Burner

W10128759

Bezel, Knob

W10128761

Switch, Light

W10128762

Panel, Control

W10128763

Harness, Wire

Control

W10128764

Valve, Main Brnr

W10128766

Valve, Rear Brnr

W10128767

Igniter, Main Gas

W10128768

Manifold

W10128769

Baffle, Front

W10128770

Electrode, Main

Burner

W10128771

Side Panel, Right

W10128776

Shelf, Side (Rt)

W10128774

Hook

W10128775

Burner, Main

W10128776

Bracket, Main Brnr

W10128777

Thermometer

W10128779

Bezel, Thermometer

W10128780

Insulator,

Thermometer(Small)

W10128782

Insulator,

Thermometer(Large)

W10128783

Handle, Hood

W10128785

Endcap, Handle

(Left)

W10128786

Spacer, Handle

W10128787

Endcap, Handle

(Right)

W10128788

Hinge, Lid

W10128789

Hood

BASE PARTS

For Models: KFRS271TSS00

(Stainless Steel)

W10130454

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10128666

Ring, Rubber

W10128667

Box,Transformer

W10128668

Cover,Transformr

Box

W10128669

Transformer

W10128670

Clamp, Wire

W10128671

Panel, Rear

W10128672

Caster

W10128673

Panel, Bottom

W10128674

Bracket, Tank

Tray (Right)

W10128675

Bracket, Tank

Tray (Left)

W10128676

Slide, Tank Tray

W10128677

Bolt, Tank

W10128678

Tray, Tank

W10128679

Lock, Tank Tray

W10128680

Handle,Tank Tray

W10128681

Bracket, Towel

Rack

W10128686

Rack, Towel

W10128694

Tray, Condiment

W10128695

Door, Left

W10128696

Hole Plug

W10128697

Magnet, Door

W10128698

Door, Right

W10128703

Bag, Lighting Rod

W10128704

Rod, Lighting

W10128705

Caster, W/Brake

W10128706

Panel, Side Assy

W10128711

Cover, Battery

Box

W10128715

Box, Battery

W10128719

Case, Battery

Box

W10128746

Regulator

W10128747

Fixture, Manifold

W10128748

Connector (Brass)

W10128749

Base, Manifold

Fixture

W10128750

Commutator,

Manifold

W10128661

Handle, Door

W10128659

Bracket, Handle

OPTIONAL PARTS

For Models: KFRS271TSS00

(Stainless Steel)

W10130454

Illus. Part

No. No. DESCRIPTION

Miscellaneous

4396540 Altitude 2K−5K LP

4396541 Altitude 5K−8K LP

4396542 Altitude 8K−10K LP

4396544 Altitude 2K−5K NG

4396545 Altitude 5K−8K NG

4396546 ALtitude 8K−10K NG

W10118099

Conv.Kit (NG−LP)

W10118098

Conv.Kit(LP−NG)

Smoker Box

KFKU271TSS

27" Rotiss. Kit
