KitchenAid 810-0021 Fiche d'information produit

CHARCOALOUTDOORGRILL

InstallationInstructionsandUse&CareGuide

For questions about features, operation/performance, parts, accessories or service, call: 1-877-373-2301

or visit our website at www.Kitchenaidgrills.com

ASADORPARAEXTERIORES

InstruccionesdeinstalaciónyManualdeusoycuidado

Para consultas respecto a características, funcionamiento, rendimiento, piezas, accesorios o servicio técnico,

llame al: 1-877-373-2301

o visite nuestro sitio de internet en www.Kitchenaidgrills.com

Table of Contents/Índice................................................................................. 2

810-0021 19000449A0

OUTDOOR GRILL SAFETY……………………………....3

INSTALLATION REQUIREMENTS……………………….....4

Tools and Parts……………...………………………………….4

TABLE OF CONTENTS

OUTDOOR GRILL USE …………………………………….….16

Using Your Outdoor Grill ………………………………..…..….16

TIPS FOR OUTDOOR GRILLING ……………………….…...17

Location Requirements…………………………………..…....4

Product Dimensions……………………………….…………...5

REPLACEMENT PARTS………………………………..…....6

PACKAGE CONTENTS LIST…………………...……….… 8

ALL PRE-ASSEMBLED SCREW LIST.............................10

INSTALLATION INSTRUCTIONS………………….…...….11

Freestanding Outdoor Grill Installation……………………..11

OUTDOOR GRILL CARE …………………………………..…18

General Cleaning ………………………………………............18

ASSISTANCE ……………………………………………..……18

WARRANTY ……………………………………………….…...19

ÍNDICE

SEGURIDAD DEL ASADOR PARA EXTERIORE

USO

DEL

ASADOR

PARA

EXTERIORES

SEGURIDAD

DEL

ASADOR

PARA

EXTERIORE

….............

REQUISITOS DE INSTALACIÓN…………..………………...21

Herramientas y piezas ……………...………………...…….....21

Requisitos de ubicación ……………………………...………. 21

Medidas del producto ……………………………….………....22

PIEZAS DE REPUESTO ……………………………...………23

PAQUETE LISTA DE CONTENIDO …..…….............……...25

Tools los Tornillos pre-ensamblados listo…………………....27

INSTRUCCIONES DE INSTALACIÓN ……………….……..28

USO

DEL

ASADOR

PARA

EXTERIORES

…………………...

Cómo usar el asador para exteriores …………………………..33

CONSEJOS PARA ASAR AL AIRE LIBRE …………………..34

CUIDADO DEL ASADOR PARA EXTERIORES ………….….35

Limpieza general ………………………………………………….35

ASISTENCIA………………………………………………..……..35

GARANTÍA …………………………………………………..…....36

Instalación del asador autónomo para exteriores .........……28

OUTDOOR GRILL SAFETY

S f C lif i P i i 6 W i

tate o

lif

orn

ropos

arn

ngs:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other

reproductive harm.

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT: To reduce the risk of fire, injury to persons, or damage when using the outdoor cooking appliance,

follow basic precautions, including the following:

•Do not install portable or built-in outdoor cooking appliances in or on a recreational vehicle, portable trailer, boat, or

in any other moving installation.

•Always maintain minimum clearances from combustible construction, see "Locations Requirements" section.

•The outdoor cooking appliance shall not be located under overhead unprotected combustible construction.

•This outdoor cooking appliance shall be used only outdoors and shall not be used in a building, garage, or any other

enclosed area.

•Keep outdoor cooking appliance clear and free from combustible materials, gasoline or other flammable vapors or

liquids.

•This grill will become very hot while in use. Do not move it during operation.

•Do not use alcohol, gasoline or comparable fluids for lighting or re-lighting grill.

•Do not use this grill as a heater.

•Grill is to be used on a stable, level, non-flammable surface such as asphalt, concrete or

solid ground Do not use this grill on flammable material such as carpet or a wood deck

solid

ground

not

use

this

grill

flammable

material

such

carpet

wood

deck

•Do not use this product in a manner other than its intended purpose.

•Do not leave the grill unattended while in use.

•Do not leave hot ashes unattended until the grill cools completely.

•Do not move the grill while in use or while ashes are still hot. Allow the grill to cool completely before moving or

storing.

•Dispose of cold ashes by placing in a noncombustible container. Make sure that there are

no other combustible materials in or near the container.

SAVE THESE INSTRUCTIONS

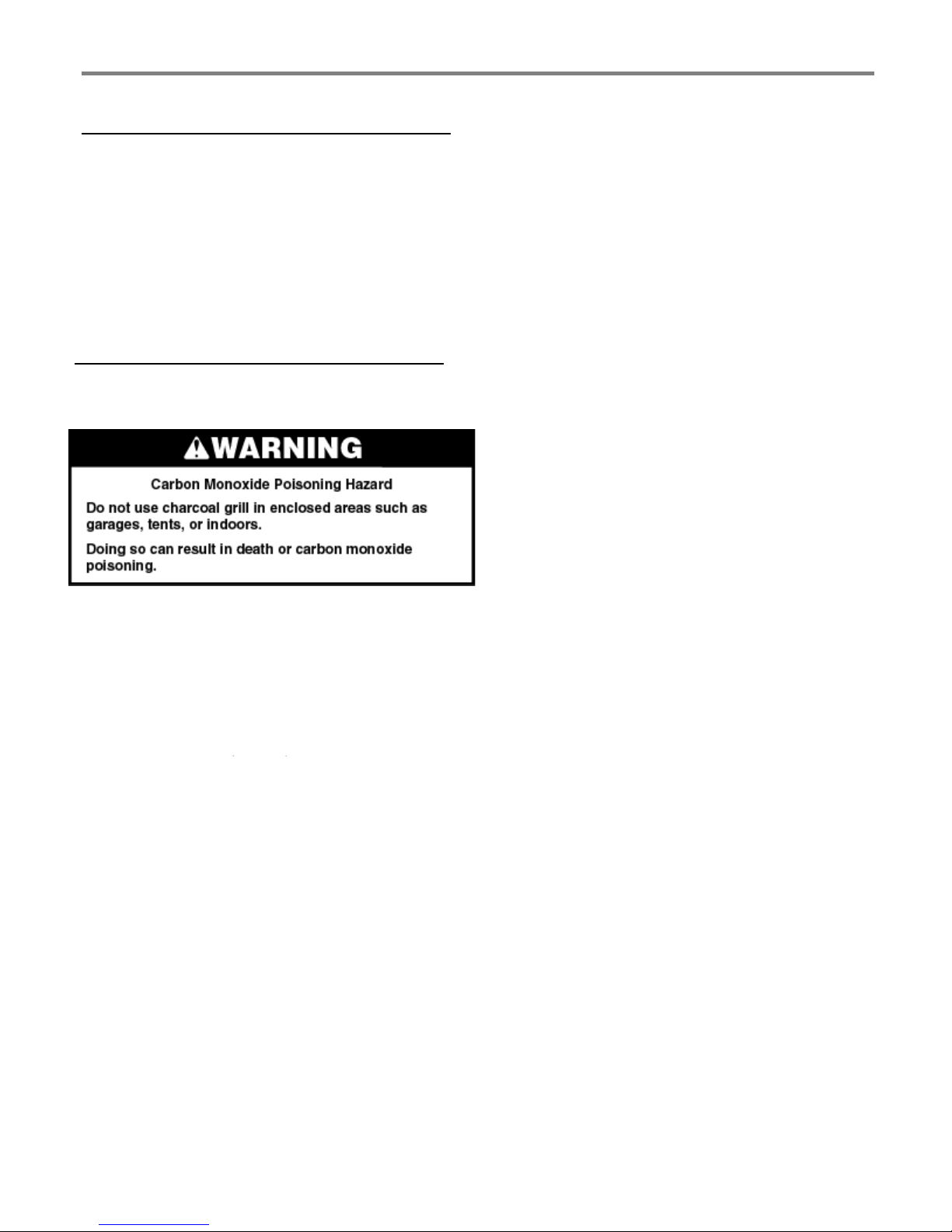

INSTALLATION REQUIREMENTS

Tools and Parts

Gather these required tools and parts before starting

installation Read and follow the instructions provided with

installation

Read

and

the

instructions

provided

with

any tools listed here.

Tools needed

Phillip screwdriver

Wrench or pliers

Scissors or cutting

pliers (to remove

tiedowns)

Location Requirements

Select a location that provides minimum exposure to

wind and traffic paths. The location should be away from

strong draft areas.

Clearance to combustible construction for grill:

A minimum of 36”

(

91.4 cm

)

must be maintained

()

between the front of the grill hood, sides and back of

the grill and any combustible construction.

A 36” (91.4 cm) minimum clearance must also be

maintained below the cooking surface, and the grill

shall not be used under overhead combustible

construction.

Product Dimension

30"(760mm)

59.9"(1522.5mm）

15"(380mm)

51.3"(1305mm)

The model/serial number rating plate is located on the right side of

cart. See the following illustration.

28.9"(735mm)

A. Model/serial number plate

REPLACEMENT PARTS

No. Part (Description) Warranty

coverage QTY No. Part (Description) Warranty

coverage QTY

1 Main lid 1 1 28 Charcoal pan adjustment L

shape bracket ,left 11

Parts List

2 Main lid hinge 1 2 29 Charcoal pan adjustment L

shape bracket ,right 11

3 Chimney lid 1 1 30 Charcoal pan raising rod

fixing bracket 12

4 Charcoal Chimney 1 1 31 Charcoal pan adjustment

assembly 11

Ch l dj

emperature gauge

housing

arcoa

pan a

ustment

assembly support bracket

6 Temperature gauge 1 1 33 Stage screw B 1 4

7 Main lid handle seat 1 2 34 Charcoal ash tray 1 1

8 Main lid tube 1 35 Charcoal ash tray handle

Assembly 11

9 Cooking grid lifter 1 1 36 Left cart leg ,back 1 1

10 Cooking grid with hole 3 3 37 Left cart leg, front 1 1

11 Charcoal bowl

assembly Non-

replaceable 1 38 Swivel caster with brake 1 1

12 Main control panel 1 1 39 Swivel caster 1 1

Ventilation adjustment

Firebox support side panel

Ventilation

adjustment

bracket

Firebox

support

side

panel

14 Stage screw A 1 4 41 Charcoal ash tray support

bracket, side 12

15 Logo 1 1 42 Charcoal ash tray support

bracket, middle 11

16 Ventilation doo

1 1 43 Firebox su

ort rear

anel 1 1

control knob

pp p

17 Ventilation panel 1 1 44 Side shelf, right 1 1

18 Charcoal pan control

knob 1 1 45 Right cart leg, back 1 1

19 Side shelf support

bracket A 1 2 46 Right cart leg, front 1 1

20 Side shelf trim piece,

left 1 1 47 Wheel 1 2

21 Side shelf support

bracket B 1 2 48 Wheel cap 1 2

22 Side shelf stage screw 1 8 49 Bottom panel cross bar A 1 2

23 Side shelf hook 1 4 50 Bottom

anel cross bar B 1 2

24 Side shelf, left 1 1 51 Bottom panel 1 2

25 Warming rack 1 1 52 Cart beam, front 1 1

26 Charcoal pan 1 1 53 Heat shield panel 1 2

27 Charcoal pan support 1 1 54 Side shelf trim piece, right 1 1

A. Left front leg-1pc B. Right front leg-1pc C. Left rear leg-1pc D. Right rear leg-

E. Firebox assembly

--1

PACKAGE CONTENTS LIST

F. Left side shelf-

1pc G. Right side shelf-

1pc H. Side shelf support

bracket A-2pc

I. Side shelf support

bracket B-2pc

J. Side shelf trim

Piece,left-1pc

K. Side shelf trim

Piece right

1pc

L. Side panel-2pcs M. Rear panel-1pc N. Ash tray support

bracket,side

2pcs

O. Ash tray support

bracket

middle

Piece

right

1pc

bracket,side

2pcs

--1pc

P. Cart beam, front--

1pc Q. Head shield panel

--2pcs

R. Ash tray-1pc T. Wheel cap-2pcsS. Mica plate -

2pcs

U. Bottom panel

cross bar A-2pcs

V. Bottom panel

cross bar B-2pcs

W. Bottom panel

-1pc

X. Ash tray handle

seat-2pcs

Y. Ash tray handle

-1pc

Z. Cooking grid-

3pcs AA. Warming rack

-1pc

AB. Chimney-1pc AC. Chimney lid-

1pc AD. Grid lifter-1pc

AE. Charcoal pan

control knob-1pc AF. Swivel caster

with brake-1pc

AG. Swivel caster

-1pc

AH. Wheel-2pcs

HardwareContents

All Pre-Assembled Screws List

Screw W5/32"- 14 PCS

12PCS

Screw W1/4"-

20x3/5"

32x2/5"

1 PCSM6 Washer

1 PCS

Nut W1/4"-20

1 PCS

Chimney lid

rin

4 PCS

Stage Screw

¼-in.x15-mm
