KitchenAid KUDE48FXBL0 Guide de configuration

DOOR AND PANEL PARTS

For Models: KUDE48FXBL0, KUDE48FXWH0, KUDE48FXSS0

(Black) (White) (Stainless)

3−11 Litho in U.S.A. (ELS) (psw) Part No. W10405137 Rev. A

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10321585

Instructions,

Installation

W10395349

Energy Guide

W10300929

Guide, Use & Care

English/French

W10300597

Guide, Use & Care

Spanish

W10195613

Tech Sheet/English

W10195614

Tech Sheet/French

2 Arm, Hinge

8534854 Left

8534853 Right

W10321449

Vapor Barrier

Assembly

W10316572

Screw

5 Access Panel

W10369024

Black

W10369026

White

6 Panel, Full Front

(Includes Items

4, 10, 16 & 17)

W10195873

Black

W10195872

White

W10195870

Stainless

W10307614

Screw

W10073540

Insulation

Access Panel

9 Handle Assembly

(Includes Item 7)

W10195735

Black

W10195736

White

W10195738

Stainless

W10195726

Stud, Mounting

W10319007

Light Pipe

12 Screw

W10331789

Black

W10331793

White

13 304392 Screw

W10194911

Bracket, Panel

Control

15 3400071 Screw

16 Nameplate

W10243392

Black

W10243393

White

W10243391

Stainless

W10315897

Insulation,

Front Panel

CONTROL PANEL AND LATCH PARTS

For Models: KUDE48FXBL0, KUDE48FXWH0, KUDE48FXSS0

(Black) (White) (Stainless)

W10405137

Illus. Part

No. No. DESCRIPTION

1 Console Assembly

W10195788

Black

W10195791

White

W10195795

Stainless

W10195237

Clip, Control

W10195528

Bi−Metal

4 3369051 Screw

W10195093

Latch Assembly

(Includes Switch)

W10195343

Control,

Electronic

W10194937

Brace, Connector

W10195836

Light, Status

INNER DOOR PARTS

For Models: KUDE48FXBL0, KUDE48FXWH0, KUDE48FXSS0

(Black) (White) (Stainless)

W10405137

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3369051 Screw, Door

2 8281217 Screw

W10195604

Inner Door &

Mastic Assembly

(Also Order

Item 6)

W10195543

Seal−Door

Bottom

W10195031

Vent Assembly

(Also Order

Item 6)

6 8269259 Gasket, Vent

W10195032

Deflector, Vent

(Also Order

Item 6)

W10195174

Dispenser,

Assembly

W10077881

Knob, Rinse Aid

W10195007

Seal,

Console/Door

W10195290

Wiring Harness

W10177098

Screw

13 8535637 Bracket

Dispenser

W10195837

Barrier, Vapor

Door

15 3400071 Screw

W10319030

Shield, Dispenser

FILL, DRAIN AND OVERFILL PARTS

For Models: KUDE48FXBL0, KUDE48FXWH0, KUDE48FXSS0

(Black) (White) (Stainless)

W10405137

Illus. Part

No. No. DESCRIPTION

W10195037

Lever, Overfill

Switch

2 8531412 Hose, Inlet

W10195536

Water Inlet

(Also Order

Items 4)

4 8531323 Gasket

W10213826

Nut, Inlet

(Also Order

Item 4)

6 371505 Clamp, Hose

W10195047

Fill Valve

Assembly

8 304392 Screw

W10195039

Switch, Overfill

Control

W10195035

Standpipe,

Overfill

(Also Order #11)

11 8531743 Gasket, Flat

W10195038

Nut, Standpipe

W10195036

Float & Retainer

Assembly

W10292152

Miscellaneous

Parts Bag

(Contains 2 Hose

Clamps, Screws &

2 Under Counter

Brackets)

15 356138 Clamp, Hose

W10195751

Drain Loop

with Check Valve

Assembly

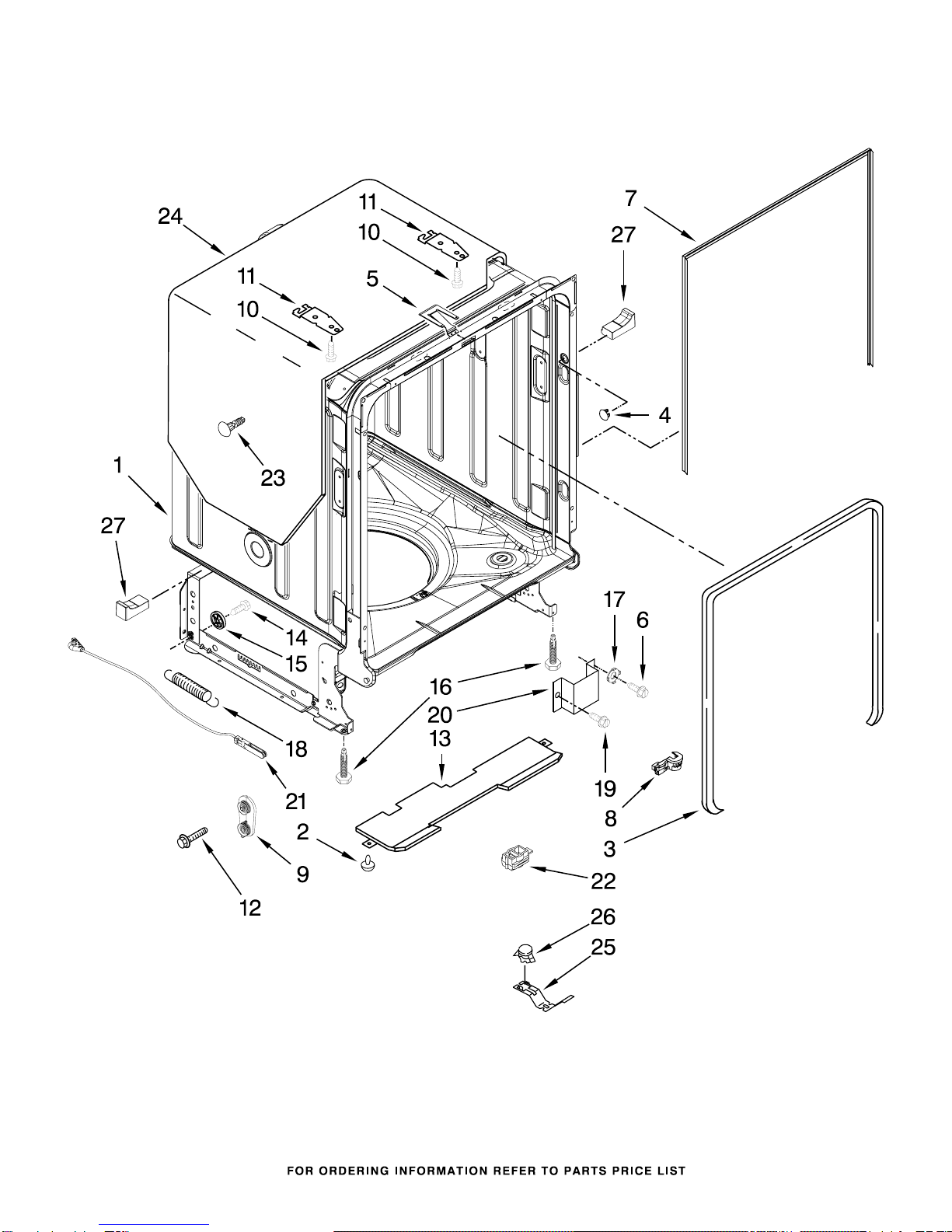

TUB AND FRAME PARTS

For Models: KUDE48FXBL0, KUDE48FXWH0, KUDE48FXSS0

(Black) (White) (Stainless)

W10405137

TUB AND FRAME PARTS

For Models: KUDE48FXBL0, KUDE48FXWH0, KUDE48FXSS0

(Black) (White) (Stainless)

W10405137

Illus. Part

No. No. DESCRIPTION

W10194904

Tub Assembly

(Also Includes

Heater Assembly)

2 3400924 Retainer, Push

W10300924

Seal, Door

W10082838

Plug, Tub

W10300779

Strike, Plate

6 3400014 Screw

W10179427

Seal, Cabinet

8 8573061 Strain Relief

W10084086

Door, Balance

Assembly

10 3367670 Screw

11 8269145 Bracket,

Undercounter

12 3400074 Screw

W10195368

Insulation,

Bottom

14 3370389 Screw

15 8268977 Wheel Leg

16 8524584 Leveler, Leg

17 3378128 Washer

Pronged Cup

18 8270020 Spring, Door

Balance

19 3400892 Screw

20 8268991 Cover, Terminal

Box

W10158291

Cable, Door

Assembly

W10292870

Protector

23 304666 Retainer, Push

24 8573240 Shield, Sound

Tub

W10195090

Bracket,

Thermostat

W10195091

Thermostat

27 Spacer, Tub/Brace

W10195630

Left

W10195631

Right

PUMP, WASHARM AND MOTOR PARTS

For Models: KUDE48FXBL0, KUDE48FXWH0, KUDE48FXSS0

(Black) (White) (Stainless)

W10405137

PUMP, WASHARM AND MOTOR PARTS

For Models: KUDE48FXBL0, KUDE48FXWH0, KUDE48FXSS0

(Black) (White) (Stainless)

W10405137

Illus. Part

No. No. DESCRIPTION

1 8579241 Cover, Sieve

W10348405

Screw

W10311176

Cover, Outlet

W10208687

Sump With Seal

(Includes Items

12, 13 and

2 Hose Clamps)

5 8579298 Retainer,

Feed Tube

6 8579253 Screen

W10320512

Wash Arm Assembly

W10056426

Filter Cup,

Assembly

9 8579311 Hose, Inlet

(Includes 3 Hose

Clamps)

W10328224

Motor & Sump Assy.

11 8579272 Shield, Motor

W10348407

Screw

13 8579289 Tab, Sump

W10158351

Pump, Drain

15 8269144 Hose, Drain

16 8579251 Disc−Valve

Diverter

W10056349

Motor, Diverter

Valve

18 8269146 Hose Clamp

W10134017

Optical Water

Indicator

20 9741232 Screw

W10179455

De−Coupled Drain

Assembly

W10179454

Block, Mounting

UPPER WASH AND RINSE PARTS

For Models: KUDE48FXBL0, KUDE48FXWH0, KUDE48FXSS0

(Black) (White) (Stainless)

W10405137

Illus. Part

No. No. DESCRIPTION

1 8579262 Feed Tube

Assembly

(Also Includes

Item 2)

2 8557720 Sprayarm, 3rd

Level

3 8579242 Mount

4 8579259 Manifold

W10324452

Sprayarm

W10084221

Manifold,

Turbozone

HEATER PARTS

For Models: KUDE48FXBL0, KUDE48FXWH0, KUDE48FXSS0

(Black) (White) (Stainless)

W10405137

Illus. Part

No. No. DESCRIPTION

W10195052

Heater Element

Assembly

(Also Includes

Item 2)

2 717273 Washer, Heater

Element

3 8268548 Nut, Heater

Element

4 3400931 Retainer, Spring

Grip

W10343251

Shield, Heater Nut

NOTE:

If heater element is

removed, it must be replaced.
