Note to the installer 4

Note to the customer 4

Parts supplied - double & single models 5

Tools needed 5

Installation preparation - double & signle models 6

Electrical information - double & single models 7

Service specifications - double models 8

The cavity - double models 9

Plumbing options - double models 10

Service specifications - single models 11

The cavity - single models 12

Plumbing options - single models 13

Installation instructions 14

Step 1: moving the product into the cavity 14

Step 2: removing the tub 15

Step 3: adjusting the feet (double models only) 16

Step 4: securing the product 17

Step 5: refitting the tub 17

Step 6: connecting the drain hoses 18

Step 7: connecting the inlet hose and power supply 19

Step 8: measuring the toe kick 19

Step 9: trimming the toe kick (double models only)) 20

Step 10: fitting the toe kick to the product

(double models only) 20

Step 11: Final checklist (double and single models) 21

Step 12: customer support 21

5019_102_00273_INSTAL_GB 30-05-2007 13:25 Pagina 3

1. Read these instructions completely and carefully.

2. Installation of this requires basic mechanical and electrical skills.

3. Be sure to leave these Instructions with the Customer.

4. At the completion of the installation, the Installer must perform Final Check List as per

Section 11 of these Installation Instructions.

5. Remove all packaging materials supplied with the .

Note to the installer

Keep these Installation Instructions with your User Guide for future reference. must be securely

anchored before it is operated.

WARNING!

Before installing the , remove the house fuse or open the circuit breaker. Ensure all

water connections are turned OFF. It is the responsibility of the plumber and electrician to ensu-

re that each installation complies with all Codes and Regulations.

Important!

These instructions must be followed precisely to ensure correct venting and operation of the

. In the event of a fault related to the incorrect installation, the installer will be liable

for any repairs.

Important!

The MUST be installed to allow for future removal from the enclosure if service is requi-

red.

Important!

Improper installation is not covered under the Warranty.

Important!

If the is to be relocated from one installation to another it must be kept upright to

avoid damage from water spillage.

Note to the customer

5019_102_00273_INSTAL_GB 30-05-2007 13:25 Pagina 4

Parts supplied - double & single models

DOUBLE MODELS

INSTALLATION KIT

Drain Hose

Support (1)

Drain Hose

Joiner (1)

Wire

Clips (2)

Installation

Tabs (2)

Phillips 16mm

Screws (7)

Prefinished

Toe Kick (1)

White prefinished toe kick kit

or Black prefinished toe kick kit

or Iridium prefinished toe kick kit

Moisture

Protection

Tape (1)

Clamp (1)

Drain Hose

Support (1)

Drain Hose

Joiner (1)

Wire

Clip (1) Phillips 16mm

Screws (5)

Moisture

Protection

Tape (1)

SINGLE MODELS

INSTALLATION KIT

Clamp (1)

Wooden Chopping Board

Tape Measure

Spirit Level

Safety Glasses

Utility Knife

Pencil Side

Sandpaper

Drill & No.2 Phillips Bit

Phillips Screwdriver

Flat Screwdriver

Adjustable Wrench or M5 Socket

Ø50mm Hole Saw

Cutting Pliers

Tools needed

5019_102_00273_INSTAL_GB 30-05-2007 13:25 Pagina 5

ELECTRICAL PREPARATION

A) The switched power outlet for the appliance should be installed in a cabinet or on a wall adjacent to the

under bench space in which the appliance is to be installed. Note: The power outlet must be accessible

after installation.

B) The power outlet should be positioned between 150mm and 450mm from the cavity.

PLUMBING & DRAINAGE PREPARATION

A) A readily accessible valve must be installed in the water supply pipe.

B) If the supply pressure exceeds 1000kPa, then a pressure limiting valve must be used.

C) Review Plumbing Options on pages 4 or 6. Choose a method that best suits your needs.

D) A Drain Hose extension Kit P/N 525798 will extend the drain hose(s) by 3.6m. The kit is available from

the nearest Fisher & Paykel Authorised Service Agent. DO NOT extend beyond this limit.

E) This Dishwasher’s maximum drain height is 950mm.

CAVITY PREPARATION

A) It is required that all cabinetry surrounding the (including underside of the benchtop) is

sealed with an oil based paint or moisture-proof polyurethane to prevent possible steam damage. The

air in the cavity can get very hot and humid (saturated at 50oC)

B) The self-adhesive moisture protection tape must be applied to the underside of the benchtop to

prevent moisture damage, (refer to cavity diagram pg 3 or 5). Ensure surfaces are dry and dust-free

prior to application.

C) Ensure the cavity provides sufficient material to secure the using the mounting tabs (refer to

step 1, page 7). If there is nothing to screw to, add a brace. See page 3 or 5 for screw locations.

D) The services hole MUST be immediately adjacent to the rear lower corner of the cabinetry. If not, the

hoses will prevent the being pushed back into the cavity all the way. The hole can be located

on either side depending on the location of the services.

E) Ensure the cavity sides are plumb (vertical) as this will assist with

levelling the .

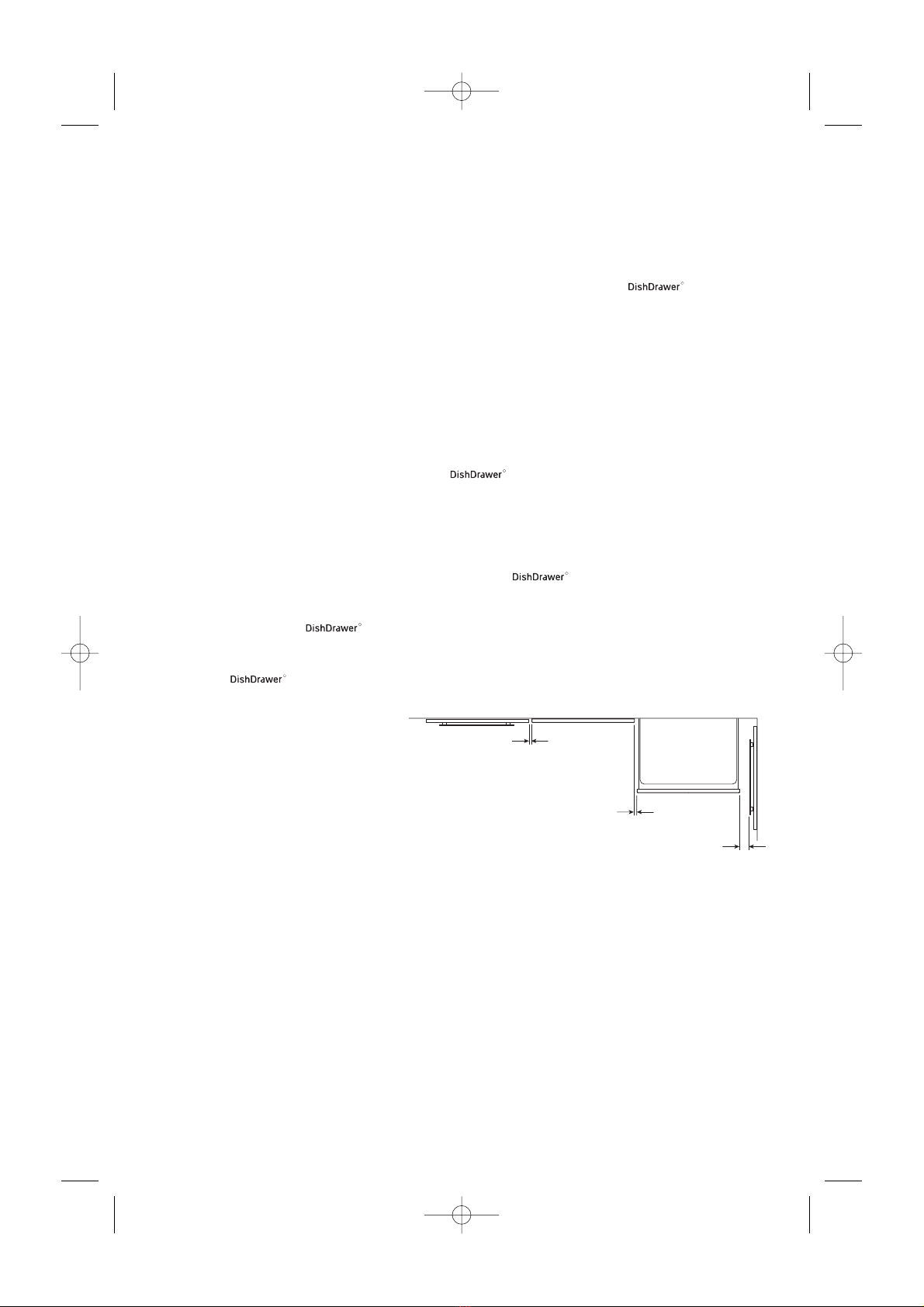

F) Minimum clearances:

Installation preparation - double & signle models

2.5mm

13mm

5019_102_00273_INSTAL_GB 30-05-2007 13:25 Pagina 6

POWER SUPPLY CORD

A) Care should be taken when the appliance is installed or removed, to reduce the likelihood of damage to

the power supply cord.

B) If the power supply cord is damaged, it must be replaced by the Manufacturer, Service Agent or a

similarly qualified person, in order to avoid a hazard.

EARTHING INSTRUCTIONS

A) This appliance must be earthed. In the event of malfunction or breakdown, earthing will reduce the risk

of electric shock by providing a path of least resistance for electric current.

WARNING!

Improper connection of the equipment-earthing conductor can result in a risk of electric shock.

Check with a qualified electrician or service representative if you are in doubt as to whether

the appliance is properly earthed.

B) This appliance is equipped with a power supply cord having an equipment-earthing conductor and an

earthing plug. The power supply plug must be plugged into an appropriate outlet that is installed and

earthed in accordance with all local Codes and Regulations.

WARNING!

Do not modify the power supply plug provided with the appliance - it will not fit the outlet,

have a proper outlet installed by a qualified electrician. Do not use an extension cord, adaptor

plug or multiple outlet box.

Electrical information - double & single models

5019_102_00273_INSTAL_GB 30-05-2007 13:25 Pagina 7

WATER CONNECTION

Recommended COLD (Maximum 60°C).

3/4 “ BSP (GB20) to suit flat washer.

WATER SOFTENER MODELS

Refer to your User Guide on how to set up your water softener.

WATER PRESSURE

Maximum Minimum

Water Softener Models 1000kPa (145 p.s.i.) 100kPa (14,5 p.s.i.)

Other Models 1000kPa (145 p.s.i.) 30kPa (4,3 p.s.i.)

DRAIN CONNECTION

Drain Hose Joiner to suit Ø19mm ± 2mm waste tee.

ELECTRICAL CONNECTION

220-240 VAC power outlet, 9 Amps Minimum.

LENGTH OF SERVICES (FROM PRODUCT EXIT POINT)

Drain hose - 2250mm

Inlet hose - 1750mm

Power supply cord - 1965mm

NOTE: Services approximately exit product 189mm from left; 550mm from front; 793mm from top.

Prefinished model shown

* For an Integrated the product depth is specified with an 18mm Integrated Panel thickness.

** Depth of product excludes Curvature (30mm), or Handle.

† TOE KICK DEPTH

67mm less the Toe Kick Panel thickness (Minimum Panel thickness using the supplied screws is 9mm).

# DOOR FRONT HEIGHT

719.5mm minimum.

Service specifications - double models

570mm

8mm

819.5 - 879.5 mm

2mm

Tabs

Side View

719.5mm

819.5 - 879.5mm

595mm

67mm

520mm

Drawer Open

5019_102_00273_INSTAL_GB 30-05-2007 13:25 Pagina 8

NOTE: All depth measurements are taken from the front face of the adjacent cabinetry.

These marks indicate mounting tab screw locations (refer to step 1 page 7)

WARNING!

Ensure the edges of the services hole are smooth or covered to prevent damage to the power

cord of hoses.

The cavity - double models

Min thickness

of cavity sides

is 16mm

Ø50mm

services hole

immediately

adjacent to corner,

can be either

side

600mm

580mm

throughout cavity

822.5mm-882.5mm

109.5mm

97mm

645.5mm

Screw 14mm From

front of cabinetry

90°

10mm

Moisture

Protection

Tape

100mm

505m m

benchtop

moisture

protection

tape

10mm

5019_102_00273_INSTAL_GB 30-05-2007 13:25 Pagina 9

OPTION 1

and Standpipe Ø38mm with Air Gap.

OPTION 2

with Waste Disposal. Standpipe

Ø38mm with Air Gap.

PLEASE NOTE: It is NOT recommended to

connect the to any part of the Waste

Disposal System.

OPTION 3

using Sink Trap with Drain Hose Joiner.

NOTE: Options 1 and 2 are the preferred options.

Drains will need to be separated to satisfy Kosher

requirements. We suggest you confirm acceptability

with your local Rabbi in respect to Kosher

installations.

Plumbing options - double models

WASTE

VALVE

WATER

SUPPLY

200mm

MINIMUM

BENDS RADIUS

FROM VALVE

POWER

OUTLET

WASTE

(750 mm - 882.5mm )

PRESA DI

ALIMENTAZIONE

WASTE

VALVE

WATER

SUPPLY

200mm

MINIMUM

BENDS RADIUS

FROM VALVE

POWER

OUTLET

WASTE

(750 mm - 882.5mm )

WATER

DISPOSAL

150mm

MIN

PRESA DI

ALIMENTAZIONE

VALVE WATER

SUPPLY

200mm

MINIMUM

BENDS RADIUS

FROM VALVE

POWER

OUTLET

WASTE

(750 mm - 882.5mm )

DRAIN

HOSE

JOINER

5019_102_00273_INSTAL_GB 30-05-2007 13:25 Pagina 10

Autres manuels pour KDDS 6010

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels KitchenAid Lave-vaisselle

KitchenAid

KitchenAid KUDD01DP Manuel du propriétaire

KitchenAid

KitchenAid KUDD03DTPA - 24" Double Drawer Dishwasher Manuel utilisateur

KitchenAid

KitchenAid KUDS03FSBL1 Manuel utilisateur

KitchenAid

KitchenAid Undercounter Dishwasher W10078153A Manuel utilisateur

KitchenAid

KitchenAid Sculptura KUDR24SE Manuel utilisateur

KitchenAid

KitchenAid KUDU03STBL0 Manuel utilisateur

KitchenAid

KitchenAid Sculptura KUDI24SE Manuel utilisateur

KitchenAid

KitchenAid Sculptura KUDR24SE Manuel utilisateur

KitchenAid

KitchenAid KUDE48FXBL0 Guide de configuration

KitchenAid

KitchenAid 9741159 Manuel utilisateur

KitchenAid

KitchenAid SUPERBA CLASSIC Manuel utilisateur

KitchenAid

KitchenAid KUDP02IR Manuel utilisateur

KitchenAid

KitchenAid Sculptura KUDI24SE Manuel utilisateur

KitchenAid

KitchenAid KUDC03ITBL1 Manuel utilisateur

KitchenAid

KitchenAid KUDM01TJ Manuel utilisateur

KitchenAid

KitchenAid KUDC03FTSS Manuel utilisateur

KitchenAid

KitchenAid KUDE60FVPA - Panel Accessory Superba EQ Fully Integrated... Manuel utilisateur

KitchenAid

KitchenAid KUDB220T Manuel utilisateur

KitchenAid

KitchenAid 8574116 Manuel utilisateur

KitchenAid

KitchenAid KUDL15FXSS7 Manuel utilisateur

KitchenAid

KitchenAid Architect Series II KUDE60FXSS Instructions de montage

KitchenAid

KitchenAid KUDS03FTBL2 Manuel utilisateur

KitchenAid

KitchenAid KUDS40FVPA - Architect Series II Guide de configuration

KitchenAid

KitchenAid KUDD03STBL0 Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

Electrolux

Electrolux ESI5211LOX Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur

Siemens

Siemens SN 56N591 Manuel utilisateur
