COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP467JSS2, KGCP467JTL2

(Stainless Steel) (Tile)

6−04 Litho in U.S.A. (cre) Part No.8185881

36" Professional

Cooktop

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP467JSS2, KGCP467JTL2

(Stainless Steel) (Tile)

8185881

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT4455062

Instructions,

Island Trim

LIT8284671

Wiring Diagram

LIT8284746

Use & Care Guide

LIT8284908

Installation

Instructions

LIT8284780

Instructions,

LP Conversion

2 4454960 Backsplash

3 8284712 Support,Backsplash

4 3196537 Screw, 8−18 x 3/8

5 4454963 Grate, Burner

6 4454962 Trim, Island

7 3177991 Screw, 8−18 x 1/4

9 8284972 Support, Control

Panel

10 3400843 Screw

13 Cap, Burner

4455243 (14K)

8284669 (6K)

15 Holder, Orifice

Includes Orifice

9754188 Turbo (4)

9754182 Auxillary (2)

16 4454974 Support Rail

R.H.& L.H.

17 Trim, Side

4454958 Right Hand

4455029 Left Hand

18 8284664 Cooktop, Black

19 Burner Head 14K

4455849 Turbo (4)

8273216 Auxillary (2)

20 3368921 Screw, 7−18 x 3/4

21 2005292 Nameplate

22 2004333 Palnut

23 4455217 Control Frame

24 4455214 Panel, Control

4455214 S. Steel

8284638 Tile

25 3196176 Screw, 8−18 x 1/2

26 4455192 Bezel, Knob

27 4454970 Knob, Burner

28 4455109 Plate, Simmer

29 8522423 Module, Spark

4−Burner

30 8522422 Module, Spark

2−Burner

31 8284641 Bezel, Tile

32 8284639 Spacer, Tile

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP467JSS2, KGCP467JTL2

(Stainless Steel) (Tile)

8185881

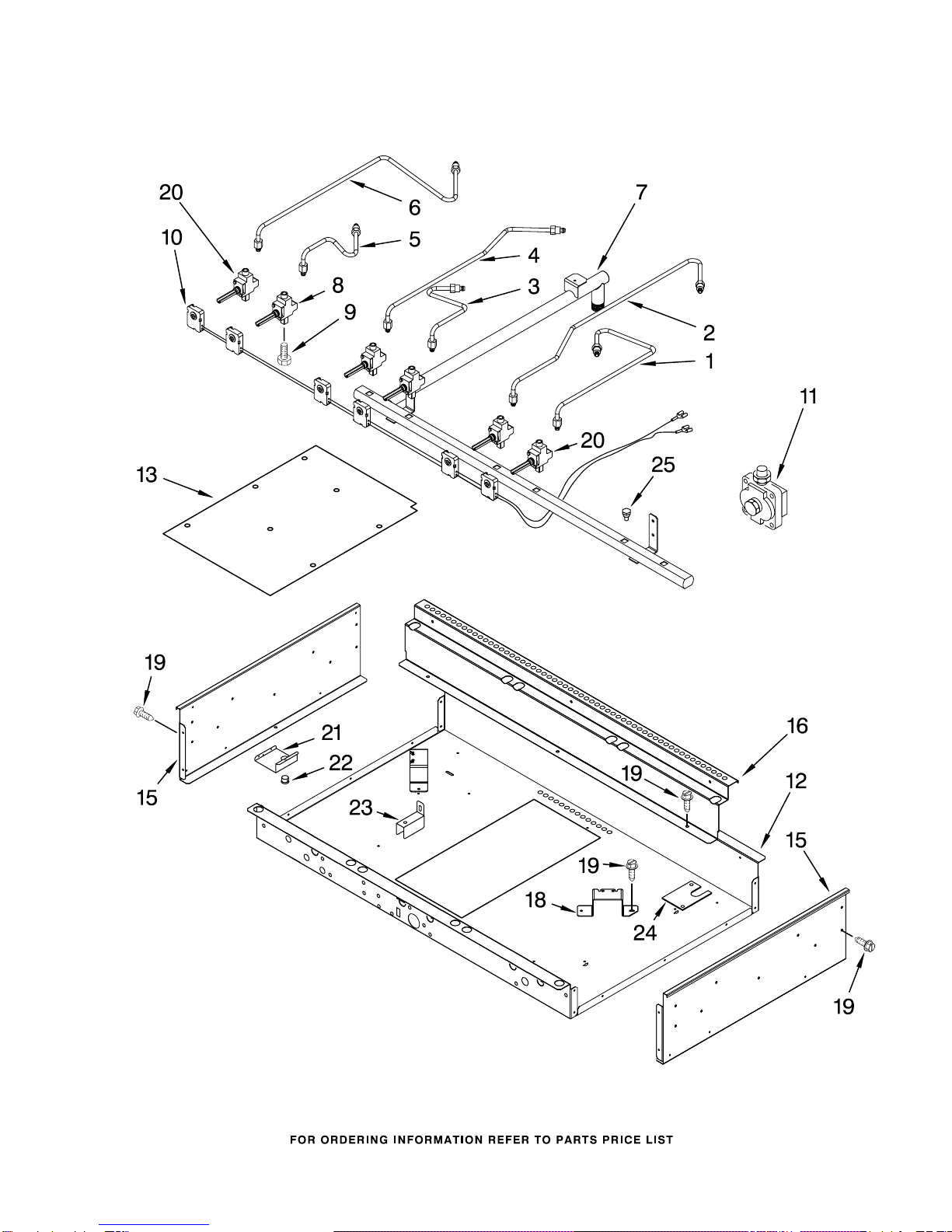

BURNER BOX, GAS VALVES, AND SWITCHES

PARTS NOT ILLUSTRATED

For Model: KGCP467JSS2, KGCP467JTL2

(Stainless Steel) (Tile)

8185881

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4455040 Tubing, Gas

Burner − RF

2 4455041 Tubing, Gas

Burner − RR

3 4455151 Tubing, Gas

Burner − CF

4 4455152 Tubing, Gas

Burner − CR

5 4455153 Tubing, Gas

Burner − LF

6 4455154 Tubing, Gas

Burner − LR

7 8284749 Manifold

8 3192157 Valve, Burner

(Turbo)

9 3185829 Bolt, Valve

10 4455155 Burner Switch &

Harness Assembly

3191387 Seal, Switch

11 4455157 Regulator,Pressure

12 8284970 Burner Box

13 8284964 Plate, Burner

Holder

15 Side, Burner Box

8284677 Right Hand

8284678 Left Hand

16 8284946 Support, Rear

18 3192811 Bracket, Burner

19 3177991 Screw, 8−18 x 1/4

20 3191292 Valve, Burner

Auxillary

21 8284680 Cover Shelf

22 8284722 Bushing, Cover

Shelf

23 4449845 Bracket, Support

24 4455139 Cover, Panel

25 8284796 Plug, Manifold

Illus. Part

No. No. DESCRIPTION

WIRING HARNESS PARTS

3192231 Power Cord

1129449 Bushing

3191418 Harness, Wire

Jumper

8284772 Harness, Wire

Ignitor (Brown)

8284976 Harness, Wire

Ignitor (Yellow)

Miscellaneous

8284782 L.P. Orifice Spud

Pack
