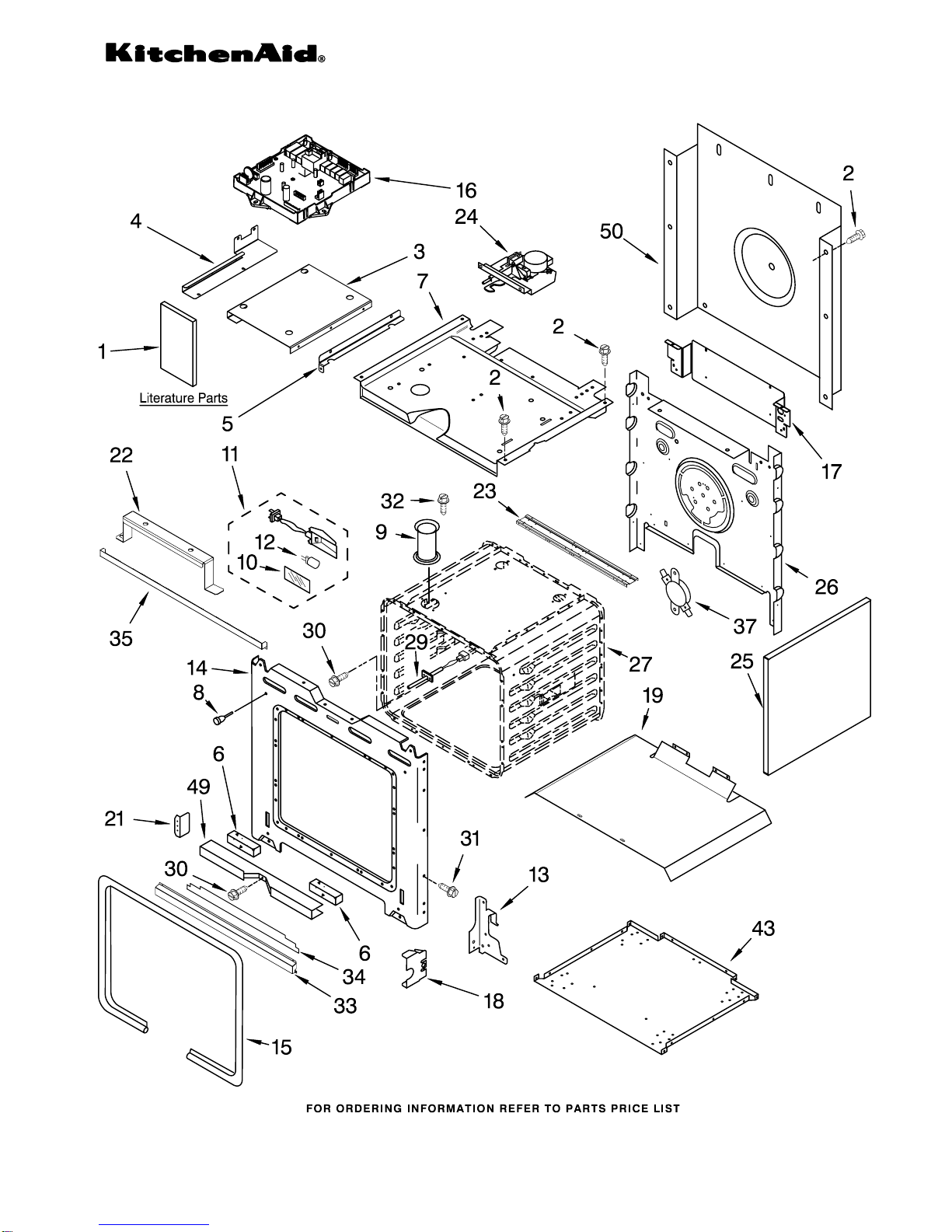

OVEN PARTS
1
For Model:KDRP487MSS01
(Stainless Steel)
3−04 Litho in U.S.A. (cre) Part No. 8186195
48" KITCHENAID
FREE STANDING RANGE
DUAL FUEL
OVEN PARTS
2
For Model:KDRP487MSS01
(Stainless Steel)
8186195
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 Literature Parts
LIT8302571
Installation
Instructions
LIT8301284
Use & Care Guide
LIT8302546
Tech Sheet
LIT8301283
Conversion
Instructions
LIT3191638
Safer Cooking Tips
2 4449809 Screw, 8−18 x 3/8
3 8301573 Bracket, Control
Support
4 8302394 Bracket, Control
(Left Side)
5 8301574 Bracket, Control
(Right Side)
6 4452260 Spacer, Foam
7 8302191 Top, Chassis
8 4448520 Bumper, Door
9 4452158 Tube, Vent
10 4452163 Lens, Light
11 4448972 Oven Light Assy
4449748 Screw
12 4452164 Bulb, Light
13 Hinge Receiver
4455605 Left Hand
4455606 Right Hand
14 4455610 Frame, Front
15 4455380 Gasket, Door
16 Control, Zodiac
8301182 (Assist, Rt Side)
8301583 (Assist Lft Side)
17 8301254 Filler, Rear
18 4452152 Bracket, Mounting
19 4451476 Support, Insulation
21 4455510 Bracket, Support
22 4457204 Support, Wiring
3400099 Screw
23 8301159 Channel, Support
24 8302474 Latch, Motorized
25 4455641 Side, Chassis
26 4452232 Back, Chassis
27 Liner, Oven
(Not serviceable)
29 4455636 Sensor
30 4449154 Screw, 8−32 x .440
31 4449040 Screw, 8−18 x 3/8
32 3196176 Screw, 8−18 x 1/2
33 4457319 Vent, Bottom Lower
4449809 Screw
34 8300825 Insulation,
Bottom Vent
37 4452223 Thermostat (TOD)
(Temp.) SPST
43 8302289 Base, Chassis
49 4448933 Retainer, Gasket
50 4451747 Cover, Back
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449314 Insulation, Wrap
4450363 Insulation, Back

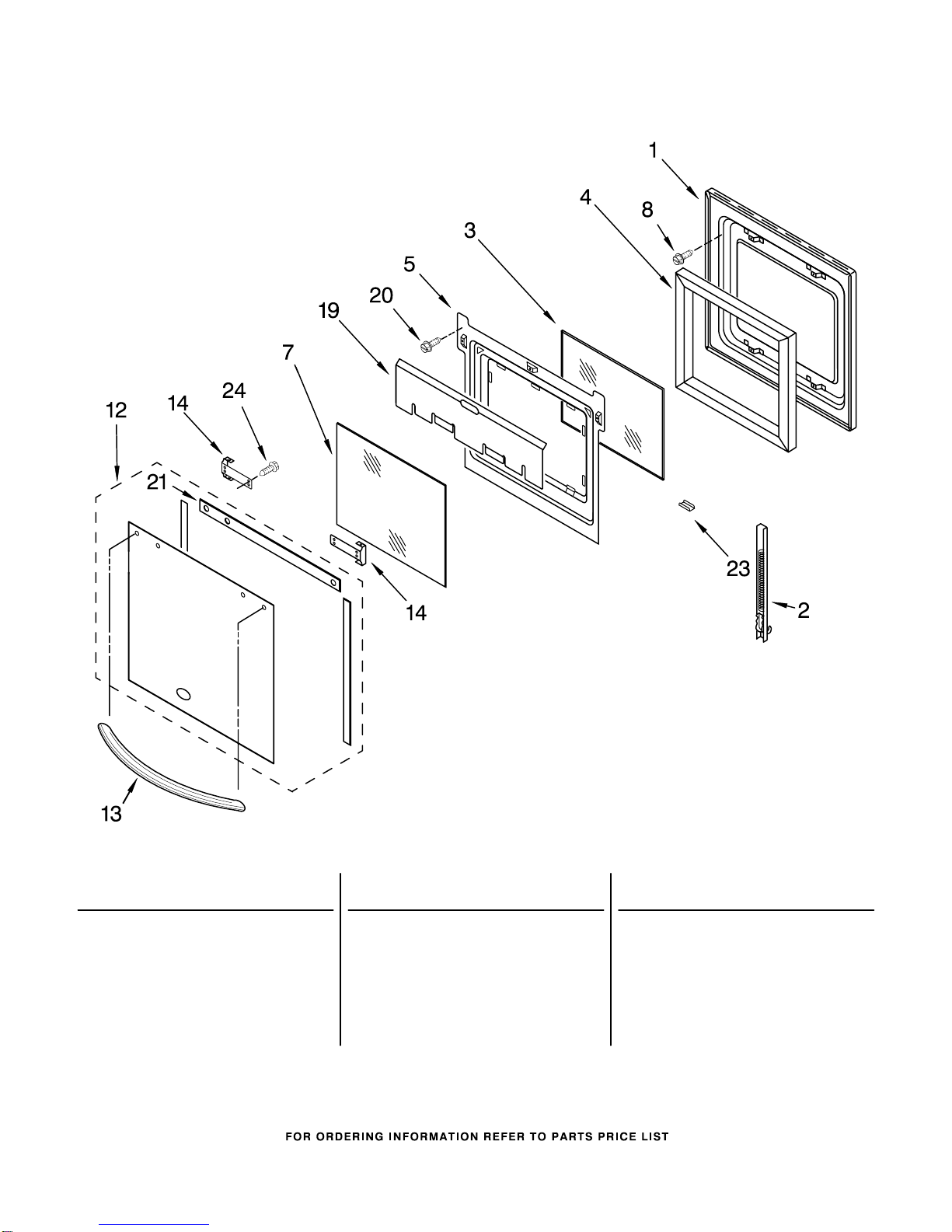

OVEN DOOR PARTS
3
For Model:KDRP487MSS01
(Stainless Steel)
8186195
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 4455616 Door Liner
2 Hinge, Door
8300571 R.Side
8300572 L.Side
3 4449251 Glass, Inner
4 4451720 Insulation, Door
5 8300776 Retainer, Glass
7 4449247 Glass, Inner
8 4449743 Screw, 8−32 x 3/8
12 8301257 Assy, Door Glass
13 8301255 Door Handle
14 Bracket, Handle
4455803 Right Hand
4455804 Left Hand
3400832 Screw
19 4450360 Shield, Heat
20 4449809 Screw, 8−18 x 3/8
21 8300853 Seal, Door Top
23 4451432 Retainer, Clip
3400832 Screw
24 3196184 Screw, 8−32 x .548

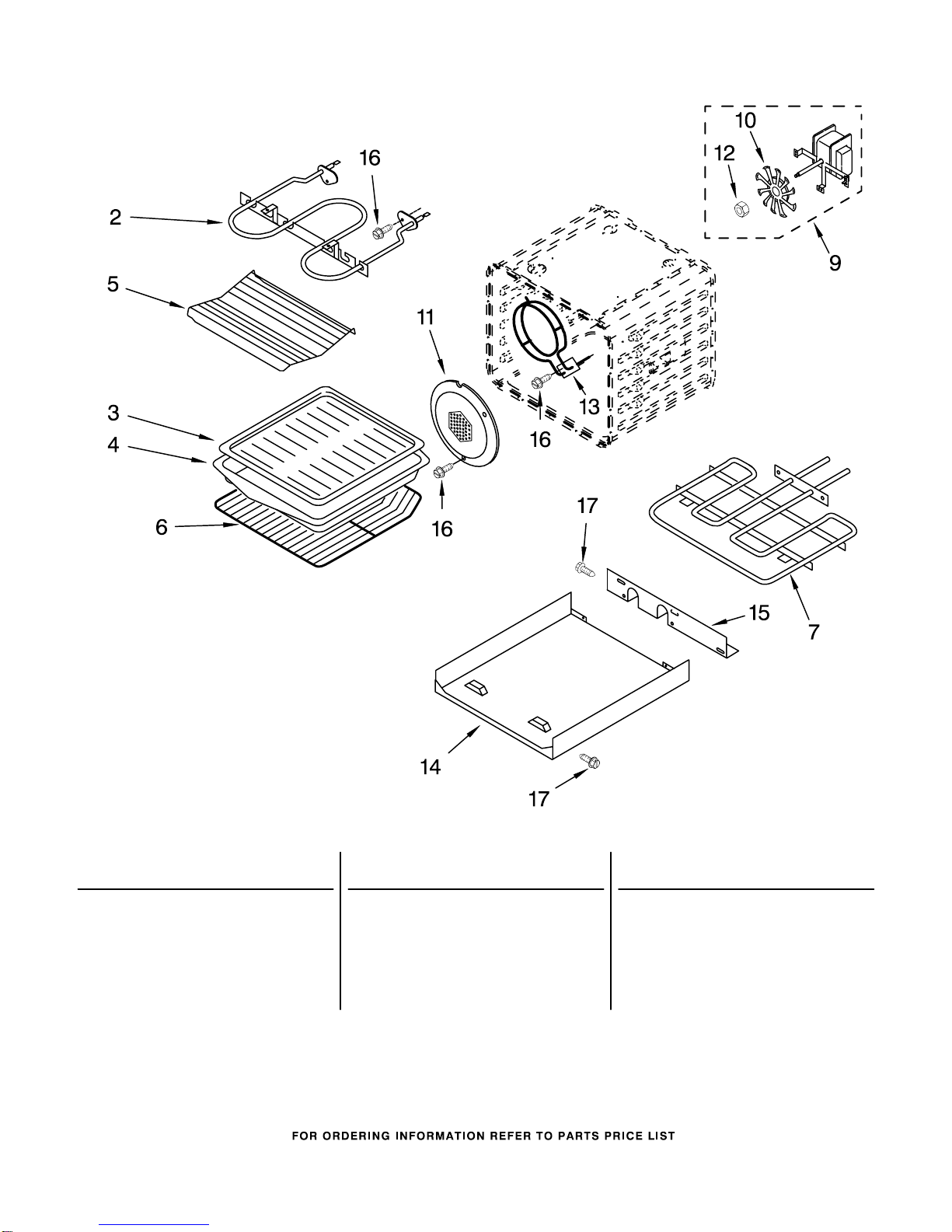

INTERNAL OVEN PARTS
4
For Model:KDRP487MSS01
(Stainless Steel)
8186195
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
2 4456103 Element, Broil
4449154 Screw
3 4457277 Grill, Broiler
4 4457276 Pan, Broiler
5 3181534 Rack, Roasting
6 4448716 Rack, Oven
7 4452155 Element, Bake
9 4451583 Motor, Convection
10 4452226 Blade, Fan
11 4448418 Cover, Fan
12 4452227 Nut
13 4452157 Element,
Convection
14 4455035 Tray, Hidden
Bake
15 4450039 Cover, Access
16 4449154 Screw, 8−32 x .440
17 4449809 Screw, 8−18 x 3/8

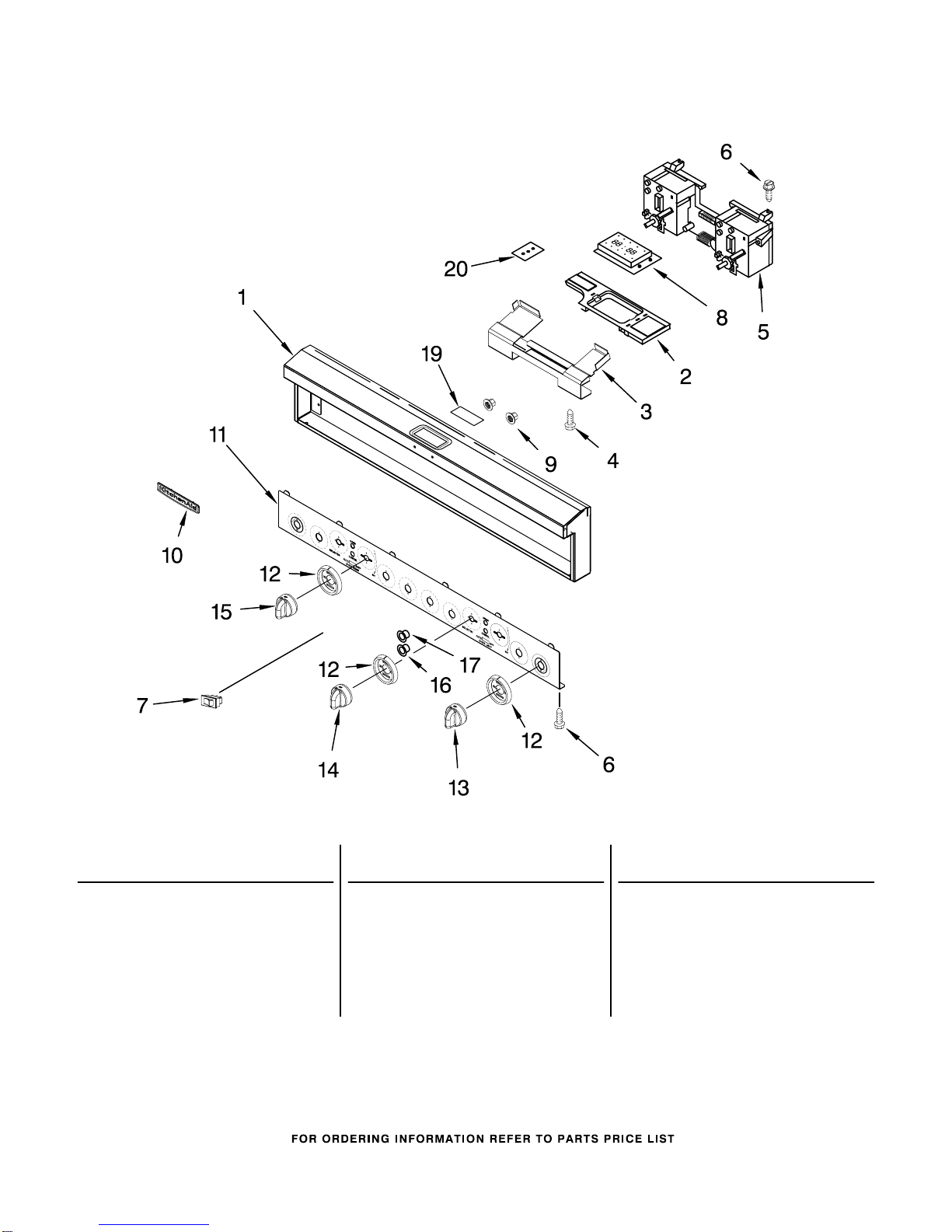

CONTROL PANEL PARTS
5
For Model:KDRP487MSS01
(Stainless Steel)
8186195
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8301149 Panel, Control
2 4453000 Bracket, Display
3 4457171 Display, Mounting
Bracket
4 3196537 Screw, 8−18 x 3/8
5 8300203 Control, Zodiac
6 4449899 Screw, 6−19 x 1
7 4452842 Switch, Rocker
8 4452999 Module, Display
9 2004333 Palnut
10 2005292 Nameplate
11 8301260 Face, Control
Panel
12 4455192 Bezel, Knob
13 4454970 Knob, Control
14 4455115 Knob, Temp/Time
15 4455141 Knob, Selector
16 4457218 Button, Cancel
4457278 Jumper, Wire
17 4452997 Button, Enter
19 4455806 Glass, Display
20 3192439 Seal, Limiter

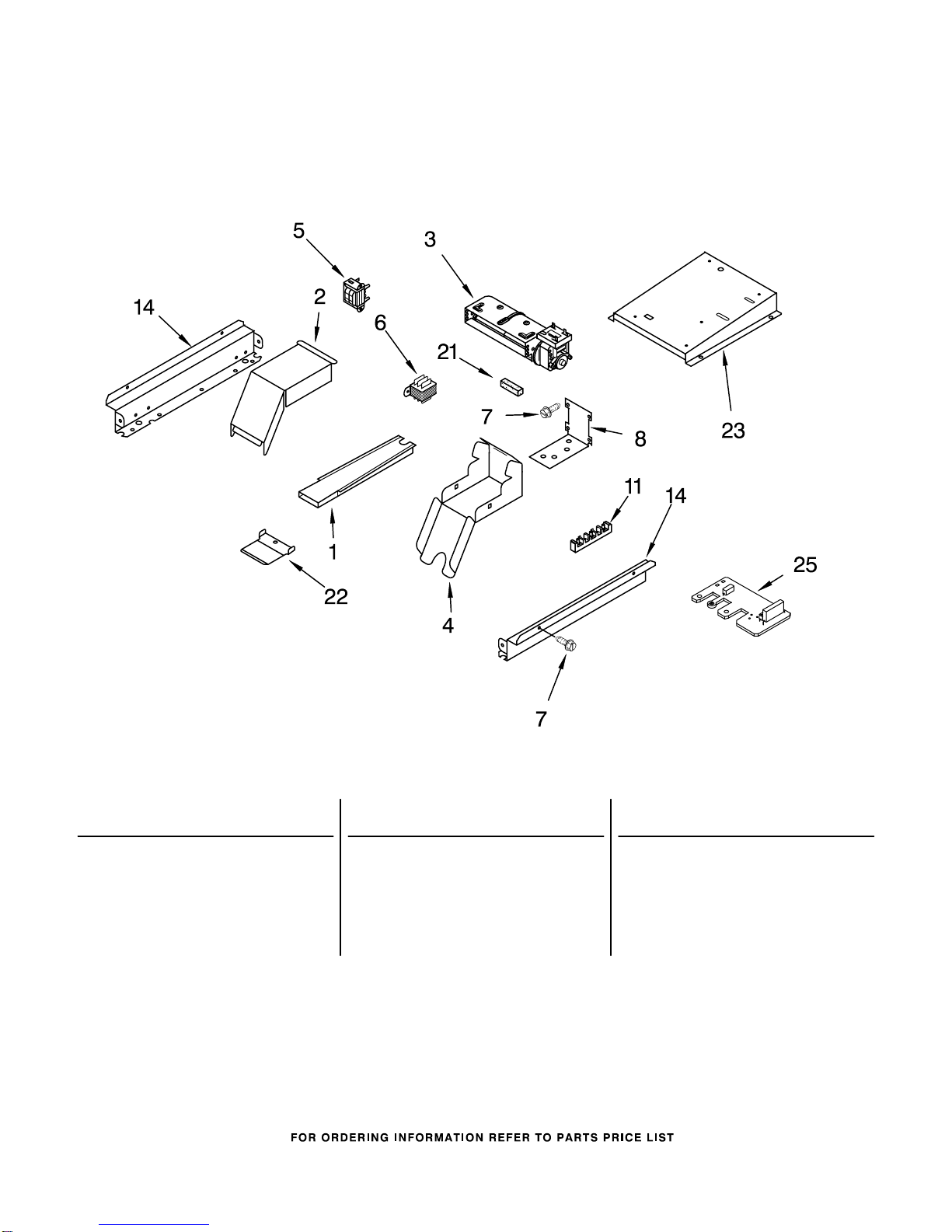

TOP VENTING PARTS
6
For Model:KDRP487MSS01
(Stainless Steel)
8186195
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 4451759 Vent, Exhaust
2 4455178 Elbow, Vent−Top
3 8300223 Blower 60MM
4449809 Screw (4)
3400015 Screw (1)
4 4455177 Elbow, Vent−Bottom
5 6610122 Transformer, Light
6 8300642 Transformer,
Control
7 4449809 Screw, 8−18 x 3/8
8 4455352 Bracket, Blower
11 4449868 Block, Terminal
14 4452442 Side, Control Top
21 4451758 Seal, Foam
22 4452489 Deflector, Vent
Box
23 8301489 Bracket, Control
Mounting
25 4451985 Suppressor
3400080 Screw (4)
7

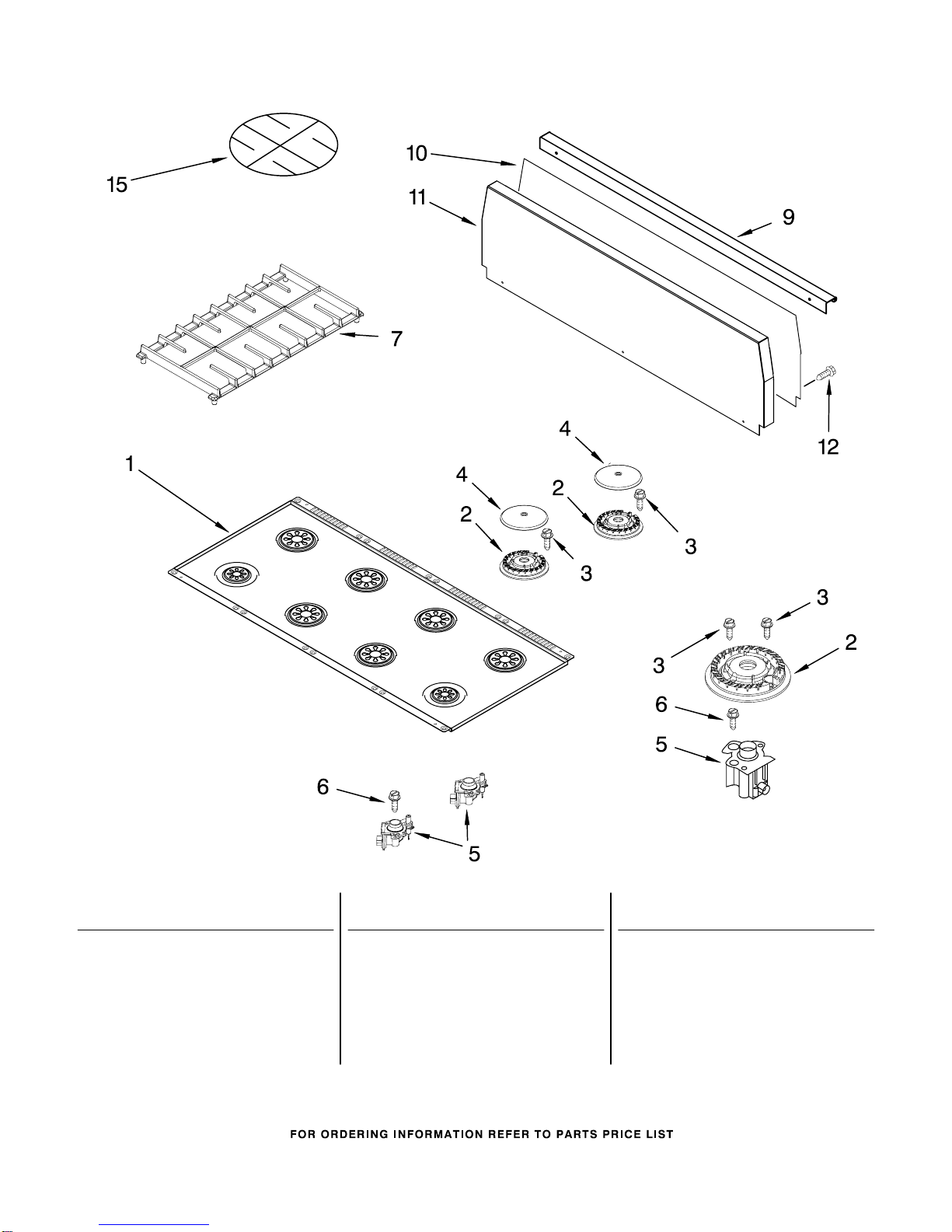

COOKTOP PARTS
For Model:KDRP487MSS01
(Stainless Steel)
8186195
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8302148 Cooktop
2 Burner Head
4455849 (Turbi)
4455979 (Auxi)
3 3368921 Screw, 7−18 x 3/4
4 Cap, Burner
4455243 (14K)
8284669 (6K)
5 Orifice Holder
(Includes Orific &
Ignitor)
4456622 Turbi
4456920 Auxi
3400843 Screw
6 3177991 Screw, 8−18 x 1/4
7 4454963 Grate, Burner
9 8302389 Trim, Island
10 8302527 Support,
Backsplash
11 8302391 Trim, Backsplash
12 3400837 Screw, 8−18 x 3/8
15 4455109 Plate, Simmer
8

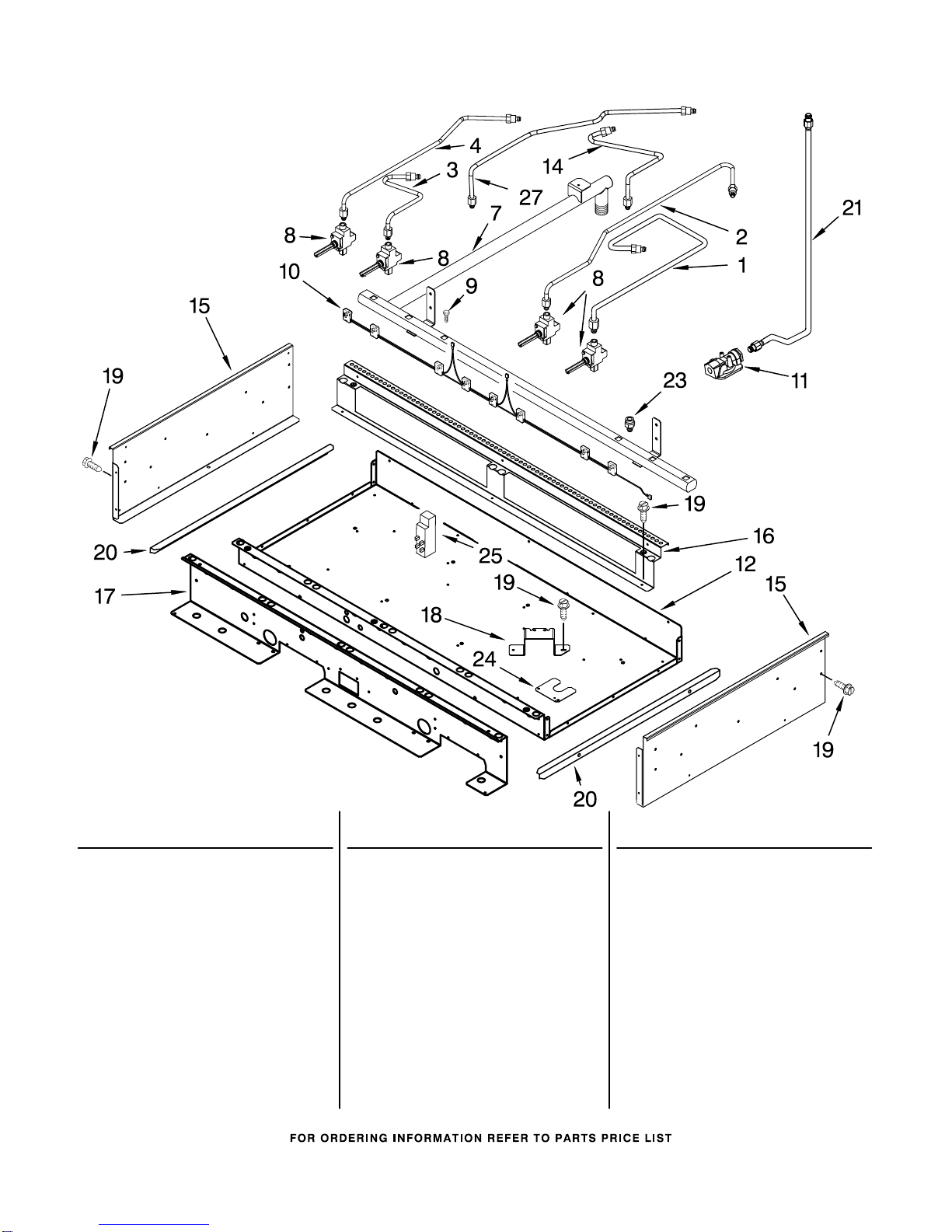

BURNER BOX AND MANIFOLD PARTS
For Model:KDRP487MSS01
(Stainless Steel)
8186195
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Tubing, Gas
8300231 Burner − RF
4455078 30"
8301938 Center Right
2 8302040 Tubing, Gas
Burner − RR
3 8300187 Tubing, Gas
Burner − LF
4 8300188 Tubing, Gas
Burner − LR
7 8301188 Manifold Assembly
Right Side
8 Valve, Burner
4456818 (Bronze)
4456816 (Red)
8523704 Bolt (4)
9 3185829 Bolt, Gas Valve
10 4457318 Burner Switch &
Harness Assembly
3191387 Seal, Switch
11 4453033 Pressure Regulator
12 4457256 Box, Burner
14 8301937 Tubing, Gas
Burner − CF
15 Side, Burner Box
8285487 Right Side
8285488 Left Side
16 4457314 Support, Rear
17 4457255 Support, Cooktop
18 3192811 Bracket, Burner
19 3177991 Screw, 8−18 x 1/4
20 4454974 Rail, Support
RH & LH
21 8302193 Tube, Manifold
23 Adapter
4453116 1/2" Female
4453115 1/2" Male
4450118 Nut, 6−32 U Type
24 8301589 Cover, Manifold
Slot
25 8522426 Module, Spark
27 8301936 Tubing, Gas
Burner − CR
9

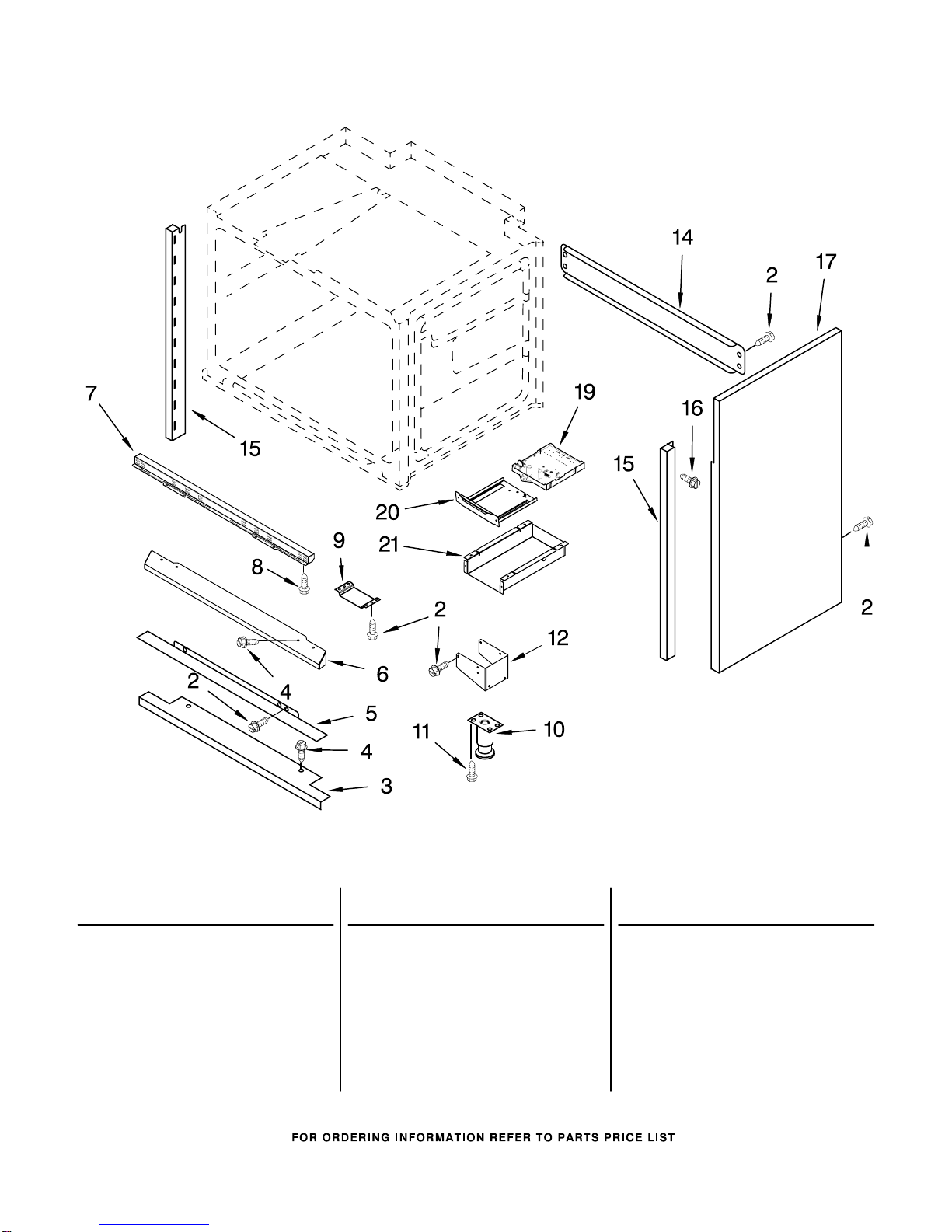

CHASSIS PARTS
For Model:KDRP487MSS01
(Stainless Steel)
8186195
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
2 4449809 Screw, 8−18 x 3/8
3 8301141 Backer, Trim Lower
4 3400837 Screw, 8−18 x 3/8
5 8301137 Deflector, Center
6 8301138 Vent, Bottom Upper
7 8302545 Vent, Center
8301576 Gasket
313806 Screw (4)
8 3196537 Screw, 8−18 x 3/8
9 4455604 Bracket, Mounting
Regulator
10 4452430 Foot Assembly
11 3400518 Screw,
5/16−12 x 5/8
12 4455644 Gusset
14 8301135 Brace, Rear
15 Trim, Front
8301133 Right Side
8301134 Left Side
16 3196537 Screw, 8−18 x 3/8
17 Side Chassis
8301131 Right Side
8301132 Left Side
19 8301195 Control, Master
20 8302528 Box, Control
21 8301577 Bracket, Control
Box
MISCELLANEOUS PARTS
10
For Model:KDRP487MSS01
(Stainless Steel)
8186195
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
ADHESIVE
591014 Adhesive
Loctite (1/3 oz.)
482338 Sealer, Silastic
(3 oz.)
4453192 Seal, Ribbon
Cable
4453191 Seal, Access
Panel
SPLICING WIRES−−25FT.
LENGTH
242828 Wire (12 Ga.
150 c Black)
242820 Wire (14 Ga.
150 c Black)
242821 Wire (14 Ga.
150 c Blue)
242822 Wire (14 Ga.
150 c Brown)
242830 Wire (14 Ga.
200 c Brown)
242823 Wire (14 Ga.
150 c Green)
242824 Wire (14 Ga.
150 c Orange)
242829 Wire (12 Ga.
150 c Red)
242825 Wire (14 Ga.
150 c Red)
242831 Wire (14 Ga.
200 c Red)
242826 Wire (14 Ga.
150 c White)
242827 Wire (14 Ga.
150 c Yellow)
242832 Wire (14 Ga.
200 c Yellow)
WIRING HARNESS PARTS
4448444 Grommet, Rail
Harness, Wire
(Main)
8302551 Right Side
8302552 Left Side
8301196 Jumper Harness
8301582 Harness, Control
Master
4456628 Harness, Wire
(Ignitor 42")
4456627 Harness, Wire
(Ignitor 28")
8302555 Harness, Wire
(Spark Module)
3191506 Bushing, Conduit
1129449 Bushing
8302522 Conduit
4449809 Screw
112432 Nut
4450800 Screw, Ground
4454835 Tie, Cable
4452222 Spacer, Harness
Miscellaneous
814381 Pin Hinge Kit
8284782 Spud Kit
4453141 Bracket, Anti−Tip
4453202 Bracket, Anti−Tip
