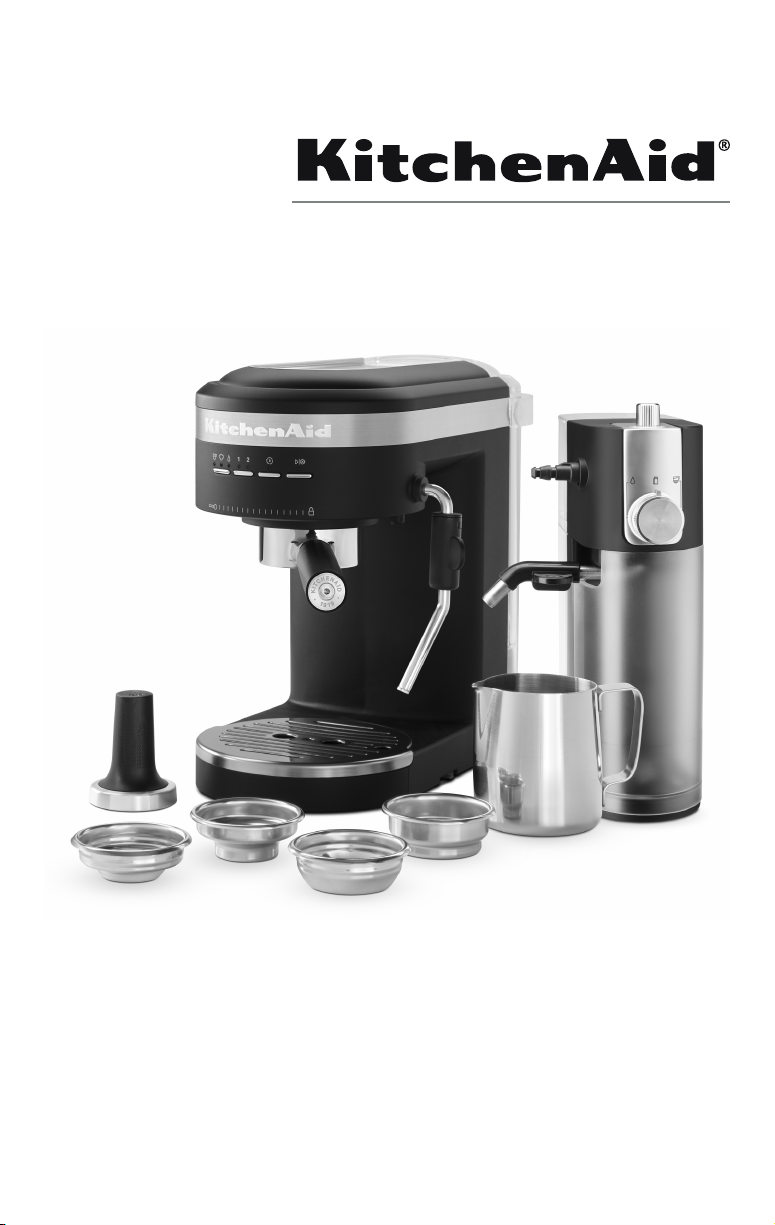

KitchenAid KES6404 Manuel utilisateur

KES6404, KES6504

PARTS AND FEATURES

1Water tank (Capacity: 47 ounces)

2Water tank handle

3Water tank lid

4Cup warmer

5Drip tray plate

6Drip tray

7Main power On/Off switch

8Steam wand

9Steam wand release button

10 Portafilter (58 mm)

11 Mode button : Espresso

: Steam

: Hot Water

12 Dose button : 1(1 shot)

: 2(2 shot)

13 Clean cycle button

14 Start/Cancel button

15 Empty drip tray indicator

16 Group head

 

11 12 13 14

Milk

Pitcher Coffee

Scoop

Tamper Single wall

1 shot Single wall

2 shot Double wall

1 shot Double wall

2 shot

ESPRESSO MACHINE

ENGLISH

PARTS AND FEATURES

MILK FROTHER ATTACHMENT

1Storage container

2Milk dispenser tube

3Function knob

4Steam port

5Froth level adjustment knob

6Brush

7Milk tank lid

8Milk hose

9Milk tank

10 Milk hose connector

11 Milk hose clip

12 Hot water function

13 Hot milk function

14 Froth milk function

12 13 14

PRODUCT SAFETY

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be

followed, including the following:

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs.

3. Close supervision is necessary when any appliance is used by or near children.

4. To protect against re, electric shock, and personal injury do not immerse cord,

plugs, or appliance in water or other liquids.

5. Unplug from outlet when not in use and before cleaning. Allow to cool before

putting on or taking off parts, and before cleaning.

6. Do not operate any appliance with a damaged cord or plug, or after the

appliance malfunctions, or is dropped or damaged in any manner. Return

appliance to the nearest Authorized Service Facility for examination, repair, or

electrical or mechanical adjustment.

7. The use of accessory attachments not recommended by the appliance

manufacturer may result in re, electric shock, or personal injury.

8. Do not use the appliance outdoors.

9. Do not let cord hang over edge of table or counter, or touch hot surfaces.

10. Do not place on or near a hot gas or electric burner, or in a heated oven.

11. Always turn the appliance off, then plug cord into the wall outlet. To disconnect,

turn the appliance off, then remove plug from wall outlet.

12. Do not clean the Espresso Machine or Milk Frother Attachment with abrasive

cleaners, steel wool, or other abrasive materials.

13. Use extreme caution when using hot steam.

14. Do not use appliance for other than intended use.

15. Irritation to skin or eyes can occur if they come into contact with the descaling

solution. Avoid skin and eye contact. Rinse off descaling solution with clean

water. Obtain medical advice after eye contact.

ENGLISH

PRODUCT SAFETY

16. Damage to delicate surfaces can occur after contact with the descaling solution.

Remove any splashes immediately.

17. WARNING: To avoid the risk of injury, do not open the brew chamber during the

brew process.

18. Turn the Espresso Machine OFF (and detach the Milk Frother Attachment from

the Espresso Machine) before cleaning. Make sure the steam/water ow stops

completely before disassembling.

19. This appliance is not intended for use by persons (including children) with

reduced physical, sensory, or mental capabilities, or lack of experience or

knowledge, unless they are closely supervised and instructed concerning use

of the appliance by a person responsible for their safety. Close supervision is

necessary when any appliance is used by or near children. Children should be

supervised to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS

This product is designed for household use only.

ELECTRICAL REQUIREMENTS

Voltage: 120 V~

Frequency: 60 Hz

Wattage: 1460 W

NOTE: If the plug does not fit in the outlet,

contact a qualified electrician or service

person. Do not modify the plug in any way.

Do not use an adapter.

Do not use an extension cord. If the power

supply cord is too short, have a qualified

electrician or service person to install an

outlet near the appliance.

The cord should be arranged so that it will

not drape over the countertop or tabletop

where it can be pulled on by children or

tripped over unintentionally.

Plug into a grounded 3 prong outlet.

Press the Main power switch to “ON (-)”.

The machine automatically pumps water

into the heater and starts heating. When

lights stop blinking, the Espresso Machine

is ready for use.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or

electrical shock.

GETTING STARTED

First, clean all parts and accessories (See “Care and Cleaning” section).

Place the Espresso Machine on a dry, ﬂat, level surface such as a countertop or table.

MAX

Fill the Water tank with fresh water

(max. 47 ounces). Replace the Water tank lid.

Insert the Steam wand until you hear a click.

IMPORTANT: Distilled water or mineral water can damage the Espresso Machine.

Do not use either to brew espresso.

ENGLISH

GETTING STARTED

PRODUCT USAGE

BREWING ESPRESSO

Select desired Filter basket (see Basket

selection chart). Press the Filter basket into

the Portafilter until it clicks into place.

Fill the Filter basket with fine Espresso

coffee grounds (see Basket selection chart

for dosing recommendations).

Basket type Shot Dose (gram) Use for

Single wall 1 shot 10 - 12 Freshly ground whole bean coffee

Single wall 2 shot 18 - 20 Freshly ground whole bean coffee

Double wall 1 shot 10 - 12 Pre-ground coffee

Double wall 2 shot 18 - 20 Pre-ground coffee

BASKET SELECTION CHART

To rinse the Steam wand, direct the Steam

wand towards the Drip tray or into a cup.

Then, toggle the Mode button to select

Hot Water and press button to start.

Allow water to ﬂow for 3 to 5 seconds

then, press button to stop.

To rinse the Group head, place a container

under the Group head. Toggle the Mode

button to select Espresso. Toggle Dose

button to 1and press button.

The machine will ﬂush water through the

Group head and automatically stop when

the cycle is complete.

Tap the Portafilter to level the ground

coffee bed and rest on a flat surface.

Use the Tamper to tamp down the ground

coffee. Sweep excess coffee grinds from

the rim.

Position the Portafilter under the Group

head with the handle align to unlock.

Raise the Portafilter into the Group head

and twist to the right side to lock.

PRODUCT USAGE

1 2

Toggle the Mode button to select Espresso.

Toggle the Dose button to select desired

number of shots 1 (~ 1 ounce) or

2 (~ 2 ounces).

Press button to run selected Espresso

cycle.

NOTE: Do not remove the Portafilter when brewing.

TIP: Shot duration should be between 20-30 seconds for 1 and 2 shot selections.

- If less than 20 seconds: decrease grind size and/or increase tamp pressure.

- If more than 30 seconds: increase grind size and/or reduce tamp pressure.

ENGLISH

PRODUCT USAGE

USING THE STEAM MODE FOR MILK

Toggle the Mode button to select Steam.

The machine will automatically start

heating, indicated by the flashing Steam

light. The Steam light will go solid when

machine is ready for steaming.

Fill the Milk pitcher with desired amount of

cold milk.

TIP: Fill to bottom of the pour spout.

Adjust the Steam wand to desirable

position. Submerge the tip of the Steam

wand just below the surface of milk in the

Milk pitcher.

Angle the Steam wand towards the Drip

tray or into a cup. Press button to

start. Once water turns to steam, press

button to stop.

Press button to initiate the steam.

Froth until desired level of foam and

temperature is reached. To stop the steam,

press button again.

To avoid splattering, wait until the steam

stops before removing the Steam wand

from the milk.

PRODUCT USAGE

USING HOT WATER FEATURE

The Steam wand can also dispense hot water which is great for an americano, tea, hot

chocolate, etc. You can also use hot water to pre-heat cups.

1 2

Toggle the Mode button to select Water.

Place a cup under the Steam wand.

1 2

Press Dose button to select the volume of

water 1 (~ 4 ounces) or 2 (~ 6 ounces).

Press button to start water cycle.

Water flows out from the Steam wand.

NOTE: You can pause the cycle by pressing button to stop the flow of water

before the cycle complete.

PROGRAMING FUNCTION

The Espresso Machine is equipped with programing functionality. Any customized settings will

be saved even in the event power is lost to the machine.

PROGRAMING THE ESPRESSO AND HOT WATER AMOUNT

1 2

To change pre-programmed Espresso

Volume for 1 or 2: Toggle the Mode

button to select Espresso. Select the dose

you desire to program (1 or 2). Press and

hold button until desired espresso

amount is reached in your cup.

While programing your selected dose, the

dose and the button lights will blink.

Lights will stop blinking when programing

is complete.

1 2

To change pre-programmed Water

Volume for 1 or 2: Toggle the Mode

button to select Water. Select the dose

you desire to program (1 or 2). Press

and hold button until desired water

amount is reached in your cup.

While programing your selected dose, the

dose and the button light will blink.

Lights will stop blinking when programing

is complete.
