1

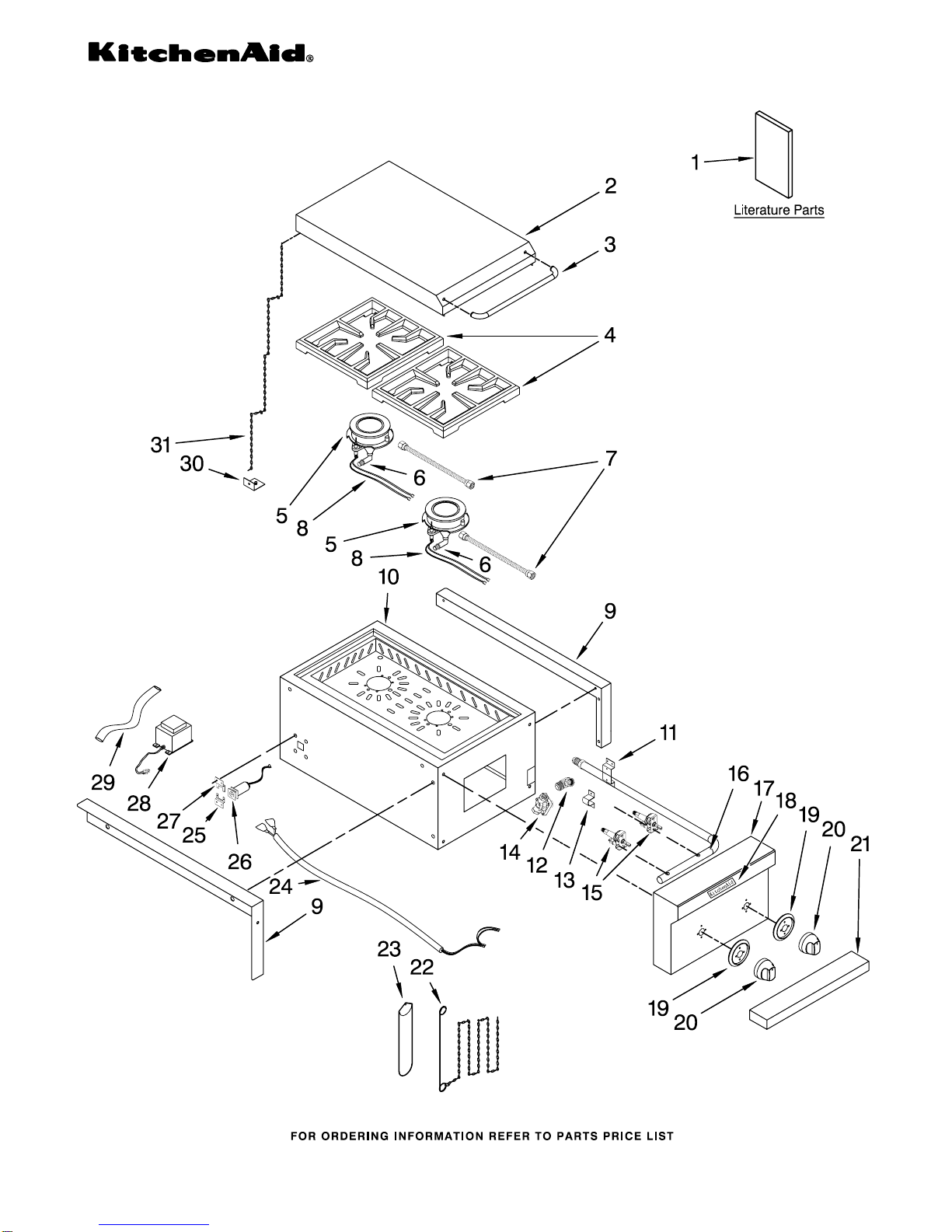

SIDE BURNER PARTS
For Model:KBZU122TSS00
(STAINLESS)
8−07 Litho In U.S.A. (cre) Part No. W10131720 Rev.A
BUILT−IN SIDE BURNER
2
SIDE BURNER PARTS
For Model:KBZU122TSS00
(STAINLESS)
W10131720
Illus. Part
No. No. DESCRIPTION
1 Literature
W10110732
U & C Guide /
Instructions,
Installation
2
W10137739
Cover, Burner
3
W10137053
Bar, Tool
4
W10137737
Grate, Burner
5
W10137743
Burner
6
W10137922
Orifice, Burner
Elbow
7 Tubing
W10137744
Front
W10141192
Rear
8 Ignitor, Surface
W10140269
Front
W10141186
Rear
9 Flange
W10140253
Right
W10141182
Left
10
W10140238
Box, Burner
11
W10128749
Base, Manifold
12
W10140747
Connector, Brass
13
W10128747
Fitting, Manifold
14
W10140748
Regulator (NG)
15
W10128764
Valve, Burner
16
W10140749
Manifold
17
W10140750
Panel, Control
18
W10128751
Nameplate
19
W10140753
Bezel, Knob
20
W10141176
Knob
21
W10141180
Panel, Front
22
W10141181
Rod, Lighting
23
W10128703
Bag, Ltg rod
24
W10141183
Harness, Wire
25
W10132694
Bracket, Trnsfrmr
26
W10133869
Outlet, Trnsfrmr
27
W10132695
Bracket, Transfrmr
28
W10141184
Transformer
29
W10141185
Tube, Drain
30
W10137088
Stator, Chain
31
W10137089
Chain
