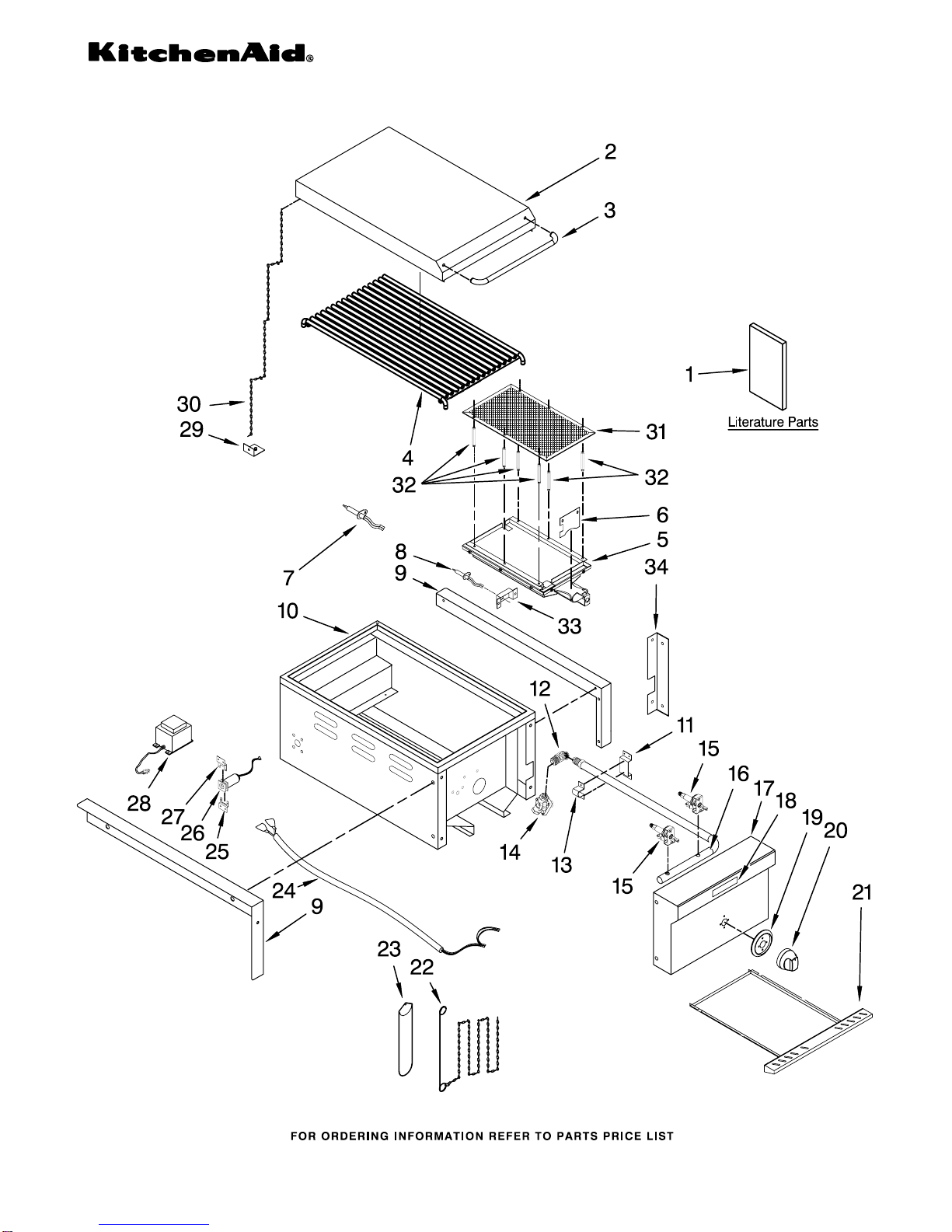

SIDE BURNER PARTS
For Model: KBEU121TSS00
(STAINLESS)
3−08 Litho In U.S.A. (cre) Part No. W10198730 Rev.A
BUILT−IN SIDE BURNER
2
SIDE BURNER PARTS
For Model: KBEU121TSS00
(STAINLESS)
W10198730
Illus. Part
No. No. DESCRIPTION
1 Literature
W10110732
U & C Guide /
Instructions,
Installation
2
W10198794
Cover, Burner
3
W10137053
Bar, Tool
4
W10137073
Grate, Burner
5
W10137071
Burner, Sear
6
W10137070
Panel, Burner
7
W10134826
Ignitor,Gas Colctr
8
W10198798
Ignitor, Surface
9 Flange
W10198800
Right
W10198810
Left
10
W10198812
Box, Burner
11
W10128749
Base, Manifold
12
W10128748
Connector, Brass
13
W10128747
Fitting, Manifold
14
W10140748
Regulator (NG)
15
W10128764
Valve, Burner
16
W10198806
Manifold
17
W10198805
Panel, Control
18
W10128751
Nameplate
19
W10140753
Bezel, Knob
20
W10141176
Knob
21
W10198808
Drip Tray Assy
22
W10198809
Rod, Lighting
23
W10128703
Bag, Ltg rod
24
W10141183
Harness, Wire
25
W10132695
Bracket, Trnsfrmr
(Bottom)
26
W10198814
Outlet, Trnsfrmr
27
W10132694
Bracket, Transfrmr
(Top)
28
W10141184
Transformer
29
W10137088
Stator, Chain
30
W10137089
Chain
31
W10137068
Screen
32
W10198797
Rod, Connecting
33
W10134798
Bracket, Sear Ign.
34 Control Panel Trim
W10198801
Left
W10198803
Right
