Kingtop KT-Z1 Manuel utilisateur

User guide

Body Worn Camera KT-Z1

Manual Version: V1.0

to change without notice and should not be construed as a commitment by Kingtop Corp.

Patents and Licenses

For a complete list of all Kingtop Corp. patents, visit https://www.kingtoptec.com

Software License

Proprietary Rights Provisions:

The software drivers provided with this product are copyrighted by Kingtop Corp. and/or

Kingtop Corp.’ suppliers. Although copyrighted, the software drivers are unpublished and

embody valuable trade secrets proprietary to Kingtop Corp. and/or Kingtop Corp. suppliers.

The disassembly, decompilation, and/or Reverse Engineering of the software drivers for any

purpose is strictly prohibited by international law. The copying of the software drivers, except

for a reasonable number of back-up copies is strictly prohibited by international law. It is

forbidden by international law to provide access to the software drivers to any person for any

purpose other than processing the internal data for the intended use of the software drivers.

Trademarks and Service Marks

Kingtop Corp. is a trademark of Kingtop Corp., and the other trademarks, logos, and service

marks (collectively the “Trademarks”) used in this user manual are the property of Kingtop

Corp. or their respective owners. Nothing contained in this user manual should be construed

as granting by implication, estoppel, or otherwise, a license or right of use of Kingtop Corp.

or any other Trademark displayed in this user manual without the written permission of

Kingtop Corp. or its respective owners.

• Kingtop Corp., and the Kingtop Corp. logo are all trademarks of Kingtop Corp.

The names of actual companies and products mentioned in this user manual may be the

trademarks of their respective owners.

DISCLAIMER

Thank you for purchasing our products, please read this manual carefully

before use. If the product breaks down during use, please contact our after-sales

staff in time.

The product is upgraded according to the customized version. Product

upgrades may cause some of the product features do not match the manual,

please refer to the actual product, or contact our customer service staff.

If you do not follow the instructions in the manual, any losses caused by this

will be borne by the user.

The final right of interpretation of this book belongs to our company.

Attention:

1、The installation and maintenance of this product is carried out by

professionals, please do not disassemble and repair and other operations by

yourself.

2、The product should be avoided in a strong electromagnetic radiation

environment to avoid interference with the image signal.

3、Avoid using in the place of strong light source and unstable light source, so as

not to affect the service life of light-sensitive devices.

4、In order to ensure the safe use of the equipment, please be sure to use the

standard power adapter and keep away from fire sources.

Contents

I. Body Worn recorder .................................................................................. - 1 -

1. Product Overview ....................................................................................... - 1 -

1.1 Product structure schematic ............................................................... - 1 -

1.2 SIM card installation method .............................................................. - 2 -

1.3 Product specification .......................................................................... - 2 -

2. Product features ......................................................................................... - 3 -

2.1 Key and interface description ............................................................. - 3 -

2.2 Interface icon description ....................................................................- 4 -

2.3 Introduction of basic functions ............................................................ - 5 -

2.3.1 Power on, power off .................................................................. - 5 -

2.3.2 Recording ..................................................................................- 6 -

2.3.3 Intercom and messages ............................................................- 7 -

2.3.4 Settings ..................................................................................... - 8 -

2.3.5 About .......................................................................................- 10 -

II. KVS-900 Scheduling Platform ............................................................... - 11 -

1. Platform operation module ........................................................................- 11 -

1.1 Login .................................................................................................- 11 -

1.2 Command Center ............................................................................. - 11 -

1.3 Data analysis ....................................................................................- 13 -

1.3.1 Video history playback ............................................................ - 13 -

1.3.2.Locate historical playback ....................................................... - 15 -

1.4 Device Management ........................................................................ - 16 -

1.5 Other functions ................................................................................. - 18 -

1.5.1 PTT group management ......................................................... - 18 -

1.5.2 Electronic fence .......................................................................- 18 -

1.5.3 Membership Credentials ......................................................... - 20 -

1.5.4 Face identification ................................................................... - 20 -

1.5.5 License plate recognition (set similar to face) ......................... - 21 -

1.5.6 Statistics ..................................................................................- 21 -

- 1 -

I. Body Worn recorder

1. Product Overview

5G HD Body worn recorder is a highly integrated device developed for

public security, urban management, border defense, courts, industry and

commerce and other law enforcement departments. The device supports

photography, video recording, audio recording, local storage, infrared night

vision, GPS positioning, 3G/4G and 5G (5G products support) cellular network

wireless transmission, it also can upload video and location information directly

to the background through the cellular network or WIFI environment, the user

can watch the front-end back to the video through the web page.

The product is small in size, light in weight, easy to carry, one-handed

one-button operation, and is a powerful assistant for on-site law enforcement.

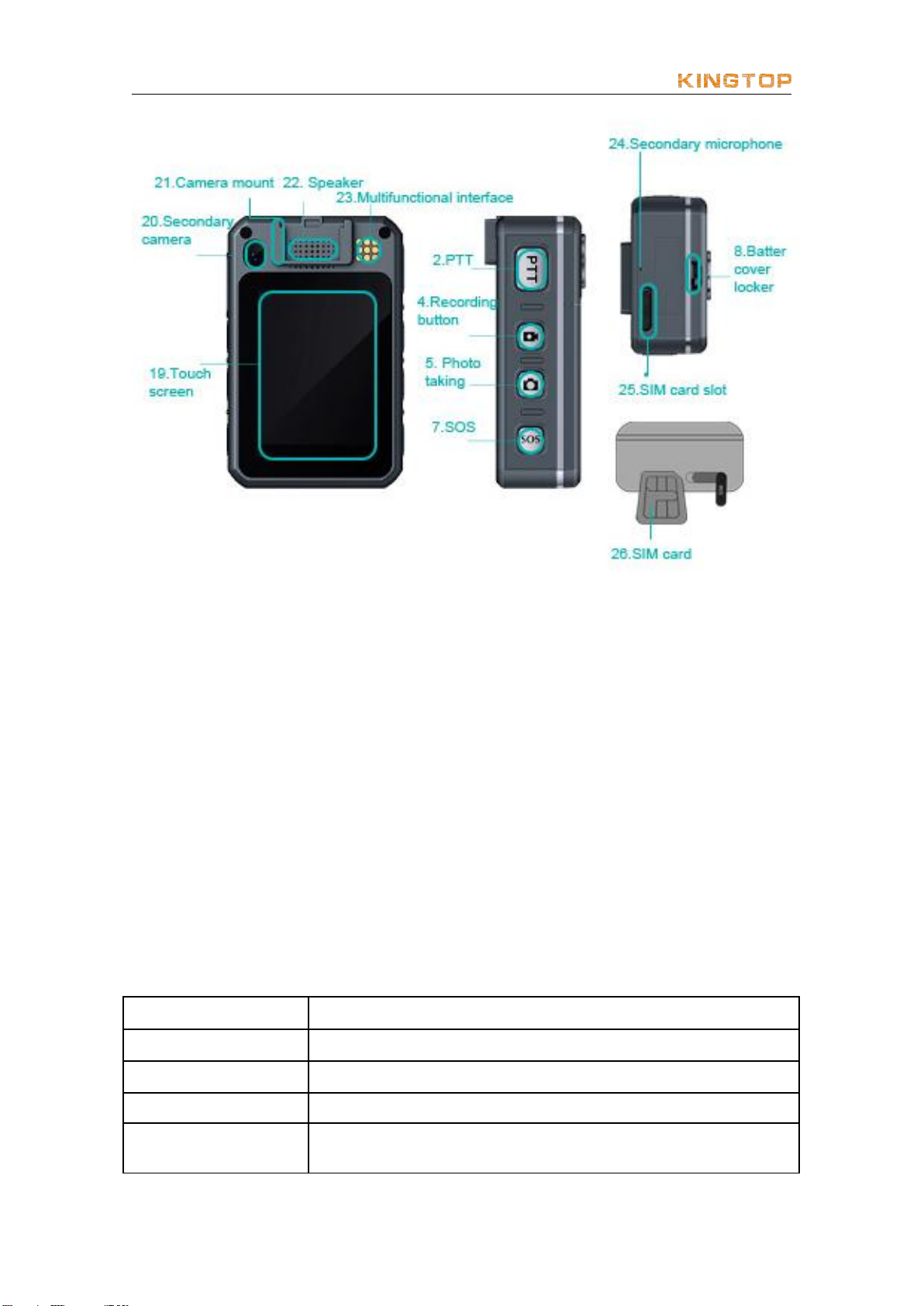

1.1 Product structure schematic

- 2 -

1.2 SIM card installation method

In the off state, open the SIM logo plug at the bottom of the device and

install the "Nano-SIM" card according to the instructions on the side of the card

slot. When installing, press the SIM card with the chip side facing the screen and

press the notch outward until there is a "click" sound, then the installation is

successful. When uninstalling the card, press the SIM card downward, and the

SIM card will be automatically ejected.

1.3 Product specification

Image sensor

High-pixel color CMOS image sensor

Wide-angle lens

FOV: 120 degrees wide angle, horizontal angle 105 distortion 16%

Video resolution

4K (5G product support) / 2K / 1080P / 720P

Video video format

File format MP4 video code: H264 / H265 Audio code: AAC

Recording audio

format

WAV

- 3 -

Nightlight

compensation

LED white light compensation, infrared night vision, 3 meters to

see the face facial features

Infrared night vision

Automatic infrared / manual IR

Battery

Built-in battery is replaceable, 3300 mAh

Continuous working

times

Full charging time

≤ 3h

WIFI network

Support WIFI 6 (5G product support), WIFI 5.8 and WIFI 2.4

Cellular network

China Telecom, China Mobile, China Unicom operators 3G / 4G /

5G (5G product support)

GPS

GPS/Galileo/GLONASS/Beidou3

Storage class

Built-in microSD (TF) card, with up to 256G support

Operating temperature

/ humidity

-30℃to 55℃/ humidity is less than 90%

Volume / weight

88mm*55mm*30mm/174g

Protection grade

IP68

2. Product features

2.1 Key and interface description

Key

Name

Icons

Method

Description

Power

Short press

Long press

Power off state: long press, power on

Power on state: long press, power off prompt

box;

Screen off state: press,screen on

Screen on state: press,screen off

Short press

Short press: return to the parent page

Long press: switch the white light on

Record

Short press

Long press

Short press: audio recording( non-audio

recording, non-video recording state)

short press:stop the recording recording(When

recording state)

Long press: switch infrared

- 4 -

2.2 Interface icon description

Standard Description:

(1) Whether the state of silence

(2)Platform connection status

(3)GPS signal status

(4)WIFI signal status

(5)Current circuit status

Marking

Display Description

The current battery level is in the following order. <5%, 10%, 20%,

30%, 40%, 50%, 60%, 70%, 80%, 90%, 100%

Charging status, the current battery level is in the following order.

<5%, 10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%, 100%

PTT

Long press

Group intercom

Video

Short press

Long press

Short press:video recording(Non-video status:)

Short press: stop video recording (video

recording state)

Long press:Pre-video


Short press

Long press

Short press: take a picture

Long press: switch the resolution

SOS

Short press

Long press

Long press: platform alarm (platform setting is

required)

Short press: video recording status ,mark /

cancel the key mark

TYPE-C

interface

Connect the

plug

Data transmission interface, charging interface

SIM

interface

Load/take out

Insert the SIM card

- 5 -

The current 3G or 4G cellular signal is displayed in the following

order (weak to strong).

0 cell (no signal), 1 cell, 2 cells, 3 cells, 4 cells (full signal)

The current 5G cellular signal is displayed in the following order

(weak to strong).

0 cell (no signal), 1 cell, 2 cells, 3 cells, 4 cells signal (full signal)

The current WIFI signal is displayed in the following order (weak to

strong).

0 frame (no signal), 1 frame, 2 frames, 3 frames, 4 frames signal (full

signal)

Mute

Sound on

Disconnect to the platform

Connected to the platform

Video recording in progress (video files will be stored)

Video pre-recording in progress (video files are failed to stored)

Video recording(in a delayed end state)

Recording in progress

GPS not positioned

GPS has been positioned

2.3 Introduction of basic functions

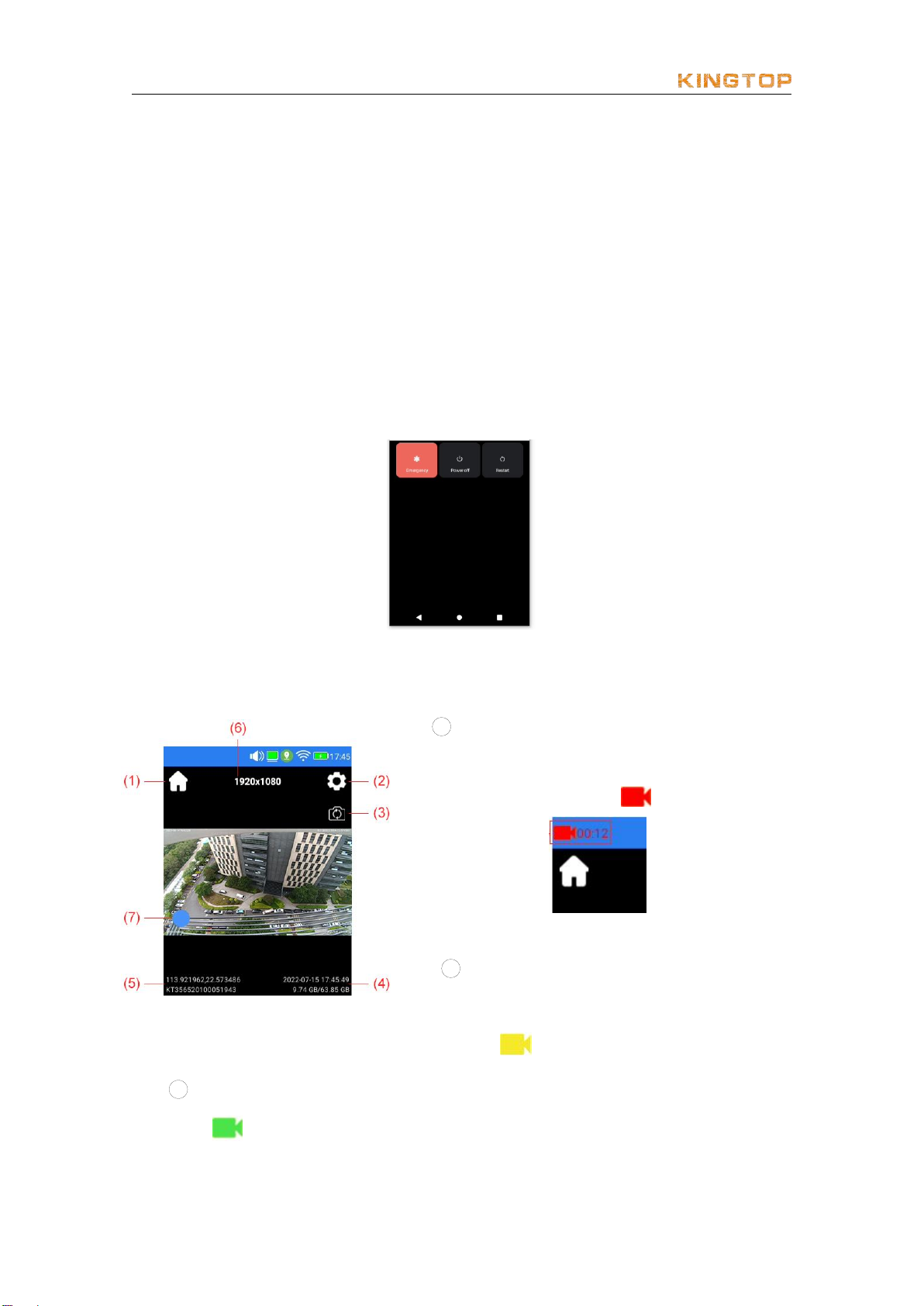

2.3.1 Power on, power off

Power on: Long press the "Power on/off button", the video preview interface

will appear on the screen.

Description of labeling:

- 6 -

(1) Jump to the home page interface button

(2)Jump to settings interface button

(3)Flip camera button

(4)GPS coordinates and device SN number

(5)Date and time and storage remaining space/total space size

(6)Current video resolution

Restart and Shutdown: Long press the "On/Off button", "Shutdown" and

"Reboot" options will appear, operate according to your needs.

2.3.2 Recording

(1) . Recording

1Turn on the video: In the power on

state, tap the "video button" to record, the

video status logo appears.

Video recording status

2Stop recording: Press "Video key" to

stop recording, the video status identity will

disappear, or the delay end state will appear.

3Video prerecording: long press the video button for video prerecording.

The icon appears, press and hold again to stop video prerecording.

Table des matières

Autres manuels Kingtop Appareil photo numérique

Kingtop

Kingtop KT-Z2 Manuel utilisateur

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
