24” TILE CUTTER
INSTRUCTION MANUAL
COPYRIGHT © 2016 ALL RIGHTS RESERVED BY KING CANADA INC.
MODEL: KC-24TC
PROOF OF PURCHASE
Please keep your dated proof of purchase for warranty and servicing purposes.
LIMITED TOOL WARRANTY
King Canada makes every effort to ensure that this product meets high quality and durability
standards. King Canada warrants to the original retail consumer a 2-year limited warranty as of
the date the product was purchased at retail and that each product is free from defects in
materials. Warranty does not apply to defects due directly or indirectly to misuse, abuse, normal
wear and tear, negligence or accidents, repairs done by an unauthorized service center,
alterations and lack of maintenance. King Canada shall in no event be liable for death, injuries
to persons or property or for incidental, special or consequential damages arising from the use
of our products.
To take advantage of this limited warranty, return the product at your expense together with your
dated proof of purshase to an authorized King Canada service center. Contact your retailer or
visit our web site at www.kingcanada.com for an updated listing of our authorized service
centers. In cooperation with our authorized serviced center, King Canada will either repair or
replace the product if any part or parts covered under this warranty which examination proves
to be defective in workmanship or material during the warranty period.
NOTE TO USER
This instruction manual is meant to serve as a guide only. Specifications and references are
subject to change without prior notice.
Operation
Before attempting to cut actual tiles to be
installed, it is recommended to familiarize
yourself with the operation of this Tile Cutter by
test cutting scrap ceramic tiles first.
1) Lift lever and position ceramic tile on the Tile
Cutter table.
2) Align marked cut line with the cutting wheel
(B) Fig.1. Score whole tile length evenly.
Refer to score line (A) Fig.1.
3) Make sure the tile snapping pressure plate
(C) Fig.1 is lifted and not engaged.
4) Position the tile snapping pressure plate (A)
Fig.2 vertically as shown and press down on
the lever evenly to snap tile cleanly.
5) To make repeat cuts of the same width, an
edge guide (B) Fig.2 is provided. Loosen
lock knob (C), set the edge guide to the
desired distance and retighten lock knob.
Figure 1

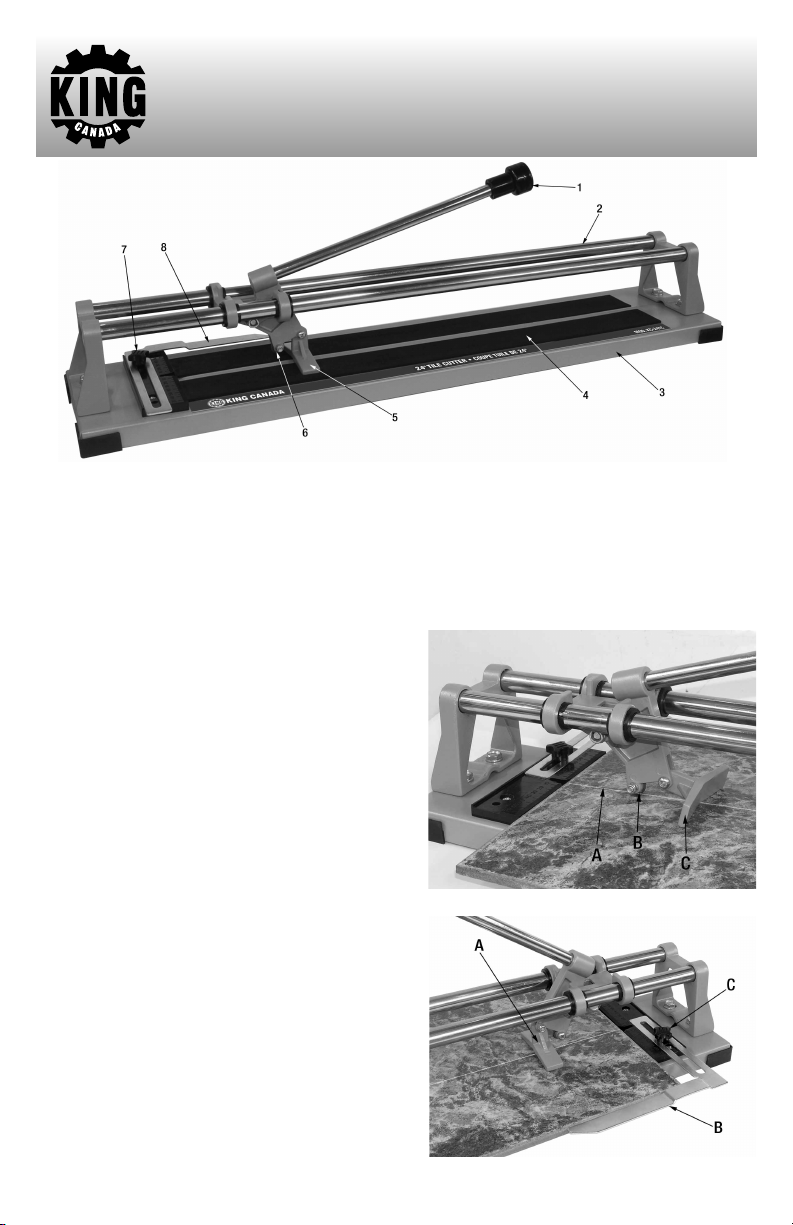

GETTING TO KNOW YOUR
TILE CUTTER
Figure 2
Getting to know your Tile Cutter
1. Lever
2. Dual sliding rails
3. Base
4. Table with rubber pads
5. Tile snapping pressure plate
6. 16mm cutting wheel
7. Edge guide lock knob
8. Edge guide
Specifications
Max cutting length: 24”
Diagonal cutting: up to 16” tile
Maximum cutting thickness: 1/2” (12mm)
Cutting wheel diameter: 16mm
Replacement cutter wheel: Model KW-160
