Manual P/N 820-1388 Rev. A 2507-7214-00

ATTENTION: Please take a few minutes to thoroughly read this

user’s guide which should be saved for future reference and

passed on to any subsequent owner.

Carbon Monoxide Alarm

User’s Guide

Model: KN-COPP-3 (900-0076)

• 120V AC • 9V Battery Backup • Peak Level Memory

KN-COPP-3

with Digital Display

2507-7214-00.qxd 2008.1.9 1:55 PM Page 1

Carbon Monoxide Alarm Procedure

1) Operate the Test/Reset button;

2) Call your emergency services (Fire Department or 911);

3) Immediately move to fresh air - outdoors or by an open

door/window. Do a head count to check that all persons are

accounted for. Do not reenter the premises nor move away

from the open door/window until the emergency services

responders have arrived, the premises have been aired out, and

your alarm remains in its normal condition.

4) After following steps 1-3, if the alarm reactivates within a 24

hour period, repeat steps 1-3 and call a qualified appliance

technician to investigate sources of CO from fuel burning

equipment and appliances, and to inspect for proper operation

of equipment.

If problems are identified during this inspection, have the equip-

ment serviced immediately. Note any combustion equipment not

inspected by the technician and consult the manufacturer’s instruc-

tions, or contact the manufacturer’s directly for more information

about CO safety and the equipment. Make sure that motor vehicles

are not, or have not been, operating in a garage attached or adja-

cent to the residence.

Never restart the source of a CO problem until it has been

corrected. Never ignore the sound of the alarm!

If the alarm is sounding, pressing the test/reset button will

terminate the alarm. If the CO condition that caused the alert

in the first place continues, the alarm will reactivate. If the

unit alarms again within six minutes, it is sensing high levels

of CO which can quickly become a dangerous situation.

WARNING:

Activation of the CO

Alarm indicates the presence of Carbon

Monoxide (CO) which can kill you.

PHONE NUMBER:

What to do When the Alarm Sounds!

2507-7214-00.qxd 2008.1.9 1:55 PM Page 2

Welcome

Note: Many times throughout this User’s Guide, we will refer to

Carbon Monoxide as “CO”.

This Kidde carbon monoxide (CO) alarm is an important part of your

family’s home safety plan. This alarm has been designed and tested to

detect CO buildup in a residential environment. Your alarm is for use

specifically in the home. As an owner of a CO alarm, there are some

basic facts you should know about for your protection.

Many people think that CO alarms operate like smoke alarms. Like

smoke alarms, CO alarms monitor the air in your home and sound a

loud alarm to warn you of trouble. The way you respond to a CO alarm

is quite different than a smoke alarm. That’s because a house fire and a

CO problem are two distinctly different situations. If your smoke alarm

were to alarm, you would quickly be able to judge the level of danger

you were in with your senses. You can see and smell the smoke, feel the

heat, see, and possibly hear the fire burning. You can also readily see if

your smoke alarm is alarming in a non-emergency situation. Because

your sense of sight, smell, hearing and touch give you information, you

can almost instantly judge what action to take if you hear your smoke

alarm.

CO is an invisible, odorless, tasteless and non-irritating gas – completely

undetectable to your senses. That’s why it is important to your safety

that you have a CO alarm.

Important Warning Statements

IMPORTANT: This carbon monoxide alarm is designed to detect

carbon monoxide from ANY source of combustion. It is NOT

designed to detect smoke, fire, or any other gas.

WARNING: Carbon monoxide alarms are not smoke alarms. This

carbon monoxide alarm is not a substitute for installing and

maintaining an appropriate number of smoke alarms in your

home.

This carbon monoxide alarm will not sense smoke, fire, or any

poisonous gas other than carbon monoxide even though carbon

monoxide can be generated by fire. For this reason you must

install smoke alarms to provide early warning of fire and to pro-

tect you and your family from fire and its related hazards.

CAUTION: This alarm will only indicate the presence of carbon

monoxide at the sensor. Carbon monoxide may be present in

other areas.

2507-7214-00.qxd 2008.1.9 1:55 PM Page 3

Important Warning Statements

WARNING: This product is intended for use in ordinary indoor

locations of family living units. It is not designed to measure com-

pliance with Occupational Safety and Health Administration

(OSHA), commercial or industrial standards. It is not suitable for

installation in hazardous locations as defined in the National

Electric Code.

The installation of this device should not be used as a substitute

for proper installation, use and maintenance of fuel burning

appliances, including appropriate ventilation and exhaust sys-

tems. It does not prevent CO from occurring, nor can it solve and

existing CO problem.

WARNING: This device is designed to protect individuals from

acute effects of carbon monoxide exposure. It may not fully safe-

guard individuals with specific medical conditions. If in doubt,

consult a medical practitioner.

Individuals with medical problems may consider using warning

devices which provide audible and visual signals for carbon

monoxide concentrations under 30 PPM.

This carbon monoxide alarm requires a continuous supply of elec-

trical power – it will not work without power. Models without

battery backup will not operate during power failure.

This alarm has not been investigated for carbon monoxide detec-

tion below 70 PPM.

Contents of This User’s Guide

1. Information About Carbon Monoxide

2. Product Features and Specifications

3. Installation Locations

4. Installation Instructions

5. Alarm Characteristics

6. KN-COPP-3 Operating Characteristics

7. Maintenance

8. Limited Warranty

2507-7214-00.qxd 2008.1.9 1:55 PM Page 4

1. Information About Carbon Monoxide

General Carbon Monoxide Information

Carbon monoxide is a colorless, odorless and tasteless poison gas that

can be fatal when inhaled. CO inhibits the blood’s capacity to carry oxy-

gen.

Periodically review this alarm manual and discuss your CO alarm emer-

gency procedure with all the members of your family. Never ignore a CO

alarm. A true alarm is an indication of potentially dangerous levels of

CO. CO alarms are designed to alert you to the presence of CO before

an emergency – before most people would experience symptoms of CO

poisoning, giving you time to resolve the problem calmly.

Determine if anyone in the household is experiencing symptoms of CO

poisoning. Many cases of reported CO poisoning indicate that while

victims are aware they are not well, they become so disoriented they are

unable to save themselves by either exiting the building or calling for

assistance. Also, young children and household pets may be the first

affected. You should take extra precautions to protect high-risk persons

from CO exposure because they may experience ill effects from CO at

levels that would not ordinarily affect a healthy adult.

Symptoms of CO Poisoning

The following common symptoms are related to CO poisoning and

should be discussed with ALL members of the household.

Mild Exposure:

Slight headache, nausea, vomiting, fatigue (often described as “flu-like”

symptoms).

Medium Exposure:

Severe throbbing headache, drowsiness, confusion, fast heart rate.

Extreme Exposure:

Unconsciousness, convulsions, cardio-respiratory failure, death.

If you experience even mild symptoms of CO poisoning, consult your

doctor immediately!

Carbon Monoxide PPM Levels

Model KN-COPP-3 is equipped with a digital display that shows levels of

CO (displayed in PPM – parts per million). Learn the difference between

dangerous, high, mid and low levels.

2507-7214-00.qxd 2008.1.9 1:55 PM Page 5

1. Information About Carbon Monoxide

Dangerous Levels:

When someone is experiencing symptoms of CO poisoning and CO

readings are generally above 100 PPM. Anytime someone is experiencing

the symptoms of CO poisoning this should be treated as an emergency.

See “What to do When the Alarm Sounds” (inside front cover).

High Levels:

Generally above 100 PPM, with no one experiencing symptoms. This

should be treated as an urgent situation. See “What to do When the

Alarm Sounds” (inside front cover).

Mid Levels:

Generally between 50 PPM to 100 PPM. This should be cause for

concern and should not be ignored or dismissed. See “What to do

When the Alarm Sounds” (inside front cover).

Low Levels:

Generally below 50 PPM. Kidde recommends you take action to

eliminate the source of CO. See “What to do When the Alarm Sounds”

(inside front cover).

Possible Sources of Carbon Monoxide

Inside your home, appliances used for heating and cooking are the most

likely sources of CO. Vehicles running in attached garages can also

produce dangerous levels of CO.

CO can be produced when burning any fossil fuel, such as gasoline,

propane, natural gas, oil and wood. It can be produced by any fuel-

burning appliance that is malfunctioning, improperly installed, or not

ventilated correctly, such as:

• Automobiles, furnaces, gas ranges/stoves, gas clothes dryers, water

heaters, portable fuel burning space heaters and generators,

fireplaces, wood-burning stoves and certain swimming pool heaters.

• Blocked chimneys or flues, back drafts and changes in air pressure,

corroded or disconnected vent pipes, loose or cracked furnace

exchangers.

• Vehicles and other combustion engines running in an open or closed

garage, attached or near a home.

• Burning charcoal or fuel in grills and hibachis in an enclosed area.

2507-7214-00.qxd 2008.1.9 1:55 PM Page 6

1. Information About Carbon Monoxide

Conditions That Can Produce Carbon Monoxide

The following conditions can result in transient CO situations:

• Excessive spillage or reverse venting of fuel-burning appliances caused

by outdoor ambient conditions, such as, wind direction and/or veloci-

ty, including high gusts of wind, heavy air in the vent pipes

(cold/humid air with extended periods between cycles).

• Negative pressure resulting from the use of exhaust fans.

• Simultaneous operation of several fuel-burning appliances competing

for limited internal air.

• Vent pipe connections vibrating loose from clothes dryers, furnaces, or

water heaters.

• Obstructions in, or unconventional, vent pipe designs which can

amplify the above situations.

• Extended operation of unvented fuel-burning devices (range, oven,

fireplace, etc.).

• Temperature inversions which can trap exhaust gases near the ground.

• Vehicle idling in an open or closed garage, or near a home.

To be safe, know the possible sources of CO in your home. Keep fuel-

burning appliances and their chimneys and vents in good working condi-

tion. Learn the early symptoms of exposure, and if you suspect CO poi-

soning, move outside to fresh air and get emergency help. Your first line

of defense is an annual inspection and regular maintenance of your

appliances. Contact a licensed contractor or call your local utility compa-

ny for assistance.

Information About Carbon Monoxide Alarms –

What They Can and Cannot Do:

CO alarms provide early warning of the presence of CO, usually before a

healthy adult would experience symptoms. This early warning is possible,

however, only if your CO alarm is located, installed and maintained as

described in this guide.

Because carbon monoxide is a cumulative poison, long-term exposures

to low levels may cause symptoms, as well as short-term exposures to

high levels. This Kidde unit has a time-weighted alarm – the higher the

level of CO present, the sooner the alarm will be triggered.

2507-7214-00.qxd 2008.1.9 1:55 PM Page 7

1. Information About Carbon Monoxide

This CO alarm can only warn you of the presence of CO. It does not

prevent CO from occurring, nor can it solve an existing CO problem. If

your unit has alarmed and you’ve provided ventilation by leaving your

windows and doors open, the CO buildup may have dissipated by the

time help responds. Although your problem may appear to be

temporarily solved, it’s crucial that the source of the CO is determined

and that the appropriate repairs are made.

This CO alarm is designed to act as a monitor; it is not designed for use

as a short-term testing device to perform a quick check for the presence

of CO.

CO alarms have limitations. Like any other electronic device, CO alarms

are not fool-proof. CO alarms have a limited operational life. You must

test your CO alarm weekly, because it could fail to operate at any time.

If your CO alarm fails to test properly, or if its self-diagnostic test reveals

a malfunction, immediately have the unit replaced. This alarm will not

monitor CO levels while in an error condition.

CO alarms can only sense CO that reaches the unit’s sensor. It’s possible

that CO may be present in other areas without reaching the alarm. The

rate and ability that which CO reaches the alarm may be affected by:

• Doors or other obstructions.

• Fresh air from a vent, an open window or other source.

• CO being present on one level of the home and not reach a CO alarm

installed on a different level. (For example, CO in the basement may

not reach an alarm on the second level, near the bedrooms).

For these reasons, we recommend you provide complete coverage by

placing a CO alarm on every level of the home. Please carefully read all

information on properly installing this CO alarm.

CO alarms should not be used to detect the presence of natural gas

(methane), propane, butane, or other combustible fuels.

Instruct children never to touch, unplug or otherwise interfere with the

alarm. Warn children of the dangers of CO poisoning.

2507-7214-00.qxd 2008.1.9 1:55 PM Page 8

2. Product Features and Specifications

Blinking

Red Dot

Digital

Display

Test/Reset

Button Peak Level

Button

Back

Door

Key

Holes

Slide Support for Table Top

and Direct Plug Use

Adapter

Thumb Release

Removable

AC Adapter

Cord

Recess

Power

Cord

Alarm

Sounder

9V Backup

Battery

(shown installed)

Install Backup

Battery

(as shown)

IMPORTANT: Seven (7) years after the initial power up, this alarm

will “beep” every 30 seconds to indicate that it is time to replace

the alarm. Replace the alarm immediately! It will not detect CO in

this condition.

To help identify the date to replace the alarm, a label has been affixed to

the side of the alarm. Write the “replace by” date (seven years from

power up) in a permanent marker on this label.

Model KN-COPP-3

with digital display

2507-7214-00.qxd 2008.1.9 1:55 PM Page 9

Recommended Installation Locations

CO alarms should be mounted in

or near bedrooms and living areas.

It is recommended that you install

a Kidde CO alarm on each level of

your home.

When choosing your installation

locations, make sure you can hear

the alarm from all sleeping areas. If

you install only one CO alarm in your home, install it near bedrooms,

not in the basement or furnace room.

3. Installation Locations

Recommended Locations

Temperature:

Operating Range: 40°F (4.4°C) to 100°F (37.8°C)

Humidity:

Operating range: 10-95% non-condensing

Audible Alarm:

85+ dB at 10’ @ 3.4±0.5 KHz pulsing alarm

Sensor:

Electrochemical

Power:

120 volts AC, 60 Hz, 60 mA max, 9 volt battery back-up

Accuracy of Digital Display:

30-999 PPM +/-30% when measured in conditions of 80° F (+/- 10° F),

atmospheric pressure +/- 10% and 40% +/- 3% relative humidity.

Display readings may vary slightly depending on changes in the ambient

condition (temperature, humidity) and the condition of the sensor.

Alarm Response Times:

70 PPM = 60-240 min., 150 PPM = 10-50 min., 400 PPM = 4-15 min.

2. Product Features and Specifications

2507-7214-00.qxd 2008.1.9 1:55 PM Page 10

Autres manuels pour KN-COPP-3

Table des matières

Autres manuels Kidde Alarme au monoxyde de carbone

Kidde

Kidde KN-COB-IC Manuel utilisateur

Kidde

Kidde K4MCO Manuel utilisateur

Kidde

Kidde Nighthawk 900-0081 Manuel utilisateur

Kidde

Kidde KN-COSM-IB Manuel utilisateur

Kidde

Kidde 900-0215 Manuel utilisateur

Kidde

Kidde Fyrnetics 423/9HIR Instructions de montage

Kidde

Kidde K10LLCO Manuel de programmation

Kidde

Kidde KN-COPP-3 Manuel utilisateur

Kidde

Kidde KN-COPE-I Manuel utilisateur

Kidde

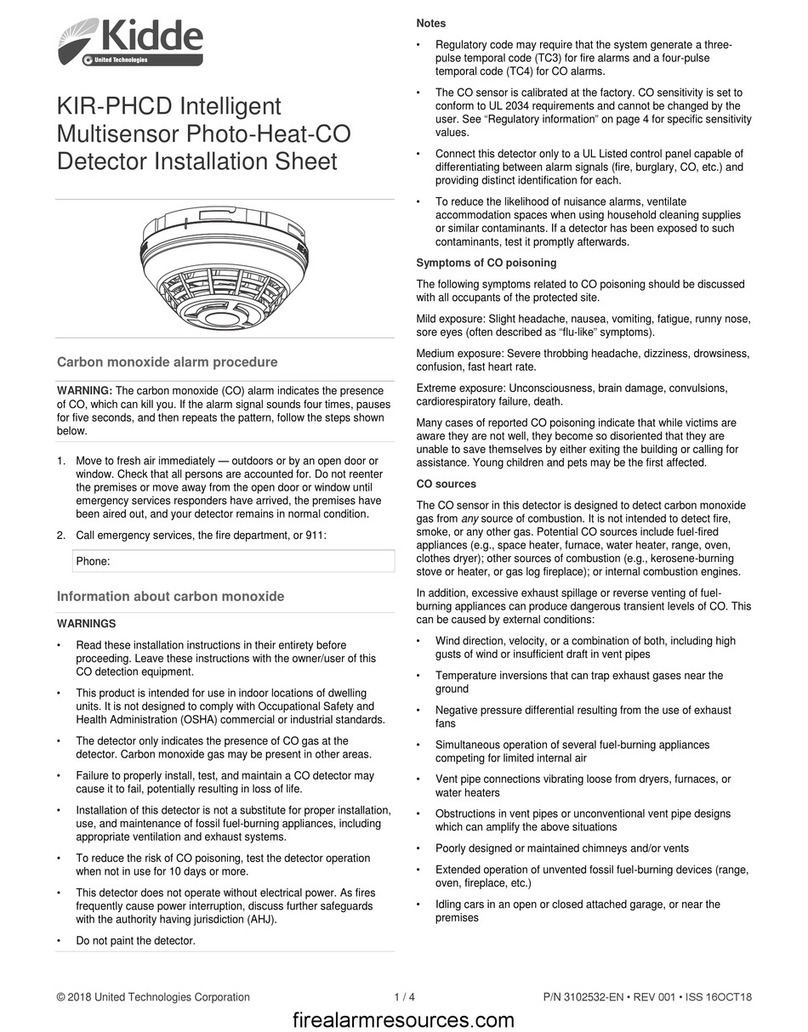

Kidde KIR-PHCD Instructions de montage

Kidde

Kidde KN-COPP-B-LS-UK Manuel utilisateur

Kidde

Kidde KN-COB-DP-H) Manuel utilisateur

Kidde

Kidde KHU100-28 Manuel utilisateur

Kidde

Kidde KN-COB-ICB-CA Manuel utilisateur

Kidde

Kidde KN-COPP-B-LS Manuel utilisateur

Kidde

Kidde KN-COPP-3 Manuel utilisateur

Kidde

Kidde KN-COB-LCB-A Manuel utilisateur

Kidde

Kidde KN-COP-DP Manuel utilisateur

Kidde

Kidde 21029713 Manuel utilisateur

Kidde

Kidde KN-COPF-I Manuel utilisateur

Kidde

Kidde 9CO5 Manuel utilisateur

Kidde

Kidde KN-COEG-3 (900-01 13) Manuel utilisateur

Kidde

Kidde KIR-HCD Instructions de montage

Kidde

Kidde KN-COSM-B Manuel utilisateur

Manuels Alarme au monoxyde de carbone populaires d'autres marques

Honeywell

Honeywell H450EN Manuel utilisateur

First Alert

First Alert FCD2B Manuel utilisateur

Honeywell

Honeywell SF350RVUL Manuel utilisateur

Poolguard

Poolguard DAPT-2 Manuel utilisateur

Ei Electronics

Ei Electronics Ei 261D Manuel

Bacharach

Bacharach Model 105 Manuel

Firex

Firex COZ-1 Manuel utilisateur

Costar

Costar 12RV-D Manuel utilisateur

First Alert

First Alert CO410 Manuel utilisateur

FireAngel

FireAngel CO-9X Manuel utilisateur

Costar

Costar 12-24SIR Manuel utilisateur

System Sensor

System Sensor CO1224T Manuel utilisateur

Deltronic Security

Deltronic Security CN-1231 Manuel utilisateur

GE Interlogix

GE Interlogix 240 COE - Carbon Monoxide Alarm Manuel utilisateur

Sygonix

Sygonix 2377794 Manuel utilisateur

Convoy Tech

Convoy Tech CO311 Manuel utilisateur

nest

nest PROTECT Manuel utilisateur

Bosch

Bosch CRS-WLCD-TA869 Manuel utilisateur
