Programming Guide

Keysight Models 66312A, 66332A

Dynamic Measurement DC Sources

Keysight Models 6631B, 6632B,

6633B, 6634B,6611C, 6612C,

6613C, and 6614C

System DC Power Supplies

Safety Guidelines

The beginning of the Operating Guide has a Safety Summary page. Be sure you are familiar with the

information on this page before programming the dc source for operation from a controller.

Printing History

The edition and current revision of this manual are indicated below. Reprints of this guide containing minor

corrections and updates may have the same printing date. Revised editions are identified by a new

printing date. A revised edition incorporates all new or corrected material since the previous printing date.

Changes to the manual occurring between revisions are covered by change sheets shipped with the

guide.

This document contains proprietary information protected by copyright. All rights are reserved. No part of

this document may be photocopied, reproduced, or translated into another language without the prior

consent of Keysight Technologies. The information contained in this document is subject to change

without notice.

Update 1 December, 1998

Update 2 January, 2000

Update 3 January, 2003

Edition 2 December, 2014

Table of Contents

Safety Guidelines 2

Printing History 2

Table of Contents 3

1 - GENERAL INFORMATION 7

About this Guide 7

Documentation Summary 7

External References 8

GPIB References 8

SCPI References 8

2 - INTRODUCTION TO PROGRAMMING 9

VXIplug&play Power Products Instrument Drivers 9

Supported Applications 9

System Requirements 9

Downloading and Installing the Driver 9

Accessing Online Help 10

GPIB Capabilities of the DC Source 10

GPIB Address 10

RS-232 Capabilities of the DC Source 10

RS-232 Data Format 10

RS-232 Flow Control 11

RS-232 Programming Example 11

RS-232 Troubleshooting 12

Introduction to SCPI 12

Conventions Used in This Guide 12

Types of SCPI Commands 13

Multiple Commands in a Message 13

Moving Among Subsystems 14

Including Common Commands 14

Using Queries 14

Types of SCPI Messages 14

The Message Unit 15

Headers 15

Query Indicator 15

Message Unit Separator 15

Root Specifier 15

Message Terminator 15

SCPI Data Formats 16

Numerical Data Formats 16

Suffixes and Multipliers 16

Response Data Types 16

SCPI Command Completion 17

Using Device Clear 17

3 - PROGRAMMING THE DC SOURCE 19

Introduction 19

Programming the Output 19

Power-on Initialization 19

Enabling the Output 19

Output Voltage 20

Output Current 20

Triggering Output Changes 21

SCPI Triggering Nomenclature 21

Output Trigger System Model 21

Setting the Voltage or Current Trigger Levels 21

Initiating the Output Trigger System 22

Generating Triggers 22

Making Measurements 23

Voltage and Current Measurements 23

Internally Triggered Measurements 25

SCPI Triggering Nomenclature 25

Measurement Trigger System Model 25

Initiating the Measurement Trigger System (Keysight 66312A, 66332A Only) 25

Selecting the Measurement Trigger Source (Keysight 66312A, 66332A Only) 26

Generating Measurement Triggers (Keysight 66312A, 66332A Only) 26

Measuring Output Pulses (Keysight 66312A, 66332A Only) 28

Current Detector 28

Pulse Measurement Queries 28

Controlling Measurement Samples 29

Varying the Voltage or Current Sampling Rate 29

Multiple Measurements (Keysight 66312A, 66332A Only) 29

Pre-event and Post-event Triggering (Keysight 66312A, 66332A Only) 30

Pulse Measurement Example (Keysight 66312A, 66332A only) 30

Programming the Status Registers 32

Power-On Conditions 32

Operation Status Group 33

Questionable Status Group 34

Standard Event Status Group 34

Status Byte Register 34

Determining the Cause of a Service Interrupt 35

Servicing Operation Status and Questionable Status Events 35

Monitoring Both Phases of a Status Transition 36

Inhibit/Fault Indicator 36

Remote Inhibit (RI) 36

Discrete Fault Indicator (DFI) 36

Using the Inhibit/Fault Port as a Digital I/O 37

DFI Programming Example 37

4 - LANGUAGE DICTIONARY 39

Introduction 39

Subsystem Commands 39

Common Commands 43

Programming Parameters 43

Calibration Commands 44

CALibrate:CURRent 44

CALibrate:CURRent:NEGative 44

CALibrate:CURRent:MEASure:LOWRange 44

CALibrate:CURRent:MEASure:AC 44

CALibrate:DATA 45

CALibrate:LEVel 45

CALibrate:PASSword 45

CALibrate:SAVE 45

CALibrate:STATe 46

CALibrate:VOLTage 46

CALibrate:VOLTage:PROTection 46

Measurement Commands 47

MEASure:ARRay:CURRent? FETCh:ARRay:CURRent? 47

MEASure:ARRay:VOLTage? FETCh:ARRay:VOLTage? 47

MEASure:CURRent? FETCh:CURRent? 48

MEASure:CURRent:ACDC? FETCh:CURRent:ACDC? 48

MEASure:CURRent:HIGH? FETCh:CURRent:HIGH? 48

MEASure:CURRent:LOW? FETCh:CURRent:LOW? 49

MEASure:CURRent:MAXimum? FETCh:CURRent: MAXimum? 49

MEASure:CURRent:MINimum? FETCh:CURRent:MINimum? 49

MEASure:VOLTage? FETCh:VOLTage? 50

MEASure:VOLTage:ACDC? FETCh:VOLTage:ACDC? 50

MEASure:VOLTage:HIGH? FETCh:VOLTage:HIGH? 50

MEASure:VOLTage:LOW? FETCh:VOLTage:LOW? 51

MEASure:VOLTage:MAXimum? FETCh:VOLTage:MAXimum? 51

MEASure:VOLTage:MINimum? FETCh:VOLTage:MINimum? 51

SENSe:CURRent:RANGe 52

SENSe:CURRent:DETector 52

SENSe:FUNCtion 53

SENSe:SWEep:OFFSet:POINts 53

SENSe:SWEep:POINts 53

SENSe:SWEep:TINTerval 53

SENSe:WINDow 54

Output Commands 55

OUTPut 55

OUTPut:DFI 55

OUTPut:DFI:SOURce 55

OUTPut:PON:STATe 56

OUTPut:PROTection:CLEar 56

OUTPut:PROTection:DELay 56

OUTPut:RELay 57

OUTPut:RELay:POLarity 57

OUTPut:RI:MODE 57

[SOURce:]CURRent 58

[SOURce:]CURRent:TRIGger 58

[SOURce:]CURRent:PROTection:STATe 58

[SOURce:]DIGital:DATA 59

[SOURce:]DIGital:FUNCtion 59

[SOURce:]VOLTage:ALC:BANDwidth? [SOURce:]VOLTage:ALC:BWIDth? 60

[SOURce:]VOLTage:TRIGger 60

[SOURce:]VOLTage:PROTection 60

Status Commands 61

STATus:PRESet 61

STATus:OPERation? 61

STATus:OPERation:CONDition? 61

STATus:OPERation:ENABle 62

STATus:OPERation:NTR STATus:OPERation:PTR 62

STATus:QUEStionable? 63

STATus:QUEStionable:CONDition? 63

STATus:QUEStionable:ENABle 63

STATus:QUEStionable:NTR STATus:QUEStionable:PTR 64

*CLS 64

*ESE 65

*ESR? 65

*OPC 65

*PSC 66

*SRE 66

*STB? 67

*WAI 67

System Commands 68

DISPlay 68

DISPlay:MODE 68

DISPlay:TEXT 68

SYSTem:ERRor? 69

SYSTem:LANGuage 69

SYSTem:VERSion? 69

SYSTem:LOCal 70

SYSTem:REMote 70

SYSTem:RWLock 70

*IDN? 70

*OPT? 71

*RCL 71

*RST 71

*SAV 72

*TST? 72

Trigger Commands 73

ABORt 73

INITiate:SEQuence INITiate:NAME 73

INITiate:CONTinuous:SEQuence1 INITiate:CONTinuous:NAME 73

TRIGger 74

TRIGger:SOURce 74

TRIGger:SEQuence2 TRIGger:ACQuire 74

TRIGger:SEQuence2:COUNt:CURRent TRIGger:ACQuire:COUNt:CURRent 75

TRIGger:SEQuence2:COUNt:VOLTage TRIGger:ACQuire:COUNt:VOLTage 75

TRIGger:SEQuence2:HYSTeresis:CURRent TRIGger:ACQuire:HYSTeresis:CURRent 76

TRIGger:SEQuence2:HYSTeresis:VOLTage TRIGger:ACQuire:HYSTeresis:VOLTage 76

TRIGger:SEQuence2:LEVel:CURRent TRIGger:ACQuire:LEVel:CURRent 76

TRIGger:SEQuence2:LEVel:VOLTage TRIGger:ACQuire:LEVel:VOLTage 77

TRIGger:SEQuence2:SLOPe:CURRent TRIGger:ACQuire:SLOPe:CURRent 78

TRIGger:SEQuence2:SLOPe:VOLTage TRIGger:ACQuire:SLOPe:VOLTage 78

TRIGger:SEQuence2:SOURce TRIGger:ACQuire:SOURce 79

TRIGger:SEQuence1:DEFine TRIGger:SEQuence2:DEFine 79

*TRG 79

A - SCPI CONFORMANCE INFORMATION 81

SCPI Version 81

SCPI Confirmed Commands 81

Non-SCPI Commands 81

B - COMPATIBILITY LANGUAGE 83

Introduction 83

C - ERROR MESSAGES 89

Error Number List 89

D - EXAMPLE PROGRAMS 93

Introduction 93

Assigning the GPIB Address in Programs 93

Types of DOS Drivers 93

Error Handling 94

BASIC Controllers 94

Example 1. HP Vectra PC Controller Using Keysight 82335 Interface 94

Example 2. IBM Controller Using National Interface 96

Example 3. Controller Using BASIC 98

INDEX 99

General Information

About this Guide

This guide provides remote programming information for the following series of GPIB programmable dc

power supplies:

Keysight 66312A

Keysight 66332A

Keysight 6631B/6632B/6633B/6634B

Keysight 6611C/6612C/6613C/6614C

You will find the following information in the rest of this guide:

Chapter 1

Introduction to this guide.

Chapter 2

Introduction to SCPI messages structure, syntax, and data formats. Examples of SCPI

programs

Chapter 3

Introducton to Programming the dc source with SCPI commands.

Chapter 4

Dictionary of SCPI commands.

Appendix A

SCPI conformance information.

Appendix B

Use of the alternate Comptibility programming language.

Appendix C

Error messages

Documentation Summary

The following documents that are related to this Programming Guide have additional helpful information

for using the dc source.

User's Guide for Keysight 66312A and Keysight 6611C/6612C/6613C/3314C. Includes

specifications and supplemental characteristics, how to use the front panel, how to connect to the

instrument, and calibration procedures.

User's Guide for Keysight 66332A and Keysight 6631B/6632B/6633B/6634B. Includes

specifications and supplemental characteristics, how to use the front panel, how to connect to the

instrument, and calibration procedures.

1 - General Information

External References

GPIB References

The most important GPIB documents are your controller programming manuals - BASIC, GPIB Command

Library for MS DOS, etc. Refer to these for all non-SCPI commands (for example: Local Lockout).

The following are two formal documents concerning the GPIB interface:

ANSI/IEEE Std. 488.1-1987 IEEE Standard Digital Interface for Programmable Instrumentation.

Defines the technical details of the GPIB interface. While much of the information is beyond the

need of most programmers, it can serve to clarify terms used in this guide and in related

documents.

ANSI/IEEE Std. 488.2-1987 IEEE Standard Codes, Formats, Protocols, and Common

Commands. Recommended as a reference only if you intend to do fairly sophisticated

programming. Helpful for finding precise definitions of certain types of SCPI message formats,

data types, or common commands.

The above two documents are available from the IEEE (Institute of Electrical and Electronics Engineers),

345 East 47th Street, New York, NY 10017, USA. The WEB address is www.ieee.org.

SCPI References

The following documents will assist you with programming in SCPI:

Standard Commands for Programmable Instruments Volume 1, Syntax and Style

Standard Commands for Programmable Instruments Volume 2, Command References

Standard Commands for Programmable Instruments Volume 3, Data Interchange Format

Standard Commands for Programmable Instruments Volume 4, Instrument Classes

To obtain a copy of the above documents, contact: Fred Bode, Executive Director, SCPI Consortium,

8380 Hercules Drive, Suite P3, Ls Mesa, CA 91942, USA

Introduction to Programming

VXIplug&play Power Products Instrument Drivers

VXIplug&play instrument drivers for Microsoft Windows 95 and Windows NT are now available on the

Web at http://www.keysight.com/find/drivers. These instrument drivers provide a high-level programming

interface to your Keysight Technologies instrument. VXIplug&play instrument drivers are an alternative

to programming your instrument with SCPI command strings. Because the instrument driver's function

calls work together on top of the VISA I/O library, a single instrument driver can be used with multiple

application environments.

Supported Applications

Keysight VEE

Microsoft Visual BASIC

Microsoft Visual C/C++

Borland C/C++

National Instruments LabVIEW

National Instruments LabWindows/CVI

System Requirements

The VXIplug&play Power Products instrument driver complies with the following:

Microsoft Windows 95

Microsoft Windows NT 4.0

HP VISA revision F.01.02

National Instruments VISA 1.1

Downloading and Installing the Driver

NOTE: Before installing the VXIplug&play instrument driver, make sure that you have one of the

supported applications installed and running on your computer.

1. Access Keysight Technologies' Web site at http://www.keysight.com/find/drivers.

2. Select the instrument for which you need the driver.

3. Click on the driver, either Windows 95 or Windows NT, and download the executable file to your

pc.

4. Locate the file that you downloaded from the Web. From the Start menu select Run

<path>:\agxxxx.exe - where <path> is the directory path where the file is located, and agxxxx is

the instrument driver that you downloaded .

5. Follow the directions on the screen to install the software. The default installation selections will

work in most cases. The readme.txt file contains product updates or corrections that are not

documented in the on-line help. If you decide to install this file, use any text editor to open and

read it.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Keysight Technologies Alimentation

Keysight Technologies

Keysight Technologies B2961A Manuel d'installation

Keysight Technologies

Keysight Technologies N6700C Series Manuel utilisateur

Keysight Technologies

Keysight Technologies N6700 Manuel utilisateur

Keysight Technologies

Keysight Technologies E36100 Series Manuel de service

Keysight Technologies

Keysight Technologies E36150 Series Manuel utilisateur

Keysight Technologies

Keysight Technologies E3630 Series Manuel utilisateur

Keysight Technologies

Keysight Technologies E3646A Manuel

Keysight Technologies

Keysight Technologies RP7970 Series Manuel de service

Keysight Technologies

Keysight Technologies E3633A Manuel utilisateur

Keysight Technologies

Keysight Technologies E36200 Series Manuel utilisateur

Keysight Technologies

Keysight Technologies N6700C Series Manuel utilisateur

Keysight Technologies

Keysight Technologies EDU36311A Manuel utilisateur

Keysight Technologies

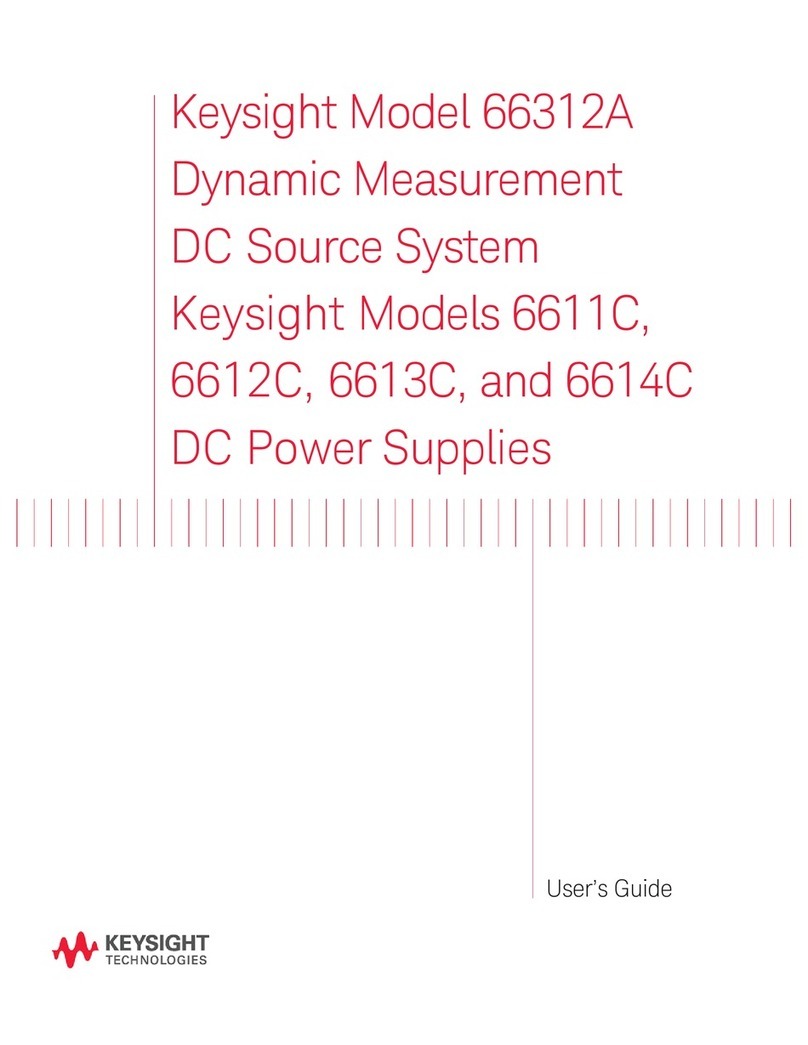

Keysight Technologies 66312A Manuel utilisateur

Keysight Technologies

Keysight Technologies E364 A Series Manuel

Keysight Technologies

Keysight Technologies E36100B Series Manuel de service

Keysight Technologies

Keysight Technologies RP7900 Series Manuel de service

Keysight Technologies

Keysight Technologies E364xA Series Manuel

Keysight Technologies

Keysight Technologies N8921A Manuel utilisateur

Keysight Technologies

Keysight Technologies E36300 Series Manuel utilisateur

Keysight Technologies

Keysight Technologies N2779A Manuel utilisateur

Keysight Technologies

Keysight Technologies N6900 Series Manuel de service

Keysight Technologies

Keysight Technologies U3606A Manuel utilisateur

Keysight Technologies

Keysight Technologies U8030A Series Manuel utilisateur

Keysight Technologies

Keysight Technologies 87421A Manuel de service

Manuels Alimentation populaires d'autres marques

Monacor

Monacor PS-12CCD Manuel utilisateur

VOLTIMA

VOLTIMA MagicBox 15 Manuel utilisateur

Agilent Technologies

Agilent Technologies 6032A Manuel utilisateur

Miller

Miller Auto Deltaweld 452 Manuel utilisateur

BCP

BCP PUOUBK Feuille d'instructions

HC 2210 Manuel utilisateur

Puls

Puls CT5.241 Manuel utilisateur

OCZ

OCZ ZX1250W Manuel utilisateur

iseg

iseg ECH 238 Manuel utilisateur

Power

Power XXL A Series Manuel utilisateur

Agilent Technologies

Agilent Technologies 6631B Manuel utilisateur

Renogy

Renogy PHOENIX 300 Manuel utilisateur

HP 6200B Manuel de service

Epson

Epson Stylus Scan 2500 Manuel d'utilisation

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Manuel utilisateur

Puls

Puls MiniLine ML50.100 Manuel utilisateur

Puls

Puls AS-Interface SLA4.100 Manuel utilisateur

Kenwood

Kenwood PS-60 Manuel utilisateur
