Keychron V5 Customizable Keyboard Manuel utilisateur

V5 Customizable Keyboard

User Manual • Uživatelský manuál •

Užívateľský manuál • Használati utasítás •

Benutzerhandbuch

English

3 –16

Čeština

17 –30

Slovenčina

31 –44

Magyar

45 –58

Deutsch

59 –72

Dear customer,

Thank you for purchasing our product. Please read the following instructions carefully

before first use and keep this user manual for future reference. Pay particular attention to

the safety instructions. If you have any questions or comments about the device, please

contact the customer line.

✉www.alza.co.uk/kontakt

✆+44 (0)203 514 4411

Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Prague 7, www.alza.cz

Fully Assembled Version

Keyboard

1x Fully Assembled Keyboard

Including

1x Case

1x PCB

1x Steel Plate

1x Sound Absorbing Foam

1x Silicone Bottom Pad

6 sets x Stabilizers

1 set x Keycaps (PBT Double-shot)

1 set x Switches

Cable

1 x Type-C to Type-C Cable

1 x Type-A to Type-C Adapter

Tools

1x Switch Puller

1x Keycap Puller

1x Screwdriver

1x Hex Key

Barebone Version

Keyboard Kit

1x Keyboard Kit (Without Keycaps & Switches)

Including

1x Case

1x PCB

1x Steel Plate

1x Sound Absorbing Foam

1x Silicone Bottom Pad

6 Sets x Stabilizers

Cable

1x Type-C to Type-C Cable

1x Type-A to Type-C Adapter

Tools

1x Switch Puller

1x Keycap Puller

1x Screwdriver

1x Hex Key

Quick Start Guide

If you are a Windows user, please find the appropriate keycaps in the box, then follow the

instructions below to find and replace the following keycaps.

Switch to the Right System

Please make sure the system toggle on the top left corner has been switched to the same

system as your computer’s operating system.

The VIA Key Remapping Software

Please visit caniusevia.com to download the latest VIA software to remap the keys. If the

VIA software cannot recognize your keyboard, please reach out to our support to get the

instruction.

The Layers

There are four layers of key settings on the keyboard. The layer 0 and layer 1 are for the

Mac system. The layer 2 and layer 3 are for the Windows system.

If your system toggle is switched to Mac, then the layer 0 will be activated.

If your system toggle is switched to Windows, then the layer 2 will be activated.

Remember that if you are using it in Windows mode, please make changes to the layer 2

instead of the top layer (the layer 0). This is a common mistake people are making.

The Backlight

Press fn + Q to change the lighting effect.

Press fn + tab to turn the backlight on/off.

Adjust the Backlight Brightness

Fn + W to increase the backlight brightness.

Fn + S to decrease the backlight brightness.

Watch the Building Tutorial On Our Website

If you are building the keyboard for the first time, we highly recommend you watch the

building tutorial video on our website first, then start building the keyboard yourself.

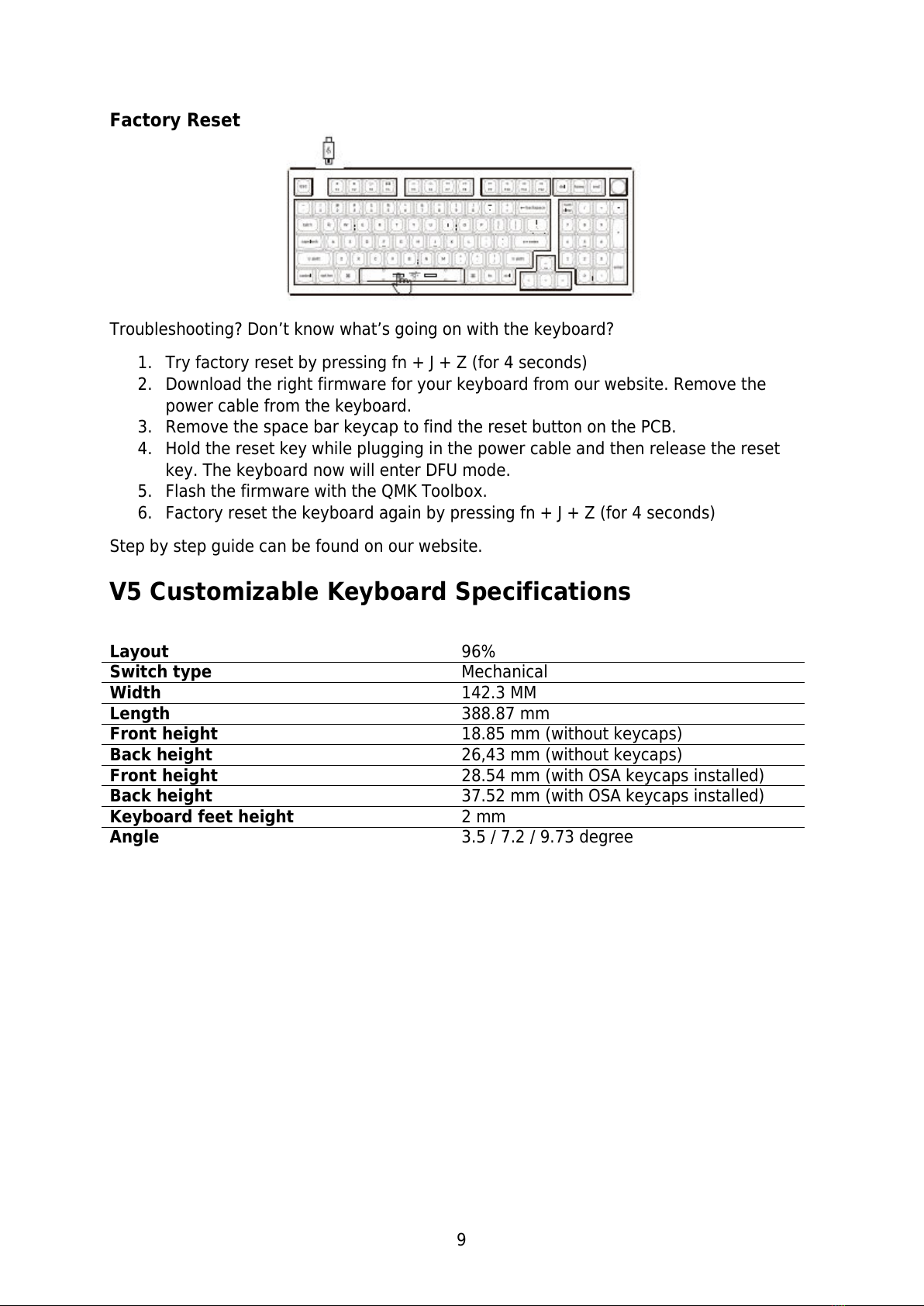

Factory Reset

Troubleshooting? Don’t know what’s going on with the keyboard?

1. Try factory reset by pressing fn + J + Z (for 4 seconds)

2. Download the right firmware for your keyboard from our website. Remove the

power cable from the keyboard.

3. Remove the space bar keycap to find the reset button on the PCB.

4. Hold the reset key while plugging in the power cable and then release the reset

key. The keyboard now will enter DFU mode.

5. Flash the firmware with the QMK Toolbox.

6. Factory reset the keyboard again by pressing fn + J + Z (for 4 seconds)

Step by step guide can be found on our website.

V5 Customizable Keyboard Specifications

Layout

96%

Switch type

Mechanical

Width

142.3 MM

Length

388.87 mm

Front height

18.85 mm (without keycaps)

Back height

26,43 mm (without keycaps)

Front height

28.54 mm (with OSA keycaps installed)

Back height

37.52 mm (with OSA keycaps installed)

Keyboard feet height

2 mm

Angle

3.5 / 7.2 / 9.73 degree

V5 Mechanical Keyboard Overview

1. Type-C Port

2. Mac Layout

3. Windows Layout
