USER GUIDE

Kestrel 5000 Environmental Meter

Kestrel 5100 Racing Weather Meter

Kestrel 5200 Professional Environmental Meter

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

CONTENTS

Measurements and Features............................................. 3

Getting to Know Your Kestrel............................................ 4

Buttons .................................................................................. 5

Kestrel Options Menu......................................................... 5

Kestrel Menu Navigation ................................................... 6

Weather Mode Screen ........................................................7

Getting Started ....................................................................8

Altimeter and Barometer................................................... 9

Using Min/Avg/Max ............................................................10

Connecting to Devices Using LiNK...................................11

Connecting to Computers Using USB Cable...................11

Creating, Viewing, & Exporting Data Logs...................... 12

Measuring Air Flow ............................................................14

Measuring Evaporation Rate............................................. 15

Using Evaportation Rate Solver .......................................16

Weather Glossary.................................................................17

Impeller Replacement ........................................................19

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

MEASUREMENTS Icon 5000

Environmental

5100

Racing

5200

Professional

Wind Speed | Air Speed

(mph | fpm | Bft | m/s | km/h | kt) • • •

Temperature (˚F | ˚C) |Wind Chill (˚F | ˚C) • • •

Relative Humidity (%) |Heat Stress Index (˚F | ˚C) • • •

Dewpoint Temp (˚F | ˚C) |Wet Bulb Temp (˚F | ˚C) • • •

Station Pressure (inHg | hPA | psi | mb) • • •

Barometric Pressure (inHg | hPA | psi | mb) • • •

Altitude(m | ft ) |Density Altitude (m | ft) • • •

Moisture Content | Humidity Ratio (Grains)

(gpp, g/kg) • •

Air Density (lb/ft3, kg/m3)• •

Relative Air Density (RAD) (%) • •

Evaporation Rate (lb/ft2/hr, kg/m2/hr) •

Volume Air Flow (cfm, m/hr, m/m, m/s, L/s) •

Delta T (˚F | ˚C) •

FEATURES 5000

Environmental

5100

Racing

5200

Professional

LiNK Connectivity & Kestrel LiNK Mobile App N/A o o o

Backlit Display switchable white or

Night-Vision preserving red

N/A • • •

ooptional

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

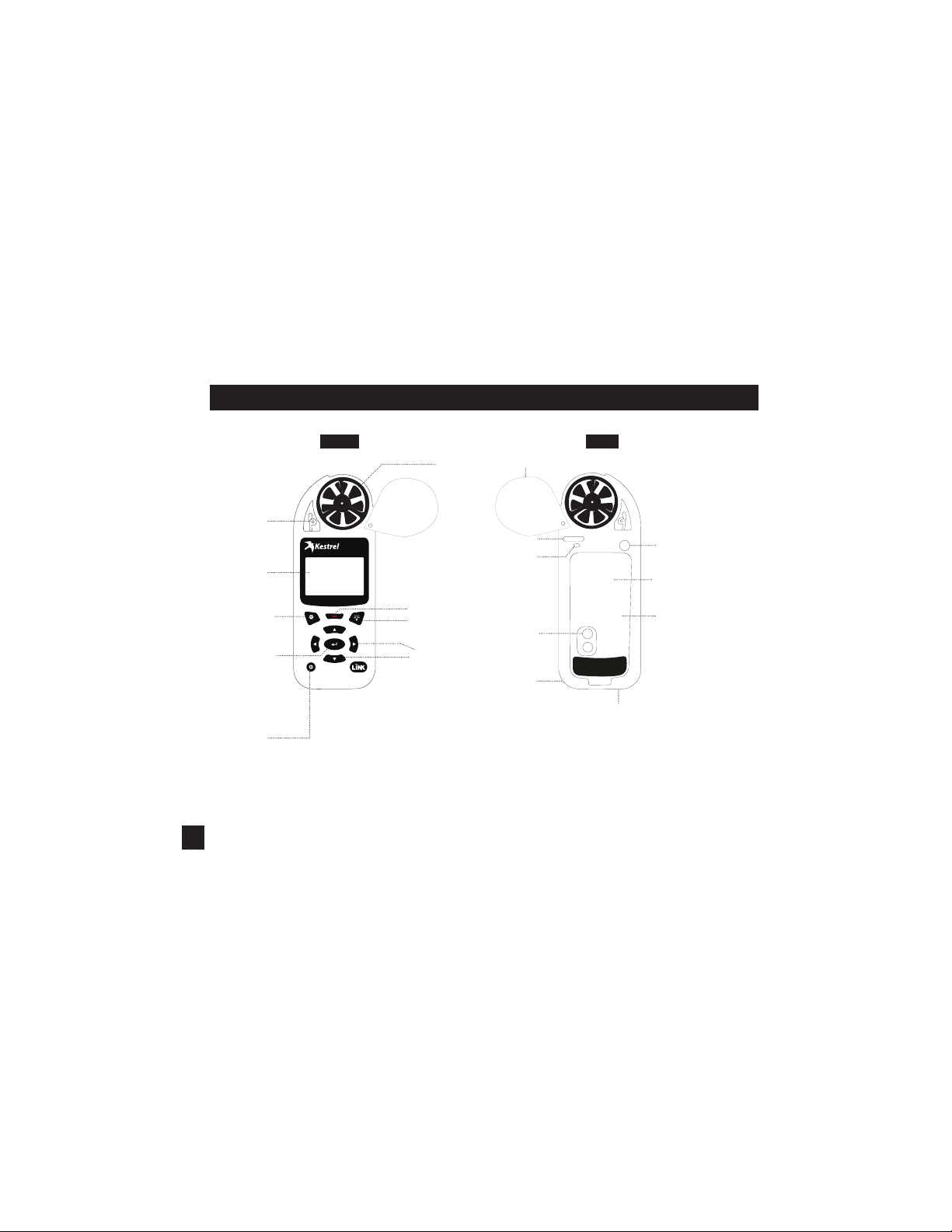

GETTING TO KNOW YOUR KESTREL

BACK

DATA TRANSFER

PORT

SERIAL NUMBER

AA BATTERY (1)

(Lithium recommended)

LANYARD

ATTACHMENT

PRESSURE

SENSOR

FRONT

OPTIONS/EXIT

POWER

BACKLIGHT

SCROLL/ADJUST

TEMPERATURE

SENSOR

REPLACEABLE

IMPELLER

SELECT

BATTERY DOOR LATCH

HUMIDITY SENSOR

BATTERY DOOR

IMPELLER COVER

CAPTURE

SUNLIGHT

READABLE

DISPLAY

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

BUTTONS

Button Name Function

POWER Turns Kestrel on and o.

Press for on, hold for two

seconds to turn o.

OPTIONS/

EXIT

Enter the main Options

menu or exit a menu.

SELECT Access Settings on any

measurement screen or

select a menu option to

enter its submenu or conrm

a task.

UP/DOWN Scroll up and down through

measurement screens or

menus. Adjust values when

entering text in name

menus.

LEFT/

RIGHT

Scroll options left and

right. Adjust values in

combo menus and setting

submenus.

CAPTURE In Weather Mode, manually

capture all environmental

values.

BACK-

LIGHT

Turn backlight on or o.

(Also turns o automatically

after one minute.)

Most system-wide and weather setup options are accessed

from the main Options menu by pressing the button

from any Weather Measurement Screen or the main

Targeting Screen.

• BLUETOOTH

» Bluetooth On/O

• DATA PORT

• MEMORY OPTIONS

» Clear Log

» Auto Store

» Store Rate

» Overwrite

• GRAPH SCALE

• DISPLAY

» Auto Shutdown

» Contrast

» Backlight

• SYSTEM

» Time & Date

» Measurements

» Units

» Lang

» Batt

» Factory Restore

• ABOUT

» Version

» Legal

KESTREL OPTIONS MENU

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

KESTREL MENU NAVIGATION

TYPES OF MENU ITEMS

»Tasks are executed by highlighting the eld and pressing Select.

»The presence of a submenu is indicated by a“…”following a eld.

» Highlight the eld and press Select to enter a submenu.

» Adjust the value of a Combo Field by pressing left or right.

» Enter the Combo Field sub menu by pressing select.

» Adjust a setting by pressing left or right.

» An arrow indicates there are additional elds o screen.

» Locked values are either driven by another value or cannot be edited on

the current screen.

» Locked values may have submenus which are entered by pressing select.

» Navigation buttons indicate available actions on the current screen.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Measurement

& Icon Units

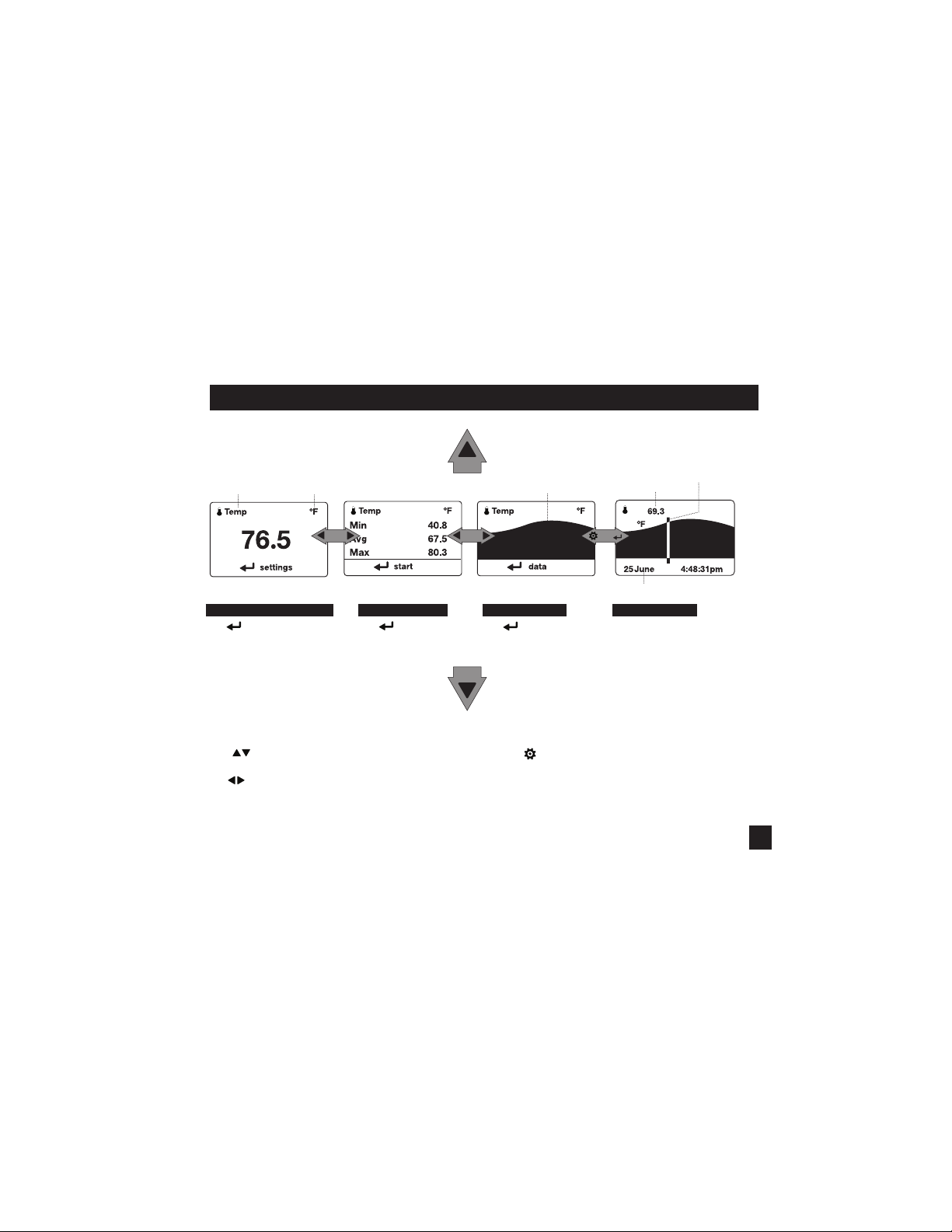

WEATHER MODE SCREENS

Graph of Stored Data Log Data Point Value

Data Point Scroll Bar

Current Measurement Screen

Press SELECT to enter settings

menu for that measurement.

Min Ave Max Screen

Press SELECT to start, stop

and clear the Min/Avg/Max

tracking.

Data Graph Screen

Press SELECT to enter

the Data Log Detail Screen to

view logged data points.

Data Points Screen

Press LEFT/RIGHT to scroll through

data points. Press OPTIONS to exit

Data Log Details Screen.

MORE MEASUREMENTS

Data Point Time Stamp

» The UP/DOWN buttons navigate between all weather

measurements set to“On” in Options|Measurements.

» The LEFT/RIGHT buttons scroll between the three

display screens for the measurement.

» The OPTIONS button exits the settings submenu

and Data Log Detail Screen.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

1. INSTALL BATTERY. Slide the battery door latch and open

door. Insert the provided AA lithium battery as indicated

by the label. Replace the battery door, ensuring it “clicks”

fully into place.

2. POWER ON KESTREL. Press to power on Kestrel.

3. ENTER OPTIONS MENU. Press to enter the Options

Menu.

4. SET AUTO STORE RATE. Scroll to and select Memory

Options. Scroll to Auto Store and ensure it is set to ON.

Scroll to Store Rate and adjust to desired frequency of

automatic weather data logging.

5. SET OVERWRITE. Scroll to and select Memory Options.

Scroll to Overwrite and set to On to allow the data log to

wrap once full and to OFF to stop logging when full.

6. SET GRAPH SCALE. Scroll to and select Graph Scale. Scroll

to and select the desired measurement type. Adjust the

Set High and Set Low values to bound the desired display

values.

7. SET AUTO SHUTDOWN. Scroll to and select Display.

Scroll to Auto Shtdwn and choose a time window after

which the Kestrel will shut down without any button

presses.

8. SET BACK LIGHT COLOR. Scroll to and select Display.

Scroll to Backlight and set to either White or Red.

White is very bright and ideal for any dim light use. Red

is reduced brightness and a wavelength selected to

preserve adapted night vision for true dark operations.

9. SET DATE AND TIME. Scroll to and select System. Scroll

to and select Time & Date. Adjust the time and date.

GETTING STARTED

10. TURN ON/OFF MEASUREMENT SCREENS.

Scroll to and select System. Scroll to and select

Measurements. Set measurement screens to either

On or O as desired.

11. SET UNITS. Scroll to and select System. Scroll to and

select Units. To change all units select Global, then

set Global to Imperial or Metric, and then scroll to

Apply and select Go. To set units individually, scroll

to each measurement type in the Units submenu

and set to the desired units. Units can also be set in

the Settings menu for each measurement.

12. SET LANGUAGE. Scroll to and select Lang. Adjust

to desired language: English, Deutsche, Francais,

Espanol.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

The Kestrel employs a stable, accurate pressure sensor to

measure station pressure, the unadjusted air pressure in

your location.

» To use your Kestrel to measure barometric pressure

(station pressure adjusted for local elevation), you

must enter a correct reference value for your altitude.

Accurate barometric readings require that no elevation

changes be made while taking measurements.

» To use your Kestrel to measure altitude changes

(changes in station pressure associated with changes

in elevation), you must enter a correct reference

value for your starting barometric pressure. Accurate

altitude readings depend on stable, weather related

barometric air pressure while measurements are taken.

» Synched values between the Altitude and Barometer

measurement screens allow reference value updates

on either screen to automatically update reference

values on the other.

Note! You cannot use your Kestrel as a barometer and altimeter

simultaneously.

ALTIMETER AND BAROMETER

SETTING REFERENCE VALUES ON BARO

MEASUREMENT SCREEN:

» Scroll to the Baro measurement screen and

select Settings.

» Adjust either the Altitude or the Barometric

Pressure value to a local, known value obtained

from a mapping reference, GPS, or accurate

weather station in the same location.

SETTING REFERENCE VALUES ON ALTITUDE

MEASUREMENT SCREEN:

» Scroll to the ALTITUDE measurement screen

and select Settings.

» Adjust either the Altitude or the Barometric

Pressure value to a local, known value obtained

from a mapping reference, GPS, or accurate

weather station in the same location.

Note! You should enter new reference values whenever

you are using the Altimeter or Barometer functions and

your location or the weather conditions have changed.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Pressing the right scroll button from any Current

Measurement Screen will open the Min/Avg/Max Screen.

The capture process is linked for all measurement screens,

capturing Min/Avg/Max values on one measurement

screen will capture Min/Avg/Max values over the same

time period for all measurements. Each new Min/Avg/Max

capture overwrites the previously captured value from all

measurements.

CAPTURING MIN/AVG/MAX VALUES:

» Scroll to the Min/Avg/Max Screen of the desired

measurement. This can be done by scrolling right from

the desired Current Measurement Screen or scrolling

vertically from another measurement’s Min/Avg/Max

Screen.

» Press Select to Start a new Min/Avg/Max capture.

» Press Select to Stop the capture time period and view

Min, Avg, and Max values.

» Press Select to Clear the Min/Avg/Max values.

USING MIN/ AVG/ MAX

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Autres manuels pour 5000

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kestrel Instrument de mesure

Kestrel

Kestrel 1000 Manuel utilisateur

Kestrel

Kestrel 5 Series Manuel utilisateur

Kestrel

Kestrel Sportsman 4500 Manuel utilisateur

Kestrel

Kestrel 3500 Series Mode d’emploi

Kestrel

Kestrel 2500 Mode d’emploi

Kestrel

Kestrel 4250 Manuel utilisateur

Kestrel

Kestrel 4200 Manuel utilisateur

Kestrel

Kestrel 5700 Sportsman Manuel utilisateur

Kestrel

Kestrel 5700 Elite Manuel utilisateur

Kestrel

Kestrel 3000 Pocket Weather Manuel utilisateur

Kestrel

Kestrel 1000 Manuel utilisateur

Kestrel

Kestrel 5000AG Manuel utilisateur

Kestrel

Kestrel 2000 Pocket Weather Manuel utilisateur

Kestrel

Kestrel 1000 Manuel utilisateur

Kestrel

Kestrel 3500 Delta T Manuel utilisateur

Kestrel

Kestrel 2500 NV Manuel utilisateur

Kestrel

Kestrel 5000 Manuel utilisateur

Kestrel

Kestrel 3500 Delta T Manuel utilisateur

Kestrel

Kestrel 2000 Manuel utilisateur

Kestrel

Kestrel 2000 Manuel utilisateur

Kestrel

Kestrel 1000 Manuel utilisateur

Kestrel

Kestrel Elite Manuel utilisateur

Kestrel

Kestrel 5700 Sportsman Instructions d'utilisation et d'entretien

Kestrel

Kestrel 5000 Mode d'emploi

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
