STEREO INTEGRATED AMPLIFIER/TUNER

R-A100/A150/V300/V350

SERVICE MANUAL

Caution : No connection of ground line if disassemble the unit.

Please connect the ground line on rear panel, PCBs, Chassis and some others.

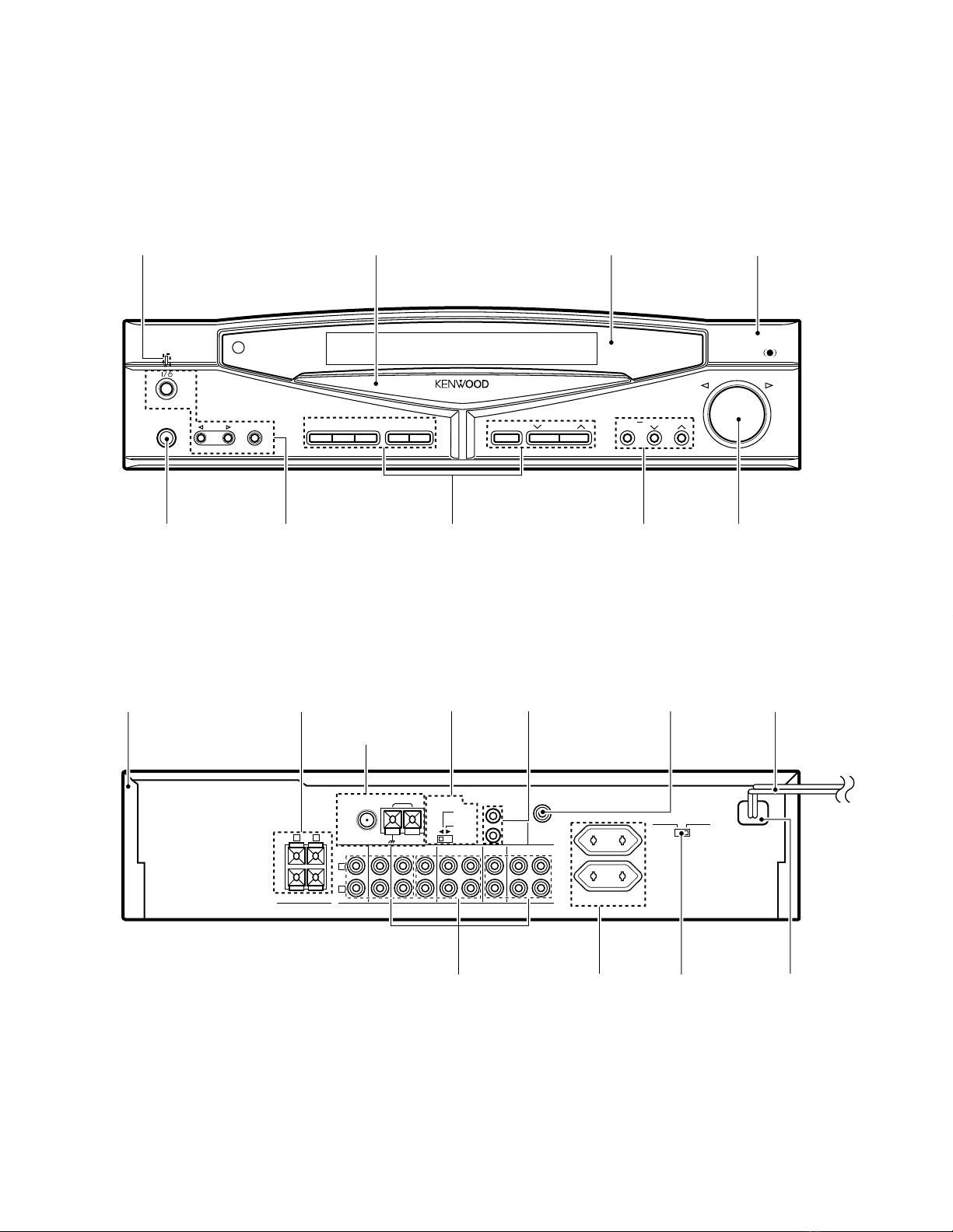

Illustration is R-V350.

* Refer to parts list on page 41.

ON/STANDBY

PHONES

INPUT TAPE 2

(MONITOR)

TA/NEWS

/INFO. DISP. AUTO A.MEMO BANDPTY

CLOCK MODE

TIMER

VOICE

ACTIVATE

SET

ON/OFF

SET 1 SET 2

VOICE ACTIVATE TUNING

MODE MULTI CONTROL

LEVEL

VOLUME CONTROL

DOWN UP

AV SURROUND RECEIVER R-V350

R D S

EON

−

FRONT REAR CENTER

−

RLC

ANTENNA

FM 75Ω

GND TAPE1/MD TAPE 2

(MONITOR) LD VCR

CD AUX

IN IN IN

REC PLAY REC

REC

PLAY

MONITOR

OUT

LD VCR

REC OUT

VCR

PLAY IN

PLAY

SYSTEM

CONTROL

VOICE ACTIVATE

SUB WOOFER

PRE OUT

VIDEOSPEAKERS

AUDIO

UNSWITCHED

( 6-16Ω)

Dressing panel

(A21-1989-03) Panel *

(A60-)

Lock terminal board

(E70-0053-05) Lock terminal board

(E70-0046-05)

Phono jack *

(E63-) AC power cord *

(E30-)

Power cord busing

(J42-0083-05)

Miniature phone jack

(E11-0283-05)

Phono jackx3

(E63-0139-15) Phono jack

(E63-0138-15) AC outlet *

(E03-)

Metallic cabinet

(A01-3457-01) Lock terminal board

(E70-0052-05)

Knob *

(K29-)

Phone jack

(E11-0280-05) Knob

(K29-6727-04)

Front glass *

(B10-)

Indicator

(B12-0311-04)

Knob *

(K29-)

Miniature phone jack *

(E11-)

R-A100/V300(k)1P98.4.2511:35 y[W 2

www.freeservicemanuals.info

27/9/2013

World of free manuals

R-A100/A150/V300/V350

CONTENTS / ACCESSORIES

Contents

CONTENTS / ACCESSORIES ....................................2

EXTERNAL VIEW........................................................3

CIRCUIT DESCRIPTION.............................................6

ADJUSTMENT...........................................................10

PC BOARD ................................................................12

SCHEMATIC DIAGRAM............................................19

EXPLODED VIEW .....................................................39

PARTS LIST...............................................................41

SPECIFICATIONS.....................................................53

FM indoor antenna(1)

(T90-0809-05) R-A100/R-V300 : IYMCX type

(T90-0810-05) R-A150/R-V300/V350 : EKPT type

AM loop antenna(1) (T90-0820-05)

Loop antenna stand(1)

(J19-3645-05)

Cable tidy(2)

(F07-1602-04)

Graphical Remote Control unit(1) *

(A70-1159-05) GRC-150 (R-V300 KP type)

Battery cover (A09-0379-08)

Batteries(R03/AAA) (4)

Batteries(R6/AA) (2)

(Except U.S.A. and Canada)

* Use to adapt the plug on the power

cord to the shape of the wall

outlet.(Accessory only for regions

where use is necessary)

ON/STANDBY

MUTE

VOLUME

ENTER

Setup

DVD/6ch Input

Sound Speaker

C D

Sat.

Tape1

Cable

Reset

VCR1

VCR2

L D

T V

Confirm

SetUp

Return

Input

Source

MainMenu

TapeA

TapeB

Tape1

Tuner

VCR2

VCR1TVSat.Cable

Microphone(1)

(W01-0935-05)

*AC plug adapter (1)

(E03-0115-05)

Accessories (R-A100/A300/V300/V350)

Remote control unit(1) *

(A70-1136-05) RC-S0504 (R-V350)

(A70-1150-05) RC-S0503 (R-V300) IYMCX type

Battery cover (A09-0378-08)

(A70-1149-05) RC-S0300 (R-A100/A150)

Battery cover (A09-0357-08)

R-A100/V300(k)1P98.4.2511:35 y[W 3

www.freeservicemanuals.info

27/9/2013

World of free manuals

R-A100/A150/V300/V350

EXTERNAL VIEW

ON/STANDBY

PHONES

INPUT TAPE 2

(MONITOR)

AUTO A.MEMO BAND

CLOCK MODE

TIMER

SET

TUNING

MODE MULTI CONTROL

LEVEL

VOLUME CONTROL

DOWN UP

AV SURROUND RECEIVER R-V300

−

FRONT REAR CENTER

−

RLC

ANTENNA

FM 75Ω

GND TAPE1/MD TAPE 2

(MONITOR) LD VCR

CD AUX

IN IN IN

REC PLAY REC

REC

PLAY

MONITOR

OUT

LD VCR

REC OUT

VCR

PLAY IN

PLAY

SYSTEM CONTROL SUB WOOFER

PRE OUT

75µs

FM100kHz

AM 10kHz

50µs

FM50kHz

AM 9kHz

DE-EMPHASIS CHANNEL SPACE

AC 220-240VÓAC 110-120VÓ

VIDEOSPEAKERS

AUDIO

( 6-16Ω)

UNSWITCHED

Dressing panel

(A21-1983-03) Panel *

(A60-)

Lock terminal board

(E70-0053-05) Lock terminal board

(E70-0046-05)

Lock terminal board

(E70-0052-05)

Phono jack *

(E63-) Slide switch

(S62-0001-05) AC power cord *

(E30-)

Power cord busing

(J42-0083-05)

Miniature phone jack *

(E11-)

Phono jackx3

(E63-0139-15) Phono jack

(E63-0138-15) AC outlet *

(E03-)

Metallic cabinet

(A01-3457-01)

Knob *

(K29-)

Phone jack

(E11-0282-05) Knob

(K29-6727-04)

Front glass *

(B10-2367-02)

Indicator

(B12-0311-04)

Knob *

(K29-)

Illustration is R-V300.

* Refer to parts list on page 41.

Slide switch

(S62-0034-05)

R-A100/V300(k)1P98.4.2511:35 y[W 6

www.freeservicemanuals.info

27/9/2013

World of free manuals

R-A100/A150/V300/V350

EXTERNAL VIEW

ON/STANDBY

PHONES INPUT TAPE 2

(MONITOR)

CLOCK TIMER

MODE TIMER

SET AUTO A.MEMO BAND TUNING MODE MULTI CONTROL

LEVEL

VOLUME CONTROL

DOWN UP

STEREO RECEIVER R-A100

SRS

TAPE1/MD

TAPE 2(MONITOR)

LD VCRCD AUX

IN IN IN

REC PLAY REC REC AUDIO

PLAY PLAY

SYSTEM CONTROL

SUB

WOOFER

PRE OUT

ANTENNA AM

FM 75ΩGND

75µs

FM100kHz

AM 10kHz

50µs

FM50kHz

AM 9kHz

DE- EMPHASIS

CHANNEL

SPACE

−

SPEAKERS ( 6-16 Ω)

AC 220-

240VÓ

AC 110-

120VÓ

UNSWITCHED

Dressing panel

(A21-1990-03) Panel

(A60-1193-01)

Lock terminal board

(E70-0052-05)

Phono jack *

(E63-)

Slide switch

(S62-0001-05)

AC power cord

(E30-2592-15)

Power cord busing

(J42-0083-05)

Miniature phone jack *

(E11-)

Phono jackx3

(E63-0139-15) AC outlet *

(E03-)

Metallic cabinet

(A01-3459-01)

Knob

(K29-6779-02) Knob

(K29-6780-02)

Phone jack

(E11-0280-05) Knob

(K29-6660-04)

Front glass *

(B10-2385-02)

Indicator

(B12-0311-04)

Knob

(K27-6779-02)

Illustration is R-A100.

* Refer to parts list on page 41.

Lock terminal board

(E70-0053-05) Slide switch

(S62-0034-05)

R-A100/V300(k)1P98.4.2511:35 y[W 7

www.freeservicemanuals.info

27/9/2013

World of free manuals

R-A100/A150/V300/V350

EXTERNAL VIEW

ON/STANDBY

PHONES INPUT TAPE 2

(MONITOR)

ON/OFF SET 1 SET 2 AUTO A.MEMO BAND TUNING MODE MULTI CONTROL

LEVEL

VOLUME CONTROL

DOWN UP

STEREO RECEIVER R-A150

SRS

VOICE

ACTIVATE

VOICE ACTIVATE

CLOCK TIMER

MODE TIMER

SET

R D S

EON

TAPE1/MD

TAPE 2(MONITOR)

LD VCRCD AUX

IN IN IN

REC PLAY REC REC AUDIO

PLAY PLAY

SYSTEM CONTROL

VOICE

ACTIVATE

SUB

WOOFER

PRE OUT

ANTENNA AM

FM 75ΩGND

−

SPEAKERS ( 6-16 Ω)

UNSWITCHED

Dressing panel

(A21-1984-03) Panel

(A60-1194-01)

Phono jack *

(E63-) AC power cord *

(E30-)

Power cord busing

(J42-0083-05)

Phono jackx3

(E63-0139-15)

Lock terminal board

(E70-0053-05) AC outlet *

(E03-)

Metallic cabinet

(A01-3459-01) Lock terminal board

(E70-0052-05)

Knob

(K27-6661-02) Knob

(K29-6662-02)

Phone jack

(E11-0280-05) Knob

(K29-6660-04)

Front glass

(B10-2347-02)

Indicator

(B12-0311-04)

Knob

(K27-6661-02)

Illustration is R-A150.

* Refer to parts list on page 41.

Miniature phone jack *

(E11-)

R-A100/V300(k)1P98.4.2511:35 y[W 10

www.freeservicemanuals.info

27/9/2013

World of free manuals

R-A100/A150/V300/V350

CIRCUIT DESCRIPTION

1. Back up data and initial data

POWER ON/OFF : OFF

MAIN VOLUME LEVEL : -65dB

AUDIO INPUT • SELECTOR : TUNER

VIDEO INPUT • SELECTOR(R-V300/V350) : VCR

TAPE1/MD : TAPE1

TAPE2/MONITOR : OFF

FL DISPLAY MODE : SELECTOR

SOURCE DIRECT(R-V300/V350) : OFF

SURROUND(R-V300/350) : STEREO

DSP MODE(R-V300/V350) : ARENA

SPEAKER CH.LEVEL(R-V300/V350) : 0dB

BALANCE : CENTER

DELAY(R-V300/V350) : 20ms

EFFECT LEVEL(R-V300/V350) : 3

TONE BASS : 0dB

TONE TREBLE : 0dB

INPUT LEVEL : 0dB

SRS 3D(R-A100/A150) : OFF

SRS 3D LEVEL(R-A100/A150) : LEVEL 0

TUNING MODE(AUTO/MONO) : AUTO

PRESET MEMORY(40ch) : TEST PRESET FREQUENCY

LAST BAND : FM

FM LAST FREQUENCY : 87.5MHz

AM(MW) LAST FREQUENCY : 531kHz (CH.SP 9kHz)

: 530kHz (CH.SP10kHz)

LW LAST FREQUENCY : 153kHz

LAST P.ch : [--ch]

RDS DISPLAY MODE(R-A150/V300) : FREQUENCY DISPLAY

TA/NEWS/INFO.(R-A150/V300) : OFF

CLOCK DISPLAY : AM 12:00

TIMER : OFF

SLEEP TIMER : OFF

VOICE ACTIVATE KEY WORD : NON SPECIFIC SPEAKER(RD:KENWOOD)

VOICE ACTIVATE : ON

2. Main microprocessor uPD780206GF025 (X14-, IC1) MIYCX type

uPD780206GF027 (X14-, IC1) KPTE type

2-1 Microprocessor periphery block diagram

REMOCON

u-COM

PLL IC

RDS DEMO. IC

ELECTRIC VOL.

TONE CONT.

+10dB ATT.

MUTE

VOICE ACTIVATION

(X05) IC2

(X14) IC52 (E,T type only)

(X09) IC4, IC5

(X08) Q1,2,5~8,15

(X05) Q6~8

(X14) IC51

(E,T type only)

SERIAL

COMMUNICATION

ROTARY ENCODER

(VOLUME CONTROL)

DELAY IC

DSP IC

AUDIO SELECTOR

VIDEO SELECTOR

KEY MATRIX

(X14) S28, S29

(X09) IC2

(X09) IC3

(X09) IC1, IC301

(X09) IC1

FL DISPLAY

(X14) ED1

(X14)

SP. RELAY

PROTECTION

POWER

CHIP ENABLE

PHONES DETECT

RESONATOR(X1. MAIN)

X'TAL RESONATOR (X2. TIMMER)

RESET

u-COM

uPD780206GF025

uPD780206GF027

KEY

SCAN KEY

RETURN

VOICE INPUT

POWER ON

ACTIVE VOICE ON

VOICE

SET 1 VOICE

SET 2

R-A100/V300(k)1P98.4.2511:35 y[W 11

www.freeservicemanuals.info

27/9/2013

World of free manuals

R-A100/A150/V300/V350

CIRCUIT DESCRIPTION

2-2 Key matrix

DSW1~DSW4 : Tuner distination

DSW5 : R-A100/A150 or R-V300/V350 Model distination

PTY,TA / NEWS / INFO / DISPLAY(RDS) : RDS function model (R-V350/A150)

( ) : R-V300 / V350 /A100 function

✣ : R-A150 (E,T type) function

2KR3 3KR2 4KR1 5KR0

73 KS0 – – – –

74 KS1 TUNING %DISPLAY(RDS) PTY TA/NEWS/INFO

75 KS2 (MULTI MODE) (MULTI LEVELﬁ) (MULTI LEVEL%) –

✣ CLOCK ✣ TIMER MODE ✣ TIMER SET –

76 KS3 TUNING ﬁAUTO MEMORY BAND AUTO

77 KS4 (VOICE ON/OFF) (TIMER SET) INPUT @INPUT #

78 KS5 (CLOCK SET) (TIMER MODE) ON/STANDBY TAPE2(MONITOR)

✣ VOICE ON/OFF

KS6 – – – –

81 KS7 DSW1(D29) DSW2(D30) DSW3(D31) DSW4

82 KS8 – – – DSW5(D34)

2-3 Pin description

No. Name I/O Description

1 Vdd I Power supply(+5V)

2-5 KR3-0 I Key return 3-0

6,7, ENC_VOL1,2 I Encoder pulse detect1,2

8 HP_DET I Headphone detect L: Yes

9 CE I Chip enable L: Enable

10 RESET I Microprocessor reset L: Reset

11,12 X1,2 I Clock generator

13 IC(Vpp) - Connect to Vss

14,15 XT1,2 - Sub clock generator

16 Vdd - Power supply(+5V)

17 HP_MUTE O Mute of headphones

18 PROTECTION I Protection detection

19 SBUSY I/O Serial data busy

20 SDATA I/O Serial data

21 DSP_CLK O Clock for DSP

22 DSP_DATA O Data for DSP

23 DSP_ST O Strobe for DSP

24 MUTE O Mute control L: Mute ON

25 Avss - GND of A/D converter

26 PLL_DO O PLL DO

27 PLL_CE O Chip enable for PLL

28 PLL_DATA O Data detection for PLL

29 PLL_CLK O Clock for PLL

30 T_MUTE O Mute for tuner L: Mute ON

31 STEREO I Stereo signal detection L: Stereo

32 SD I Synchro signal detection L: SD detection

33 RDS_SLEVEL I Signal level of RDS

34 Avdd - Analog power supply for A/D converter

35 Avref - Reference voltage for A/D converter

36 RDS_CLK I Clock for RDS

37 RDS_DATA I Data for RDS

38 N.C. I No used

39 REMOCON_IN I Input port of remote control signal

40 Vss - GND

R-A100/V300(k)1P98.4.2511:35 y[W 14

www.freeservicemanuals.info

27/9/2013

World of free manuals

R-A100/A150/V300/V350

CIRCUIT DESCRIPTION

No. Name I/O Description

41 +10dB_ATT O +10Db attenuator L: ATT ON

42 VOL_DATA I/O Electric volume control data

43 TAP O LO-HI tap change-over R-V300/V350

VCR_REC O VCR REC change-over R-A100/A150

44,45 N.C. I No used

46 Vdd - Power supply(+5V)

47,48 N.C. I No used

49 CS_RELAY O Center and surround speaker relay control L: C,Sch OFF R-V300/V350

I NPUT LEVEL O Input level change-over H: 0dB R-A100/A150

50 F_RELAY O Front speaker relay control L: L,Rch OFF

51 TC9215 O Vidual selector change-over R-V300/V350

TAPE1_REC O TAPE! REC change-over R-A100/A150

52 VOICE_CTRL O Voice activation / Standby LED

53 SEL_STB1 O Strobe signal for selector IC

54 SEL_DATA O Data signal for selector IC

55 SEL_CLK O Clock signal for selector IC

56 VOICE I Input port of voice activation

57 VOL_CLK O Clock signal for electric volume

58,59 N.C. I No used

60 REM_REWRREQ O Rewrite request signal of interlocution remocon data

61 REM_RWR I Rewrite in signal of interlocution remocon data

62 REM_REREN I Transmit signal of interlocution remocon data L: Transmission

63-70 INP 0-7 O Remote control data bits 0-7

71 VSEL1 O Vidual selector

72 POWER O Power relay control

73-78 SEG11-16 O Display segment control 11-16 / Key scan 0-5

79 Vload - Connect to PLL down resistor

80 SEG10 O Display segment control 10

81 SEG9 O Display segment control 9 / Key scan 7 8Tuner destination)

82 SEG8 O Display segment control 8 / Key scan 8 (Model discrimination)

83-89 SEG1-7 O Display segment control 1-7

90-100 GRID1-11 O Display grid control 1-11

Diode SW(DSWx) 0=No diode (Static mode,LOW)

1=Diode (Static mode,HIGH)

X=Transistor SW (0=OFF / 1=ON)

2-5 MODEL DISTINATION

MODEL DIODE SW

(X14)D34

R-V300/V350 0

R-A100/A150 1

Destination

Band

Frequency Range

Channel

Space

PLL

Frequency

Diode SW (X14-)

DSW3

DSW2

(D31)

DSW1

(D30)

DSW0

(D29)

(1700)

87.5MHz~108.0HMz

100kHz

+10.7MHz

50kHz

530kHz~1700kHz

10kHz

+450kHz

10kHz

(1610)

87.5MHz~108.0HMz

100kHz

+10.7MHz

25kHz

530kHz~1610kHz

10kHz

+460kHz

10kHz

87.5MHz~108.0HMz

50kHz

+10.7MHz

25kHz

531kHz~1602kHz

9kHz

+450kHz

9kHz

(RDS)

87.5MHz~108.0HMz

50kHz

+10.7MHz

25kHz

531kHz~1602kHz

9kHz

+450kHz

9kHz

(LW)

(RDS)

87.5MHz~108.0HMz

50kHz

+10.7MHz

25kHz

531kHz~1602kHz

9kHz

+450kHz

9kHz

153kHz~279kHz

9kHz

+450kHz

9kHz

K2 / E1 change only setting DSW1 (DSW1=0:K2/1:E1)

(Q5,D33)

2-4 DESTINATION LIST OF TUNER

R-A100/V300(k)1P98.4.2511:35 y[W 15

www.freeservicemanuals.info

27/9/2013

World of free manuals

No. OPERATION TUNER MODE EXCEPT TUNER REMARKS

KEYS

1 INPUT î87.50íîCDíîLDíîVCRí

îTAPE1íîAUXí

2 MULTI. í01íî02íî39íî40í

CONTROL

LEVELELL CHANGES THE PRESET CH.

01 THROUGH 40

3 TIMER SET PRO LOGICíî3 STEREO R-V300/V350

TEST TONE ON/OFF (PRESS AUTO KEY)

PRO LOGIC ONíîOFF R-A100/A150

4 TIMER MODE îARENíîJAZZ CLUBîSTADIUMîR-V300/V350

DSP ONíîOFF R-A100/A150

5 CLOCK STEREO ONíîOFF R-A100/A150

6 A.MEMO FL DISPLAY ONíîOFF SRS ONíîOFF R-A100/A150

7 AUTO AUTO ONíîOFF îTEST LchíîTEST CchîTEST RchîTEST SchîR-V300/V350

îS.DIRECT ONîS.DIRECT ON / MUTE ONîOFFîR-A100/A150

8 MULTI.CONTROL

MODE ó

BASS 0dB

TREBLE 0dB

L/R, BALANCE

INPUT 0dB

9 PTY îINPUT SELECTORîOFF.S-LEVELîON.S-LEVELîR-V350(E/T)

TAPE2 TUNER MODE ONLY R-A150(E/T)

10 DISPLAY TIMER NO PSíî01 87.50 E,T type only

11 TA/NEWS/INFO. îTAîNEWSîINFOîOFFî

Change the segment cyclically

R-A100/A150/V300/V350

CIRCUIT DESCRIPTION

KEY

MODE MULTI. CONTROL TUNING BAND

LEVEL DOWN / UP

✣ EXCEPT

R-A100/A150

VOLUME -89dBíî0dB -40dB

SP✣ MIN.íîMAX 0dB

DELAY✣ 15íî30 20

EFFECT✣ 1íî5 3

L/R,BALANCE DOWNíîUP LMINíîRMAX CENTER

TONE MINíîMAX FLAT

INPUT -6dBíî0dB -6dBíî0dB 0dB

3. Test mode

Setting: While pressing the @INPUT key, plug the AC power cord into the AC wall outlet.

All the fluorescent display indicates.

(The all-illuminated state is cleared by pressing any main unit keys.

Cancelling:Plug the AC power cord out from the AC wall outlet.

DISPLAY DESCRIPTION

ERR1 Main u-COM sub clock no output

ERR2 Main u-COM sub clock frequency NG

3-2 Error message

3-1 Contents of the test mode

R-A100/V300(k)1P98.4.2511:36 y[W 18

www.freeservicemanuals.info

27/9/2013

World of free manuals

R-A100/A150/V300/V350

ADJUSTMENT

No.

ITEM

INPUT

SETTING

OUTPUT

SELECTOR

TUNER/AMP

SETTING

ALIGNMENT

POINTS

ALIGN FOR

FIG.

FM SECTION SELECTOR : FM

DISCRIMINATOR

L31↔L32

(E, T only)

(A)

98.0MHz

1kHz, ±40kHz dev

(E, T type)

60dBu(ANTINPUT)

Connect a DC

voltmeter between

port of CN2

AUTO

98.0MHz

L31 (X05-)

(a)

(B)

L32 (X05-)

Minimum

distrotion

DISTORTION

(STEREO)

(C)

98.0MHz

1kHz, ±40kHz dev

pilot: ±6kHz dev

60dBu(ANTINPUT)

(B)

AUTO

(98.0MHz)

IFT(W02-)

Mininum

distrotion

(a)

AUDIO SECTION R-A100/A150 ONLY

BCLASS

IDLECURRENT

–

Connect a DC

voltmeter

Volume:

Minimum

Selector:

any modes

other than

TUNER

CN31 : Lch

CN32 : Rch

13mV

(b)

TAPE1/MD

TAPE 2(MONITOR)

LD VCRCD AUX

IN IN IN

REC PLAY REC REC AUDIO

PLAY PLAY

SYSTEM CONTROL

SUB

WOOFER

PRE OUT

ANTENNA AM

FM 75ΩGND

75µs

FM100kHz

AM 10kHz

50µs

FM50kHz

AM 9kHz

DE- EMPHASIS

CHANNEL

SPACE

−

SPEAKERS ( 6-16 Ω)

AC 220-

240VÓ

AC 110-

120VÓ

UNSWITCHED

Oscilloscope Distortion meter

AC voltmeter

Dummy antenna (B)

(A)

(C)

(D)

FM SG

MPX

FM SG

AM SG

(a)

(b) DC Voltmeter

13mV

CN31(L)

CN32(R)

R-A100/V300(k)1P98.4.2511:36 y[W 19

www.freeservicemanuals.info

27/9/2013

World of free manuals

Autres manuels pour R-A100

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kenwood Amplificateur

Kenwood

Kenwood 500 Manuel utilisateur

Kenwood

Kenwood KAC-210MR Manuel utilisateur

Kenwood

Kenwood KM-992 Manuel utilisateur

Kenwood

Kenwood TL-120 Manuel utilisateur

Kenwood

Kenwood KAC-7202 Manuel utilisateur

Kenwood

Kenwood TL-922A Manuel utilisateur

Kenwood

Kenwood KAC-7405 Manuel utilisateur

Kenwood

Kenwood KAC-X1R - eXcelon Amplifier Manuel utilisateur

Kenwood

Kenwood KAC-8403 - Amplifier Manuel utilisateur

Kenwood

Kenwood XR1000-1 Manuel utilisateur

Kenwood

Kenwood KAC-849 Manuel utilisateur

Kenwood

Kenwood KAC-819 Manuel utilisateur

Kenwood

Kenwood KA-501 Manuel utilisateur

Kenwood

Kenwood KAC-622 Manuel utilisateur

Kenwood

Kenwood KA-V9500 Manuel utilisateur

Kenwood

Kenwood KAC-5203 Manuel utilisateur

Kenwood

Kenwood KAC X20 - eXcelon Amplifier Manuel utilisateur

Kenwood

Kenwood KAC-6402 Manuel utilisateur

Kenwood

Kenwood KAC-M3004 Manuel utilisateur

Kenwood

Kenwood KAC-M526 Manuel utilisateur

Kenwood

Kenwood KAC-820 Manuel utilisateur

Kenwood

Kenwood KA-892 Manuel utilisateur

Kenwood

Kenwood MA-5100 Manuel utilisateur

Kenwood

Kenwood KC-207 Manuel utilisateur

Manuels Amplificateur populaires d'autres marques

ASTRO

ASTRO HVO V40 P Manuel utilisateur

Marantz

Marantz SUPERSCOPE BLA-545 Instructions de montage

NAD

NAD CI980 Manuel utilisateur

Technics

Technics SE-CH770 Manuel utilisateur

Harman Kardon

Harman Kardon HK6300 Manuel utilisateur

NAD

NAD T975 Manuel utilisateur

McIntosh

McIntosh MA6850 Manuel utilisateur

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuel utilisateur

Viatron

Viatron Autrix Manuel utilisateur

GME

GME GA9800 Manuel utilisateur

Atlas

Atlas CP700 Manuel utilisateur

Roland

Roland KC-1000 Manuel utilisateur

Pyle

Pyle PFMRA350BW Manuel utilisateur

Advantage

Advantage S-250 Manuel utilisateur

IRT Electronics

IRT Electronics DVA-3007 Manuel utilisateur

Dimavery

Dimavery BA-100 Series Manuel utilisateur

Sony

Sony XM-S400D Manuel utilisateur

Schertler

Schertler ROY X Manuel utilisateur
