Kensington SD1700P Manuel utilisateur

SD1700P USB-C Dual 4K Portable Mobile Dock with Qi Charging – 100W Power Pass Through Installation Guide.

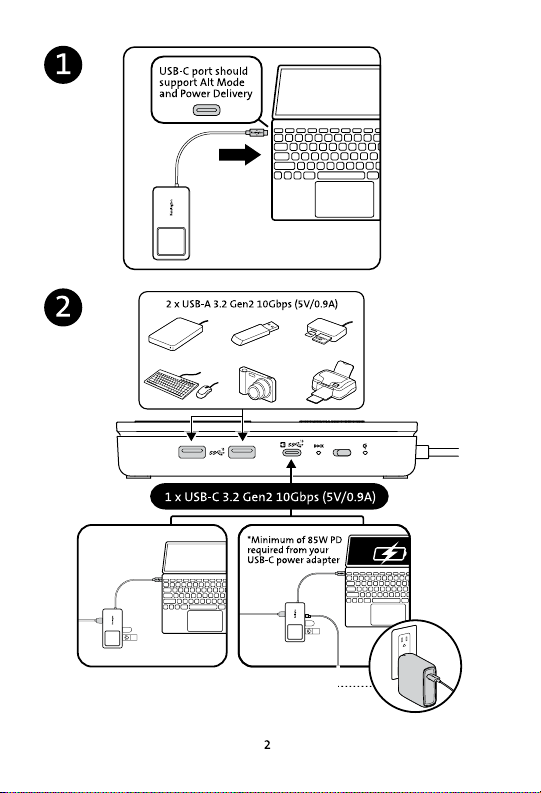

1. Connect the dock to your laptop using the included USB-C cable.

The Laptop USB-C port should support Alt Mode and Power Delivery. Make sure that the Kensington logo and Qi charging pad are facing upward.

2. The front of the dock (from left to right).

Two USB-A 3.2 Gen2 10 Gbps (5V/0.9A) ports for connecting accessories such as keyboards, mice, USB drives, cameras, and printers.

One USB-C 3.2 Gen2 10Gbps (5V/0.9A) port. This can be used to connect devices such as external hard drives, your laptop’s power adapter, or an optional 100W USB-C Power Adapter.

Minimum of 85W Power Delivery required from your USB-C adapter.

Dock indicator light.

Dock/Qi charging toggle switch.

Qi charging indicator light.

The back of the dock (from left to right).

Two HDMI ports.

One Ethernet port (10/100/1000Mbps).

Video specs.

With one monitor.

HBR2: 4K @ 30Hz.

HBR3: 4K @ 60Hz.

HBR3, HBR3+DSC1.2: 4K @ 60Hz.

With two monitors.

HBR2: 1080p @60Hz.

HBR3: 1440p @ 60Hz.

HBR3+DSC1.2: 4K @ 60Hz.

The top of the dock.

One Qi charging pad, up to 10W. Host USB-C port must support 5V/3A (15W) of power to enable full Qi charging.

3. When no power adapter is connected to the dock (bus-power mode).

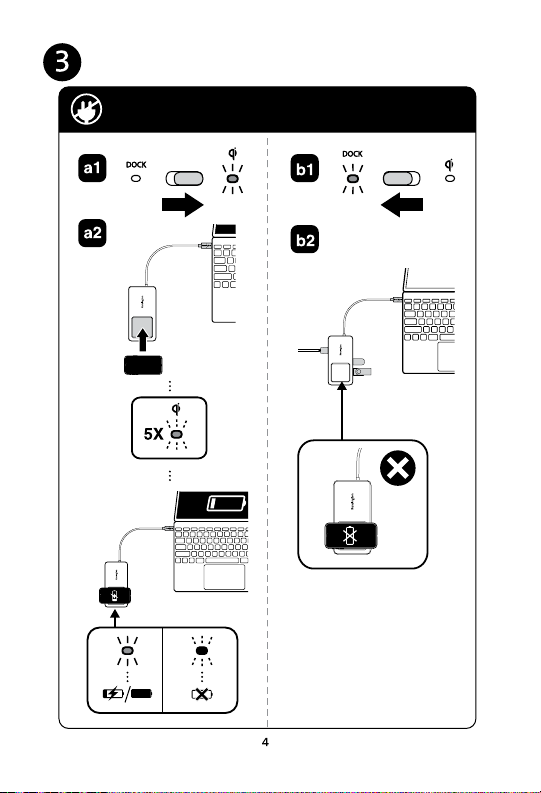

a1. On the front of the dock, slide the toggle switch to the right — Qi charging position — for wireless Qi charging.

The Qi charging indicator light will illuminate. In this mode, you can only use the Qi charging functionality of the dock.

a2. Place the device to be charged face up on the Qi charging pad so that the device indicates that it is charging.

The Qi charging indicator light will remain on. If the Qi charging indicator light is ﬂashing, check your device to ensure that it is aligned correctly for Qi charging.

b1. When the toggle switch is in the left — dock — position, the dock indicator light will illuminate.

b2. You can now use devices connected to the dock. Qi charging is disabled.

When a power adapter is connected to the dock.

a1. Qi charging and connected devices are enabled simultaneously.

a2. Place the device to be charged face up on the Qi charging pad so that the device indicates that it is charging. The Qi charging indicator light will remain on.

If the Qi charging indicator light is ﬂashing, check your device to ensure that it is aligned correctly for Qi charging.

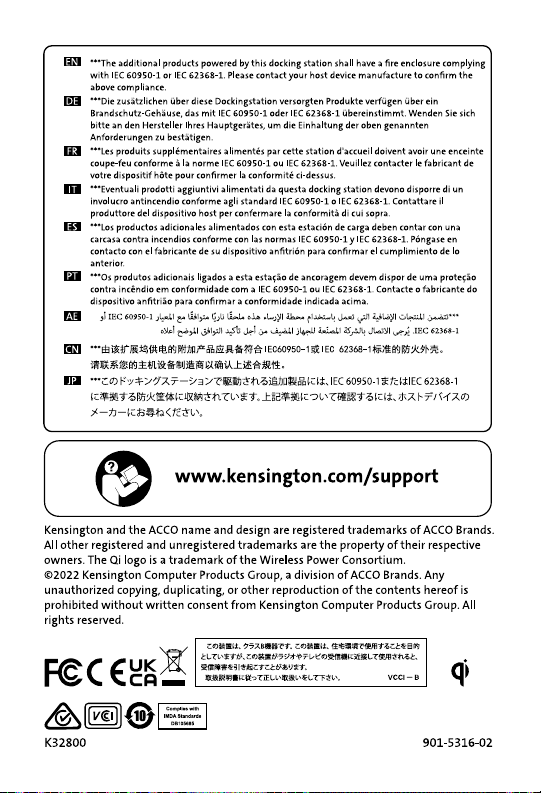

b1/b2. The additional products powered by this docking station shall have a ﬁre enclosure complying with the IEC 60950-1 or IEC2368-1.

Please contact your host device manufacturer to conﬁrm the above compliance.

If the Qi charging indicator light is ﬂashing:

Check your device to ensure that it is aligned correctly for Qi charging.The phone should be positioned at the center of the Qi charging pad to the left of the Kensington logo, or it will not charge properly.

If your phone has a case, the case thickness must be less than 3mm for Qi charging.

Place only Qi compatible devices on the Qi charging pad. Avoid placing metal objects, such as coins, keys, watches, or batteries on the Qi charging pad.

If a non-compatible metal object sits on the Qi charging pad, a warning light will ﬂash. Placing credit cards on the pad should also be avoided.

a/b/c. The USB-C host cable can be plugged into a magnetic slot on the side of the dock for cable management during transport.

For support, visit kensington.com/support.
