Ken A Vision Dual Purpose Scope 2 Manuel utilisateur

Dual Purpose Scope 2

Instruction Manual

T-19311C T-19311C-230

T-19321C T-19321C-230

T-19331C T-19331C-230

T-19341C T-19341C-230

All manuals and user guides at all-guides.com

all-guides.com

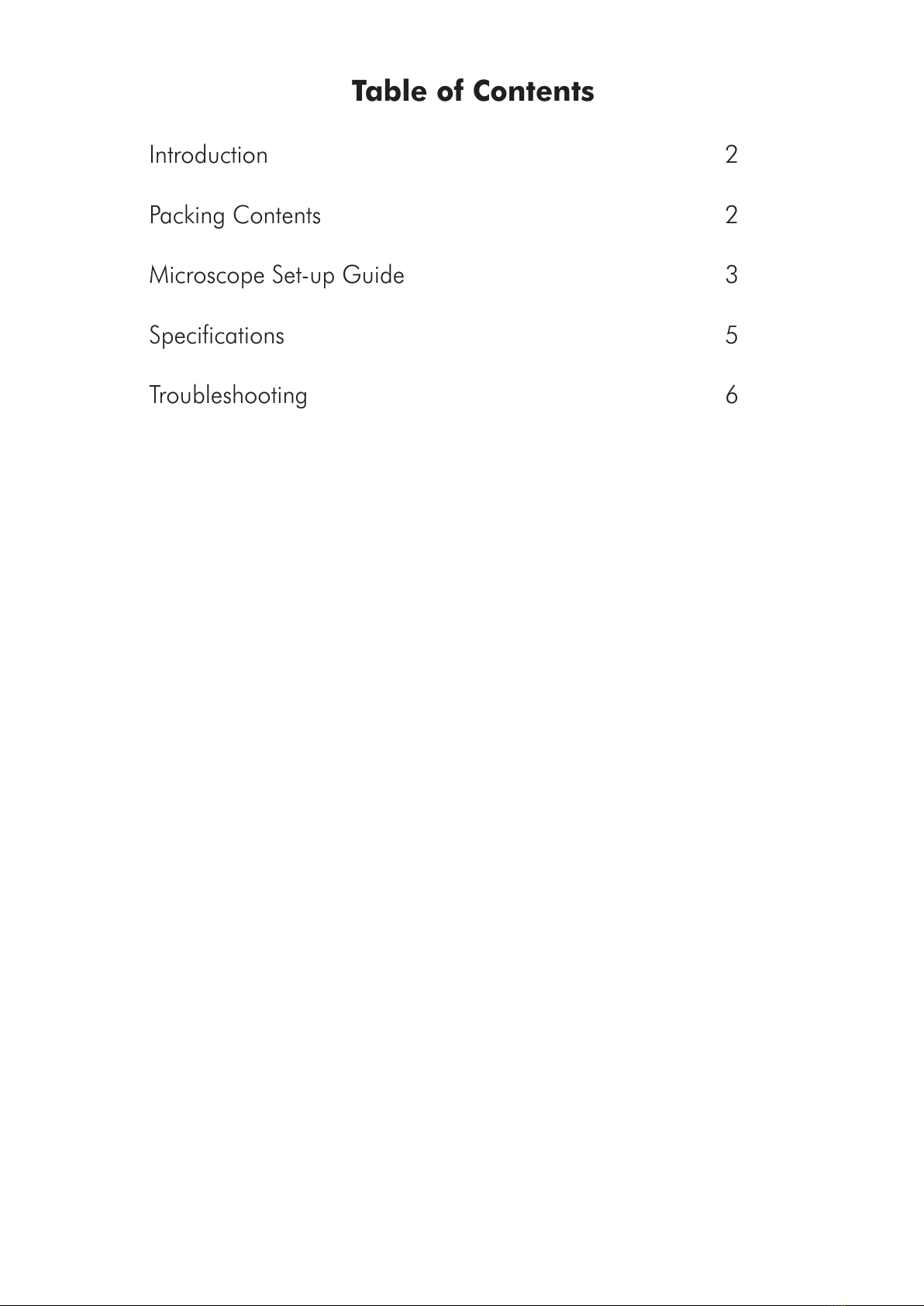

Table of Contents

Introduction 2

Packing Contents 2

Microscope Set-up Guide 3

Specifications 5

Troubleshooting 6

All manuals and user guides at all-guides.com

Introduct on

Thank you for purchasing the Dual Purpose Scope 2. This microscope

combines the features of a standard compound microscope with limited

features of a stereo microscope. This microscope features upper

(incident) and lower (transmitted) LED light to view opaque and

transparent microorganisms with high quality optics that magnify

20-400 times; a square, floating stage with spring-loaded stage clips; a

dimmer switch (rheostat) for light control; and a longer working distance

to allow for fairly thick specimens to be viewed.

Pack ng Contents

Warranty SheetInstruction

Manual

Microscope

Cover

Dual Purpose 2 Microscope Power Supply Allen Wrench

All manuals and user guides at all-guides.com

M croscope Set-up Gu de

The Dual Purpose Scope 2 microscope can be set up in a matter of

minutes. To get the most out of this amazing teaching tool, follow these

step-by-step instructions:

1. After unpacking the box, remove the Dual Purpose

Scope 2 from the plastic bag and remove the protective

coverings from the objective lenses and the eyepiece(s).

2. Place the microscope on a flat, firm surface.

3. Check the coarse focus knob on either side of the main

body support. The coarse focus knobs should turn

easily.

NOTE: The stage should move freely up and down the main body

support when focusing. When you release the knob, the stage should

remain stationary, and not slide down the post on its own.

4. To operate the cordless feature of this microscope,

immediately plug in the microscope to charge for eight

(8) hours.

a. Plug in the round adapter from the power

supply to the back of your microscope.

b. Connect the opposite end to a en-A-Vision

multicharger (Part # SCGN061) or an 110V

(220V international) electrical outlet.

NOTE: With one eight (8) hour charge, you can use the microscope for

up to forty (40) hours of continuous operation. The cordless microscope

can also be operated with the cord plugged into a power source.

c. When not in use, plug the microscope into a

en-A-Vision multicharger that will automatically

stop charging once the battery is fully charged to

keep it at the optimal full charge for longer

battery life. This prevents overcharging and the

users can charge up to eight (8) microscopes at

once.

d. Should you need a replacement power

supply/charger, or new specialized rechargeable

batteries (Part # VFBATBU5), contact your

nearest en-A-Vision dealer.

5. To turn on the LED lights, locate the power switch on the

right back side of each microscope base.

All manuals and user guides at all-guides.com

NOTE: The switch on each base is a double switch, with the middle

position being OFF.

6. Pushing the right side of the power switch controls the

bottom (transmitted) light for viewing microscopic

specimens.

7. Pushing the left side of the power switch controls the

upper (incident) light for viewing opaque,

multi-dimensional specimens.

T-19311C/T-19311C-230

The monocular Dual Purpose Scope 2 compound microscope with

COOL LIGHT™ illumination allows for viewing specimens through one

(1)-10x wide-field eyepiece with 2x, 4x, 10x, and 40x(S) DIN Plan

Achromat objective lenses on a square, floating stage with spring-loaded

stage clips, and an adjustable light dimmer (rheostat).

T-19321C/T-19321C-230

The dual viewing head Dual Purpose Scope 2 compound microscope is

the same as the T-19311C above, except that the dual viewing head

allows two people to look at the specimen through two (2)-10x

wide-field eyepieces at the same time or connect a camera to one

eyepiece to display on an interactive white board/projector/computer.

One eyepiece has a diopter, so the second user can adjust the ring to

focus his/her eye, allowing for the differences in vision between two

users.

T-19331C/T-19331C-230

The Seidentopf binocular Dual Purpose Scope 2 compound microscope

is the same as the T-19311C above, except that the binocular head

allows the user to view the specimen with both eyes and to adjust for

interpupillary distance. The eyepieces will move to exactly match the

distance between the user’s eyes. The left eyepiece has a diopter to

allow the user to focus the left eye once the right eyepiece is in focus.

Adjusting the diopter, allows for the difference in vision between the

user’s two eyes.

All manuals and user guides at all-guides.com

Spec f cat ons

Product Number

T-19311C T-19321C T-19331C

Stand/Frame

SC12 Comp 2 Stand with 4 hole nose piece

SC12M Comp 2 Mechanical Stage

SC12DP Comp 2 4 hole NP w/ upper/lower light XXX

Standard Features

XXXtnemtrapmoCegarotSregrahC

XXX™eldnaHoGdnawotS

XXX™yrettaBneerG

XXXelbaegrahceRsseldroC

XXXnoitanimulli™THGILLOOC

XXXsucoFfoegnaRdesaercnI

XXXKLATSTHGILREPPU

Heads

SC12MH Comp 2 Monocular Head with eyepiece X

Xseceipeye2htiwdaeHweiVlauD2pmoCHD21CS

Xseceipeye2htiwdaeHraluconiB2pmoCHB21CS

SC12TH Comp 2Trinocular Head with 2 eyepieces

SC12CMH Comp 2 Monocular with 3.2MP Camera

SC12CBH Comp 2 Binocular Head with 3.2MP Camera

Stage

SC12FS Comp 2 Floating Stage with built in Condensor XX

XebbAnitliuBhtiwegatSlacinahceM2pmoCSM21CS

SC12SS Comp 2 Standard Stage w/ 5 Hole Disc Dia.

Eyepieces

SC12EP5 5X

XXXX0191-01PE001CS

SC12EP16 16X

SC12EP20 20X

Objectives

SC12O B2 XXXtamorhcANIDnalPX2

XXXtamorhcANIDnalPX44BO21CS

XXXtamorhcANIDnalPX0101BO21CS

XXXAN56.0tamorhcANIDnalPX04R04BO21CS

SC12OB100R 100X DIN Achromat

Optional

T-12UG Comp 2 Mechanical Stage w/ Abbe and

100X DIN Achromat Ob

SC12OB4P 4X Plan

SC12OB10P 10X Plan

SC12OB20P 20X Plan

SC12OB40RP 40X Plan

SC12OB60RP 60X Plan

SC12OB100RP 100X Plan

SC12CMH Monocular Camera Head

SC12CBH Binocular Camera Head

All manuals and user guides at all-guides.com

all-guides.com

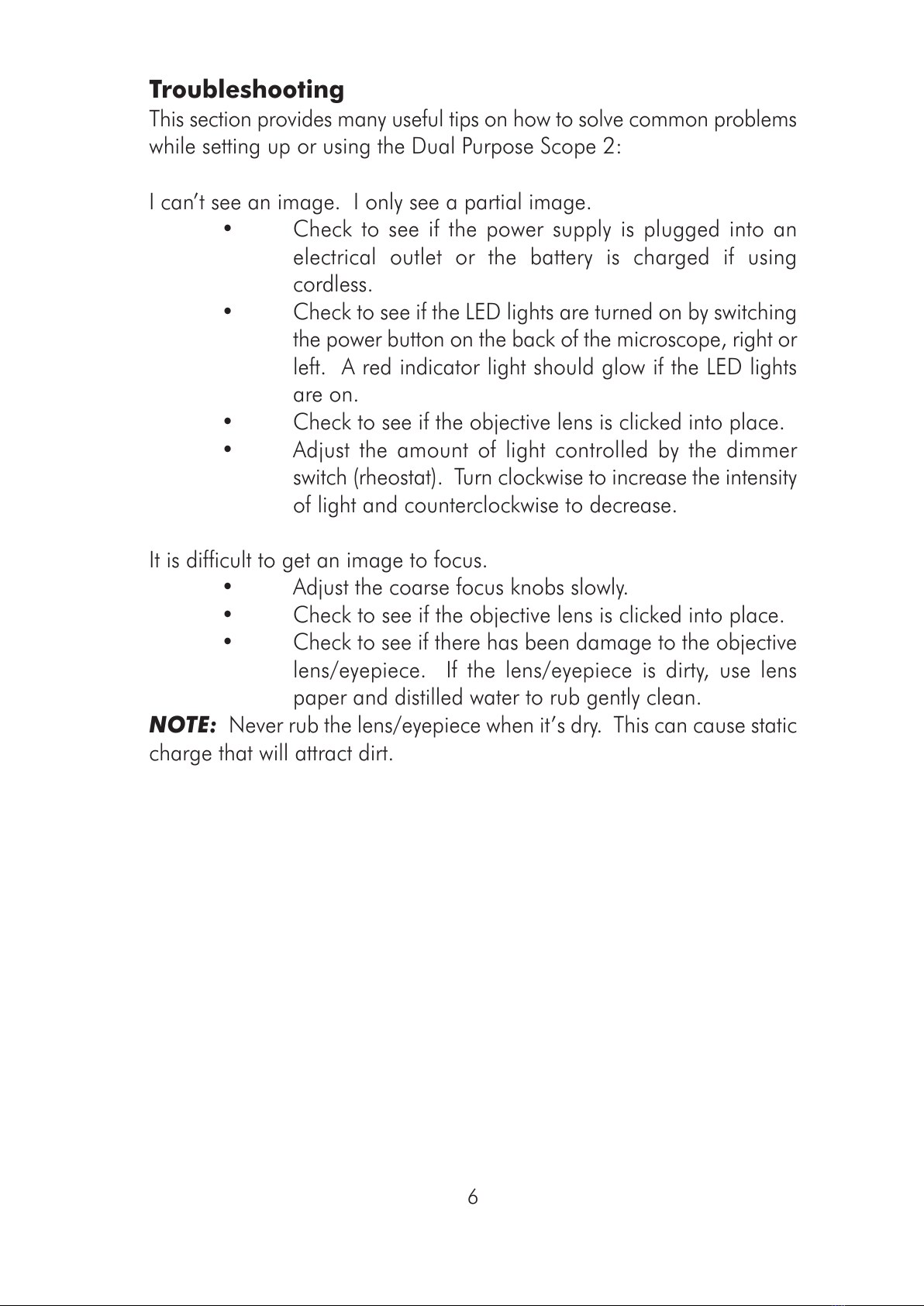

Troubleshoot ng

This section provides many useful tips on how to solve common problems

while setting up or using the Dual Purpose Scope 2:

I can’t see an image. I only see a partial image.

• Check to see if the power supply is plugged into an

electrical outlet or the battery is charged if using

cordless.

• Check to see if the LED lights are turned on by switching

the power button on the back of the microscope, right or

left. A red indicator light should glow if the LED lights

are on.

• Check to see if the objective lens is clicked into place.

• Adjust the amount of light controlled by the dimmer

switch (rheostat). Turn clockwise to increase the intensity

of light and counterclockwise to decrease.

It is difficult to get an image to focus.

• Adjust the coarse focus knobs slowly.

• Check to see if the objective lens is clicked into place.

• Check to see if there has been damage to the objective

lens/eyepiece. If the lens/eyepiece is dirty, use lens

paper and distilled water to rub gently clean.

NOTE: Never rub the lens/eyepiece when it’s dry. This can cause static

charge that will attract dirt.

All manuals and user guides at all-guides.com

Corporate Headquarters

Ken-A-V s on Mfg. Co., Inc.

5615 Raytown Road

ansas City, MO 64133 U.S.A.

Tel.: +1-816-353-4787

Fax: +1-816-358-5072

cs@ken-a-vision.com

INS-SC12DP

ow ers. No part of the co te ts of this publicatio may be reproduced or tra smitted i a y form without the

writte permissio of Ke -A-Visio Mfg. Co., I c.

Ke -A-Visio Mfg. Co., I c. reserves the right to make desig improveme ts a d other cha ges i

accorda ce with the latest tech ology. There is o obligatio to make cha ges i products already

ma ufactured.

www.kenav s on.com

Internat onal Off ce

Ken-A-V s on Internat onal GmbH

Alte Bohle 33

D-50321 Brühl, Germany

Tel.: +49-2232-28197

Fax: +49-2232-200897

intl@ken-a-vision.com

All manuals and user guides at all-guides.com
