This document should be read in conjunction with DOC1048R IRmadilloNA User Manual –

Safety.

1.1. Purging the IRmadilloNA

The IRmadilloNA spectrometer is designed to be continuously purged. This eliminates any

interference in operationcaused by changing levels of water vapour and carbon dioxide (CO2)

within the instrument, both of which interact strongly with infrared (IR) light.

The IRmadilloNA is fitted with purge inlets on the probe and spectrometer body. The Inlets are

shipped with blanking plugs that need to be removed before use. There are breathers on both

the probe and spectrometer body.

Figure 1: Purge inlet and outlet locations on ASM0627-09

The ideal purge gas is dry nitrogen. Alternatively, dry air from a purge gas generator can be

used. The output from this purge gas generator should have a minimum quality according to

ISO8573-1:2010 of Class 1:2:1 (dust:water:oil) or better. Keit can recommend suitable

generators that achieve this outlet air quality; contact suppo[email protected]. Purge gas

generators may include an internal compressor or use factory-supplied compressed air with a

minimum quality of Class 4:4:4 (dust:water:oil).

NOTE

REMARQUE

All FTIR spectrometers are very sensitive to water vapour and

carbon dioxide. Even in well-controlled environments, e.g.,

laboratories, environmental changes can be large enough to

cause significant changes in the spectrum. We STRONGLY

recommend purging the instrument at all times.

Tous les spectromètres FTIR sont très sensibles à la vapeur d’eau

et au dioxyde de carbone. Même dans des environnements contrôlés

(des laboratoires, par exemple), les changements dans

l’environnement peuvent être suffisants pour causer des variations

de spectre significatives. Il est VIVEMENT recommandé de toujours

purger l’instrument.

Page 3

DOC1049R (22 February 2024 12:07)

www.keit.co.uk Back to Table of Contents

To purge the instrument:

•Remove the blanking plugs from the gas purge inlets on the instrument probe and

body; these are push fit connectors.

•Connect either a 4mm or 5/32” diameter stainless steel or PTFE hose to the purge inlet

ports.

•Ensure the gas tubes are connected to a suitable gas supply via a flow meter (we

recommend 1 adjustable flow meter per instrument)

•Adjust the total flow to 0.5 - 2 litres per minute (The pressure drop through the unit is

<1 barg).

•Do not turn off the purge during normal operation; this will impact the instrument’s

performance.

•If the purge tubing is disconnected, the blanking plugs must be fitted to the inlet

connections on the probe and body to maintain the IP rating and exclude dust.

The IRmadilloNA requires a stabilisation period of >12 hours once powered on and purging

has started. This is to allow the internal components to reach a stable temperature and

complete purging. Once fully purged the instrument is very robust against changes in ambient

conditions, provided the purge gas supply is maintained.

1.2. Avoiding fouling

The diamond window at the tip of the probe must be in contact with process fluid to give a

measurement. Even a thin layer of scaling or fouling will prevent the IRmadilloNA from being

able to ‘see’ the process fluid.

To minimise the risk of fouling of the diamond window, we recommend taking the following

steps during installation:

Page 4

DOC1049R (22 February 2024 12:07)

www.keit.co.uk Back to Table of Contents

Figure 2: Installing the IRmadilloNA in a fouling environment.

1. Particularly for continuous processes, install the IRmadilloNA in a bypass loop which can

be isolated using valves A and B. This makes it easy to retract the IRmadilloNA for manual

cleaning if required without the need to interrupt the process flow.

2. Direct the flow through the IRmadilloNA’s bypass loop by blocking or restricting the ‘main’

flow unless the bypass loop is to be isolated (valve C). Alternatively, this may be achieved

by mounting in a pump bypass loop (offtake from pump discharge and return to pump

suction).

3. Maximise theflow velocity pastthe IRmadilloNA by installing in areduced-diameter section

of the pipe. The minimum flow velocity should be 1.5 m/s (5 ft/s).

4. Install the IRmadilloNA so that the probe tip is fully in the flow. We recommend putting the

probe tip as close to the centre of the pipe as possible.

5. The direction of flow should be vertically upwards. This both minimises the risk of air

bubbles becoming trapped around the probe tip and reduces the risk of settling of any

sediment that is present.

6. To increase the pressure, install the IRmadilloNA after a pump. Higher pressure minimises

the risk of sedimentation and bubbles.

7. Where possible, install the IRmadilloNA at a location where the process conditions are

less prone to fouling. Depending on your process chemistry, this may be achieved by

choosing a high temperature location and using heat tracing and insulation to avoid

localised cooling. Higher process temperatures often maximise the solubility of potential

fouling substances.

Page 5

DOC1049R (22 February 2024 12:07)

www.keit.co.uk Back to Table of Contents

8. Fit ports either side of the IRmadilloNA’s install point to allow clean-in-place or flushing

with a suitable cleaning fluid.

1.3. Checking for warnings and checking the probe is clean

When you have connected to the powered-on IRmadilloNA the KeitSpec application should

load automatically (within 3 minutes). It is important to confirm that the system is working

without errors: information on IRmadilloNA warnings and errors can be found in DOC0893

KeitSpec Software User Manual, section 1, Getting Started.

Once the system is set up without errors, the probe tip must be cleaned, and a background

spectrum must be taken before insertion into the vessel or pipe. If the probe is guaranteed

clean, the factory background scan shipped with the instrument –and saved to the desktop of

the controller –can be used. Cleanliness of the probe tip is important to performance; if you

suspect fouling or scale build-up, perform a clean appropriate to your environment.

1.3.1. Cleaning instructions

Rinse the ATR element with a suitable solvent. The choice of solvent will depend on your

process. You may fully immerse the ATR in solvent if needed. The following are suitable:

•Water

•Acetone

•Alcohols

•Surfactant solutions

•Alkanes (hexane, cyclohexane etc…)

•Ethers

Once exposed to a suitable solvent, wipe the ATR with a clean cloth. The metal tube of the

probe can also be cleaned by wiping with a cloth.

For hard-to-remove fouling (such as biofilms or dried-on chemicals) Keit recommends an

oxidative acid clean. First, clean the ATR using the methods outlined above, then perform the

following: Souriau in-line plug

•If you have purchased one, place the PTFE sample cell on the end of the probe and

fill with ~4ml of 1 M nitric acid solution. If you have not purchased one then please

contact support@keit.co.uk for further information.

•Leave to soak for 1 hr

•Carefully remove the acid using a pipette and fill the sample cell with water

•Remove the water using a pipette

•Remove the sample cell and rinse the ATR again with water

•Carefully wipe the ATR with a cloth

It may be necessary to repeat the cleaning steps again if the contaminant has only been

partially removed.

In some cases, it may be necessary to perform an alkali clean on the probe. First clean the

ATR using the methods outline above, then perform the following:

•Place the PTFE sample cell on the end of the probe and fill with ~4ml of 1 M sodium

hydroxide solution

•Leave to soak for 1 hr

•Carefully remove the alkali using a pipette and fill the sample cell with water

•Remove the water using a pipette

Page 6

DOC1049R (22 February 2024 12:07)

www.keit.co.uk Back to Table of Contents

•Remove the sample cell and rinse the ATR again with water

•Carefully wipe the ATR with a cloth

It may be necessary to repeat the cleaning steps again if the contaminant has only been

partially removed.

1.3.2. Recognising if the probe is clean

When looking to see if the instrument is clean, the primary area of interest within the spectrum

is between 800 and 1800 cm-1. This section ofthe absorbance plot shouldmaintain a relatively

flat line with no consistently repeating peaks. Cleaning Mode can be used to see the effects

of the cleaning process in real time –see DOC0893 KeitSpec Software User Manual, Section

2, The Spectrometer Tab.

Figure 3: A clean probe showing no significant peaks within the 800 to 1800 cm-1 region.

Several sharp peaks in the region 800-1800 cm-1 indicate that the probe has not been cleaned

properly.

Figure 4: Sharp spikes within the region indicating an unclean probe

Page 7

DOC1049R (22 February 2024 12:07)

www.keit.co.uk Back to Table of Contents

A peak at 1400 cm-1 indicates that there is some water on the probe. This could indicate poor

purge quality.

Figure 5: Peak indicating the water in the spectrum

A negative peak indicates that although the probe is clean now, it was not clean when the

background was taken. Another background must be taken before any spectra can be

measured.

Figure 6: Negative peaks indicating the background was taken when the probe was unclean or not fully

purged.

1.4. Taking a background

FTIR requires the collection of a background spectrum (also called a reference or baseline

scan) before any absorption scans can be performed. This must be performed before the

probe is inserted into the reaction/process of interest. The process for collecting a reference

scan can be found in DOC0893 KeitSpec Software User Manual, Section 1, Getting Started.

Page 8

DOC1049R (22 February 2024 12:07)

www.keit.co.uk Back to Table of Contents

2. MAINTENANCE

Probe accessories may contain O-rings, which we recommend replacing annually or, where

worn or damaged, more frequently. See Section 4 Accessories for more information on

accessories.

2.1. Spectrum health

The spectrum can be used as a good indication of the health of the instrument.

2.1.1. Use at high temperature

Figure 7: Probe is heated causing the spectrum to tilt

In Figure 7, the spectrum is tilted, with positive absorbance at lower wavenumbers and

negative absorbance at high wavenumbers and the spectrum is not flat in the region 800-

1800cm-1. This indicates that the probe tip is at a higher temperature now than it was when

the background was taken. This may cause chemometric models to give incorrect results

unless the model uses an appropriate pre-treatment to remove the effect. Any model built by

Keit will have this taken into account.

Page 9

DOC1049R (22 February 2024 12:07)

www.keit.co.uk Back to Table of Contents

2.1.2. Emitter ageing

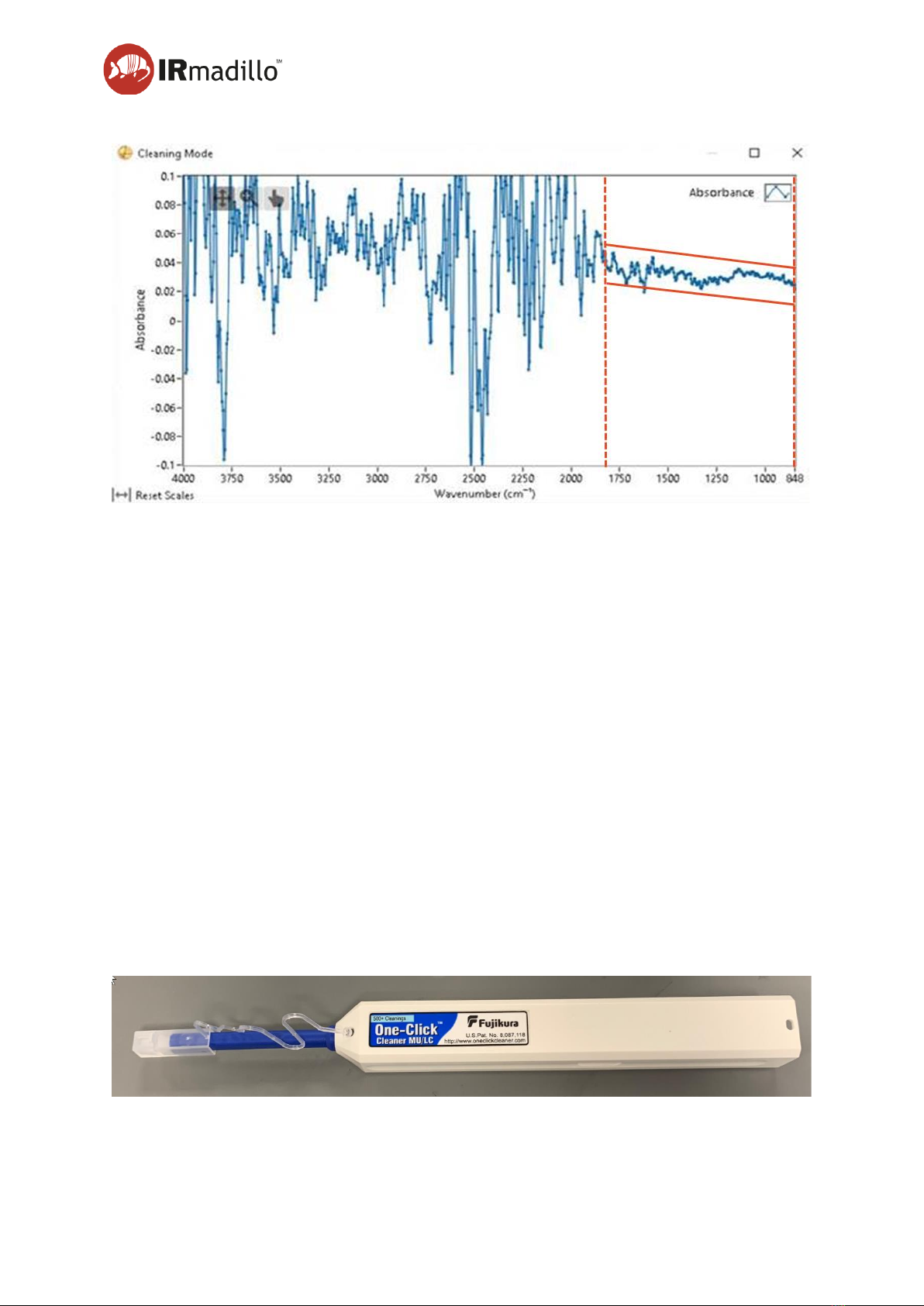

Figure 8: Spectrum is tilted showing signs of emitter ageing

The infrared emitter in the probe is expected to age over its lifetime. The results of this can be

seen in Figure 8: the spectrum is tilted; the absorbance is positive across the whole spectrum;

and the spectrum is not flat in the region 800-1800 cm-1 (contrast with Figure 3, above). If

evidence of emitter ageing is seen, it may be required to take a new background scan to

remove this effect –contact Keit for advice.

2.2. Remote health check

Keit can perform an annual examination of your system’s health data remotely to determine if

any servicing needs to be carried out. This includes review of internal diagnostics for warnings

and errors, component performance for signs of premature ageing, and evaluation of

background reference spectra history for signs of operator error or progressive damage.

Remote health checks are offered annually as a part of our MSP.

2.3. Cleaning the fibre optic data cable connectors

Once installed and in normal operation there should be no need to clean the fibre optic

connectors. If the instrument needs to be moved so the connectors are disconnected, it is

recommended that the connectors are cleaned before being re-connected.

The fibre connectors are cleaned with a cleaning pen as shown below.

Figure 9: Fibre-cleaning pen

Table des matières

Autres manuels Keit Instrument de mesure

Keit

Keit IRmadillo DOC1048R Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
