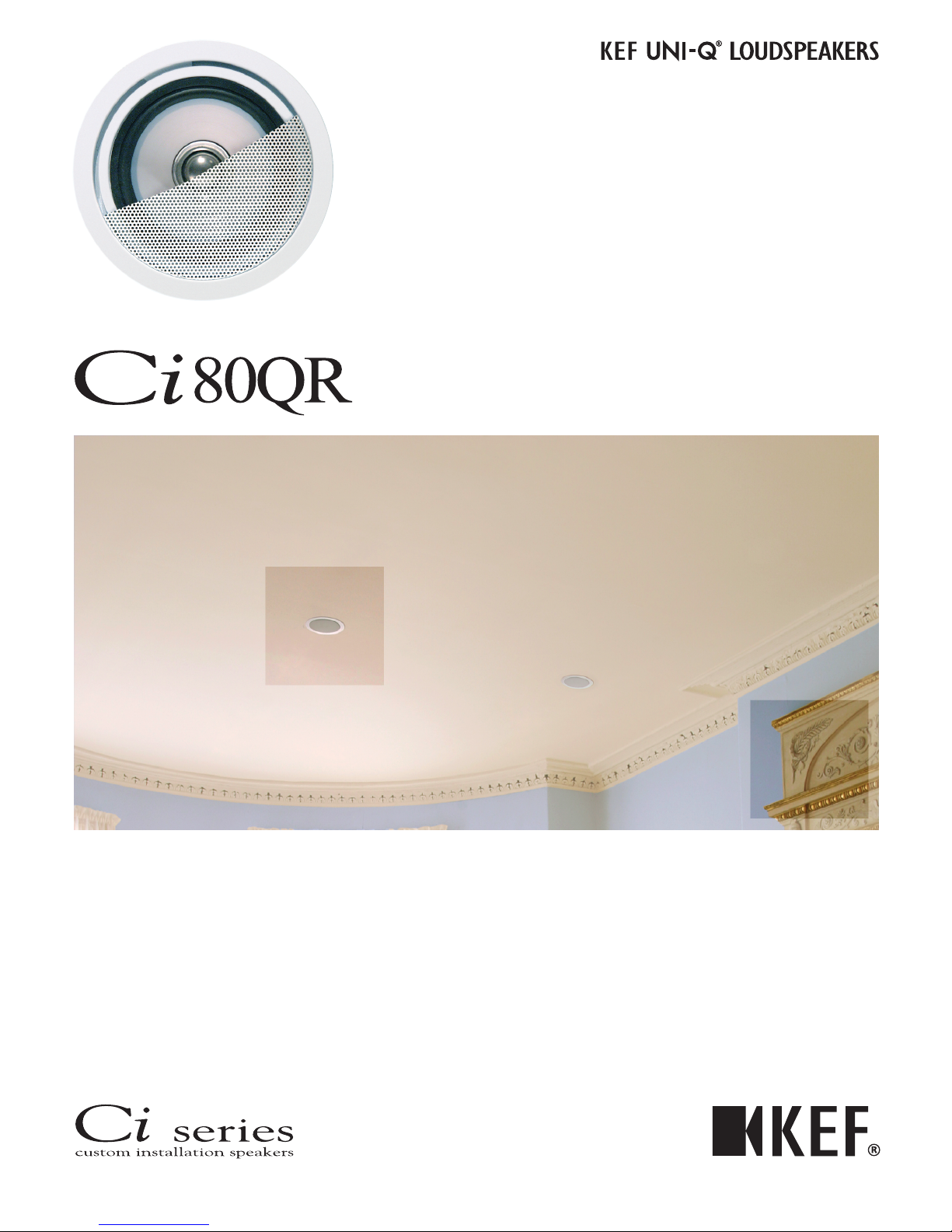

KEF Uni-Q CI80QR Manuel

The quality of a speaker is no less

important just because it’s out of sight - in

fact, with ceiling-mounted units, it can be

more so. Designed to smoothly integrate

and architecturally match with existing

downlighting sharing the same size bezel,

KEF’s trademark Uni-Q®technology has a

decisive performance advantage in these

applications, because each point source

driver array evenly disperses the sound,

ensuring a smooth frequency response

over a large area to create a spacious

three-dimensional soundscape with

genuine texture and depth.

With a Uni-Q array of 80mm (3”), the

Ci80QR is as satisfyingly musical to hear

as it is neat in appearance.

Features and Benefits:

Purpose built for flush mounting into walls

and ceilings these are the latest addition to

the KEF Uni-Q Custom Installation series.

Providing a compact solution to the

problem of Hi-Fi quality sound from an

in-wall/ceiling speaker, the 80QR consists

of a polypropylene cone LF driver with the

HF unit mounted at the acoustic centre of

the LF unit.

The bezel and grill can be painted to match

the interior décor.

KEF Audio (UK), Eccleston Road,Tovil, Maidstone, Kent, ME15 6QP U.K. Telephone: + 44 (0) 1622 672261. Fax: + 44 (0) 1622 750653 www.kef.com

KEF America, 10

Timber Lane, Marlboro, New Jersey, 07746 USA. Telephone: + 1 732 683 2356. Fax: + 1 732 683 2358 www.kefamerica.com

GP Acoustics GmbH, Heinrichstraße 51, D-44536 Lünen, Deutschland. Telephone: +49 (0) 231 9860-320. Fax: +49 (0) 231 9860-330. www.kefaudio.de

Information Sheet

Polar graphs

Directivity Index / Beamwidth

Frequency / Power response, Input impedance

Specifications

*With back can **Without back can

Installation

Architectural specifications:

The Ci Series Ci80QR comprises Uni-Q®

15mm aluminium dome tweeter with

80mm white polypropylene bass/mid unit

with double neo compound magnet system.

Performance should meet or exceed the

following criteria: frequency response

1 metre on-axis with swept sinewave shall

be 130Hz to 27kHz, sensitivity shall be at

least 85dB for 2.83V@1m. The impedance

shall be 4 ohms. The Ci Series Ci80QR is

best suited where high quality music and

speech reinforcement applications require

hi-fi performance such as:

· Multi Room systems.

· Home Theatre systems.

· Lounges, Bars, Boutiques.

· Boardrooms & Offices.

Frequency range 130Hz - 27kHz*100Hz - 27kHz**

Sensitivity (2.83v @ 1m) 85dB

Rec. amplifier power 10 - 50W

Nominal Impedance 4Ω(min. 3.2Ω)

Crossover Frequency 3kHz

Enclosure material ABS

Terminals spring terminals up to Ø2.5mm (0.1”)

conductor

Dimensions (Ø x depth) Ø103 x 138 mm, Ø103 x 30 mm,

4.1 x 5.5 in.*4.1 x 1.2 in.**

Net weight 0.7kg (1.54lbs)*0.6kg (1.32lbs)**

500Hz 1kHz

2kHz 4kHz

8kHz 16kHz

PL1611EN

1

4

5

7

6

8

1

3

4

2

2

3

(Wall Install) (Ceiling Install)
