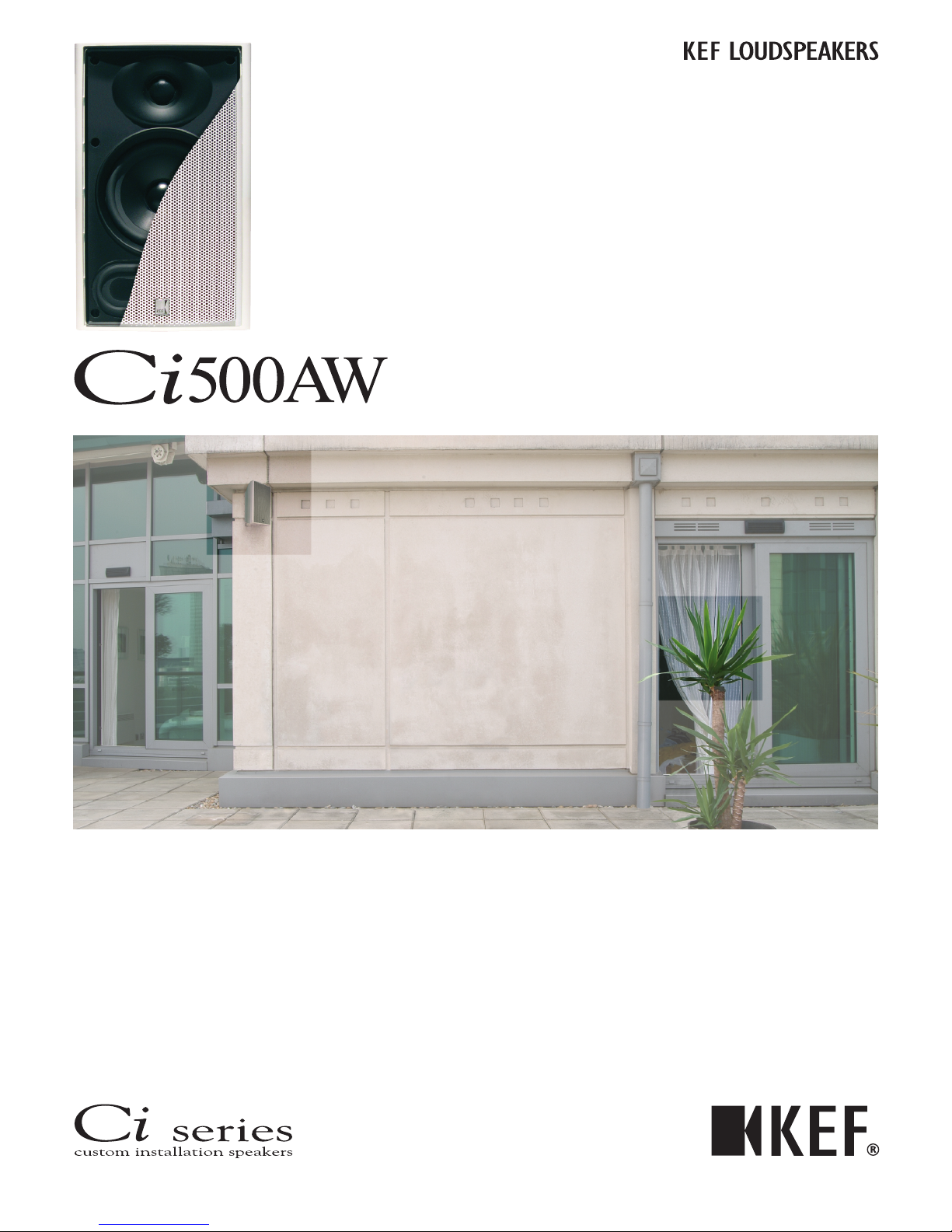

KEF Ci 500AW Manuel

For a serious all-weather loudspeaker

look to KEF’s Ci Series Ci500AW.

In the summerhouse or by the pool, this is

a complete all-rounder, featuring an

ABR box design with an integral,

swivelling mounting bracket.

Along with the drivers, both the terminals

and mounting bracket are weather-resistant,

making positioning of this loudspeaker,

even in the harshest environments like

patios or even ocean-going yachts,

extremely versatile.

Imagine KEF acoustic quality in outdoor

sound and think of the Ci500AW

delivering a solid, richly detailed sound

virtually anywhere you care to place it.

Features and Benefits:

The 2-way Ci500AW combines 70W

power handling and 87dB sensitivity for a

maximum output of 105dB.

A 130mm (51⁄4”) polypropylene bass/mid

driver working in conjunction with an

Auxiliary Bass Radiator (ABR) for increased

low frequency output, is partnered by a

25mm (1”) soft dome tweeter.

The white, moulded ABS enclosure and

stainless steel grille are easily paintable.

KEF Audio (UK), Eccleston Road,T

ovil, Maidstone, Kent, ME15 6QP U.K. Telephone: + 44 (0) 1622 672261. Fax: + 44 (0) 1622 750653 www.kef.com

KEF America, 10

Timber Lane,Marlboro,New Jersey, 07746 USA. Telephone: + 1 732 683 2356. Fax: + 1 732 683 2358 www.kefamerica.com

GP Acoustics GmbH, Heinrichstraße 51, D-44536 Lünen, Deutschland. Telephone: +49 (0) 231 9860-320. Fax: +49 (0) 231 9860-330. www.kefaudio.de

Information Sheet

Polar graphs

Directivity Index / Beamwidth

Frequency / Power response, Input impedance

Specifications

Installation

Architectural specifications:

The Ci Series Ci500AW comprise a

25mm soft dome ferrofluid cooled

tweeter with 130mm polypropylene

bass/mid unit and Auxiliary Bass Radiator.

Performance should meet or exceed the

following criteria: frequency response 1

metre on-axis with swept sinewave shall

be 60Hz to 20 kHz, sensitivity shall be at

least 87dB for 2.83V@1m.

The impedance and maximum power

shall be 70W at 4 ohms. The Ci Series

Ci500AW is best suited where high

quality music and speech reinforcement

applications require hi-fi performance in

all weather such as:

· Patios.

· Maritime and Sailing.

· Zoos.

· Theme Parks.

· Sports Arenas.

Frequency range 60Hz - 20kHz

Sensitivity (2.83v @ 1m) 87dB

Rec. amplifier power 10 - 70W

Nominal Impedance 4Ω(min. 3.2Ω)

Crossover Frequency 3kHz

Enclosure material Polycarbonate

Terminals binding posts up to Ø5mm (0.2”)

conductor

Dimensions (H x W x D) 290 x 180 x 173 mm, 11.5 x 7.1 x 6.9 in.

Net weight 3.5kg (7.7lbs)

500Hz 1kHz

2kHz 4kHz

8kHz 16kHz

PL1603EN

123

45
