KEF EG Ci50R Manuel

Imagine a speaker that’s no more

obtrusive than a standard 50mm (2”) low

voltage downlighter, yet powerful enough

to flood a sizeable space with high

definition sound and designed to smoothly

integrate and architecturally match with

existing downlighting. Impressively vocal

and superbly balanced, the Ci50R is a

masterpiece of intelligent miniaturisation -

and thanks to the design and specification

of the drive unit, a deceptively

accomplished performer in real rooms.

It is available with White, Chrome, Brass

or Brushed Steel bezels to suit your tastes

and décor. As visually discreet as a

speaker can possibly be, the Ci50R

delivers the listening pleasure to match its

outstanding value for all but the most

demanding installations.

Small is beautiful.

Features and Benefits:

Purpose-built for flush mounting into walls

and ceilings, the Ci50R delivers KEF audio

quality as unobtrusively as possible, and

with KEF's standard lighting style fitting,

you'll also find them amazingly easy and

rapid to install.

KEF Audio (UK), Eccleston Road,T

ovil, Maidstone, Kent, ME15 6QP U.K. Telephone: + 44 (0) 1622 672261. Fax: + 44 (0) 1622 750653 www.kef.com

KEF America, 10

Timber Lane,Marlboro,New Jersey, 07746 USA. Telephone: + 1 732 683 2356. Fax: + 1 732 683 2358 www.kefamerica.com

GP Acoustics GmbH, Heinrichstraße 51, D-44536 Lünen, Deutschland. Telephone: +49 (0) 231 9860-320. Fax: +49 (0) 231 9860-330. www.kefaudio.de

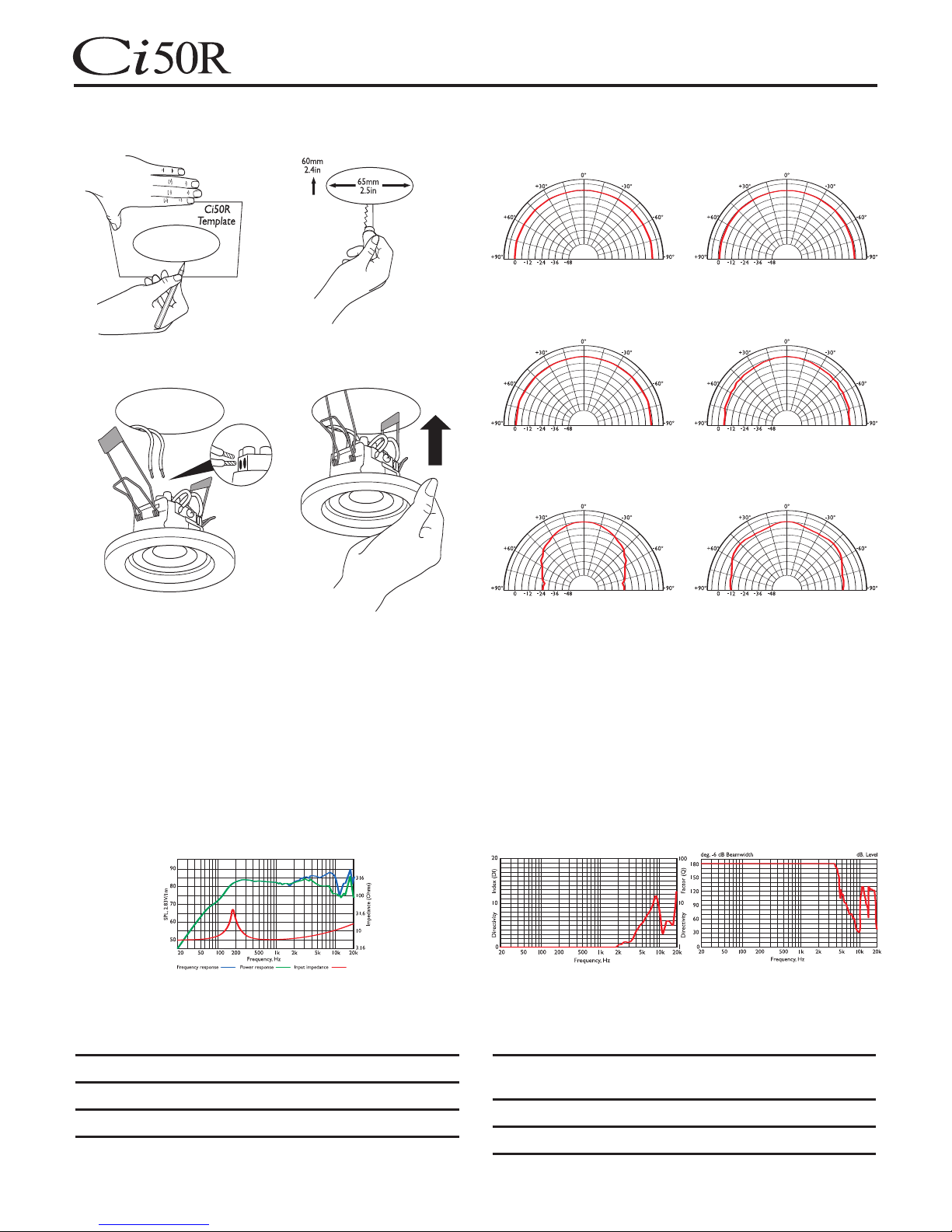

Information Sheet

Polar graphs

Directivity Index / Beamwidth

Frequency / Power response, Input impedance

Specifications

Installation

Architectural specifications:

The Ci Series Ci50R comprises a 50mm

full range speaker. Performance should

meet or exceed the following criteria:

frequency response 1 metre on-axis with

swept sinewave shall be 155Hz to 20kHz,

system sensitivity shall be at least 82dB

for 2.83V@1m. The driver impedance

shall be 6 ohms. The Ci Series Ci50R is

best suited for plastered or suspended

ceilings where high quality background

music and speech reinforcement

applications require hi-fi performance

such as:

· Multi Room systems.

· Lounges, Bars, Boutiques.

· Boardrooms & Offices.

Frequency range 155Hz - 20kHz

Sensitivity (2.83v @ 1m) 82dB

Rec. amplifier power 10 - 30W

Nominal Impedance 6Ω(min. 5.5Ω)

Crossover Frequency N/A

Enclosure material N/A

Terminals terminal blocks up to Ø2.5mm (0.1”)

conductor

Dimensions (Ø x depth) Ø80mm x 55 mm, 3 x 2.25 in.

Net weight 0.135kg (0.3lbs)

500Hz 1kHz

2kHz 4kHz

8kHz 16kHz

PL1592EN

Loudspeaker installations don’t come

more discreet than the Ci50 Soundlight

System. A full bandwidth sound system

consisting of four satellite speakers and a

twin-ported subwoofer, the only visible

components are designed to be virtually

indistinguishable from a standard 50mm

low voltage light fitting once installed.

The subwoofer itself is hidden out of sight

in the ceiling void, with a 100mm (4”) dual

coil bass driver pumping sound into the

room via two ingenious flexible ports.

There’s nothing discreet about the way it

performs, though - by combining high

quality drivers with innovative KEF

engineering, response is fluid and accurate

across the frequency range and the sound

image has astonishing clarity and power

for the speaker size.

Features and Benefits:

The Ci50 Soundlight System combines

10-100W per channel power handling and

88dB sensitivity, for a maximum in-room

SPL of 92dB.

The Ci50 Soundlight System

is purpose-built for flush mounting into

walls and ceilings. The Ci50R speakers are

mounted with

KEF's standard lighting style

fitting

. It is

available in White, Chrome,

Brass or Brushed Steel bezels.

The Ci50SW subwoofer is ceiling mounted

by using the joist or suspended ceiling

brackets included.

KEF Audio (UK), Eccleston Road,T

ovil, Maidstone, Kent, ME15 6QP U.K. Telephone: + 44 (0) 1622 672261. Fax: + 44 (0) 1622 750653 www.kef.com

KEF America, 10

Timber Lane,Marlboro,New Jersey, 07746 USA. Telephone: + 1 732 683 2356. Fax: + 1 732 683 2358 www.kefamerica.com

GP Acoustics GmbH, Heinrichstraße 51, D-44536 Lünen, Deutschland. Telephone: +49 (0) 231 9860-320. Fax: +49 (0) 231 9860-330. www.kefaudio.de

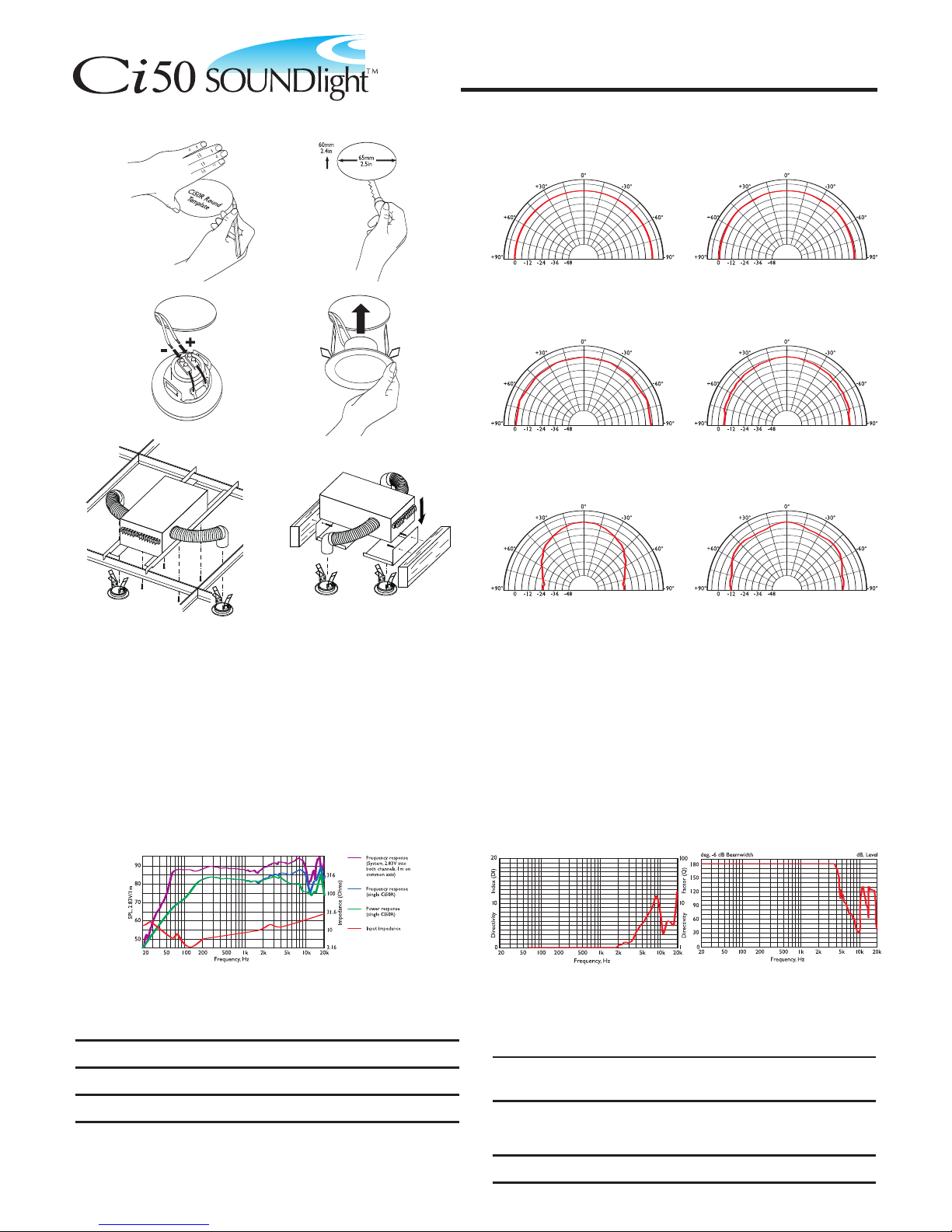

Information SheetSystem

Polar graphs

Directivity Index / Beamwidth

Frequency / Power response, Input impedance

Specifications

Installation

Architectural specifications:

The Ci Series Ci50 Soundlight System

comprises four satellite Ci50R 50mm full

range speakers and a band pass, dual ported

Ci50SW subwoofer with a 100mm, dual

coil bass unit, and passive crossovers,

for in-ceiling void installation.

System performance should meet or

exceed the following criteria: frequency

response 1 metre on-axis with swept

sinewave shall be 62Hz to 20kHz, system

sensitivity shall be at least 88dB for

2.83V@1m, both channels driven.

The system impedance shall be 4 ohms.

The Ci Series Ci50 Soundlight System is best

suited where high quality background music

and speech reinforcement applications

require hi-fi performance such as:

· Multi Room systems.

· Lounges, Bars, Boutiques.

· Boardrooms & Offices.

Frequency range 62Hz - 20kHz

Sensitivity (2.83v @ 1m) 88dB

Rec.amplifier power 10 - 100W

Nominal Impedance 4Ω(min. 3.2Ω)

Crossover Frequency 220Hz

Enclosure material

(Subwoofer) MDF

Terminals terminal blocks up to Ø2.5mm (0.1”)

conductor

Dimensions (Full range) Ø80 x 55 mm deep, Ø3 x 2.25 in. deep

(Subwoofer H x W x D) 342 x 180 x 104 mm, 13.5 x 7 x 4 in.

Net weight 4.14kg (9.1lbs) (System)

500Hz 1kHz

2kHz 4kHz

8kHz 16kHz

PL1593EN

Suspended Ceiling Plaster Ceiling

System

The quality of a speaker is no less

important just because it’s out of sight - in

fact, with ceiling-mounted units, it can be

more so. Designed to smoothly integrate

and architecturally match with existing

downlighting sharing the same size bezel,

KEF’s trademark Uni-Q®technology has a

decisive performance advantage in these

applications, because each point source

driver array evenly disperses the sound,

ensuring a smooth frequency response

over a large area to create a spacious

three-dimensional soundscape with

genuine texture and depth.

With a Uni-Q array of 80mm (3”), the

Ci80QR is as satisfyingly musical to hear

as it is neat in appearance.

Features and Benefits:

Purpose built for flush mounting into walls

and ceilings these are the latest addition to

the KEF Uni-Q Custom Installation series.

Providing a compact solution to the

problem of Hi-Fi quality sound from an

in-wall/ceiling speaker, the 80QR consists

of a polypropylene cone LF driver with the

HF unit mounted at the acoustic centre of

the LF unit.

The bezel and grill can be painted to match

the interior décor.

KEF Audio (UK), Eccleston Road,Tovil, Maidstone, Kent, ME15 6QP U.K. Telephone: + 44 (0) 1622 672261. Fax: + 44 (0) 1622 750653 www.kef.com

KEF America, 10

Timber Lane, Marlboro, New Jersey, 07746 USA. Telephone: + 1 732 683 2356. Fax: + 1 732 683 2358 www.kefamerica.com

GP Acoustics GmbH, Heinrichstraße 51, D-44536 Lünen, Deutschland. Telephone: +49 (0) 231 9860-320. Fax: +49 (0) 231 9860-330. www.kefaudio.de

Information Sheet

Polar graphs

Directivity Index / Beamwidth

Frequency / Power response, Input impedance

Specifications

*With back can **Without back can

Installation

Architectural specifications:

The Ci Series Ci80QR comprises Uni-Q®

15mm aluminium dome tweeter with

80mm white polypropylene bass/mid unit

with double neo compound magnet system.

Performance should meet or exceed the

following criteria: frequency response

1 metre on-axis with swept sinewave shall

be 130Hz to 27kHz, sensitivity shall be at

least 85dB for 2.83V@1m. The impedance

shall be 4 ohms. The Ci Series Ci80QR is

best suited where high quality music and

speech reinforcement applications require

hi-fi performance such as:

· Multi Room systems.

· Home Theatre systems.

· Lounges, Bars, Boutiques.

· Boardrooms & Offices.

Frequency range 130Hz - 27kHz*100Hz - 27kHz**

Sensitivity (2.83v @ 1m) 85dB

Rec. amplifier power 10 - 50W

Nominal Impedance 4Ω(min. 3.2Ω)

Crossover Frequency 3kHz

Enclosure material ABS

Terminals spring terminals up to Ø2.5mm (0.1”)

conductor

Dimensions (Ø x depth) Ø103 x 138 mm, Ø103 x 30 mm,

4.1 x 5.5 in.*4.1 x 1.2 in.**

Net weight 0.7kg (1.54lbs)*0.6kg (1.32lbs)**

500Hz 1kHz

2kHz 4kHz

8kHz 16kHz

PL1611EN

(Wall Install) (Ceiling Install)

The quality of a speaker is no less

important just because it’s out of sight - in

fact, with ceiling-mounted units, it can be

more so. Designed to smoothly integrate

and architecturally match with existing

downlighting sharing the same size bezel,

KEF’s trademark Uni-Q®technology has a

decisive performance advantage in these

applications, because each point source

driver array evenly disperses the sound,

ensuring a smooth frequency response

over a large area to create a spacious

three-dimensional soundscape with

genuine texture and depth.

With a two-way Uni-Q driver of 100mm

(4”), the Ci100QR is as satisfyingly musical

to hear as it is neat in appearance.

Features and Benefits:

Purpose built for flush mounting into walls

and ceilings these are the latest addition to

the KEF Uni-Q Custom Installation series.

Providing a compact solution to the

problem of Hi-Fi quality sound from an

in-wall/ceiling speaker, the Ci100QR

consists of a polypropylene cone LF driver

with the HF unit mounted at the acoustic

centre of the LF unit.

The bezel and grill can be painted to match

the interior décor.

KEF Audio (UK), Eccleston Road,T

ovil, Maidstone, Kent, ME15 6QP U.K. Telephone: + 44 (0) 1622 672261. Fax: + 44 (0) 1622 750653 www.kef.com

KEF America, 10

Timber Lane,Marlboro,New Jersey, 07746 USA. Telephone: + 1 732 683 2356. Fax: + 1 732 683 2358 www.kefamerica.com

GP Acoustics GmbH, Heinrichstraße 51, D-44536 Lünen, Deutschland. Telephone: +49 (0) 231 9860-320. Fax: +49 (0) 231 9860-330. www.kefaudio.de

Information Sheet

Polar graphs

Directivity Index / Beamwidth

Frequency / Power response, Input impedance

Installation

Architectural specifications:

The Ci Series Ci100QR comprises Uni-Q®

19mm aluminium dome tweeter with

100mm white polypropylene bass/mid unit

with double neo compound magnet system.

Performance should meet or exceed the

following criteria: frequency response

1 metre on-axis with swept sinewave shall

be 80Hz to 27kHz, sensitivity shall be at

least 88dB for 2.83V@1m. The impedance

shall be 4 ohms. The Ci Series Ci100QR is

best suited where high quality music and

speech reinforcement applications require

hi-fi performance such as:

· Multi Room systems.

· Home Theatre systems.

· Lounges, Bars, Boutiques.

· Boardrooms & Offices.

500Hz 1kHz

2kHz 4kHz

8kHz 16kHz

PL1594EN

Specifications

Frequency range 110Hz - 27kHz*80Hz - 27kHz**

Sensitivity (2.83v @ 1m) 88dB

Rec. amplifier power 10 - 50W

Nominal Impedance 4Ω(min. 4.1Ω)

Crossover Frequency 3kHz

Enclosure material ABS

Terminals spring terminals up to Ø2.5mm (0.1”)

conductor

Dimensions (Ø x depth) Ø127 x 153 mm, Ø127 x 100 mm,

5 x 6 in.*5 x 4 in.**

Net weight 0.8kg (1.76lbs)*0.7kg (1.54lbs)**

*With back can **Without back can

(Wall Install) (Ceiling Install)

When partnering with others in the range

try the Ci130DS as the perfect companion

for creating a high performance built-in

home theatre.

A 2-way, 3 driver, flush-mount dipole

loudspeaker, it can be mounted in the walls

or ceiling allowing far greater flexibility in

positioning than any of the competition.

Housed in the enclosure to ensure

optimum performance regardless of the

volume of cavity placement, the pair of

mid/HF units are angled 80° apart - to

obtain a dipolar radiation pattern - with

the bass unit firing on-axis to the listening

position. The driver configuration is set

into a moulded baffle with smooth

contours to improve dispersion. With its

unique properties such as switchable

bipole/dipole radiation pattern the

Ci130DS makes a versatile partner with

others in the range such as the Ci200.2QT

Features and Benefits:

Ci130DS combines 60W power handling

and 88dB sensitivity for a maximum output

of 106dB.

The 3-driver configuration has a mounting

depth of just 88mm (31⁄2”).

Best suited to high quality Music

Surround and Home Theatre applications,

for all the usual surround sound (including

digital) formats.

The stainless steel bezel and grille can be

painted or covered by fabric to match the

interior décor.

KEF Audio (UK), Eccleston Road,T

ovil, Maidstone, Kent, ME15 6QP U.K. Telephone: + 44 (0) 1622 672261. Fax: + 44 (0) 1622 750653 www.kef.com

KEF America, 10

Timber Lane,Marlboro,New Jersey, 07746 USA. Telephone: + 1 732 683 2356. Fax: + 1 732 683 2358 www.kefamerica.com

GP Acoustics GmbH, Heinrichstraße 51, D-44536 Lünen, Deutschland. Telephone: +49 (0) 231 9860-320. Fax: +49 (0) 231 9860-330. www.kefaudio.de

Information Sheet

Polar graphs

Directivity Index / Beamwidth (Bipole mode)

Frequency / Power response, Input impedance

Specifications

Installation

Architectural specifications:

The Ci Series Ci130DS comprise two

80mm polypropylene mid/HF units and

one 130mm polypropylene bass unit.

Performance should meet or exceed the

following criteria: frequency response 1

metre on-axis with swept sinewave shall

be 70Hz to 8kHz, sensitivity shall be at

least 88dB for 2.83V@1m.

The impedance

and maximum power shall be 60W at 4

ohms. The Ci Series Ci130DS is a

bipole/dipole loudspeaker, best suited at

the rear side or back walls or rear of

ceilings where high quality theatre

applications require hi-fi performance

such as:

· Multi Room systems.

· Home Theatre systems.

· Boardrooms & Offices.

Frequency range 70Hz - 8kHz

Sensitivity (2.83v @ 1m) 88dB

Rec. amplifier power 10 - 60W

Nominal Impedance 4Ω(min. 3.9Ω)

Crossover Frequency 750Hz

Enclosure material N/A

Terminals spring terminals up to Ø2.5mm (0.1”)

conductor

Dimensions (H x W x D) 277 x 367 x 103 mm, 10.9 x 14.4 x 4 in.

Net weight 2.8kg (6.2lbs)

500Hz

1kHz

2kHz

4kHz

8kHz

500Hz

1kHz

2kHz

4kHz

8kHz

PL1595EN

KEF

Dipole Bipole

Ce manuel convient aux modèles suivants

Table des matières

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
