Contents
1. Care and maintenance 3 ...........................................................................................................................................
1.1 Clean your machine 3 .............................................................................................................................................
1.2 Maintain the bearing track 4 ....................................................................................................................................
1.3 Change the plastic cutting strip 5 ..............................................................................................................................
1.4 Change the sightline strip 7 .....................................................................................................................................
Evolution3 SmartFold User Guide –
Care and maintenance
The world’s finest cutting machines
www.keencut.com
+44 (0) 1536 263158
+1 (716) 748 6203
[email protected] (UK HQ)
[email protected] (US sales)
Scan the QR code or
click here to view this document online >
Page 3 of 9
1. Care and maintenance
1.1 Clean your machine
See how to clean and maintain your machine in this video >
Use a vacuum cleaner to remove any dust and smaller debris.
Frequency: daily as required
Moisten a cloth with diluted detergent to wipe down the cutter
bar and base plate, dry with a cloth.
Frequency: weekly
DO NOT use solvents or aggressive cleaning products.
Evolution3 SmartFold User Guide –
Care and maintenance
The world’s finest cutting machines
www.keencut.com
+44 (0) 1536 263158
+1 (716) 748 6203
[email protected] (UK HQ)
[email protected] (US sales)
Scan the QR code or
click here to view this document online >
Page 4 of 9
1.2 Maintain the bearing track

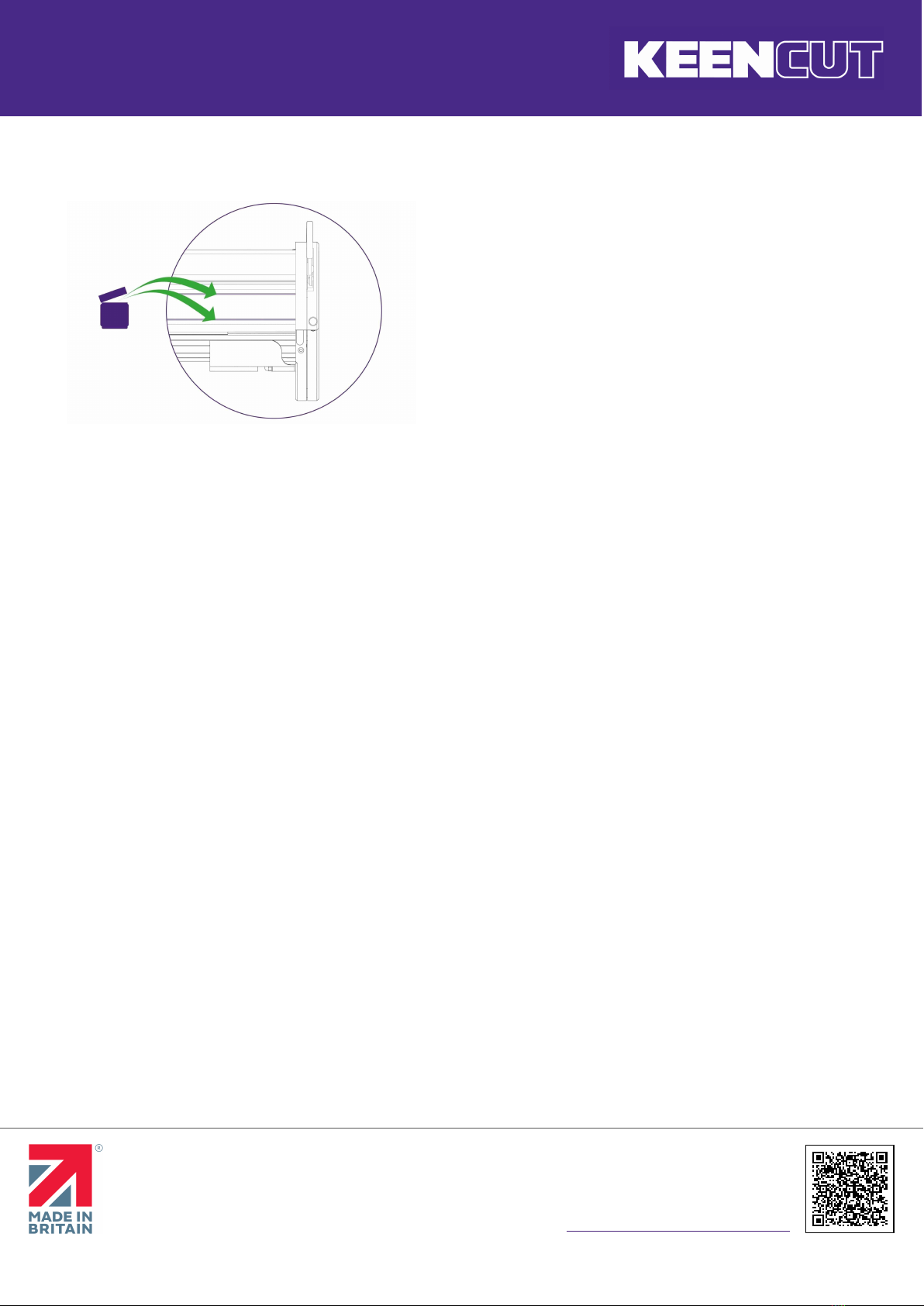

Put a small amount of petroleum jelly (Vaseline) on the scouring
surface of a dish washing sponge and rub it up and down the
two tracks. Wipe clean any surplus with a dry cloth.
Frequency:
Light use – monthly
Heavy use – weekly
Evolution3 SmartFold User Guide –
Care and maintenance
The world’s finest cutting machines
www.keencut.com
+44 (0) 1536 263158
+1 (716) 748 6203
[email protected] (UK HQ)
[email protected] (US sales)
Scan the QR code or
click here to view this document online >
Page 5 of 9
1.3 Change the plastic cutting strip
When using the Fabric tool head with the purple plastic cutting strip, it will become scored and require
replacing. Adjustment of the cutting pressure to keep it to a minimum for the fabric being cut will help to extend the life of
the strip. Check you have used all four cutting tracks on the strip before proceeding.
Carefully fold the cutter bar over to reveal the base plate. This
may require 2 people.
Be careful when lifting
Both sides of the cutting strip can be used, it is important the
strip is turned over in the correct orientation. The four tracks
are offset to one side so when the strip is turned over correctly
the new set of four tracks do not align with the originals.
The cutting strip is removed by sliding it to the right, to keep the
orientation of the strip correct the left hand end should remain
on the left once turned over.
Evolution3 SmartFold User Guide –
Care and maintenance
The world’s finest cutting machines
www.keencut.com
+44 (0) 1536 263158
+1 (716) 748 6203
[email protected] (UK HQ)
[email protected] (US sales)
Scan the QR code or
click here to view this document online >
Page 6 of 9
There is a small adhesive patch under the left hand end of the
strip to prevent it sliding in use, lift up the strip by sliding a flat
edge under the left hand end of the strip and it should then slide
to the right. A wide bladed flat screwdriver can be used
to help push the strip.
Turn over and re-insert the cutting strip so that the smooth
surface is now facing upwards and what was the left hand
end goes in first. Push it in nearly all the way, again use a flat
edge under the left hand end to raise the strip above the
adhesive patch, when in position press the strip onto the patch to
prevent it sliding.
Should the patch have lost its stickiness, peel it off and replace
with a small piece of double-sided adhesive tape.
Once the strip has been fully used on both sides a new strip will
be required, these are available from your dealer. Keencut part
code EVOTCS
Tip: Order replacement strips (or check stock) whenever turning
a strip over.
Evolution3 SmartFold User Guide –
Care and maintenance
The world’s finest cutting machines
www.keencut.com
+44 (0) 1536 263158
+1 (716) 748 6203
[email protected] (UK HQ)
[email protected] (US sales)
Scan the QR code or
click here to view this document online >
Page 7 of 9

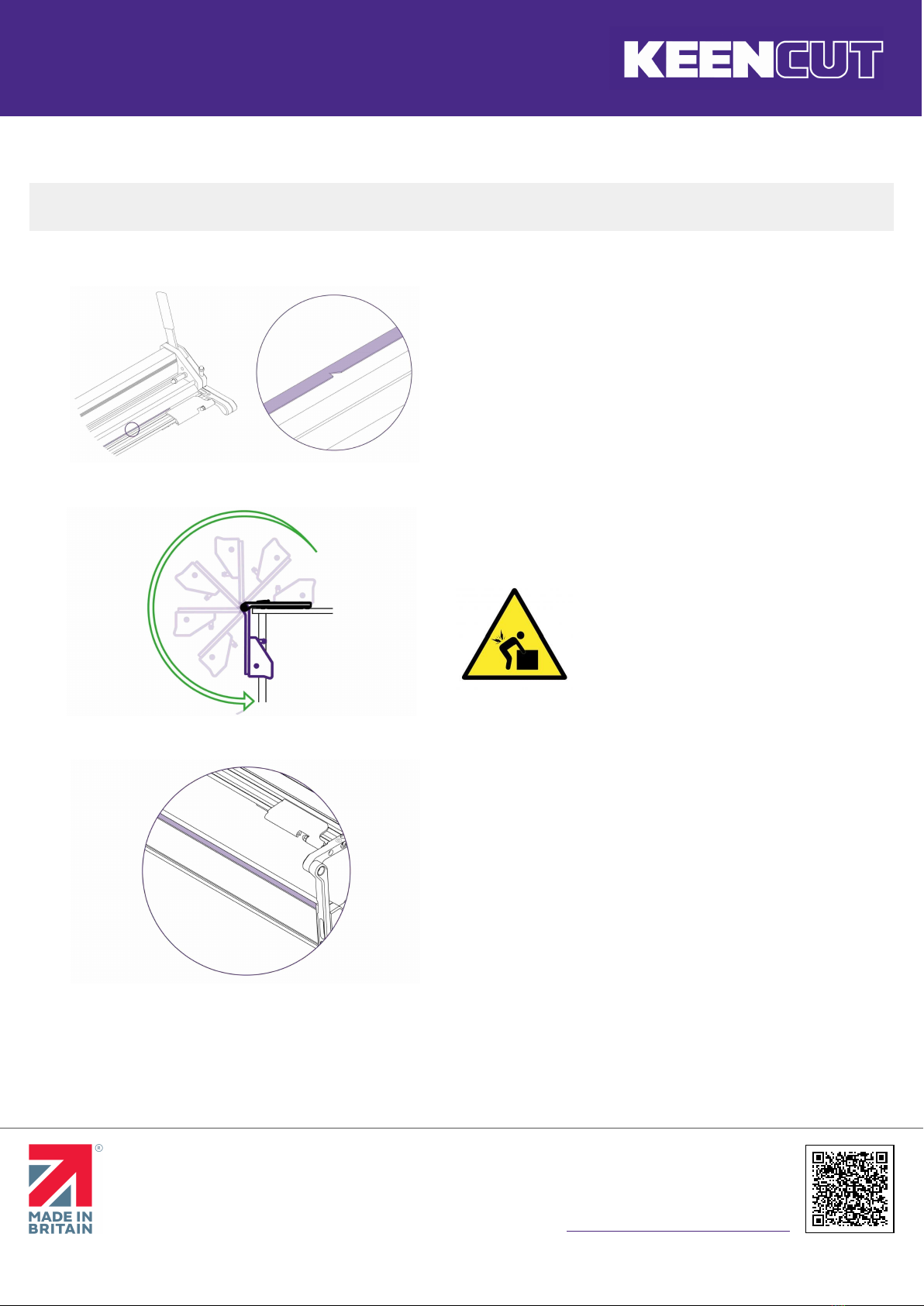

1.4 Change the sightline strip
IMPORTANT: Ensure that you have a replacement sightline strip before proceeding
When using your SmartFold, the sightline strip may become
scored or damaged.
To change the sightline strip, first grip the cutter bar firmly, lift
carefully and swing over the edge of the bench, bring gently to a
stop when vertical.
Be careful when lifting
You will see the sightline strip on the underside of the cutter
bar.
Evolution3 SmartFold User Guide –
Care and maintenance
The world’s finest cutting machines
www.keencut.com
+44 (0) 1536 263158
+1 (716) 748 6203
[email protected] (UK HQ)
[email protected] (US sales)
Scan the QR code or
click here to view this document online >
Page 8 of 9
Remove the damaged sightline strip making sure that all residue
from the adhesive tape is removed.
Your new sightline strip will have a protective backing on the
double sided tape found on the underside of the part. Remove
this backing.
Apply the sightline strip in stages from left to right, ensuring
that no wrinkles or bubbles form under the tape.
IMPORTANT: When trimming the sightline strip it must be done on a piece of scrap material or carefully on the purple
cutting strip or the sightline strip can slightly deflect into the groove
Evolution3 SmartFold User Guide –
Care and maintenance
The world’s finest cutting machines
www.keencut.com
+44 (0) 1536 263158
+1 (716) 748 6203
[email protected] (UK HQ)
[email protected] (US sales)
Scan the QR code or
click here to view this document online >
Page 9 of 9
Once you fold over your SmartFold, you will notice the sightline
strip is larger than it needs to be. Use the Double Graphik tool
head to gently cut the sightline strip.
Tip: it is recommended to do this in 3 passes to ensure that the
line cut by the blade is as straight as possible.
Once you have removed the excess, your sightline strip will be
configured to your machine giving 0.2mm of accuracy.
Tip: Order replacement strips (or check stock) when you notice
any damage.
