Kaysun KRE-500DX1 Mode d'emploi

KRE-500DX1 KRE-1000DX1

INSTALLATION, USER &

MAINTENANCE MANUAL

Cross-flow heat recovery

NOTES: The company reserves the right to modify data, pictures and all that is related to this printed matter without any notice.

pag. 2

INDEX

DECLARATION OF CONFORMITY................................................................................................................................................... page 3

GENERAL WARNINGS...................................................................................................................................................................... page 4

SYMBOLED USED ............................................................................................................................................................................. page 5

IDENTIFICATION UNIT ...................................................................................................................................................................... page 5

SECTION 1 - GENERAL CHARACTERISTICS................................................................................................................................. page 6

1.1 Presentation of the manual......................................................................................................................................................... page 6

1.2 General characteristics............................................................................................................................................................... page 6

1.3 KRE DX series technical data .................................................................................................................................................... page 6

1.4 Dimensions and weights KRE DX .............................................................................................................................................. page 7

1.5 Characteristic curves .................................................................................................................................................................. page 8

1.6 Sound power levels .................................................................................................................................................................... page 9

SECTION 2 - TRANSPORT ............................................................................................................................................................... page 9

2.1 Packing....................................................................................................................................................................................... page 9

2.2 Handling and transport ............................................................................................................................................................... page 9

2.3 Control upon reception ............................................................................................................................................................... page 9

2.4 Storage ....................................................................................................................................................................................... page 9

SEZIONE 3 - INSTALLATION AND START UP................................................................................................................................page 10

3.1 Definitions................................................................................................................................................................................... page 10

3.2 Safety Standards ........................................................................................................................................................................ page 10

3.3 Preliminary operations ............................................................................................................................................................... page 10

3.4 Choice of the installation place................................................................................................................................................... page 10

3.5 Positioning of the unit ................................................................................................................................................................. page 12

3.6 Drain tray connection.................................................................................................................................................................. page 12

3.7 Connection to the ducts.............................................................................................................................................................. page 12

3.8 Connecting the refrigerant pipes ................................................................................................................................................ page 13

3.9 Connecting PRE-DX................................................................................................................................................................... page 14

SECTION 4 - ELECTRICAL CONNECTIONS.................................................................................................................................... page 15

4.1 Electric board’s layout - DX Module .......................................................................................................................................... page 15

4.2 Wiring plan.................................................................................................................................................................................. page 16

4.3 Temperature sensor Installation ................................................................................................................................................. page 17

4.3 Wiring connection ....................................................................................................................................................................... page 18

4.4.1 Access to electrical panel........................................................................................................................................................... page 18

4.4.2 Insertion of the electrical supply line and signals for accessories ............................................................................................. page 18

SECTION 5 - SETTINGS MODULE ................................................................................................................................................... page 19

5.1 Application control ...................................................................................................................................................................... page 19

5.2 System address and network address setting............................................................................................................................ page 19

5.3 Checks before start up ............................................................................................................................................................... page 19

5.4 Module setting indications .......................................................................................................................................................... page 20

5.5 Error codes and Query .............................................................................................................................................................. page 23

SECTION 6 - PANEL SETTINGS AND ADJUSTMENTS.................................................................................................................. page 25

SECTION 7 - ORDINARY MAINTENANCE ....................................................................................................................................... page 28

7.1 Warning....................................................................................................................................................................................... page 28

7.2 Monthly checks........................................................................................................................................................................... page 28

7.3 Yearly checks ............................................................................................................................................................................. page 29

7.3.1 Biox-dx purifying system check .................................................................................................................................................. page 29

SECTION 8 - BREAKDOWN DIAGNOSTIC ...................................................................................................................................... page 30

SECTION 9 - DISPOSAL.................................................................................................................................................................... page 30

SECTION 10 - SPARE PARTS........................................................................................................................................................... page 31





!!%"

"!"+3"('"('(+&"-X.

$('(+&"-L-,+$%L+.' .

%+-"('('(+&"-.

%+"['('(+&".





$""   !%!!!

"!"+"&(



,(--(



%



'(,-+



,(%



+,)(',"%"-X



!



%



&!"'

0"+



+$%L+'



" '/+'-0(+-%"!



,,



"



&,!"'

'(.,



M%+(',



,(.,



'(-+



,.%



+,)(',"%"-M



*.



%



&!"'

%



+"'-



%+



#(



1%.,"/



+,)(',"%"



*.



%



&Y*."'



!%



- (+" 



$- (+" 



- (+" 



- (+" 



!%-")(







-2)







-2)







-")(







  $!!$!# "! !!! !#!!

 ! !"!%

 +",.%-"'('(+&"-X('*.'-()+/",-(%%, .'-""+--"/(&)+,%.%-"&&(""!('%+%-"/

% ",%3"(''3"('%"+)"&'-(

 '



'



(% ''



 +"!-%"'"'



/(+ ,!''



/(+,!+"-'



"',!%"

%"!



+



%-3-'



L'+.' '



,(0"



'



' 0'-'



%', ,-3'



'-,)+"!-

 ,-



('(+&



.1



"+-"/,







,."/'-,



(&)+",



%,



+'"Z+,



&(""-"(',



-



%



%M ",%-"('



'-"('%



."%



(++,)(''-

 ,



('(+&







%,



," ."'-,



"+-"/,







"'%.",



%,



\%-"&,



&("""(',







%



+%-"/



% ",%"['



'"('%







+)"['



  &(-.1*49).4*(6.8*

<D8FF<H4?466;<@8

 &4E6;<@8@D<6;F><@<8

    <D86F<H8EGD>8E?46;<@8E

    <D86F<H4?NCG<@4E 





 " /*(6420&,1*6.((203&6.'./.69

   A?B4F<5<><FO8>8FFDA?4:@8F<64

   >8=FDA?4:@8F<E6;8/8DFDP:><6;=8<F

   A?B4F<5<><FQQ>86FDA?4:@QF<CG8

   A?B4F<5<><7478>86FDA?4:@QF<64





 " 25





   (2)*5.,1

)DA:8FF4K<A@886A6A?B4F<5<>8

6A78E<:@

M6A6A@68BF<A@

6A7<E8SA



*53215.'/*62(2156.676*6-*6*(-1.(&/+./*.56-*(203&191:!&1)4*,.56*4*)&66-*-&0'*42+200*4(*2+#*421&6&/9

+8EBA@E45<>846AEF<FG<D8<>94E6<6A>AF86@<6AR>4EA6<8FO@U"-D8:<EFD4F4BD8EEA>44?8D47<A??8D6<A7</8DA@4"F4><4

/8D4@FIADF><6;89TD7<8F86;@<E6;8@.@F8D>4:8@KGE4??8@EF8>>8@@U"-<EF74E.@F8D@8;?8@58<78D!4@78>E=4??8DHA@/8DA@4"F4><8@D8:<EFD<8DF

+8EBA@E45>8BAGD6A?B<>8D>87AEE<8DF86;@<CG88EF>4EA6<QFQ@U"-8@D8:<EFDQ8O>4;4?5D878A??8D6878/8DA@48@"F4><8

@64D:47A788>45AD4D8>8JB87<8@F8FQ6@<6A8E>48?BD8E4@W"-D8:<EFD4748@>4N?4D478A?8D6<A78/8DA@4"F4><4



 '&







'(&







/(+'&







)+M'(&







'(&+



,.+'&







( '(&







3.'&







'(&







)%%"(,

(&)'2)(,"-"(')(,"3"('-+",)(,"-"('('-"('+ ( 







 





EDUARDO

ROMANO

BUSINESS UNIT MANAGER HVAC &ENERGY

FRIGICOLL, S.A. BLASCO DE GARAY, 4-6 , 08960 SANT JUST DESVERN , SPAGNA

SANT JUST DESVERN,06/11/2020



pag. 3

This manual is an integral part of the apparatus and then it must be preserved with care and it ALWAYS must accompany the machine, even in the

case of cession to another owner or user or in the case of a transfer on another system. In the case of its damage or losing, ask another copy to

the distributor Company.

The repairs or the maintenance must be carried out by expert and qualified staff as it is expected in this handbook. Don’t modify or tamper with the

machine because it can create dangerous situations and the distributor Company does not answer to possible damages.

Check the perfect integrity of all machine components. Check that in the packing all the accessories for the installation and the relevant documen-

tation, are included. In the case of not conformity turn to seller company.

The installation of the machine must be carried out by qualified Company according to the law March, 5th 1990 n° 46 which, at the end of the work,

must give to the owner, the declaration of conformity of installation workmanlike, that is in compliance with the regulations in force and with the indi-

cations of this handbook.

The distributor Company does not answer to possible damages to people, animals or things, due to wrong installation, regulations and maintenance

or due to illegitimate use.

Remember that in the use of products that use electrical energy and water, some fundamental rules of security must be observed.

In particular:

Children and handicapped people without assistance must not use the machine.

Don’t touch the machine if you are barefoot and if you are wet.

Do not proceed with cleaning or maintenance operations, before switching off the electric power supply.

Do not modify security or adjustement devices without permission and indications of the Manufacturer Company.

Do not pull, remove, twist electrical cables coming out from machine, even if these is disconnected from power supply network.

Do not walk up, sit down and/or place any objects on the machine.

Do not spurt water directly on the machine.

Do not open access doors of the machine, without positioning general switch of the system on "off" .

Do not scatter, leave close by children packing material because it could be dangerous.

GENERAL WARNINGS

pag. 4

IMPORTANT NOTES

THE HEAT RECOVERY UNITS OF KRE DX SERIES ARE ONLY SUITABLE FOR INTERNAL INSTALLATION

The heat recovery unit is a machine designed and built exclusively to change air in the civil environments, incompatible with toxic and

inflammable gases. Therefore it cannot be used in those environments where the air is mixed and/or altered by other gaseous com-

posites and/or solid particles.

The use of the same for different purposes from those envisioned, not conform to that described in this manual, will make any direct

and/or indirect liability of the Manufacturer automatically become null and void.

IDENTIFICATION OF THE UNIT

SYMBOLS USED

WARNING

DANGER

DANGER OF ELECTRICAL SHOCK

QUALIFIED STAFF ONLY

PROHIBITION

+"#((+

+"#(

0.'!+(

#.'(1) #.

#*/'+*#/'.#-1#*4

+(0%#&/#.#-1#*!3

+..#*0#2//+. '0

2'*,10!1..#*0

+"'!#

+"#

0"',.+"14'+*#

*1$!01.'*%"0#



."+

%."#

AManufacturer's mark

BManufacturer's address

CModel

DSerial number

EVoltage; number of phases; frequency

FMaximum absorbed current [A]

GCode

HManufacturing date

IIP Grade

LCE mark

MBarcode

pag. 5

SECTION 1 - GENERAL CHARACTERISTICS

1.1 Presentation of the manual

This manual describes the rules for the transportation, the installation, the use and the maintenance of the heat recovery. The user will find every-

thing that is normally useful to know for a correct and safe installation of the KRE DX unit.

The non-observance of what is described in this handbook and an inadequate installation of the KRE DX unit may cause the cancellation of the

guarantee that the Manufacturer/Distributor Company grants on the same one. The Manufacturer/distributor Company, moreover, does not

answer to possible direct and/or indirect damages due to wrong installation carried out by inexpert and/or non-authorised staff. At the moment of

the purchase, check that the machine is integral and complete. Claims will have to be produced within 8 days from the reception of the goods.

1.2 General characteristics

• Galvanized steel self-supporting panels, internally and externally insulated

• Counterflow air-to-air heat recovery device, made of plane sheets of special paper with special sealing to keep airflows separate and only

permeable to water vapor. Total heat exchange with temperature efficiency up to 76% and enthalpy efficiency up to 67%, also at high

level during summer season

• ISO 16890 Coarse 50% + ePM2.5 95% (F9 EN779) efficiency class filters on fresh air, Coarse 50% (G3 EN779) filer on return air intake. All

filters are made with synthetic cleanable media.

• Removable side panel to access filters and heat recovery in the event of scheduled maintenance

• Motorised heat recovery by-pass device automatically controlled by unit control to use fresh air free-cooling when convenient

•Low consumption, high efficiency & low noise direct driven fans with EC motors

•Supply section complete with DX coil (R410A) fitted with solenoid control valve, freon filter, contact temperature sensors on liquid and gas

line, NTC sensors upstream and downstream airflow

•Integrated sanitization system BIOX-DX®, switched on at fans running, able to do an efficient antibacterial treatment, ensuring a perfect heal-

thiness of supplied air

• Built-in electric box equipped with PCB to control internal fan speed and to interconnect outdoor/indoor units

• Duct connection by circular plastic collars

• PRE-DX-500 electric pre-heating module (available as an accessory) for temperatures below -5 °C.

1.3 KRE DX series technical data

MODEL KRE- 500DX1 1000DX1

Nominal air flow m3/h 500 1000

Nominal external static pressure Pa 90 115

Electrical power supply V/ph/Hz 220 - 240 / 1 / 50

Total full load amperage A0.6 2.1

WORKING LIMITS

Limit working temperature °C / % - 15 …+ 40°C / 10 … 95 %

FANS

Motor typology EC EC

Number of speeds 33

Fan control (1) Man Man

Internal specific fan power of ventilation components - SFP int (5) W/(m3/s) 547 881

Total nominal power input kW 0.15 0.39

Sound pressure level (2) dB(A) 39 43

HEAT EXCHANGER

Winter thermal effic. (3) %76.0% 76.0%

Winter enthalpy effic. (3)%67.0% 62.0%

Summer thermal effic. (4) %76.0% 76.0%

Summer enthalpy effic. (4) %63.0% 60.0%

Dry thermal efficiency (5) %76.0% 76.0%

DX COIL

Heating capacity (6) kW 2,5 (2,7) 5,2 (6,7)

Approximate supply air temperature at (6) condition °C 28,0 (27,3) 28,5 (27,8)

Approximate supply air humidity at (6) condition %16 (15) 15 (14)

Total cooling capacity (7) kW 3.0 5.8

Sensible cooling capacity kW 2.1 4.1

Approximate supply air temperature at (7) condition °C 15.9 16.2

Approximate supply air humidity at (7) condition %90 89

pag. 6

KRE- 500DX1 1000DX1

ACCESSORIES

• Electric pre-heater module - PRE-DX

Finned pipe coil with safety thermostats enclosed between galvanized steel plates with duct round adapters downstream and upstream, to be pla-

ced externally, connected to the suction of fresh air stream.

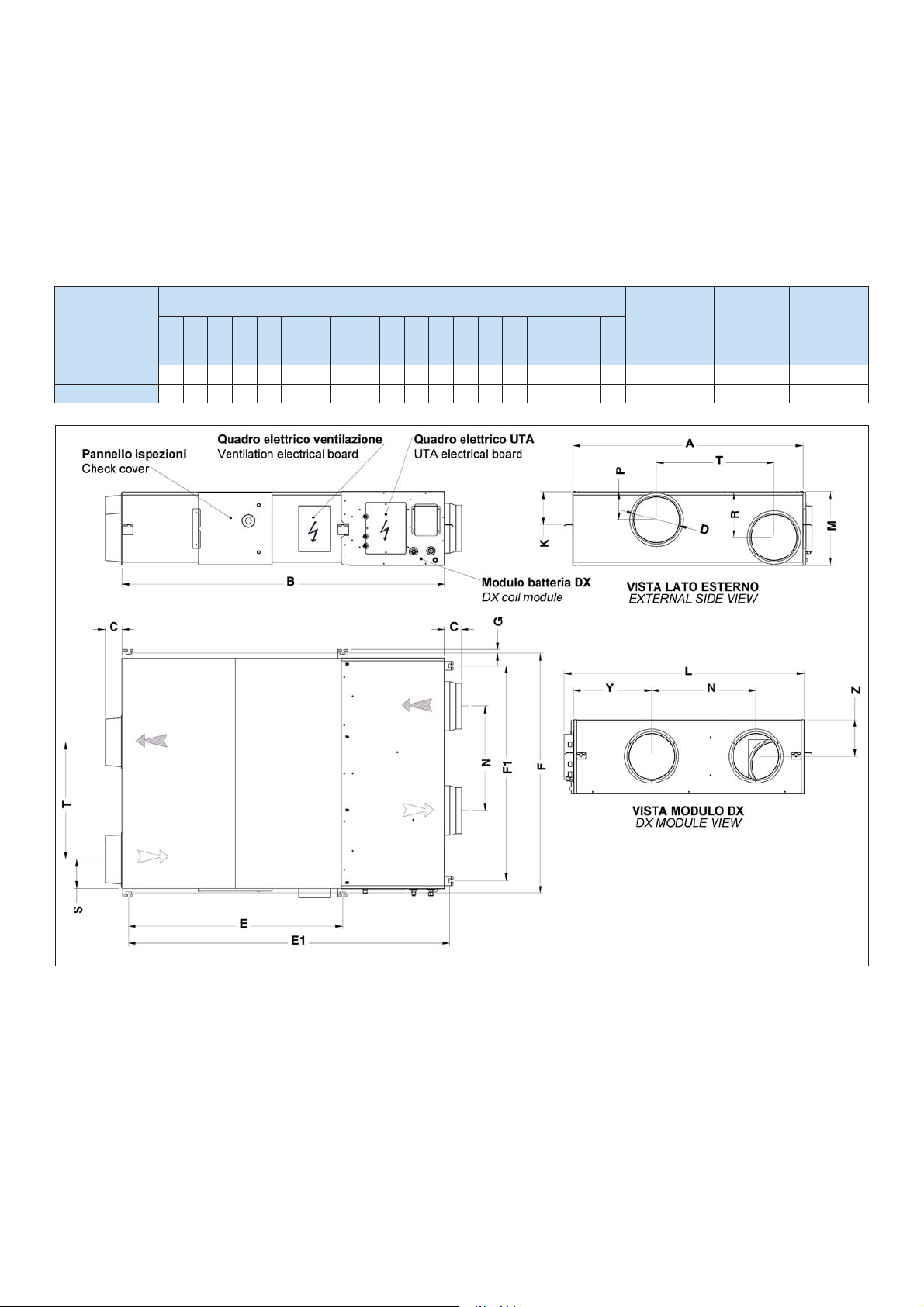

1.4 Dimensions and weights KRE DX

(1) Man = Manual by selector switch or control panel;

(2) Sound pressure level calculated at 1 m far from service side of casing, with ducted supply, exhaust, return and fresh air, at nominal condi-

tions return-fresh air intake/service side, at nominal conditions.

(3) Outside air at -5° 80% RH; room air at 20°C 50% RH

(4) Outside air at 32° 50% RH; room air at 26°C 50% RH

(5) Refeer to EU 1253/2014 regulation: at nominal pressure; air conditions refer to EN 308 standard

(6) Air inlet condition: 13°C DB, RH 40% (11°C DB, RH 45%); condensing temp. 40°C

(7) Air inlet condition: 28,5°C DB, RH 50%; evaporating temp. 7°C

pag. 7

Model

Dimension [mm]

Weight net / gross

[Kg]

Packing

dimensions

[mm]

Packaging

overlap

A B C D E E1 FF1 G L T K M N P R S Y Z

KRE-500DX1 904 1450 107 200 825 1445 960 830 19 955 500 135 270 350 135 135 202 350 135 90 - 98 1750x1120x420 6

KRE-1000DX1 1216 1750 85 250 1130 1750 1273 1140 19 1290 621 171 388 550 146 241 151 415 195 105 - 120 2080x1460x540 5

1.5 Characteristic curves

100

150

200

250

300

0 100 200 300







External static pressure [Pa]

400 500 600

Air flow [m3/h]

100

200

300

400

500

0 200 400 600 800 1000 1200 1400







External static pressure [Pa]

Air flow [m3/h]

KRE-500DX1

KRE-1000DX1

pag. 8

KRE-500DX1 Sound power levels Lw at center band frequencies Total Lw

Hz 63 125 250 500 1000 2000 4000 8000

Supply duct dB(A) 32.8 37.9 54.9 55.5 54.2 52.2 44.0 33.9 60.5

Exhaust duct dB(A) 32.8 46.9 54.2 55.6 55.0 52.2 44.0 33.9 60.7

Outside the casing dB(A) 27.8 33.1 42.8 41.3 40.0 37.4 12.7 9.0 47.0

1.6 Sound power levels

Noise at nominal working point

KRE-1000DX1 Sound power levels Lw at center band frequencies Total Lw

Hz 63 125 250 500 1000 2000 4000 8000

Supply duct dB(A) 46.4 52.9 60.1 59.3 59.0 59.0 52.5 47.9 66.0

Exhaust duct dB(A) 45.8 52.5 57.0 58.1 56.6 57.2 52.0 47.9 64.1

Outside the casing dB(A) 41.1 41.4 44.8 44.3 43.0 43.2 20.3 17.9 51.0

Noise at nominal working point

SECTION 2 - TRANSPORT

2.1 Packing

• The regenerators and their accessories are inserted in cardboard boxes that will have to remain integral until the moment of the assembly.

• The components that, due to technical requirements, are not assembled, are supplied packed in a suitable covering and fixed to the inside or

outside of the unit.

2.2 Handling and transport

• For the handling, in function of the weight, use adequate means in conformity to the directive 89/391/EEC and successive modifications.

• The weight of every single machine is shown on the attached technical data sheet.

• Avoid rotations without control.

• Take utmost care during loading operations: all the machines must be loaded and stored in the truck interposing opportune spacers to safe-

guard all protruding parts like water couplings, handles, hinges.

2.3 Control upon reception

Upon reception of the goods, please carry out a control of all the parts, verifying that the transport has not caused damages. All damages must

be communicated to the carrier, putting a reserve clause on the delivery note and specifying the type of damage.

2.4 Storage

In case of long term storage, keep the machines protected from dust and from all sources of vibrations and heat.

The manufacturer company declines every responsability for damages due to uncorrect unloading or not sufficient protection

against atmospheric agents.

pag. 9

SEZIONE 3 - INSTALLATION AND START UP

3.1 Definitions

CUSTOMER - The customer is the person, the agency or the company, that has acquired or rented the unit and that uses it for the conceived

purpose.

USER / OPERATOR - The operator or user is the physical person who has been authorised from the customer to operate with the machine

SPECIALISTIC STAFF - Intended are all those physical persons who have achieved a specific training, are therefore in a position to recognize

the dangers deriving from the use of this machine and are able to avoid them.

3.2 Safety Standards

The Manufacturer/Distributor Company declines whichever responsability for the non observance of the emergency and prevention norms

described below.

It declines furthermore responsibility for damages caused by an improper use of the unit and/or by modifications carried out without authoriza-

tion.

• The installation must be carried out by expert and qualified staff.

• During installation operations, use suitable accident-prevention clothing, as an example: glasses, gloves, etc as indicated by the 686/89/EEC

and successive norms.

• During installation, operate in absolute safety, in clean surrounding and free from impediments.

• Respect the laws in force in the Country in which the unit is installed, concerning the use and the disposal of the packings and the products

used for cleaning and maintainig the machine and follow the manufacturer instructions of such products.

• Before putting the unit in function, check the perfect integrity and safety of all components and of the entire system.

• Avoid at all cost to touch the parts in motion or to intefere with the same ones.

• Do not proceed with cleaning or maintenance operations, before switching off the electric power supply.

• The maintenance and the substitution of damaged or worn out parts of the unit must be carried out by qualified staff only and following the

indications contained in this handbook.

• Spare parts must correspond to the requirements defined by the Manufacturer Company.

• In case of dismantling of the unit, follow the relevant antipollution norms.

N.B. When using the unit, the installer and the user must take into account and place remedy to all the other types of risk connected with the

sistem. As an axample risks deriving from entry of foreign bodies, or risks deriving from the conveying of dangerous gases that are inflamma-

ble or toxic at high temperature.

3.3 Preliminary operations .

• Check the perfect integrity of all components.

• Check that in the packing all the accessories for the installation and the relevant documentation, are included.

• Transport the packed section as close as possible to the installation place.

• Do not put tools or weights over the packed unit.

3.4 Choice of the installation place

• Place the unit on a solid structure that shall not causes vibrations and that is solid enough to support the weight of the machine.

• Do not place the unit in rooms where inflammable gases, acids or aggressive and corrosive substances may be present. These could dama-

ge the different components in an irreparable way.

• Foresee a minimum free space as shown on the following figures, to make possible the carrying of scheduled and not scheduled maintenan-

ce; in order to do maintenance to BIOX-DX system, allow accessibility from lower side around supply section with DX coil.

pag. 10

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kaysun Système de chauffage

Kaysun

Kaysun KRE-1500DX1 Manuel

Manuels Système de chauffage populaires d'autres marques

aerauliqa

aerauliqa QR350ABP Manuel utilisateur

WatchGas

WatchGas ATEX BEACON Manuel utilisateur

Viessmann

Viessmann Vitoligno 300-H Mode d'emploi

Lampoassa

Lampoassa 203GT Manuel utilisateur

MSA

MSA SOA-1022 Manuel utilisateur

nilan

nilan Compact P Manuel utilisateur

ITR

ITR OASIS NE-S Manuel utilisateur

Carrier

Carrier 48LJD Dimensions et guide d'installation

aldes

aldes EVEREST XV Manuel utilisateur

Kober

Kober C22SPV23MEF Manuel utilisateur

Oxygen

Oxygen X-Air V400 Manuel utilisateur

Carrier

Carrier FB4CNF Manuel utilisateur

Kroll

Kroll HM200 Manuel

Kroll

Kroll HM200 Manuel

NuAire

NuAire XBOXER XBC Series Manuel utilisateur

Trane

Trane VR104GD-U Series Manuel utilisateur

Vents

Vents VUT V mini Manuel utilisateur

Viessmann

Viessmann Divicon Manuel utilisateur
