Operating Instructions

All Purpose Blasting System

EWL 5423/5030

0.488.5740 ●RB ●09/97 ● GB 02.09

KaVo Elektrotechnisches Werk GmbH

Wangener Straße 78

D-88299 Leutkirch

Tel.: 0 75 61 / 86-0 • Fax: 0 75 61 / 86-22 2

TABLE OF CONTENTS

A 1 User information ..........................................................................................................................................2

A 1.1 Meaning of the pictograms ..................................................................................................................2

A 1.2 Important information ..........................................................................................................................2

A 1.3 Precautions ..........................................................................................................................................2

A 2 Scope of delivery –Accessories ................................................................................................................3

A 3 Mains voltage – Mainsfrequency ..............................................................................................................4

A 4 Location ........................................................................................................................................................4

A 5 Mounting and connection ..........................................................................................................................5

A 6 Preperations for commencing operation ..................................................................................................6

A 6.1 Filling the abrasive container DP in the recirculating blasting range ..................................................6

A 6.2 Filling the abrasive containers inthe disposable abrasive range. ........................................................6

A 6.3 Fitting gloves or cuffs EM ....................................................................................................................7

A 6.4 Setting the blasting pressure in the recirculating blasting range. ........................................................7

A 6.5 Setting the blasting pressure in the disposable abrasive range. ........................................................7

A 6.6 Dust collector EWL 5030 ......................................................................................................................8

A 7 Organes de commande et defonctionnement ..........................................................................................9

A 8 Operation ....................................................................................................................................................11

A 8.1 Dust collector EWL 5030 ....................................................................................................................11

A 8.2 All purpose blasting station EWL 5423 ..............................................................................................12

A 8.3 Abrasive blasting in the recirculating blasting range ..........................................................................13

A 8.4 Fine blasting in the disposableabrasive range ..................................................................................14

A 9 Maintenance ..............................................................................................................................................15

A 9.1 Apply a touch of oil or grease to the chisel EWL 5419 once a month. ..............................................15

A 9.2 Changing gloves/cuffs ........................................................................................................................15

A 9.3 Changing the abrasive in the recirculating blasting range ................................................................16

A 9.4 Refilling the storage containers in the disposable abrasive range ....................................................16

A 9.5 Changing nozzles in the disposable abrasive range. ........................................................................16

A 9.7 Changing the protection shield ..........................................................................................................17

A 9.8 Changing the fluorescent tube ..........................................................................................................17

A 9.9 Dust collector EWL 5030 ....................................................................................................................18

A 9.10 Changing the micro filter ..................................................................................................................18

A 10 Operating faults ........................................................................................................................................19

A 11 Technical data ............................................................................................................................................22

Guarantee conditions ..................................................................................................................................24

Declaration of conformity ..............................................................................................................................25

Spare parts EWL 5328..................................................................................................................................26

Spare parts EWL 5419..................................................................................................................................32

Spare parts EWL 5030..................................................................................................................................33

K-Control-control unit 1

2EWL 5423/5030

A 1.2 Important information

The instructions for use should be

read by the user before starting up the

unit for the first time, in order to avoid

incorrect operation and other damage. If

other language versions are required, please

request these from your responsible KaVo

agent.

Duplication and distribution of the

instructions for use (IU require KaVo's

prior consent.

All technical data, information and proper-

ties of the product described in the IU cor-

respond to the state on going to press.

Modifications and improvements to the

product as a result of new technical devel-

opments are possible.

This does not imply any right to retrofitting

of existing units.

KaVo assumes no responsibility for damage

arising through:

• external influences (poor quality of the

media or inadequate installation

• use of incorrect information

• improper use

• improperly performed repairs.

Repair and maintenance work - apart from

the activities described in these instructions

for use - may be performed only by quali-

fied technical personnel.

In the event of modifications by third par-

ties, the approvals become null and void.

KaVo recommends using only original

spare parts for operation and for repair.

A 1.3 Precautions

Safe operation and protection of the unit are

ensured only through proper use in accor-

dance with the instructions for use and

using the tools approved for the purpose.

The following should also be observed:

• the work safety regulations,

• the accident prevention regulations.

• Each time before switching on, check the

set speed.

• Observe the permissible maximum speed

and maximum pressure of the tools (accord-

ing to tool manufacturer's instructions .

According to these provisions, it is the

user’s obligation:

• to use only fault-free operating materials

• to ensure that it is used for the correct

purpose

A 1 User information

A 1.1 Meaning of the pictograms

Situations where failure to follow the

instructions may lead to danger,

damage to material or operating faults.

Important information for operator

and engineer.

Automatic mode

Automatic sequence

Close, screw in,

fasten, etc.

Open, release, loosen

+ more, higher

- less, lower

• Continuous operation

Time, time sequence

Disconnect mains plug

EWL 5423/5030 3

OPERATING INSTRUCTIONS

A 2 Scope of delivery –Accessories

Check that the equipment is complete:

2.1 All purpose blasting system EWL

5423/5030 consisting of:

1 All purpose blasting station EWL 5423

1 Pair of gloves size L

2 Cuffs

1 Dust collector EWL 5030

1 Suction hose

1 Pack of 5 spare filter bags

1 Fine blast nozzle 0.5

(used at coarseness grade up to 50 mm

Order no. 620 2792

2.1.1 All purpose blasting system EWL

5423/5030 ith orkstation consisting of:

1 All purpose blasting system

EWL 5423/5030

1 Formdent work bench

2.2 Accessories supplied on request:

Abrasive GP-50/10 kg 0.620.4630

Abrasive EK-25/10 kg 0.620.4670

Abrasive EK-50/10 kg 0.620.4640

Abrasive EK-100/10 kg 0.620.4680

Abrasive EK-150/10 kg 0.620.4650

Rosette ∅80 mm 0.658.8652

Pressure reductor unit 0.620.3642

These instructions are also applicable

to the:

- Recirculating Blasting Station EWL 5420

(without microfine blasting pencils

- Microfine Blasting Station EWL 5433

(without recirculating blasting nozzle

4EWL 5423/5030

A 3 Mains voltage – Mainsfrequency

3.1 Electrical connection

Check that the local mains voltage (± 10%

and mains frequency coincide with the

speci-fications on the rating plate.

The electric mains necessary for operation

has to be protected by fuse with max. 16 A.

3.2 Connected load

220 V 50/60 Hz

220 V 50 Hz

240 V 50 Hz

100 V 50/60 Hz

110 V 50/60 Hz

120 V 50/60 Hz

127 V 50/60 Hz

All purpose blasting station

EWL 5423

Power rating approx. 45 W

Dust collector EWL 5030

Power rating approx. 1000 W

Only attachments up to a maximum cur-

rent consumption or power rating of:

approx. 12 A with 100-130 V

approx. 5.5 A with 220 V (CH

approx. 2200 W with 220-240 V

approx. 5.5 A with 240 V (Austral.

approx. 8 A with 240 V (GB

may be connected to the dust collector

EWL 5030.

A 4 Location

4.1 All purpose blasting station EWL

5423 is intended for work in a standing

position at a recommended bench height of

870 mm.

4.1.1 The built-in dimensions should be

taken into account:

All purpose blasting station EWL 5423

Height: 715 mm

Width: 460 mm

Depth: 457 mm

Height clearance: 935 mm

(with protection shield open

Dust collector EWL 5030

Height 620 mm

Width: 460 mm

Depth without suction hose: 410 mm

Depth with suction hose: 490 mm

Operating the all purpose blasting

station EWL 5423 as specified by the

ma-nufacturer is possible under the

conditions according to IEC 1010, 1.4.

EWL 5423/5030 5

OPERATING INSTRUCTIONS

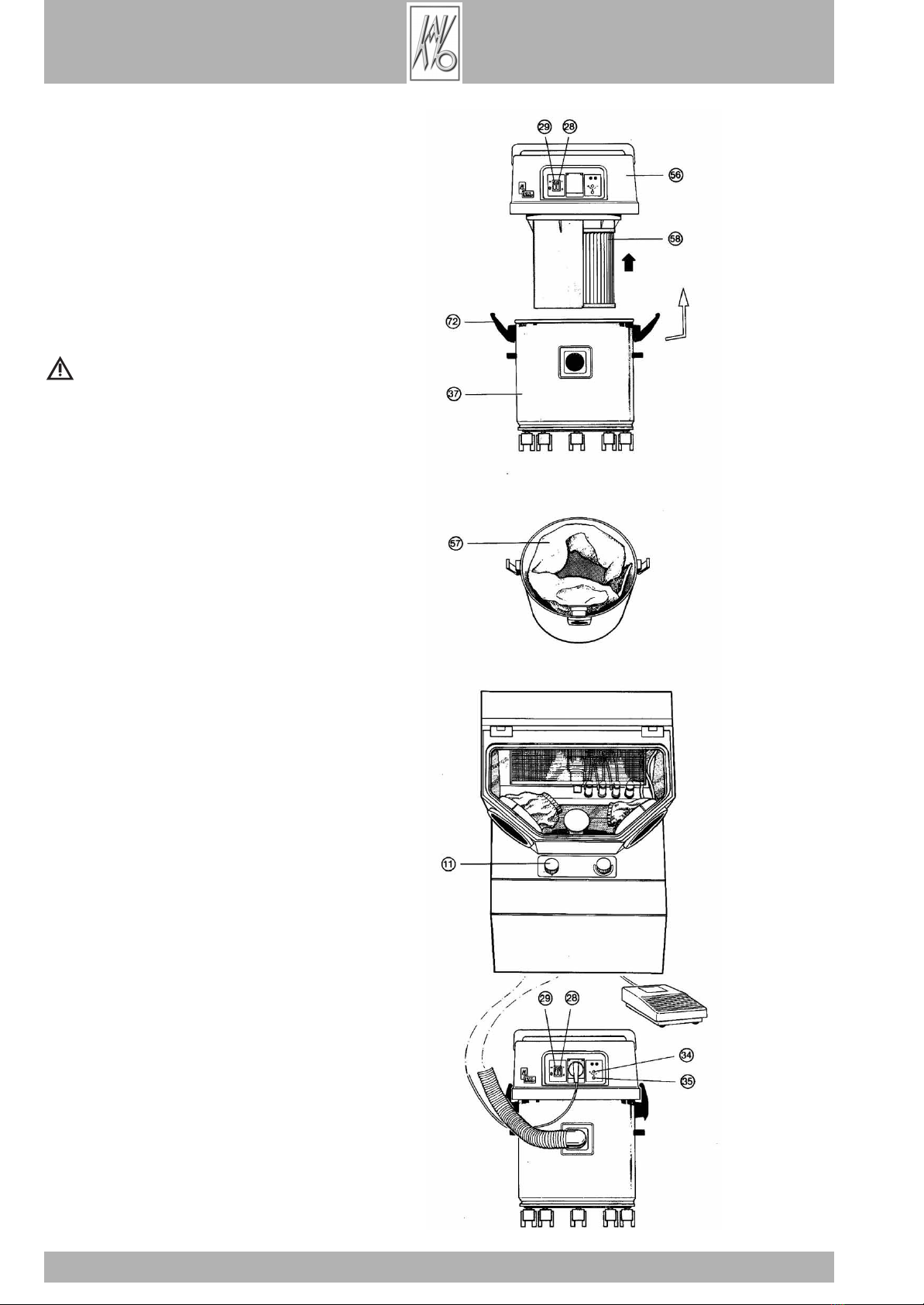

A 5 Mounting and connection

5.1 Install the all purpose blasting station

EWL 5423 on the selected site.

Do not operate the all purpose blast-

ing station EWL 5423 without

suction. The extractor must be fitted with

an approved filter (such as in dust collector

EWL 5030 when work invol-ving

noxious materials such as investment

compounds containing quartz is undertaen.

5.2 Dust produced by the all purpose

blasting station EWL 5423 is sucked out

through the extraction point .

5.2.1 Insert suction hose  into hose noz-

zle  of dust collector EWL 5030.

5.2.2 Insert suction hose CP into suction

nozzle  of extraction point on the all pur-

pose blasting station EWL 5423 (cut suc-

tion hose shorter if required .

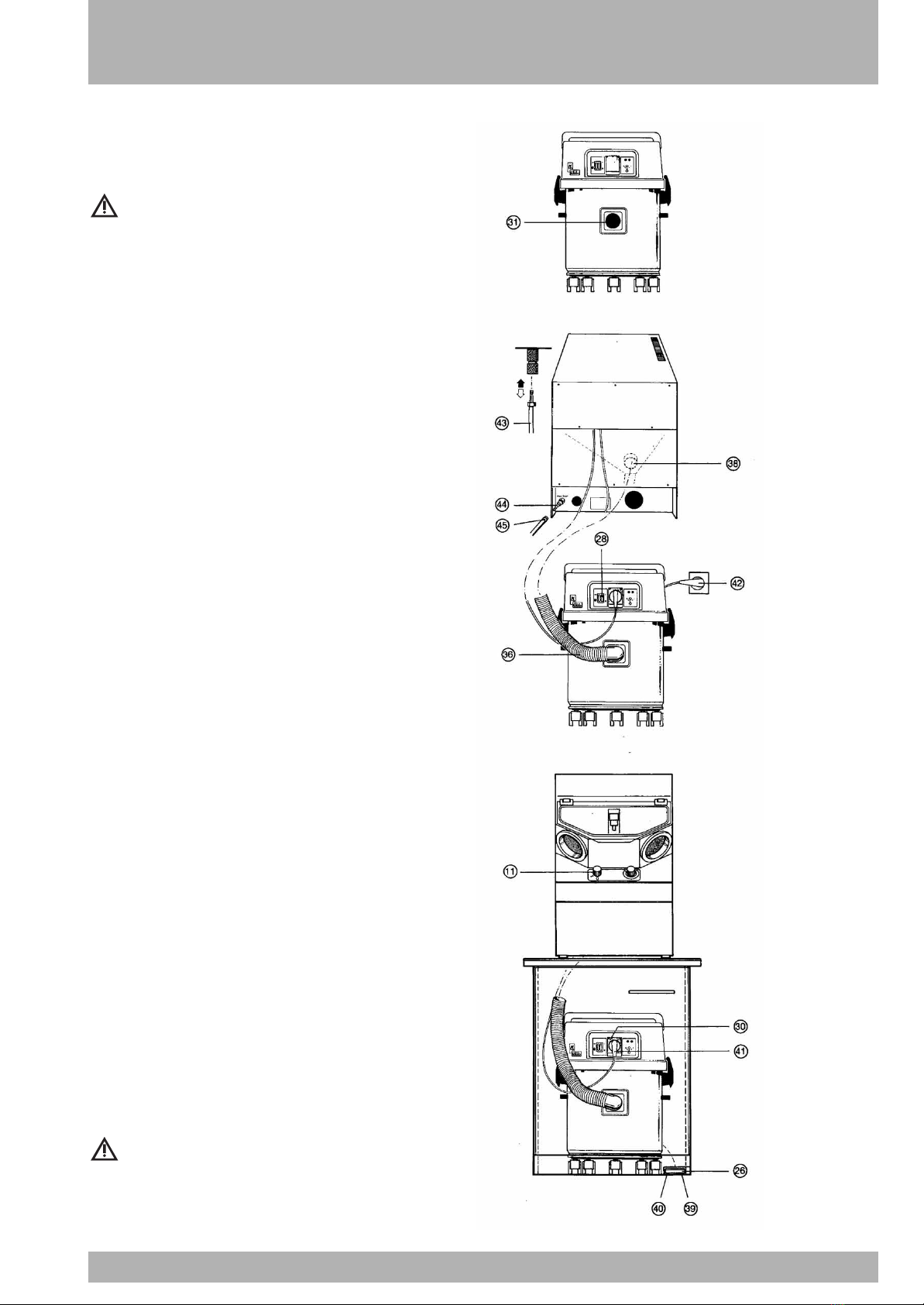

5.3 Installation of all purpose blasting

system EWL 5423/5030 ith ork-station.

5.3.1 Insert suction hose  into hose noz-zle 

of dust collector EWL 5030.

5.3.2 Feed suction hose  through the

apertures in the shelf's base-plate and the

table-top of the Formdent work bench or

slide up the cover in the cabinet door

element.

Insert suction hose  into suction nozzle

 of the extraction point (cut suction hose

shorter if required .

5.3.3 Fit the foot switch  at the bottom

and fix it in position by inserting the rubber

feet  in the holes  provided in the

recess in the base of the pedestal element.

5.4 Press the power switch  on dust

collector EWL 5030 to position "0" OFF

and plug the power plug  into a correctly

earthed socket outlet.

5.5 Set the rotary switch  on the all

purpose blasting station EWL 5423 to "0"

OFF. Insert the power plug  into the

socket  of the dust collector EWL 5030.

5.6 Fit the compressed-air hose  onto

the connection nozzle  and screw up

firmly with the hose clip .

5.6.1 Connect compressed-air hose  to

the connection provided on site and check

for leaks.

The line air pressure must not exceed

6 bar. If the air pressure supplied is

higher, a pressure reductor unit, ord.no. 620

3642, must be fitted in the line. Use only

dry compressed air!

6EWL 5423/5030

A 6 Preperations for commencing

operation

A 6.1 Filling the abrasive container

 in the recirculating blasting range

6.1.1 Check to ensure that the sealing

cap  is properly fitted.

6.1.2 Open the protection shield 1in the

direction of the arrow and fill the all

purpose blasting station EWL 5423 with the

abrasive required (max. grain size 250 mm .

Leave the basket



in the unit when

refil-ling so that any large particles

will remain on the perforated plate and

clogging of the suction system is avoided.

6.1.3 The quantity to be filled is approx.

9.5 kg but must not be above the top edge

of the permanently fitted perforated plate.

6.1.4 Check the profiled joint  and clean

if necessary.

6.1.5 Close the protection shield in

the direction of the arrow.

A 6.2 Filling the abrasive containers

inthe disposable abrasive range.

6.2.1 Pull out the drawer  in the direction

of the arrow.

6.2.2 Unscrew and remove the container

cover ,  or .

6.2.3 Fill the abrasive container with the

appropriate abrasive according to range.

Range I (red/violet : Grain 25 - 150 mm

Range II (lime green : Grain 25 - 150 mm

Range III (pigeon blue :Grain 100 -250 mm

Depending on the grain, up to approx. 1.5

kg are to be filled in, but the red mark on

the vertical tube  must not be exceeded.

In the case of a very fine grain, fill-

ing should be less to avoid any

spillage.

6.2.4 Check O-ring  and clean if neces-

sary. Refit container cover.

The all purpose blasting station EWL

5423 is not ready to operate when the

protection shield

or drawer



is open.

EWL 5423/5030 7

OPERATING INSTRUCTIONS

A 6.3 Fitting gloves or cuffs EM

6.3.1 Fully slide back protective grille 2.

6.3.2 Remove the clamping ring  in the

direction of the arrow . Evenly mount

glove or cuff  onto the muff .

The gloves' thumbs must be pointing

forwards.

6.3.3 Slide clamping ring  over glove/

cuff  as far as it will go.

To avoid any risk of pain, it is advis-

able to wear gloves when using the

blasting unit.

A 6.4 Setting the blasting pressure in

the recirculating blasting range.

6.4.1 Lift the cover flap  in the direction

of the arrow.

6.4.2 Adjust the blasting pressure from 0

to max. 6 bar by turning the pressure

control  in the appropriate arrow

direction + according to the pressure gauge .

A 6.5 Setting the blasting pressure in

the disposable abrasive range.

6.5.1 Set the required blasting pressure

with pressure controls ,  and  for

blasting ranges I, II and III as indicated on

pressure gauges ,  and .

When using glass beads do not

exceed a max. pressure of 3 bar.

8EWL 5423/5030

A 6.6 Dust collector EWL 5030

6.6.1 Press power switch  into position

"0" OFF.

6.6.2 Open the clamps  in the direction

of the arrow and take off the top part of

the unit .

6.6.3 Check that the filter bag  and

micro filter  are correctly fitted. Replace

the top part of the unit  on the filter

container .

The dust collector EWL 5030 must

only be operated with the two filters

(filter bag



and micro filter



fitted.

6.6.4 Setting the response sensitivity in

the automatic position.

6.6.5 Press power switch  to position

"I" ON and selector  to the "Automatic"

position.

6.6.6 Set the rotary switch  on the all

purpose blasting station EWL 5423 to

position "I" ON. Actuate either the foot

switch, blowing nozzle or chisel and set the

response sensitivity on the potentiometer

 using a small screwdriver.

6.6.7 Turn potentiometer  clockwise +

until the green LED  lights up

continuously and dust collector EWL 5030

starts.

6.6.8 Switch off the all purpose blasting

station EWL 5423. The dust collector EWL

5030 must then also switch off after a few

seconds latency time.

6.6.9 When selector  is set to position

"continuous mode" , the dust collector

EWL 5030 is switched on and off with the

power switch .

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels KaVo Outils électriques

KaVo

KaVo EWL 5407 Manuel utilisateur

Manuels Outils électriques populaires d'autres marques

AEG

AEG OMNI-JS Manuel utilisateur

SIP

SIP 01533 Manuel utilisateur

Ribimex

Ribimex PRS499 Manuel utilisateur

3M Fiber Optic Connector Crimp Tool Manuel utilisateur

Ryobi

Ryobi P524 Manuel utilisateur

ROJEK

ROJEK FSN 300A Manuel utilisateur

Kemper

Kemper 1740PRO Manuel utilisateur

WABCO

WABCO OptiTire Manuel utilisateur

EINHELL

EINHELL TE-MS 18/210 Li Manuel utilisateur

Orgapack

Orgapack OR-T 85 Guide rapide

TOUGHCUT

TOUGHCUT Diamond 400 Manuel utilisateur

Yaros

Yaros PB-3603 Manuel utilisateur

Fein

Fein BSS 2.0 E Guide de configuration

Baileigh Industrial

Baileigh Industrial SS-2725 Manuel utilisateur

Milwaukee

Milwaukee 2674-20 Manuel utilisateur

Fein

Fein BLs 1.6 Manuel utilisateur

Princess

Princess Electric Multi Sharpener Manuel utilisateur

FOREDOM

FOREDOM K.1050 Manuel
