Kargo Master 4A824 Manuel
Kargo Master
Rancho Cordova, CA 95742
800-343-7486
CustomerService@KargoMaster.com
20201215R1 DATE: ________________
Instruction Guide
4A824
Instructions –4A824
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 1
*PLEASE READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLING, INSTALLING,
AND USING THIS PRODUCT.*
Warning
ALWAYS SECURE ALL PAYLOADS AND LADDERS PRIOR TO TRANSPORT OR MOVING
VEHICLE.
Tools Needed
1/2” Socket and Wrench
1/2” Box Wrench
Table of Contents
Parts .................................................................................................................................................................. 2
Hardware .......................................................................................................................................................... 2
Step 1 –Assemble Foot Assemblies.................................................................................................................. 3
Step 2 –Attach Foot Assemblies ...................................................................................................................... 4
Step 3 –Attach End Stops................................................................................................................................. 5
Step 4 –Install Rack to Vehicle ......................................................................................................................... 6
Before You Begin
Read all instructions prior to assembling or installing any Kargo Master product.
Always locate your installation locations prior to performing any work.
ENSURE SAFETY WHILE INSTALLING ONTO VEHICLE.
Instructions –4A824
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 2

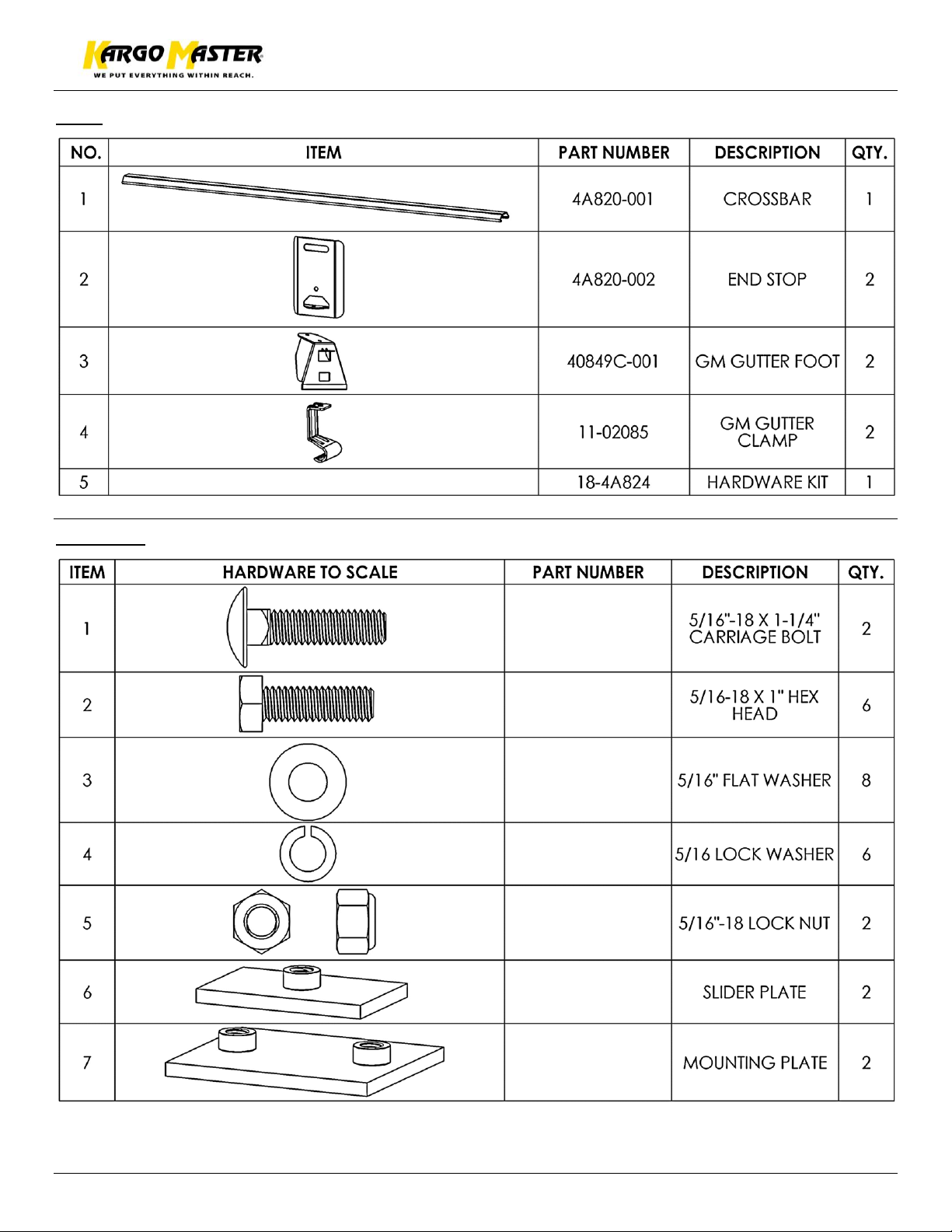

Parts
Hardware
Instructions –4A824
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 3
DO NOT EXCEED MANUFACTURERS WEIGHT CAPACITY FOR ROOF.

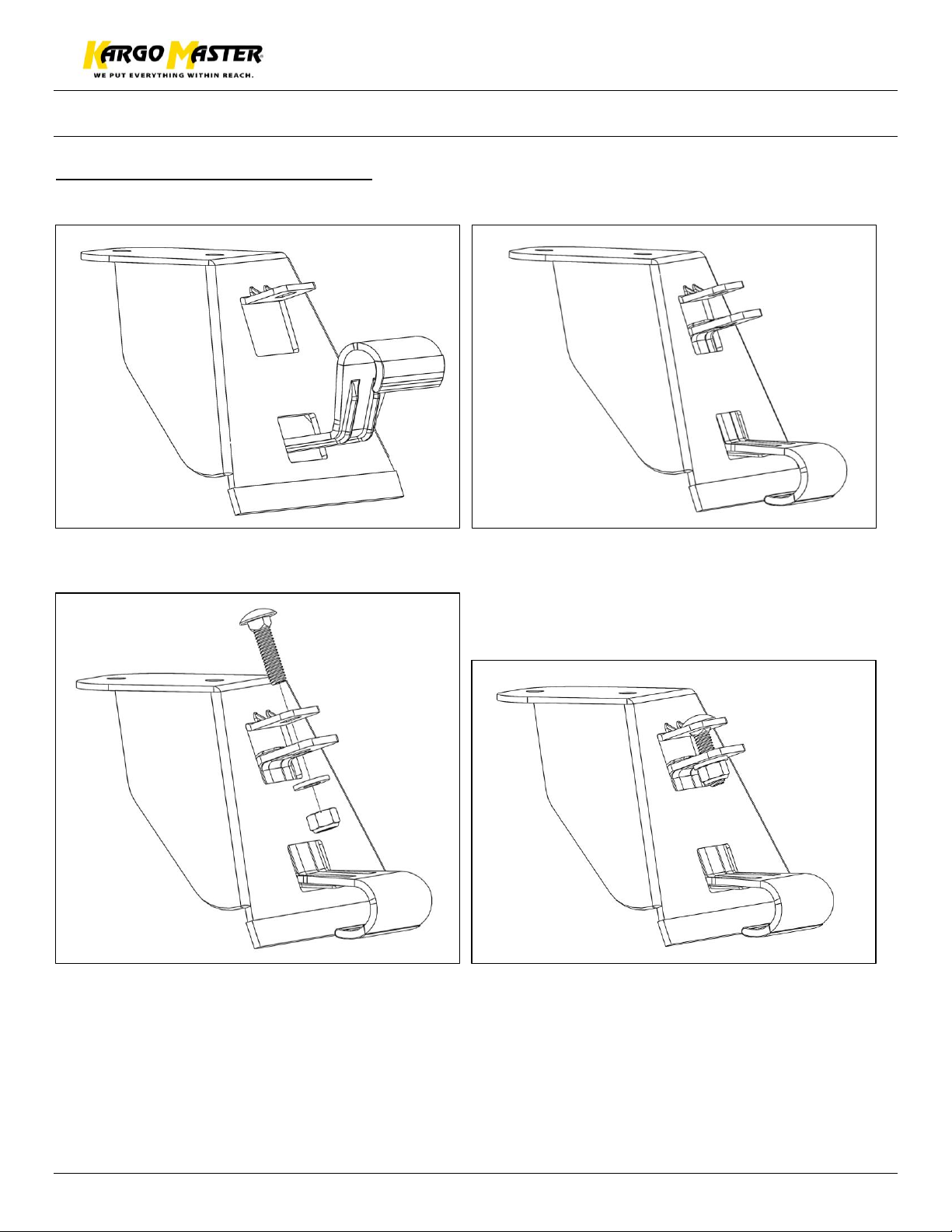

Step 1 –Assemble Foot Assemblies
Insert gutter clamp through the gutter foot rectangular slots as shown.
LOOSELY bolt the gutter clamp to the gutter foot using a 5/16” x 1-1/4” carriage bolt, 5/16” flat washer,
and 5/16” lock nut. DO NOT tighten.
Repeat for remaining gutter clamps and gutter feet.
Instructions –4A824
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 4

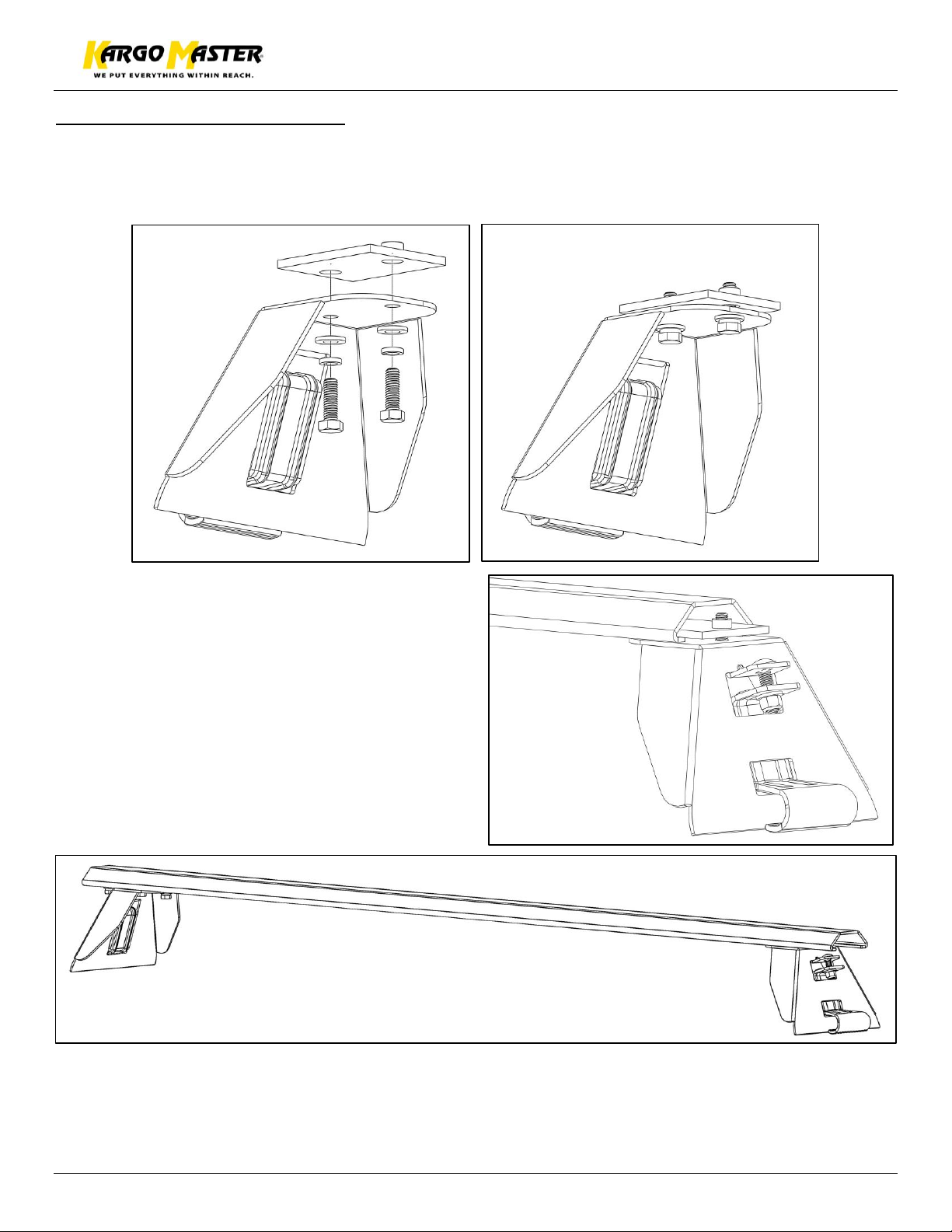

Step 2 –Attach Foot Assemblies
Using a 5/16”-18 x 1” hex head bolt, 5/16” lock washer, and 5/16” flat washer, loosely bolt a mounting
plate to a foot assembly. The press nuts on the mounting plate face up. DO NOT TIGHTEN.
Repeat for remaining mounting plate and foot assembly.
Slide an assembled foot assembly onto the
crossbar with the slanted face facing outward.
Loosely tighten allowing for movement.
Repeat for opposite side of cross bar.
Instructions –4A824
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 5

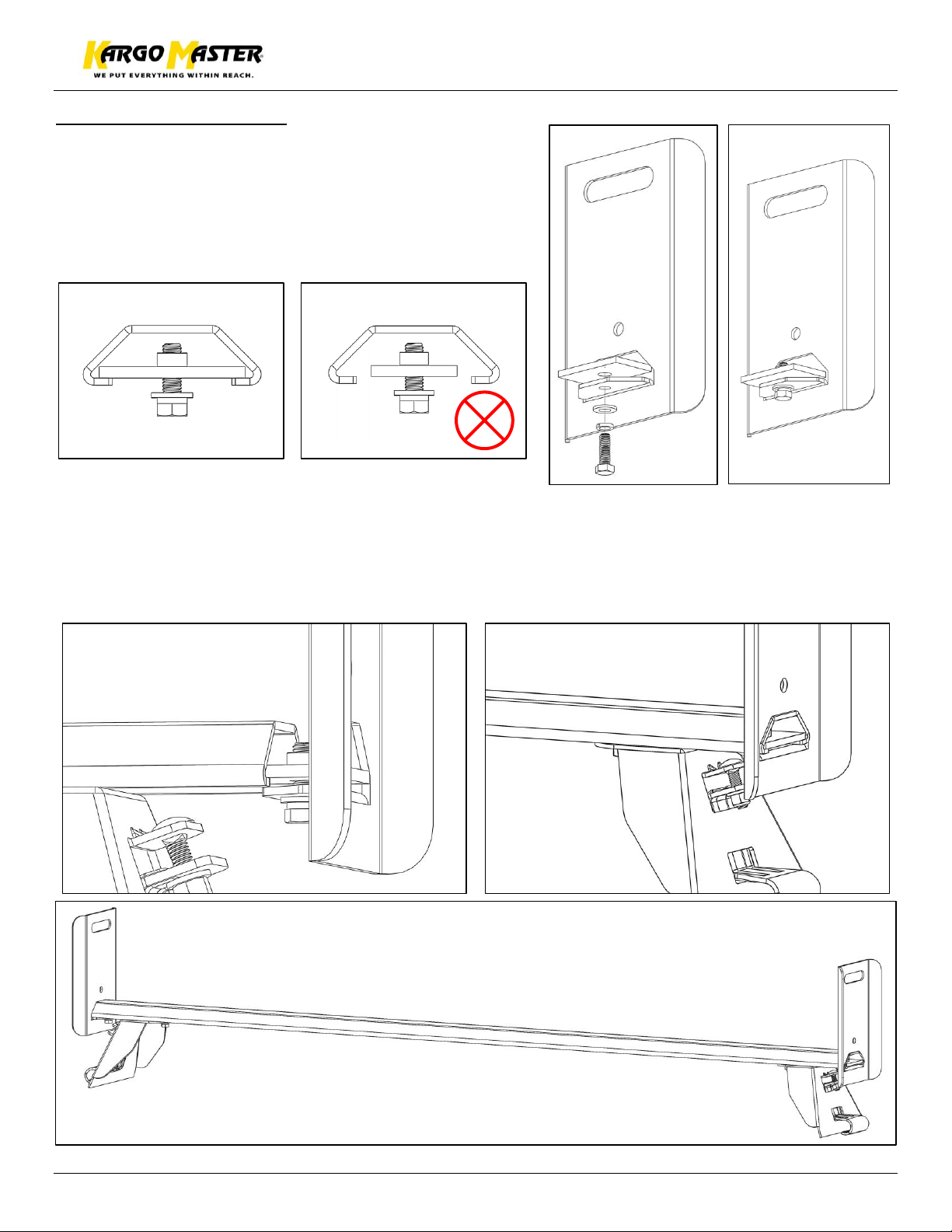

Step 3 –Attach End Stops
Using a 5/16”-18 x 1” hex head bolt, 5/16” lock washer,
and 5/16” flat washer, loosely bolt a slider plate to an end
stop. The press nuts on the slider plate face up. DO NOT
TIGHTEN.
Repeat for remaining end stop.
Slide an assembled end stop onto a crossbar with the angled flanges facing outward until slider plate
aligns with end of crossbar. Be sure to insert slider plate so it cannot rotate.
TIGHTEN hardware securing end stop to end of crossbar.
Repeat for opposite side of cross bar.
Instructions –4A824
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 6

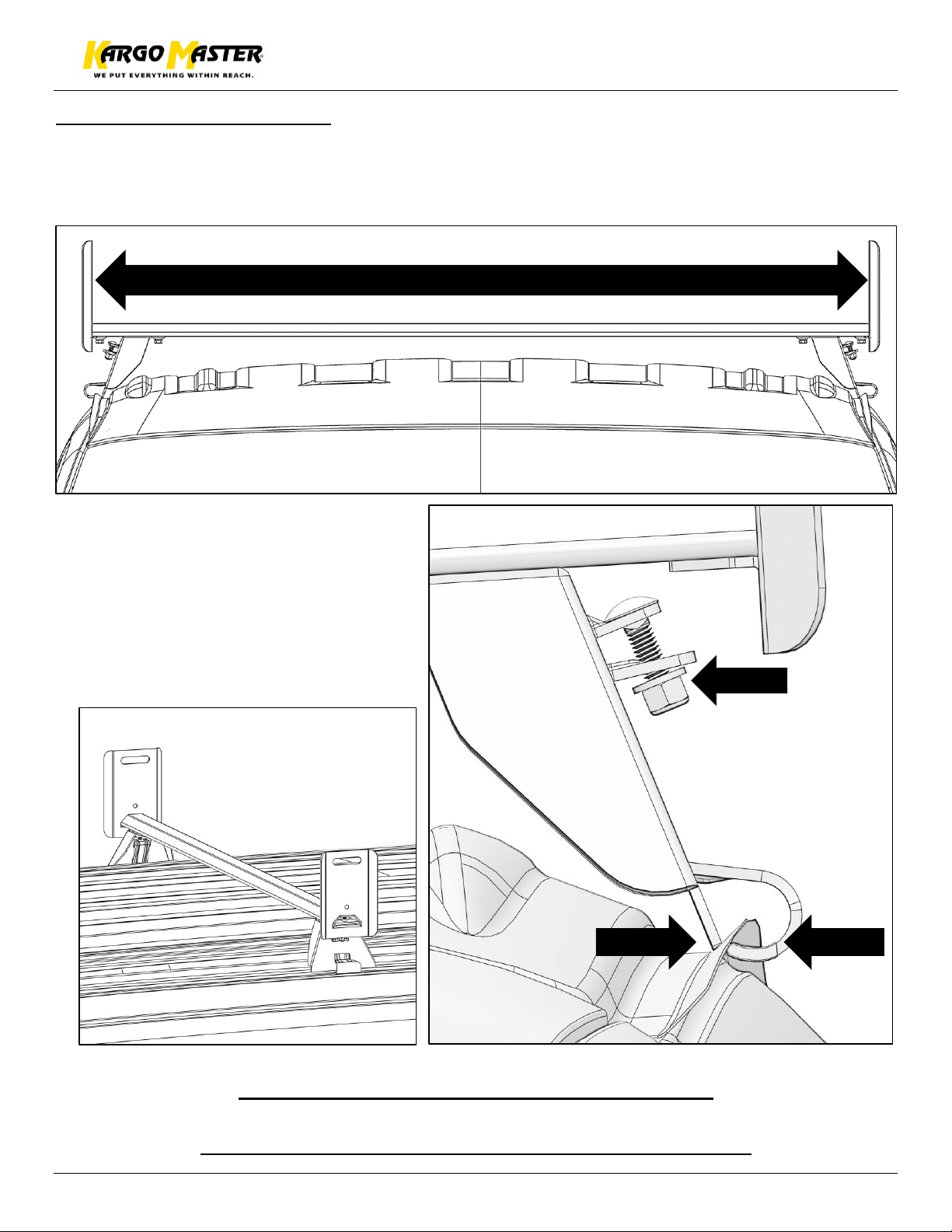

Step 4 –Install Rack to Vehicle
Set crossbar assembly on vehicle. Be sure feet are inside rain channel on roof and clips are outside
vehicles roof rain gutter.
Center feet and rack to vehicle.
While squeezing the clip and foot to each
side of vehicles roof rain gutter, tighten
5/16” lock nut until foot is securely
fastened to vehicle.
Tighten hardware connecting foot to
crossbar.
Repeat for opposite side of vehicle.
GO BACK AND TIGHTEN ALL HARDWARE.
INSTALLATION AND ASSEMBLY ARE COMPLETE.
SQUEEZE
TIGHTEN
SQUEEZE
CENTER RACK AND FEET TO VEHICLE
