Installation Manual
Kardia Alta
1 /
Table of contents
Table of contents ............................................................................................................ 1
Introduction ...................................................................................................................... 2
Summary of Components ................................................................................. 2
What Is Included ..................................................................................................... 4
Extra Accessories ..................................................................................................... 5
Installation .......................................................................................................................... 6
Rough-in ....................................................................................................................... 6
Lifting and Mounting ........................................................................................... 7
Connection .................................................................................................................. 9
Commissioning .............................................................................................................. 19
Water Distribution................................................................................................. 19
Hot water heater .................................................................................................. 20
Leakage Protection ............................................................................................. 23
Ventilation ................................................................................................................ 24
Design ................................................................................................................................. 25
Placement ................................................................................................................. 25
Design of ventilation system ......................................................................... 25
Design of electrical system ............................................................................. 26
Design of plumbing system ........................................................................... 26
Technical Information ............................................................................................. 28
Ventilation ................................................................................................................ 28
Plumbing .................................................................................................................... 33
Expansion tank ....................................................................................................... 33
Leakage prevention valve............................................................................... 34
Electrical Cabinet .................................................................................................. 39
Installation Manual Kardia Alta / 2
Introduction
If you need extra hot water for a jacuzzi, rain shower, or multiple
bathtubs, Kardia Alta is the best solution. Alta consists of a 300L
express hot water heater from OSO, complete water distribution,
balanced ventilation, and electrical panel, and can be used in
homes from 80 – 210 m² square meters.
Summary of Components
Plumbing
1. Union for water intake 32mm PEX/PEL.
2. Pressure reducing valve with filter.
3. Wireless leakage stopper with actuator
valve, control box, adapter and sensor
cable. This also comes with two
additional wireless sensors. Up to 10
wireless sensors can be added to the
same system.
4. Bracket for water meter.
5. Check valve.
6. Expansion tank.
7. Manifold connection for cold and hot water.
Connection dimension in male 1” and easy
reducible to ¾”.
8. Hot water heater OSO SAGA XPRESS SX 300 with
2x3kw heating elements and 300L capacity.
(produces hot water 3 times quicker than normal
heaters).
3 /
Electrical Cabinet
Total 70 modules (5 rows of 14
modules per line).
Available in 400V 4P with 40A main
circuit breaker or 230V 3P with 50A
main circuit breaker.
RCBO ground fault circuit breakers:
11 x 15A / 1 x 25A.
Designed for use with external
electrical meter (not included).
Space for low voltage equipment.
Ventilation
Balanced ventilation unit with
capacity of 120 L/s
(432 m3/h).
Heat exchanger up to 90%
efficiency.
Connection to kitchen hood
Silencers on fresh air and
exhaust.
Installation Manual Kardia Alta / 4
What Is Included
1. Sliding door package
This package is located
between the inner and
outer packaging layer. The
sliding doors should be
installed at the end of the
project.
2. Attachment Package
This package is inside the
Kardia unit and contains
the intake assembly, rubber
cone, and wireless sensor
with remote controller.
4. Electrician package
This package is inside the
electrical cabinet and
includes cabinet connector
50mm, circuit numbers,
voltage labels, and the cover
for the bottom electrical
connection.
5 /
Extra Accessories
Available by order. See www.kardia.no
Side cover
Item nr. 334161
Cover the upcoming PEX pipes from the
ground to the water manifold, can be ordered
from Kardia.
Installation Manual Kardia Alta / 6
Installation
Rough-in

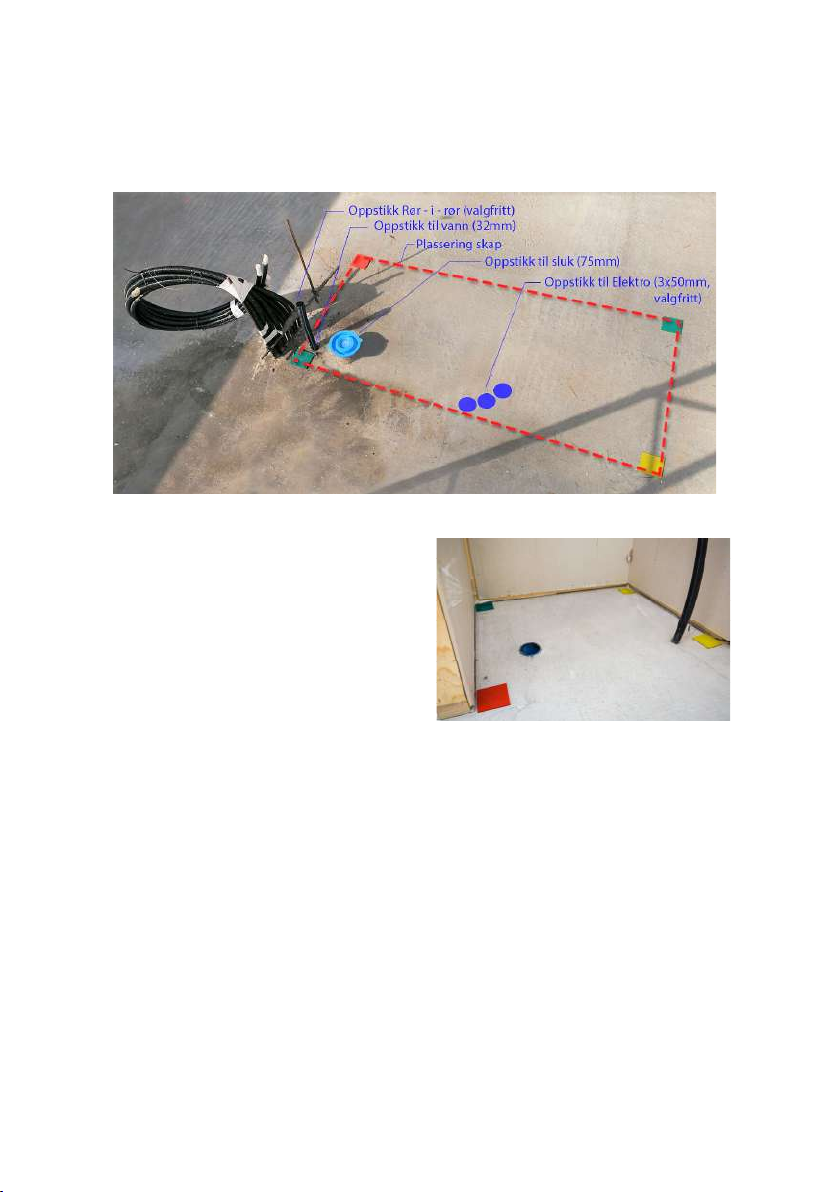

1. Install 32mm PEX / PEL for water supply. Cut so that the tube
protrudes approx.70cm over finished concrete.
2. Install 75mm PE / PP for floor drain. Cut so that the tube
protrudes approx. 10cm over finished concrete.
3. The main cable for electrical supply can be installed in the top
or bottom of the Kardia unit.
4. PEX pipe-in-pipe can be installed in top and/or bottom of
Kardia unit. For PEX pipes installed in the bottom, cut so that
the tube protrudes minimum 200cm over finished concrete.
*Tolerance on floor plan: +/- 10mm.
7 /
Lifting and Mounting
1. Mark where the cabinet should stand.
2. The Kardia unit must stand
level. The base can be
adjusted with rubber shims
placed under each corner
where the unit shall stand.
The rubber shims are
attached to the outside of the
package for easy access during assembly (80x80mm
rubber shims, 4x2mm green, 4x3mm yellow and 4x4mm
red are included).
These can be combined to adjust each corner from 2 - 9mm.
Use a laser to check that there is a max 1mm height difference
between all 4 corners.
Installation Manual Kardia Alta / 8
3. The packaging can be removed
before installation, but it is
recommended not to remove
the inner package layer until
necessary to avoid damage
during hoisting and
construction activity.
4. The sliding doors are attached
to the cabinet inside the outer
layer of packaging. Set these
aside in a safe place for later
installation.
5. The cabinet is lifted by using the
four eye bolts located at the top
of the unit and must be hoisted
with approved lifting
equipment. The cabinet weighs
470kg.
6. Cut away all packaging from
the underside of the cabinet
before lowering the cabinet in
place. Lower the cabinet into
place on the rubber shims.
While lowering, lead the main
water pipe into the base plate
cone. Leave packaging covering
the top and sides until the
house is sealed to protect the
cabinet during the construction
period.
7. Attach the steel frame to the house’s framing with 2-3 screws
(recommend 100x5mm wood screws). This is to avoid that the
unit is moved during the building process which can result in
the drainage pipe disconnecting from the drain.
9 /
Connection
Roof plate connection
