Kanto P301 Manuel utilisateur

User Manual

P301 Projector Ceiling Mount

Supporting your digital lifestyle™

90° TILTING

EXTENSION

PROJECTOR

CEILING MOUNT

English

22 lb

(10 kg)

15”-18”

(38 - 46cm)

360°

±20°

±90°

Supporting your digital lifestyle™

Introduction

Table of Contents

Table of Contents / Introduction . . . . . . . . . . . . . 2

Supplied Parts & Hardware ..................3

Setup - Step 1............................4

Setup - Steps 2 to 3 .......................5

Setup - Steps 4 to 6 .......................6

Setup - Step 7............................7

Warranty ................................8

Thank you for choosing a Kanto universal tilting extension projector ceiling mount. The P301 is designed to mount TV

projectors weighing up to 22 lbs (10 kg). This mount kit allows for installations 15” to 18” (37 to 45cm) from the ceiling,

and can tilt ±90° to allow mounting to sloped ceilings and on the side of beams. The P301 provides a 360° swivel and

±20° tilt to level your projector.

Read these instructions fully before installation of this mount. If you do not understand these directions, or have any

doubts about the safety of the installation, please consult a qualiﬁed installation contractor to install this mount. Make

sure there are no defective or missing parts. Do not use defective parts. If you are uncertain whether the part is defective

contact Kanto directly at 1-888-848-2643 or [email protected]. Kanto can not be liable for property damage or

injury caused by incorrect mounting, incorrect assembly, lifting or incorrect use of this product.

CAUTION

The maximum loading weight is 22 lbs (10 kg). This projector mount is intended for use up to the maximum

weight restrictions indicated. Use with products heavier than the maximum weights indicated may result in instability

causing possible injury.

CAUTION

The ceiling you plan to afﬁx the Kanto mount to must be able to support more than 4 times the weight of

the projector and the ceiling mount combined. Do not use this product for any purpose other than to mount a

projector as outlined in this manual. Improper installation may cause damage to your projector or serious injury. This

product should not be mounted to drop ceilings, cinder block or old concrete ceilings. Consult a qualiﬁed installation

contractor if you are unsure about the type of ceiling you may have.

See installation video online at:

www.kantoliving.com

Visit our website at www.kantoliving.com for the most recent version of this manual

M2.5 x 15mm (with washers)

M3 x 20mm (with washers)

M4 x 15mm

M4 x 20mm

M4 x 25mm

M5 x 15mm

M5 x 20mm

M5 x 25mm

M6 x 15mm

M6 x 20mm

M6 x 25mm

each

Screws:

Supporting your digital lifestyle™

Supplied Parts and Hardware

L: Allen Keys

N: M8 x 60mm

Screw (with nut)

O: Safety screw

M5 x 10mm

P: Tightening screw

M5 x 5mm

x2x2

each U: Ceiling Plate

Assembly

V: Projector Adapter W: Outer Extension

Tube

X: Inner Extension

Tube

Y: Extension Brackets

75mm / 150mm

1mm thick

2mm thick

4mm thick

Base

Spacers:

M: M8 x 55mm

Screw (with nut)

Required Tools:

Z: Wrench Crescent

Wrench

Phillips

Screwdriver

WARNING

Never over-tighten a bolt into the projector body.

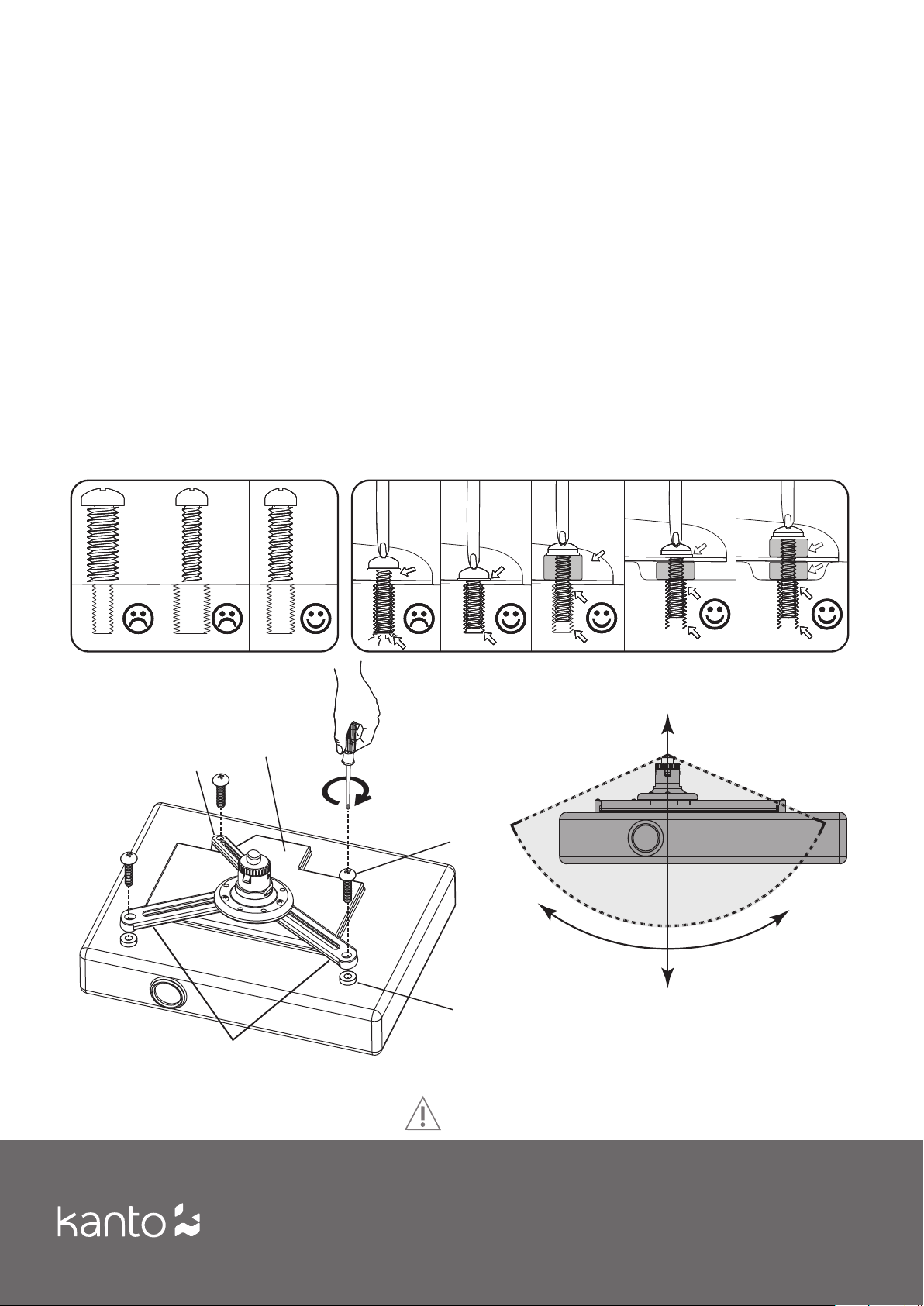

Step 1: Attach Projector to Projector Adapter

Step 1.1 Determine correct bolt size.

Determine the correct bolt size for your projector

mounting holes. We provide a wide selection of bolts

in varying lengths. See parts list Athru K. Hand test the

bolts to ensure you do not damage the projector. See

Diagram A.

Step 1.2 Select optional spacers.

Determine the correct size spacer (Qthru T) based on

the surface you are mounting to. An uneven mounting

surface can be leveled using the supplied spacers. See

Diagram B.

Step 1.3 Determine mounting arm conﬁguration.

The projector adapter comes pre-assembled with (2)

50mm and (2) 100mm mounting arms. If the projector’s

mounting holes are out of reach of the projector adapter,

use the extension arms (Y) provided (replacing one by

one as required). The ﬂexibility of the mount and the

varying arm lengths will mean there is more than one

solution for ﬁtting the arms to your projector. It is best

to use the shortest arm conﬁguration possible while

maintaining a suitable center of gravity for the projector.

See Diagram C.

Once the appropriate arm conﬁguration has been

selected and assembled the projector adapter should be

mounted on the projector (Diagram C).

Step 1.4 Test the projector Center of Gravity.

Lift the projector assembly by the center of the projector

adapter to test the Center of Gravity, as shown in

Diagram D. If necessary, loosen the extension arms

slightly to adjust position of adapter, and tighten the

bolts when the projector is balanced.

Diagram A

spacer

(Q thru T)

if necessary

Diagram B

Diagram C

Diagram D

There are a wide variety of projectors available that use an assortment of bolt sizes. We provide a selection of

mounting bolts to ﬁt most projectors.

Uneven

Projector

Surface

50 mm Arm

100 mm Arms

A-K

WARNING

Never over-tighten a bolt into the projector body.

Supporting your digital lifestyle™Supporting your digital lifestyle™

Pivot Plate

Mounting Plate

Diagram E

Diagram F

WARNING

Never over-tighten a bolt into the projector body.

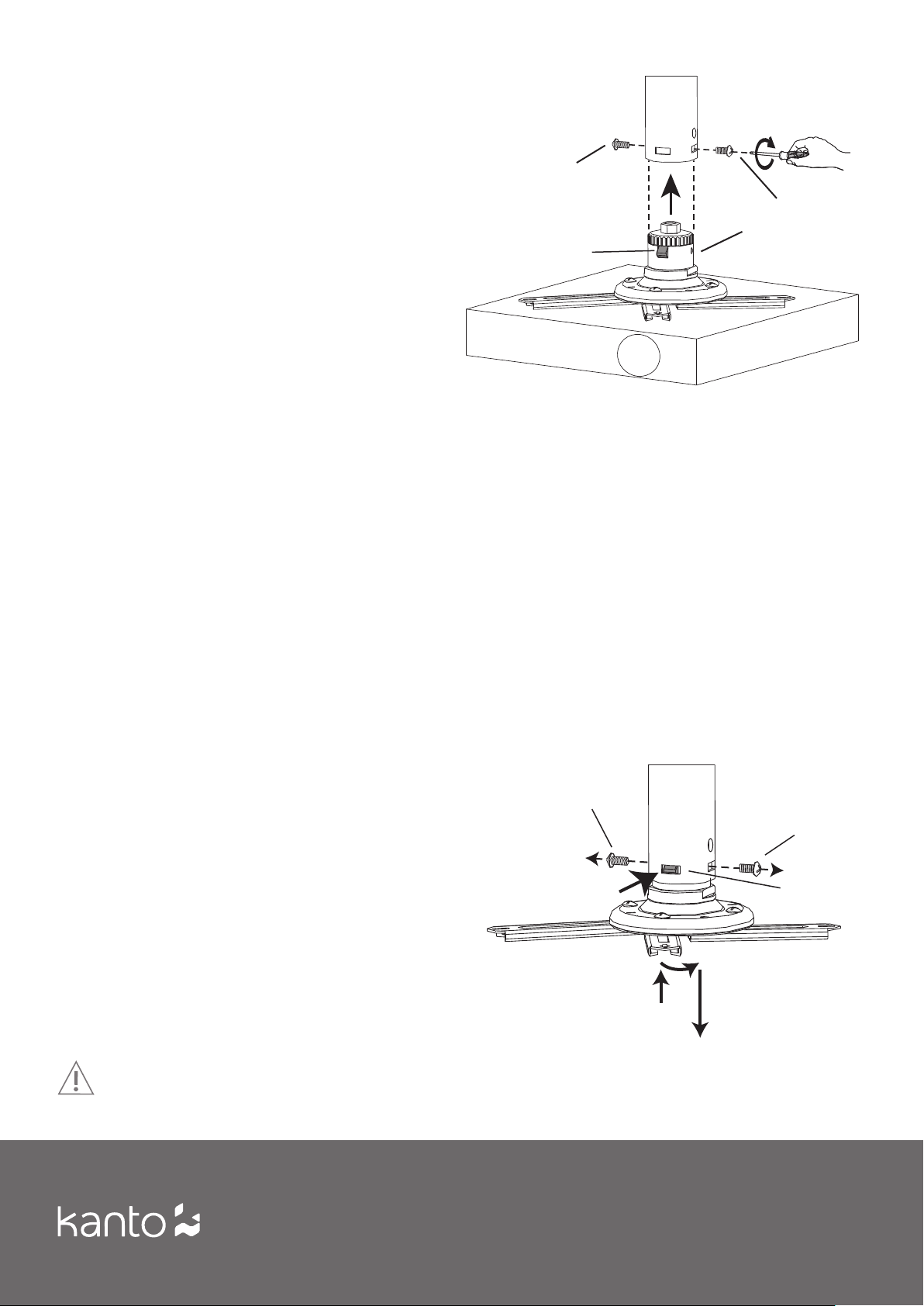

Step 2: Attach the Ceiling Plate

Insert the Pivot Plate into the Mounting Plate as shown

in Diagram E. The P301 Ceiling Plate Assembly (U) has

8 slots for mounting. The Ceiling Plate Assembly can be

mounted to a ﬂat or sloped ceiling, or even to the side

of a beam, as it will provide ±90° rotation and allow the

extension tubes to hang vertically. Secure the Mounting

Plate with appropriate hardware ensuring the Ceiling

Plate Assembly can support 4x the total weight of your

projector. Hardware will be speciﬁc for your ceiling. If you

are unsure of what hardware is required, please contact a

qualiﬁed installation contractor. Hardware for the ceiling

mount plate is not included in this kit due to the many

mounting and ceiling variables.

Step 3: Attach the Optional Extension Tubes

Attach the two extension tubes included in the P301 box

to the Ceiling Plate Assembly, as shown in Diagram F.

Assemble Outer Extension Tube (W) to Inner Extension

Tube (X) at the desired length using three M8 x 55mm

screws (M) and locking nuts (M). Tighten using the large

Allen Key (L), but do not overtighten the screws.

Use tightening screws (P) on each side of the extension

tubes to ensure they are held ﬁrmly together. Tighten

using the small Allen Key (L).

Install the assembled extension tubes to the Ceiling Plate

Assembly (U) so that the tubes are hanging vertically, and

attach using three M8 x 60mm screws (N) and locking

nuts (N). Tighten using the large Allen Key (L), but do not

overtighten the screws.

You are now ready to attach the projector and Projector

Adapter to the extension tubes.

CAUTION

Read this section carefully prior to install.

Step 6: Removing Projector from Ceiling

The Projector Adapter (V) is designed to be easily

removed from the ceiling plate or extension tube for

cleaning, servicing, realignment and tensioning, as

shown in Diagram H.

Remove the two Safety Screws (O) holding the

Projector Adapter to the ceiling plate or extension

tube.

Gently push up on the Projector / Projector Adapter to

disengage the Spring Loaded Locking Tabs.

Turn the projector slightly left or right so the locking

tabs cannot re-engage into the ceiling plate or

extension tube, and pull the projector down to

remove.

WARNING

Support the weight of the projector so it does not fall from your mount.

Diagram H

6.1

6.2

6.4

6.5

6.6

6.3 Spring Loaded

Locking Tabs

Step 5: Tilt the Projector

The P301 tilts up to 20°in any direction, by way of a ball joint inside the Projector Adapter (V). Once the

projector is mounted to the ceiling plate, you can adjust the tilt by holding the projector and pushing it in the

direction you need. The tension should be ﬁrm, so that the projector will remain in the position you desire

when you stop applying pressure.

NOTE: The Projector Adapter (V) has a tensioning ring that comes pre-tensioned from the factory. If the ball

joint is too tight to move with reasonable pressure, or too loose to stay in position, you will need to adjust

the tension. Should you ﬁnd your installation requires this ring to be adjusted and re-tensioned, remove the

projector from the ceiling as described in Step 6, and follow the tensioning procedure as described in the

optional Step 7.

Step 4: Attach Projector to Ceiling

The P301 has two spring loaded locking tabs that allow

easy installation to the ceiling plate assembly.

Push the Projector Adapter (V) up into the ceiling plate

or extension tube. The 2 spring loaded locking tabs

will catch in 2 of the 4 square holes in the ceiling plate

or extension tube. Take caution to ensure the Projector

Adapter (V) engages; see Diagram G.

Once you have the Projector Adapter locked into the

ceiling plate or extension tube, install the 2 Safety Screws

(O).

The projector can now be gently twisted left or right, or

tilted +/- 20° to aim at your screen.

Diagram G

Spring Loaded

Locking Tabs

4.1

4.2

Supporting your digital lifestyle™

IF NECESSARY

Step 7: Adjust the Projector Adapter Tension

Step 7.1 Use the included Wrench (Z) to loosen the locking

nut.

Step 7.2 Rotate the large Plastic Tension Ring to achieve

the desired level of tension. Use the Wrench (Z) if

necessary.

Step 7.3 Tighten the locking nut with Wrench (Z) to ensure

the Plastic Tension Ring cannot loosen.

7.1

7.2

7.3

Diagram I

Plastic Tension Ring

Locking Nut

The Projector Adapter (V) Tensioning Ring comes pre-tensioned from the factory. Should you ﬁnd your installation

requires this ring to be adjusted and re-tensioned, follow this procedure, referring to Diagram I:

17-B

www.kantoliving.com

[email protected]

Tel 888.848.2643

To learn more about all our products, visit www.kantoliving.com

par

SP26

Kanto Living @kantoliving kantoliving

Kanto Living Kanto Living

• Check out our full line of bookshelf and desktop speaker systems

• Available in a stunning array of colors

• Visit kantospeakers.com for more!

Kanto Speakers

• Full line of Audio and Video Cables

• White or Black Cables available

• HDMI, Optical, Mini-jack, RCA, USB

• Switchers, Hubs, and Adapters

• Visit kantoliving.com

Check out more great products from Kanto!

Limited Warranty to Original Purchaser

Kanto Distribution Inc. (Kanto) warrants the equipment it manufactures to be free from defects in material and workmanship for the following limited

warranty period of: 5 years parts and labour

If equipment fails because of such defects and Kanto or an authorized dealer is notied within 5 years from the date of shipment with proof of original

invoice, Kanto will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other

abuse or modications. Equipment that fails under conditions other than those covered will be repaired at the current price of parts and labor in eect

at the repair. Such repairs are warranted for 90 days from the day of reshipment to the original purchaser. This warranty is in lieu of all other warranties

expressed or implied, including without limitation, any implied warranty or merchantability or tness for any particular purpose, all of which are expressly

disclaimed. Customers will be responsible for obtaining a Return Authorization as well as shipping costs to return product to a Kanto location or authorized

depot listed on the website. If the equipment is covered under the warranty provisions above, Kanto will repair or replace, and be responsible for return

shipping to the customer. Please keep the original packaging so products will not be damaged during shipping, and we recommend you insure your

shipment. If equipment fails outside the warranty provisions, customers will be quoted repair and return shipping costs prior to work being performed.

The information in the owner’s manual has been carefully checked and is believed to be accurate. However, Kanto assumes no responsibility for any

inaccuracies that may be contained in the manual. In no event will Kanto, be liable for direct, indirect, special, incidental, or consequential damages
