Pushbutton Lock Installation Instructions

LD450

TABLE OF CO TE TS

Checklist......................................................................3

OperationalNote ..............................................................3

A. DeterminingtheHandofYourDoor ..........................................4

B. Marking the Template and Drilling the Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

C. Installingthe atch ........................................................4

D. Installingthe atchSupportPost ............................................5

E. InstallingtheTailpiece/Spindle ..............................................5

F. Installingthe ock .........................................................5

G. InstallingtheStrikePlate ...................................................6

H. Removingthe atchHoldback ...............................................6

I. ChangingtheCode.........................................................7

J. TroubleShooting ..........................................................8

Warnings and Cautions

Important: Carefully inspect windows, doorframe, door, lights, etc.

to ensure that the recommended procedures will not cause damage. Kaba

Access Control’s warranty does not cover damages caused by installation.

Caution: Wear safety glasses when preparing door.

Tools Required

• electric drill (variable speed recommended)

• #2 Phillips screwdriver

•(

⁄

8”) drill bit

• wood chisel

• hammer

• pliers

• safety googles

• tape

• pencil

CHECKLIST

Use this checklist to make sure that

everything has been included. 

A – Outside unit

B – Inside unit

C – Gaskets (2)

D – Universal trim plate (2)

E – Tailpieces / spindles (3 lengths)

F – atch

G – Strike plate

H – atch and strike screws (4)

I – atch support post

J – Tweezers

K – Mounting screws (6) (3 lengths)

L – Spare tumblers – coded (2), uncoded (2)

M – Code card

– Plastic clip



A B C D

OPERATIO AL OTE:

Prior to beginning installation, please check that all parts are working

correctly. Press the “C” button 3–5 times. Enter the code from the factory

supplied code card. Turn the outside knob clockwise and release. The knob

should return easily under spring pressure. If you intend to change the code,

you should do it before installing the lock (See Code Change Instructions).

Make sure that the inside handle moves freely. Make sure the latch holdback

button will engage and hold the handle in the “latch–open” position, if it is a

model with latch holdback. If you intend to remove the latch holdback feature,

you should do it before installing the lock (See Removing the atch Holdback).

Check that the latch bolt moves freely by pressing the bolthead at the end,

and also by turning the flat spindle in the latch cam.

For technical assistance please call

1-800-849-TECH (8324) or 336-725-1331

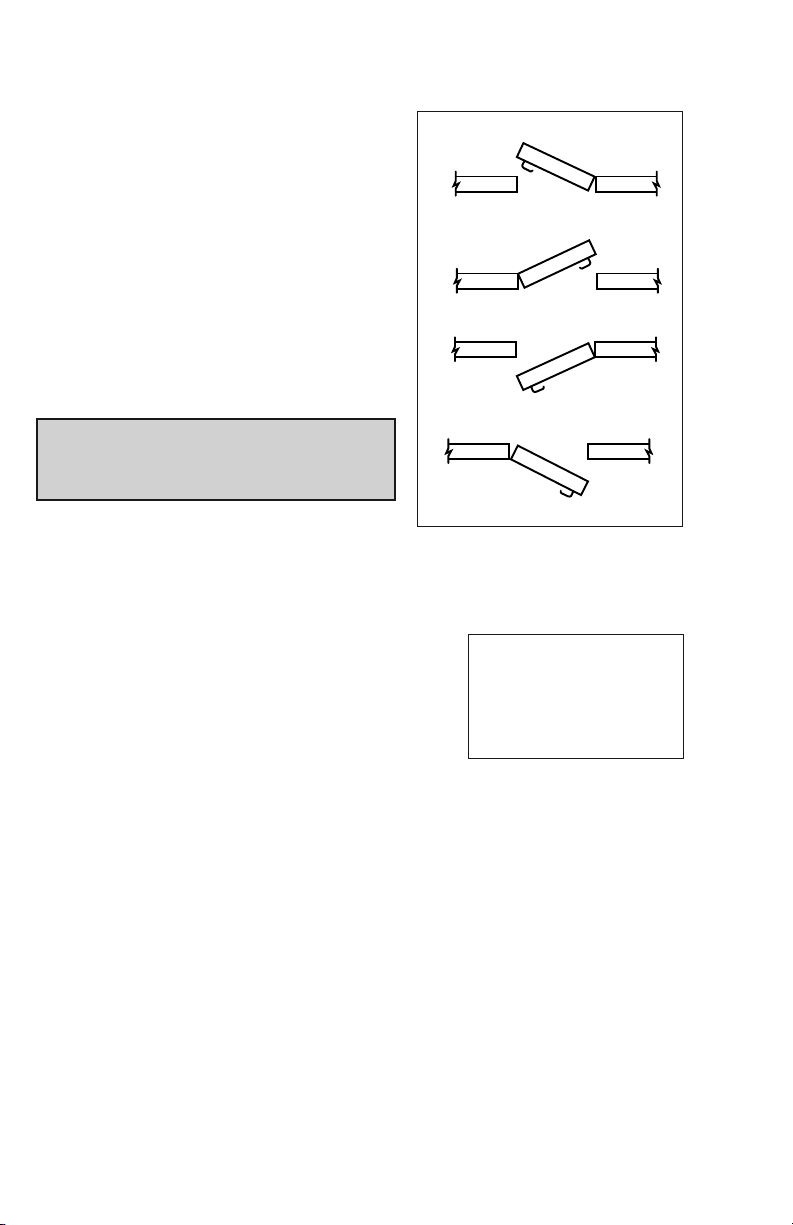

A. DETERMI I G THE HA D OF YOUR DOOR

Many of the installation instructions refer to

the handing of your door. The hand of the door

is determined with the door in the closed position,

from the exterior or pushbutton side of the door.

A) Right Hand Door. Door opens inward

(push). Hinged on the right side.

B) eft Hand Door. Door opens inward

(push). Hinged on the left side.

C) Right Hand Reverse Door. Door opens

outward (pull). Hinged on the right side.

D) eft Hand Reverse Door. Door opens out-

ward (pull). Hinged on the left side.

B. MARKI G THE TEMPLATE A D DRILLI G THE DOOR

B-1 Find and remove the template from the installation manual. Carefully fold

along the dotted line that matches the backset the application requires.

B-2 From the exterior (or push button side) of the

door, place the dotted line of the template along

the edge of the door.

B-3 Carefully mark the 4 holes on the template

(2 mounting holes, 1 tailpiece/spindle hole, 1

latch support post hole).

B-4 Drill the 4 holes, making sure to drill them straight. The latch support

post hole will only be drilled on the side matching lock/latch installation.

C. I STALLI G THE LATCH

C-1 Using the center line of the latch (marked on template), mark the point

where the cross bore for the latch should be drilled.

C-2 Drill a 1" (25 mm) diameter hole, 3 3⁄4" (96mm) deep, on that center point

of the edge of the door.

C-3 Insert the latch into the hole and outline the face of the latch (already

prepped on most metal doors). Remove the latch.

C-4 Using a chisel, remove the material 1⁄8" (3 mm) deep from the door for

the faceplate of the latch (already prepped on most metal doors).

C-5 Reinsert the latch and install the latch using the mounting screws provided.

H - eft Hand

RH - Right Hand

HR - eft Hand Reverse

RHR - Right Hand Reverse

ote: When fitting an inside handle to a

left-hand door, the B UE screw must go

in the right-hand hole, and vice versa.

D. I STALLI G THE LATCH SUPPORT POST

Install the latch support post into

the back of the lock as shown.

For right-hand doors, use hole A.

For left-hand doors, use hole B.

E. I STALLI G THE TAILPIECE / SPI DLE

E-1 For doors ranging in thickness from 1 3⁄8"

(35 mm) to 1 3⁄4" (44 mm) use the shorter

tailpiece (supplied) and align as shown.

E-2 For doors ranging in thickness from 1 7⁄8"

(48 mm) to 2 1⁄2” (64 mm) use the longest

tailpiece (supplied) and align as shown.

E-3 Make sure the tailpiece/spindle matches

the picture shown depending on the hand

of the lock.

F. I STALLI G THE LOCK

F-1 Place the rubber gaskets around the lock

body with the lock body sitting into the recessed portion of the gasket.

Assure the holes in the back of the lock and the gasket match.

F-2 If using the cover plate (supplied), place it on the back of the lock

between the gasket and the door (extra length of the cover plate should

be placed so that it is below the unit)

F-3 For doors ranging in thickness from 1 3⁄8" ( 35 mm) to 1 3⁄4" ( 44 mm), use

the shorter mounting screws (supplied) and align as shown

F-4 For doors ranging in thickness from 1 3⁄4" (44 mm) to 2 1⁄4" (57 mm), use

the medium mounting screws (supplied) and align as shown.

F-5 For doors ranging in thickness from 2 1⁄4" (57 mm) to 2 1⁄2" (64 mm), use

the longest mounting screws (supplied) and align as shown.

F-6 Hold the outside and inside units on the door with the tailpiece in the

proper position.

Fit the latch support post in hole A

for a right hand hung door. Use B

for a left hand hung door.

Viewed from

the outside

Door hung on right

spindle should

engage the latch

as above

Door hung on left

spindle should

engage the latch

as above

ote: Assurance that the proper

tailpiece/spindle is used is extremely

critical. If the wrong spindle is used,

binding or a lockout can occur.

ote: If cover plates are used, it may

be necessary to use the next size

screw to mount the lock.

ote: If cover plates are used, it may be necessary to use the next size

screw to mount the lock.

F-7 Finger-tighten the (2) mounting screws, assuring the lock is vertical and

sitting flush against the door.

F-8 Before final tightening, make sure the code works and all features on the

unit work as intended.

F-9 Tighten the mounting screws firmly, being careful not to over tighten the

screws, as this may cause the lock to function poorly or not at all.

G. I STALLI G THE STRIKE PLATE

G-1 Push the door nearly shut to locate the center line of the

latch bolt. Mark the center line on the door frame.

G-2 Using the strike, align the center of the strike opening with

the center just marked.

G-3 Carefully trace the outside profile of the strike. Also trace the latch hole in

the strike.

G-4 Using a chisel, carefully remove approximately 1⁄16” (1 mm) deep worth of

material from the traced area (already prepped on most metal doors). The

latch face plate should sit flush with the edge of the door.

G-5 Drill or cut a recess in the door frame for the latch bolt in

the center of the strike latch hole, traced earlier.

G-6 Place the strike into the newly chiseled area, making sure

it sits flush and there are no obstructions in the latch hole

of the strike (remove any obstructions or debris).

G-7 Install the strike plate with 2 screws provided.

H. REMOVI G THE LATCH HOLDBACK

H-1 If this feature is not needed, it can be removed by unscrewing the 4 corner

screws from the inside unit assembly and removing the metal plate. The

latch holdback button, a small spring and ball bearing, should be removed

and discarded.

H-2 Install the plastic clip enclosed to cover the latch holdback button hole. Reinstall

the metal cover plate and resecure with the 4 screws removed earlier.

deadlatch

latchbolt

ote: Do not close the door until the lock has been tested and you are

confident it works properly.

Make sure to account for any weather stripping or door stop if

necessary.

OTE: The dead-latch must not fall into the latch hole. The dead-latch

protects against manipulation of the latch bolt. If the dead-latch is able

to fall into the latch hole, remove the strike and reposition it so this

condition does not happen.

23/8” (60 mm)

D ill ti h l (2)

TEMPLATE

TOP

Outline of

lock housing

Outline of

gasket

m outside, fold along the left edge of the door

23/8” (60 mm) Backset ONLY. From outside, fo

23/4” (70 mm) Backset ONLY. From outside, fo

m outside, fold along the left edge of the door

23/4” (70 mm)

23/8” (60 mm)

23/4” (70 mm)

/8” (10mm) Hole

LD450 Series

FOR POSITION

1/8” (130 mm)

/8” (10 mm) Hole

Drill mounting holes (2)

and tailpiece hole (1).

Drill latch support

hole needed for a

correct handing

TEMPLATE

/8” (10mm)

Hole

/8” (10 mm)

Hole

tailpiece

hole

23/8” (60 mm) Backset ONLY. From

old along the right edge of the door

23/4” (70 mm) Backset ONLY. From

Center line

of latch

Center line

of latch

/8” (10 mm)

ONLY

I. CHA GI G THE CODE

I-1 Remove the lock from the door.

I-2 Remove the 4 retaining (red) screws from

the back of the outside unit assembly.

Take extra care to keep the outside unit

assembly on a flat surface when you are

removing the cover plate because there

are many small components inside.

I-3 You will now see that there are 5 red

color coded tumblers and 8 blue colored

un-coded tumblers, plus 1 clear tumbler

(‘C’ button).

I-4 To change your code, hold the outside unit

assembly with the push-buttons facing

down. Press the “C” button and hold it.

If the “C” is not held in while changing

the code, the lock can be damaged.

I-5 Using the tweezers supplied (or small

needle nose pliers), you can easily

remove one or more of the coded and un-

coded tumblers.

ote: The red tumblers represent coded

digits and the blue tumblers represent

non-coded digits.

ote: NEVER remove the ‘C’ tumbler.

I-6 Please note the different shapes of the tumblers before reinserting them

into the lock body. There is a difference in shape between the coded and

un-coded tumblers as illustrated. When refitting the tumblers into the lock

body, they must be fitted facing the correct way as show in the illustration.

ote: All square cutouts must face outwards. The bump on the tumbler

(either color) must fall into the machined slot.

I-7 After you have refitted the tumblers and made a note of the new code,

replace the metal cover plate with the 4 screws.

ote: With the spare tumblers provided, you can either increase the number

of digits in your code to 6-7, or reduce to 3-4.

Square

cut out

RED CODED

TUMB ER

B UE

UNCODED

TUMB ER

Square

cut out

Square

cut out

push button

Square

cut out

J. Trouble Shooting

Installation Issues:

?The latch cannot be withdrawn when entering the code

The lock has been fitted to the wrong hand hung door

All locks were set to fit right-hand hung doors. The lock needs to be

removed from the door and reversed. Refer to instructions.

?Both the inside and outside knobs retract when turned towards the door frame.

The spindle is in position at the wrong angle.

Remove the lock from the door, and reposition the spindles as shown in the

instructions.

?The knob will not turn after entering a new code.

One or more of the code tumblers are turned the wrong way

Re-read the code change instructions and check that the red tumblers are

all facing with the square notches facing outward.

?The latch bolt does not move smoothly in or out.

The lock is not installed correctly.

Check that the lock is square on the door and positioned accurately over

the latch. Check that the latch is positioned horizontally and parallel to the

door surface. Check the spindle length. It may be trapped between the

front and back plate if the spindle is too long.

?The outside knob turns after entering a correct code, but does not retract

the latch.

The spindle is too short for the door thickness.

If the spindle is too short, then it will not engage with both the outside knob

and the inside handle at the same time. It may also slip out of one side

after same use. Replace the spindle.

Post-Installation Issues:

?The outside knob turns freely without retracting the bolt.

The knob has been forcibly turned.

Return the lock. Someone may have tried to force the knob to gain entry.

?The inside lever handle does not return to the upright position after operating.

The lever return spring is broken.

Replace the return spring.

?The latch does not engage. The door remains unlocked after use.

The latch is not entering the strike.

Your door or frame may have warped since the lock was installed. Check

that the latch bolt is lined up with the strike hole. Realign the position of

the strike as necessary. Make sure the deadlatch does not fall into the

strike hole.

Table des matières

Autres manuels Kaba Verrouillage

Kaba

Kaba SIMPLEX 900 Series Manuel utilisateur

Kaba

Kaba Generation E-760 AUTO DEADBOLT ASM Office Manuel utilisateur

Kaba

Kaba E-Plex 5 Series Manuel utilisateur

Kaba

Kaba 7102 series Manuel utilisateur

Kaba

Kaba Simplex 6200 Series Manuel utilisateur

Kaba

Kaba La Gard MECHANICAL Manuel utilisateur

Kaba

Kaba Confidant RFID Kit 1 Manuel utilisateur

Kaba

Kaba COMBOGARDPRO Manuel utilisateur

Kaba

Kaba E-Plex 5x63 Manuel utilisateur

Kaba

Kaba E-PLEX 2000 Manuel utilisateur

Kaba

Kaba C-lever compact Manuel utilisateur

Kaba

Kaba EX3600 Manuel utilisateur

Kaba

Kaba SIMPLEX EE1000 Series Manuel utilisateur

Kaba

Kaba SILCA SW- VAG GROUP-L0 Manuel utilisateur

Kaba

Kaba LA GARD COMBOGARDPRO Manuel utilisateur

Kaba

Kaba E-Flash EF680 Manuel utilisateur

Kaba

Kaba Simplex 6200 Series Manuel utilisateur

Kaba

Kaba C-lever Manuel utilisateur

Kaba

Kaba Simplex 7104 Series Manuel utilisateur

Kaba

Kaba 7004 Series Manuel utilisateur

Kaba

Kaba Simplex 1000 Series Guide d'installation

Kaba

Kaba SIMPLEX L1000 Series Manuel utilisateur

Kaba

Kaba 52 Manuel utilisateur

Kaba

Kaba simplex 7106 series Manuel utilisateur

Manuels Verrouillage populaires d'autres marques

Magic

Magic 105 Manuel utilisateur

Gantner

Gantner GAT NET.Lock 7020 System Guide rapide

Wittkopp

Wittkopp Insys 7202 Manuel utilisateur

Dorma

Dorma Studio Classic Manuel utilisateur

Securam

Securam ECSL-601 Manuel utilisateur

Sudhaus

Sudhaus 3003 Manuel utilisateur

Safety 1st

Safety 1st 48517 Manuel utilisateur

Pado

Pado FDS-10 Manuel utilisateur

Esco

Esco systeQ Series Manuel utilisateur

COMPX

COMPX National D8951 Manuel utilisateur

secureo

secureo Key Box Manuel utilisateur

Stock Loks

Stock Loks C8713 Manuel utilisateur

COMPX

COMPX 1T-058 Manuel du propriétaire

Auslock

Auslock T11 Manuel utilisateur

ELCOM

ELCOM 7205 Manuel utilisateur

Stealth SAFES

Stealth SAFES ShadowVault Manuel utilisateur

Knox

Knox KeySecure 5 Manuel utilisateur

Kwikset

Kwikset 48334/01 Manuel utilisateur
