K-Tool KTI63092 Manuel utilisateur

Specifications

Maximum capacity 2 Tons (4412 lbs.)

Min. height 3-3/10"

Max. height 18-1/2"

Dual pump 7 strokes (no load)

Handle Length 47-2/5"

Saddle diameter 4-1/2"

Front wheel

dia. 2-1/2" x width 2"

Rear casters

dia. 1-4/5" x width 9/10"

Length 25-3/5"

Width 11-4/5"

Height 5-9/10"

Weight 42 lbs.

2 Ton Aluminum Racing Jack

Gato ge Piso Aluminium 2 Tonnes

Cric Rouleur En Aluminium 2 Tonnes

User’ s Manual / Manual de usuarios / Guide de I’ utilisateur

KTI63092

WARNING: Cancer and Reproductive Harm

- www.P65Warnings.ca.gov

SAFETY INFOR MATION

READ INSTRUCTIONS!

SAFETY WARNINGS

· Keep children away from work area.

· 2Ton/4412 lbs.)

suitable for the weight.

· Only use this jack on level, ﬂat, hard surfaces.

during the lifeof the jack.

· The operator and any bystanders of the jack should be trained and use care

·Improperly secured loads, overloading, and oﬀ-center loads may all lead

to failing, slipping, falling, etc. of the object being supported. It is up to the

operator to properly load the jack.

· Do not use this jack for a task it was not designed for.

· Before each use the operator should inspect the jack for any abnormal

· Do not move the vehicle or other load while on the jack.

INITIAL SET UP

INSTALLING HANDLE

Loosen the thumb screw( 42 ) on the ﬂoor jack where the handleis installed. Slide the

handle into the socket whilelining up the square drive on the jack to the handle.

3. Tighten the thumb screw ( 42 ) to secure the handle in its place.

The K-Tool 2 Ton Aluminum Double-Piston Hydraulic Floor Jack raises the vehicle quickly, and

with a 3-3/10” minimum saddle height, it gets under low-proﬁle vehicles without a problem. It’s

made of strong, lightweight, aluminum for easy maneuvering around your garage. Meets ANSI

Attach the upper and lower handle(46) together by aligning the steel sheet (45)

MAINTENANCE

GENERAL

• Provide several drops of oil to pivot points periodically to prevent binding.

leaks and rust or dirt on moving parts.

• Store in a clean & dry environment when not in use.

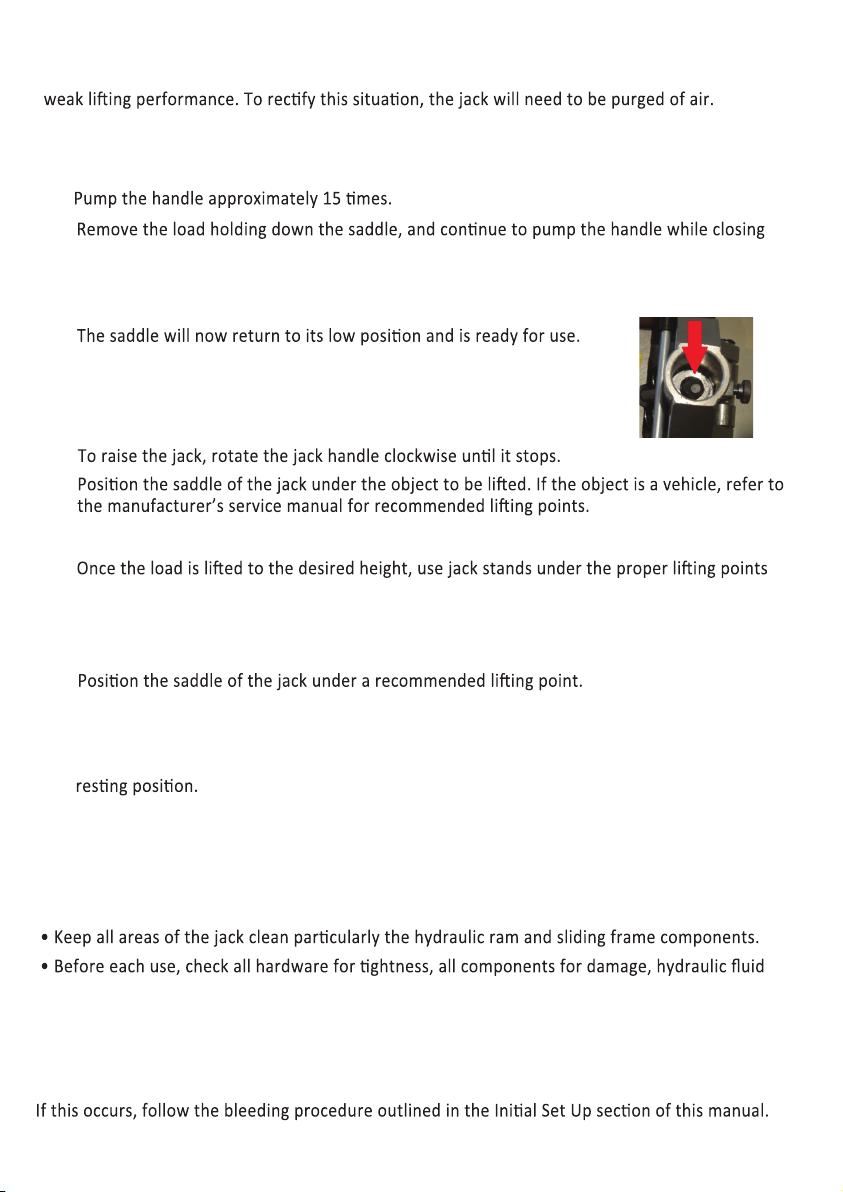

BLEEDING

With use your jack may accumulate some air in the hydraulic system which will hinder performance.

BLEEDING

1. With the handle installed on the jack, rotate it 2 turns counter clockwise.

2. Have someone or use something to hold down the saddle( 8 ) of the jack.

OPERATION

RAISING

3. Pump the jack handle up and down to raise the jack and the load to its appropriate height.

LOWERING

1. Clear any loose objects from under the vehicle or load before lowering.

During shipment of your new jack, air may enter into the hydraulic jack system which will cause

the release valve (located inside Handl e Yoke).

With the release valve closed, pump the jack to its maximum height and then release the

pressure by turning the handle counter clockwise again.

to secure the load.

Raise the jack so that the saddle contacts the load. Raise the jack to the point that the jack

stand or other supports can be removed.

Slowly rotate the handle counterclockwise to lower the load, allow the jack to return to its

release valve

Michigan

ADDING OIL

1. Remove the two Oil Fill Screws at the

rear of the jack body ( Fig A ). Do not

move the jack handle while the Oil Fill

Screws are removed.

the oil reaches the top of the ﬁll holes.

3. Replace the Oil Fill Screws and follow the

FIG. AOil Fill Screws

WARRANTY

K-Tool International 1 Year Limited Warranty.

K-Tool International Lifting Equipment is warranted to be free from defects in material and workmanship within one year from the date of

original purchase. This warranty is extended to the original retail purchaser only. If any jack or service-related item proves to be

defective during this period, it will be replaced or repaired, at K-Tool International’s option, without charge. This warranty does not apply

to damage from accident, overload, misuse or abuse, nor does it apply to any equipment which has been altered or used with special

attachments other than those recommended.

Parts Lists and Assembly Diagrams

3 52 8

2 6

1 4

3 7

4 4

4 5

4 6

4 7

3 8

3 9

4 0

4 1

4 2

4 3

1 5

1 6

1 7 1 5

1 8

1 9

2 0

2 1

2 3

2 2

2 4

2 5

2 6

2 7

2 8

2 9

2 5

2 6

2 5

3 0

3 6

3 1 3 2 3 3 3 4

2 8

1 0

1 1

1 2

1 3

31 Rear Wheel

1 ø12, Nut 16 Link Rod 32 Wheek Arch

2 ø12, Washer 17 ø4x45 Coder Pin 33 M8x45 Hex Bolt

3 Front Wheel 18 Limit Pull-Rod 34 ø8, Nut

4 Left Shaft unit 19 Lift Arm Axle 35 ø10, Washer

5 ø16, C ring 20 ø21*19 Bolt 36 Power unit

6 Rod Link 21 Reinforce Axle-Rod 37 Hook

7 Lift Arm 22 ø6, Washer 38 Return Spring

8 Saddle 23 M6x20 Inner Hex Bolt 39 Plunger Pin

9 Saddle Axle 24 ø8, Nut 40 Handle Socket

10 Spindle 25 M8x20 Inner Hex Bolt 41 Roller

11 M8x20 Inner Hex Bolt 26 ø8, Washer 42 M8x30 Bolt

12 Side Lifting Handle 27 Rear Wheel Bracket 43 ø12, C ring

13 Axle Sleeve 28 ø10, Washer 44 ø3x14 Bolt

14 ø6, Bolt 29 M10x35 Inner Hex Bolt 45 Steel Sheet

15 ø19, C ring 30 M10x25 Inner Hex Bolt 46 Handle Unit
