Küppersbusch KD 9550 Manuel utilisateur

KD 9550KD 9550

KD 9550

Bedienungsanleitung

Instructions Booklet

Mode d’emploi

Libretto Istruzioni

Gebruiksaanwijzing

Manual de instrucciones

Manual de instruções

12GB

CONTENTS

Dear Customer,

If you follow the recommendations

contained in this Instruction Manual,

your appliance will give you constant

high performance and will remain

efficient for many years to come.

RECOMMENDATIONSANDSUGGESTIONS 13

CHARACTERISTICS 14

INSTALLATION 15

USE 17

MAINTENANCE 18

13GB

RECOMMENDATIONS AND SUGGESTIONS

INSTALLATION

• The manufacturer will not be held liable for any damages resulting

from incorrect or improper installation.

• Check that the mains voltage corresponds to that indicated on the

rating plate fixed to the inside of the hood.

• For Class I appliances, check that the domestic power supply

guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of

minimum diameter 120 mm. The route of the flue must be as short

as possible.

• Do not connect the extractor hood to exhaust ducts carrying

combustion fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non-electrical appliances

(e.g. gas burning appliances), a sufficient degree of aeration must

be guaranteed in the room in order to prevent the backflow of

exhaust gas. The kitchen must have an opening communicating

directly with the open air in order to guarantee the entry of clean

air.

USE

• The extractor hood has been designed exclusively for domestic

use to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has ben

designed.

• Never leave high naked flames under the hood when it is in

operation.

• Adjust the flame intensity to direct it onto the bottom of the pan

only, making sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use:

overheated oil can burst into flames.

• The hood should not be used by children or persons not instructed

in its correct use.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before

carrying out any maintenance work.

• Clean and/or replace the Filters after the specified time period.

• Clean the hood using a damp cloth and a neutral liquid detergent.

14GB

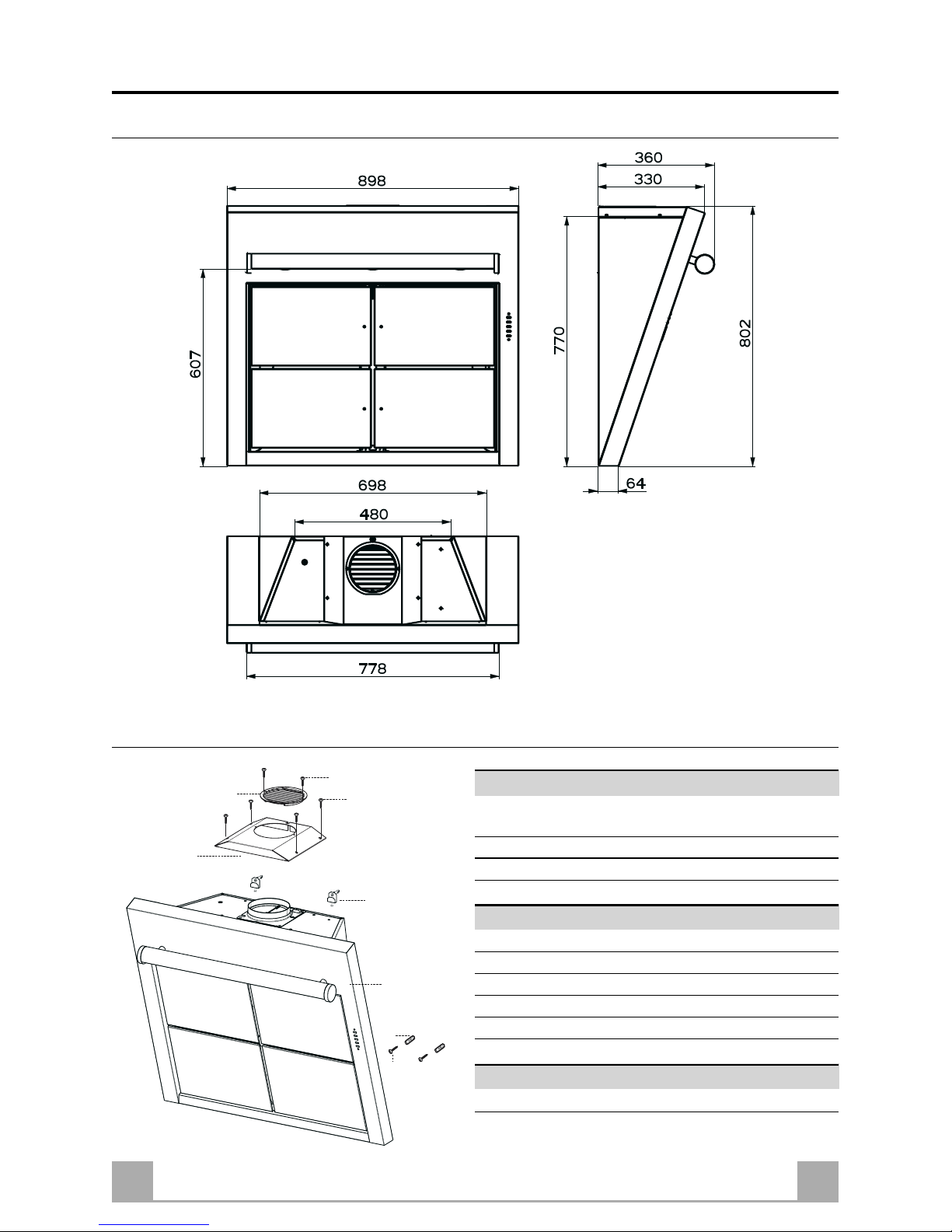

CHARACTERISTICS

Dimensions

Components

Ref. Q.ty Product Components

11 Hood Body, complete with: Controls, Light,

Blower, Filters

81 Directional Air Outlet grille

16 1 Filter cover

Ref. Q.ty Installation Components

11 2 Wall Plugs

11a 2 Wall Plugs SB 12/10

12a 2 Screws 4,2 x 44,4

12c 4 Screws 2,9 x 6,5

12d 2 Screws 2,9 x 9,5

Q.ty Documentation

1 Instruction Manual

12c

12a

12d

11a

15GB

INSTALLATION

Wall drilling and bracket fixing

On the wall, draw

• a Vertical line up to the ceiling or upper limit, at the centre of the area in which the Hood is to be

fitted;

• a Horizontal line at a minimum of 960 mm above the Cooker Top.

• Mark a point (1) on the horizontal line, 200 mm to the right of the vertical reference line.

• Repeat this operation on the other side, checking that the two marks are level.

• Mark a reference point (2) as indicated at 180 mm from the vertical reference line and 362 mm

above the Cooker Top.

• Repeat this operation on the other side, checking that the two marks are level.

• Drill at the points (1) marked, using a ø 12 mm drill bit.

• Drill at the points (2) marked, using a ø 8 mm drill bit.

• Insert the bracket plugs 11a into the holes 1and screw into place.

• Insert plugs 11 into holes 2.

11a

12a

180

200 200

960

362

180

250

16GB

12c

12d

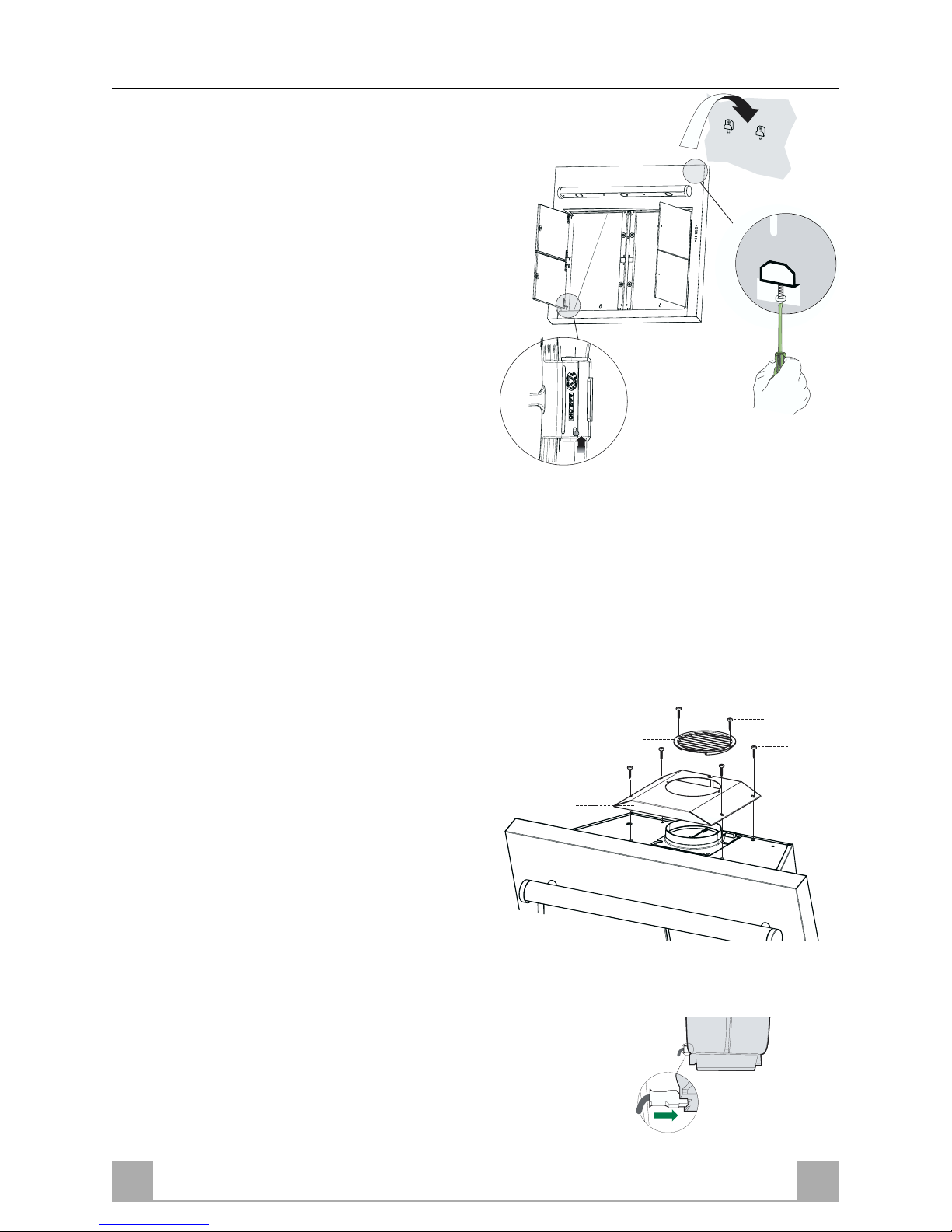

Mounting the hood body

• Open the ducting panels.

• Disconnect the panel from the hood canopy by

sliding the fixing pin lever.(A)

• Remove the metal grease filters by turning the

handles provided.

• Adjust the two screws Vr, on brackets 11a, to a

minimum.(B)

• Hook the hood canopy onto the two brackets

11a.

• From inside the hood canopy, adjust the screws

Vr to set the Hood Canopy level.

• Tighten the safety screw 12a.

Connections

DUCTED VERSIONAIR EXHAUST SYSTEM

To install the Ducting Version of the hood, the optional Ducting chimney kit must be purchased.

RECIRCULATION VERSIONAIR OUTLET

To install the Recirculation Version of the hood, the optional Activated charcoal cartridge kit must

be purchased.

• Screw the filter cover onto the air outlet, using

four screws 12c (2.9 x 12.5).

• Fix the directional grille 8on the recirculation

air outlet using the 2 screws 12d (2,9 x 9,5)

provided.

ELECTRICALCONNECTION

• Connect the hood to the mains through a two-pole

switch having a contact gap of at least 3 mm.

• Remove the grease filters (see paragraph Maintenance)

being sure that the connector of the feeding cable is

correctly inserted in the socket placed on the side of

the fan

(A)

(B)

17GB

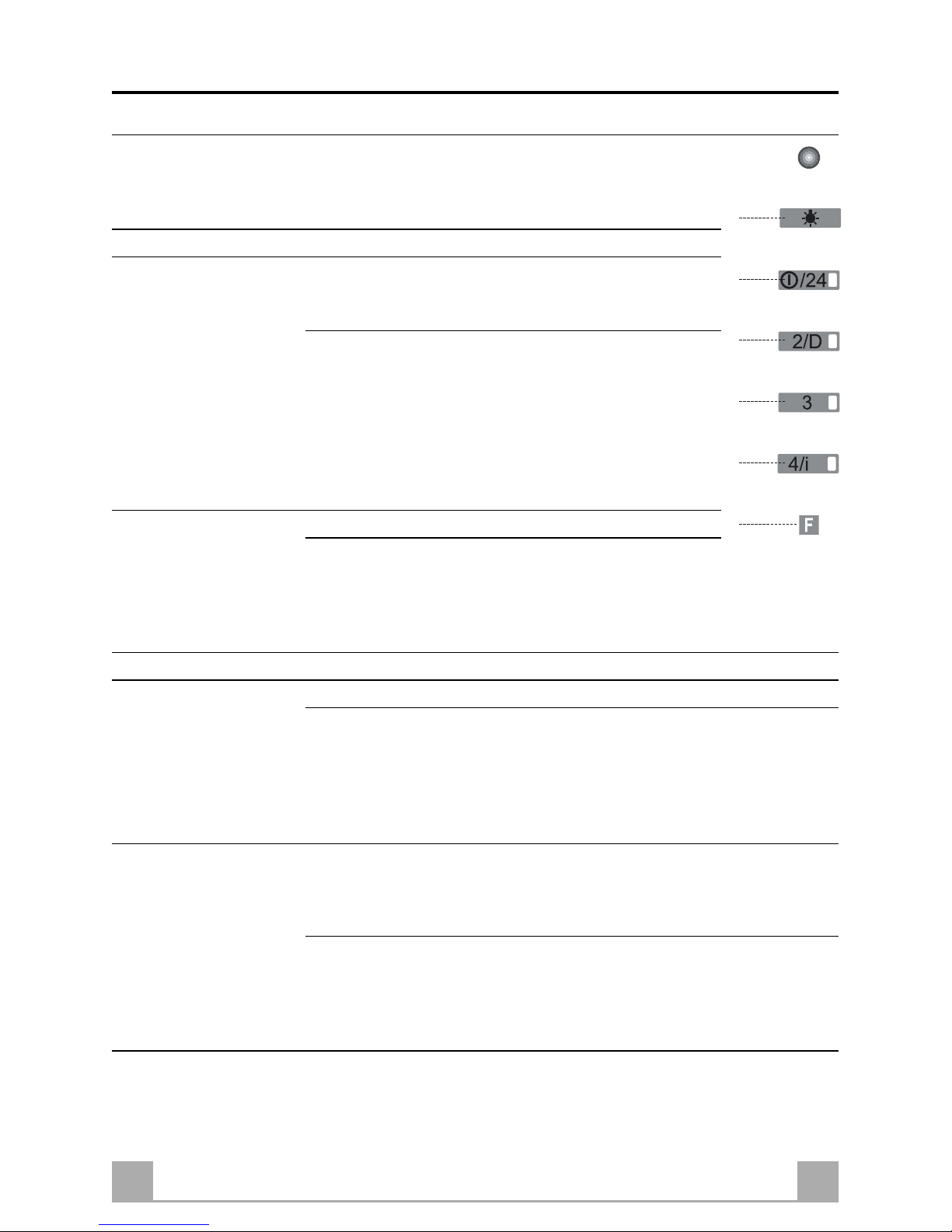

USE

Control Panel

The hood can be switched on pushing directly onto the requested speed without

firstly having to select 0/1 button.

KEY LED FUNCTIONS

L0/1 Light Turns lighting on and off.

T1 0/1 Motor on First speed.

When pressed for about 1 seconds the motor is

switched off.

Flashing 24h Changeover

This is enabled by pressing and holding the

button for approximately 5". It allows a

suction level of 100 m3/h with a noise level

of just 28dB(A). Can be enabled at any

speed, even with the hood turned off. To

disable, press and hold the button for

approximately 5".

T2 Speed on Second speed.

Flashing Delay (30')

Press the button for approximately 2" to enable automatic

shutdown with a 30' delay. Suitable to complete elimination

of any residual smells. Can be enabled at any speed and is

disabled by pressing the button briefly.

T3 Speed on Third speed.

T4 Speed Fixed Max. speed

Flashing Intensive speed.

Suitable for the strongest cooking vapours and odours. The

function becomes active when the button is pushed for about

2 seconds. After 10 minutes of functioning it turns off

automatically. This function can be interrupted by means of

pressing any of the buttons.

S1 Led Fixed Indicates that the Metal grease filters saturation alarm has

been triggered, and the filters need to be washed. The alarm

is triggered after 100 working hours. (Reset; check the

Maintenance-paragraph)

Flashing indicates that the activated charcoal odour filter saturation

alarm has been triggered, and the filter has to be replaced;

the metal grease filters must also be washed. The activated

charcoal odour filter is triggered after 200 working hours.

(Activation and Reset; check the Maintenance-paragraph)

18GB

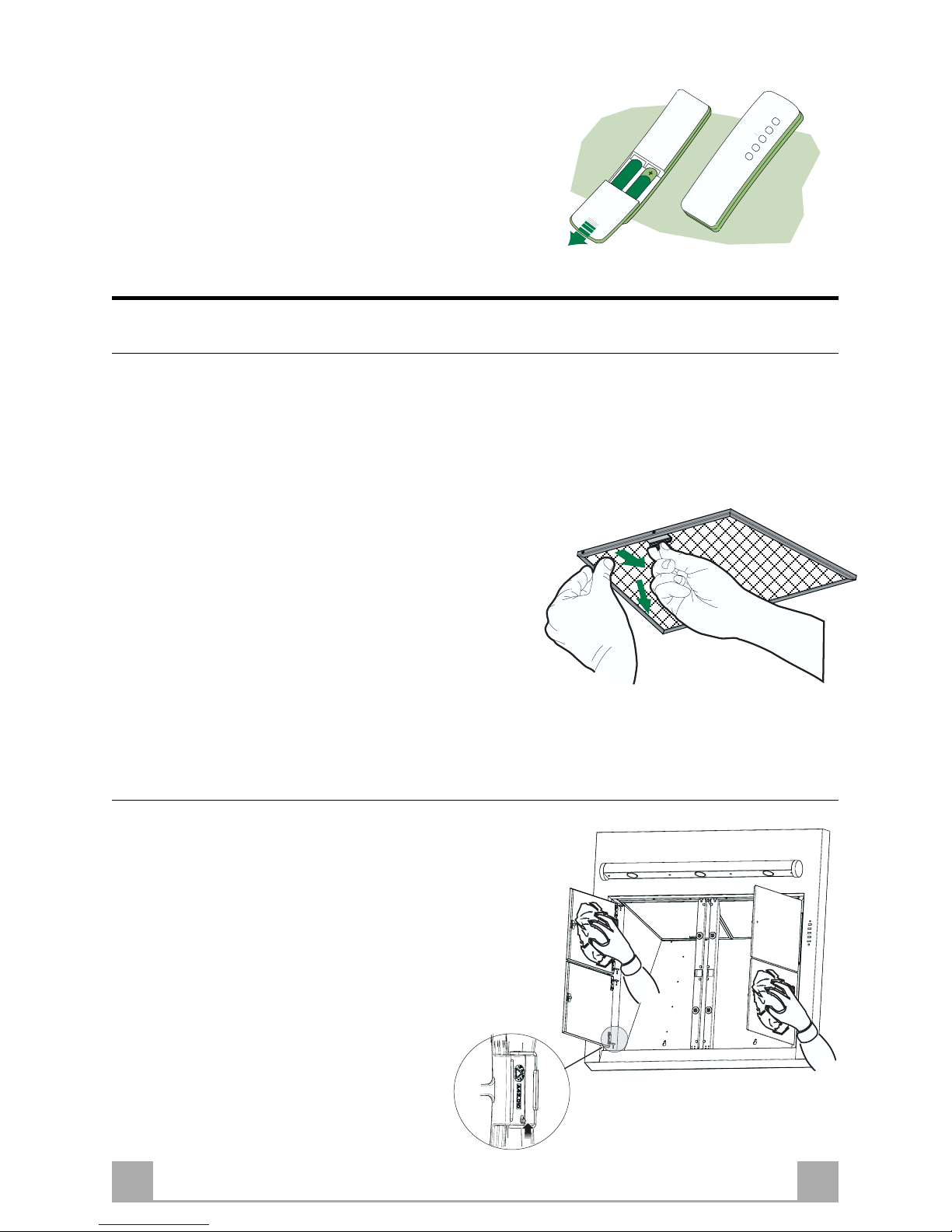

REMOTE CONTROL (OPTIONAL)

The appliance can be controlled using a remote control

the standard LR03-AAA type.

• Do not place the remote control near to heat sources.

• Used batteries must be disposed of in the proper

manner.

MAINTENANCE

Grease filters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

Alarm signal reset

• Switch off the lights and extractor motor.

• Press button T3 for at least 3 seconds, until the leds start to flash.

Cleaning the filters

• The filters are washable and must be cleaned when

led S1 flashes or at least every 2 months of opera-

tion, or more frequently for particularly heavy us-

age.

• Remove the filters one at a time by pushing them

towards the back of the group and pulling down at

the same time.

• Wash the filters, taking care not to bend them.

Allow them to dry before refitting.

• When refitting the filters, make sure that the handle

is visible on the outside.

Ducting panels

• Open the ducting panels.

• Disconnect the panel from the hood canopy by

sliding the fixing pin lever.

• Clean the outside using a damp cloth and neutral

liquid detergent.

• Clean the inside using a damp cloth and neutral

detergent; do not use wet cloths or sponges, or

jets of water; do not use abrasive substances.

19GB

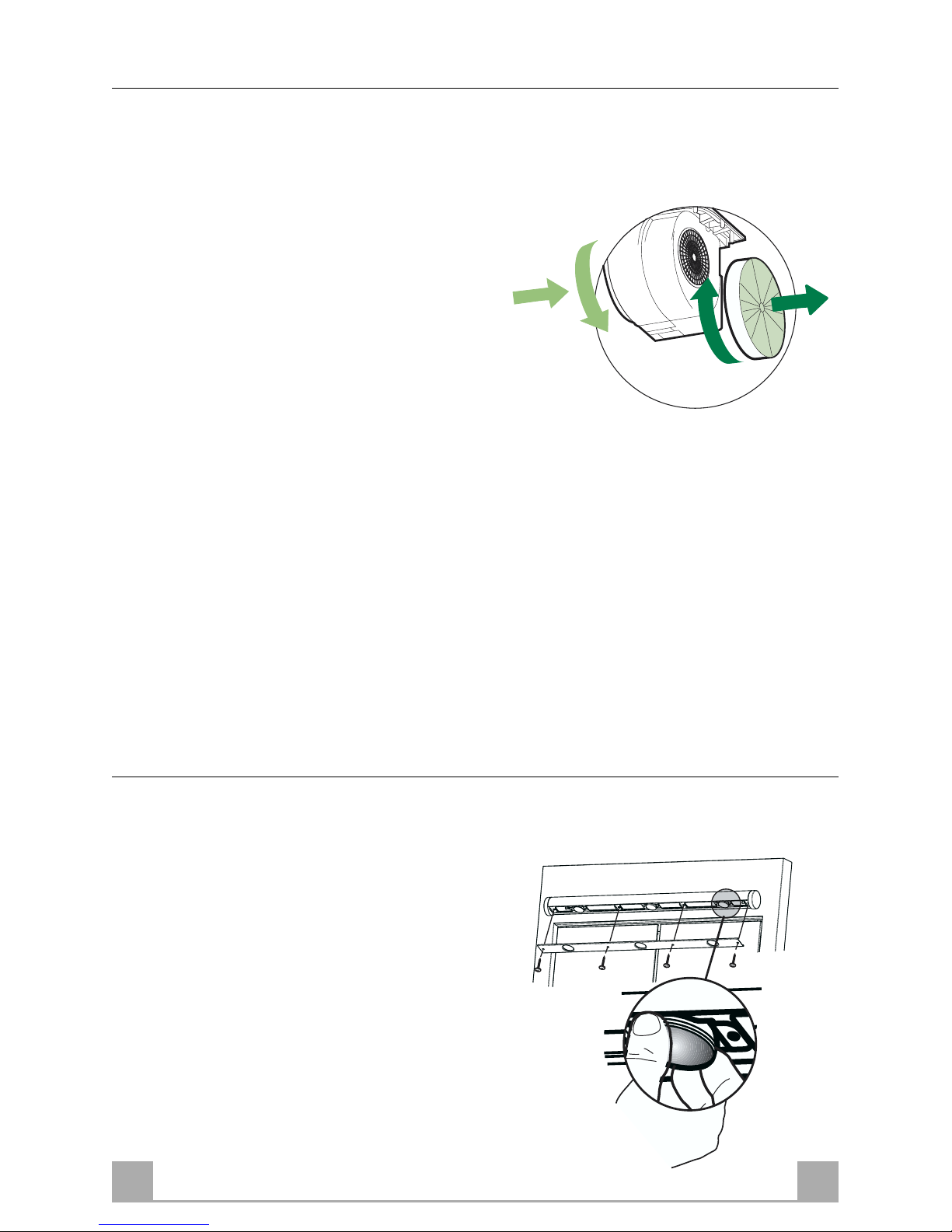

Activated charcoal filter (Recirculation version)

REPLACING THEACTIVATED CHARCOAL FILTER

• The filter is not washable and cannot be

regenerated. It must be replaced when led S1

flashes or at least every 4 months. The alarm

signal will only light up when the extractor

motor is switched on.

Alarm signal reset

• Switch off the lights and extractor motor.

• Press button T3 for at least 3 seconds, until the

leds start to flash.

Replacing the Filter

• Remove the metal grease filters

• Remove the saturated activated carbon filters

as shown (A).

• Fit the new filters (B).

• Replace the metal grease filters.

Alarm signal activation

• In Recirculation version Hoods, the Filter saturation alarm can be enabled on installation or at a

later date. Turn the Lights and the suction Motor off.

• Disconnect the Hood using the Main switch or the double-pole switch on the mains power supply.

• Restore the connection by pressing and holding T1.

• Release the button. All five LEDs are turned on

• Within 3 seconds press T1 until LEDs T1 and T4 flash in confirmation:

LED flashes twice - Activated charcoal filter saturation alarm ENABLED

LED flashes once - Activated charcoal filter saturation alarm DISABLED

Lighting

LIGHT REPLACEMENT

20 W halogen light.

• Remove the light cover by unfastening the

screws that hold it.

• Extract the lamp from the Support.

• Replace with another of the same type, making

sure that the two pins are properly inserted in

the lamp holder socket holes.

• Replace the light cover.
