JVC G Series Manuel utilisateur

2005-2006-(G & FH Series)

HDILA

Lamp Replacement

Procedure

Quick Step Guide

How To Determine If The Lamp

Requires Replacement?

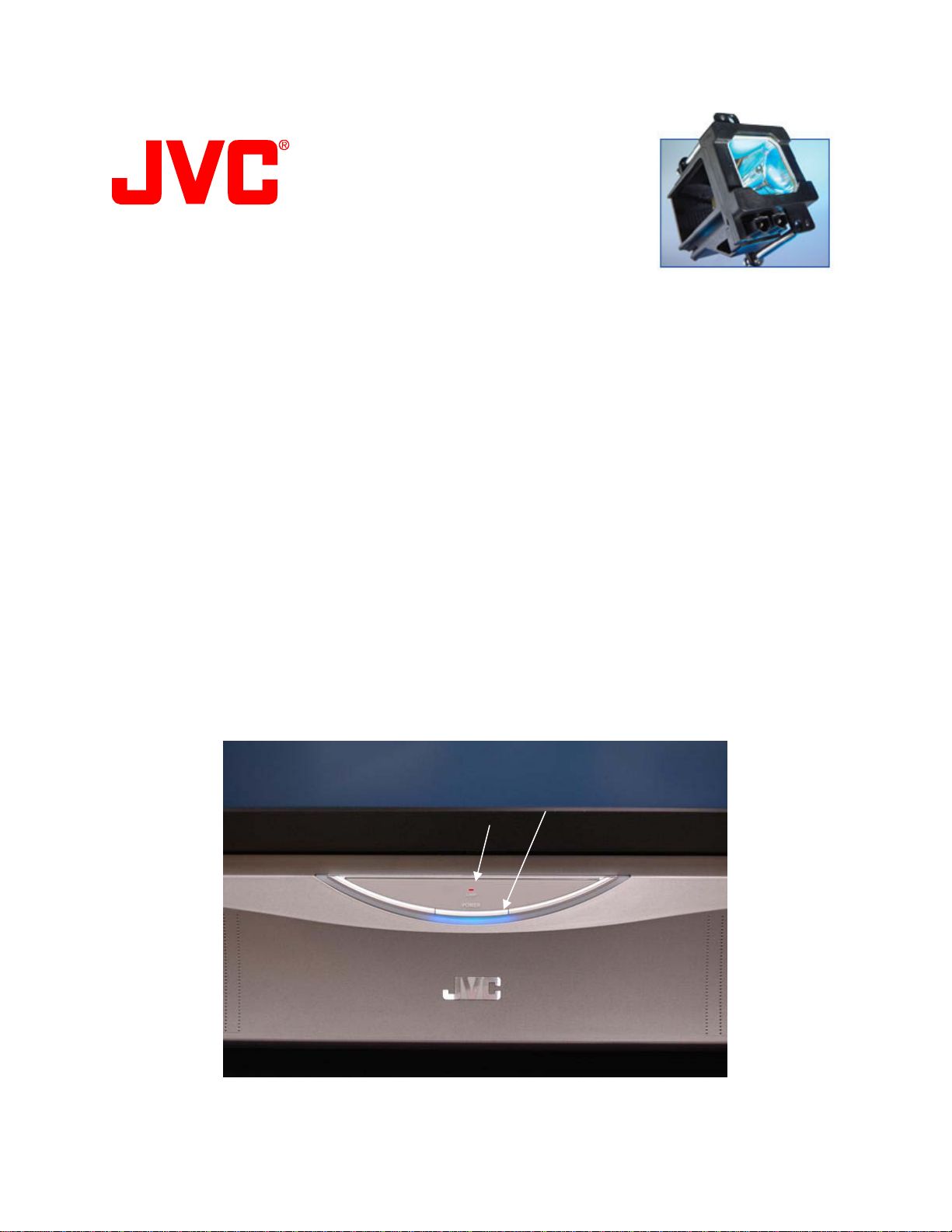

After 30 seconds of turning on the TV

The POWER LED and LAMP LED

rapidly blink together at the same time.

You may call an Authorized JVC service facility to

replace the lamp

or you can replace the lamp on your own.

Go on to the next page for more information.

Both Lights

Rapidly Blinking

How To Obtain A Replacement Lamp?

Option 1

To Obtain The Closest Authorized

JVC Service Facility To Replace The Lamp:

Please visit: www.jvc.com and click on the Service Center Locator link

Enter your zip code and model number or select Television-DILA Proj TV

Option 2

If You Choose To Replace The Lamp Yourself:

You can only use part numbers

TS-CL110U or TS-CL110UAA

If the TV is out of warranty, you can purchase a replacement lamp at our

accessory store. Please visit: www.jvc.com and click on the Accessory Store

link. If the TV is still within warranty, you can call

our Customer Care Center at: 1-800-252-5722.

If you choose to replace the lamp yourself please proceed to the instructions

on the following pages.

Option 1 Option 2

Before You

Start

Caution:

Although you will find the process to change the lamp to be very simple,

please read the warnings on this page and go through each of the following pages step by

step.

Caution:

It is very important that you NEVER TOUCH THE GLASS SURFACE OF THE LAMP.

Touching the glass surface will deposit oils from your hand onto the lamp surface. When

the lamp heats up to its operating temperature, the oil will cause a difference in tempera-

ture on the lamp surface that will likely cause the lamp to break.

Caution:

Under operating conditions, THE LAMP WILL GET EXTREMELY HOT AND WILL

CAUSE SEVERE BURNS IF TOUCHED.

Caution:

Before attempting to replace the lamp, make sure the TV has completely run through its

cooling cycle. Turn the power off and wait until the Lamp LED blinks very slowly and

turns off completely.

Caution:

Unplug the TV. If you feel any warmth as you place your hand near the lamp, DO NOT

TOUCH IT. Wait until the lamp has completely cooled before attempting to replace it.

After turning the power off, wait at least 1 hour.

Caution:

NEVER attempt to replace the lamp with the TV plugged into a wall outlet.

Attempting to replace the lamp with the TV plugged in could lead to a severe electrical

shock.

Caution:

DO NOT DROP the used lamp. The inside of the lamp is under pressure. Dropping or

other hard shock could cause the lamp to shatter.

Caution:

ALWAYS recycle the used lamp. Because the lamp contains a small amount of mercury, it

cannot be thrown away with regular trash. Follow the recycling instructions included with

the Lamp Replacement Kit.

Step 1

of 13

Turn Off The TV.

Press the POWER button on the

remote control or TV front panel.

Warning: Although turning off the TV allows the lamp

to cool, it does not mean that the lamp will

immediately be cool enough to handle safely.

Please wait at least one hour before

proceeding to replace the lamp.

Step 2

of 13

Unplug The TV.

Disconnect the power cord from the AC outlet.

Make sure that the LAMP LED light has stopped

blinking before you unplug the TV.

Never attempt to replace the lamp with the TV

plugged in.

Step 3

of 13

Locate The Lamp Cover.

The Lamp cover is located on the left side of the

TV towards the back.

Step 4

of 13

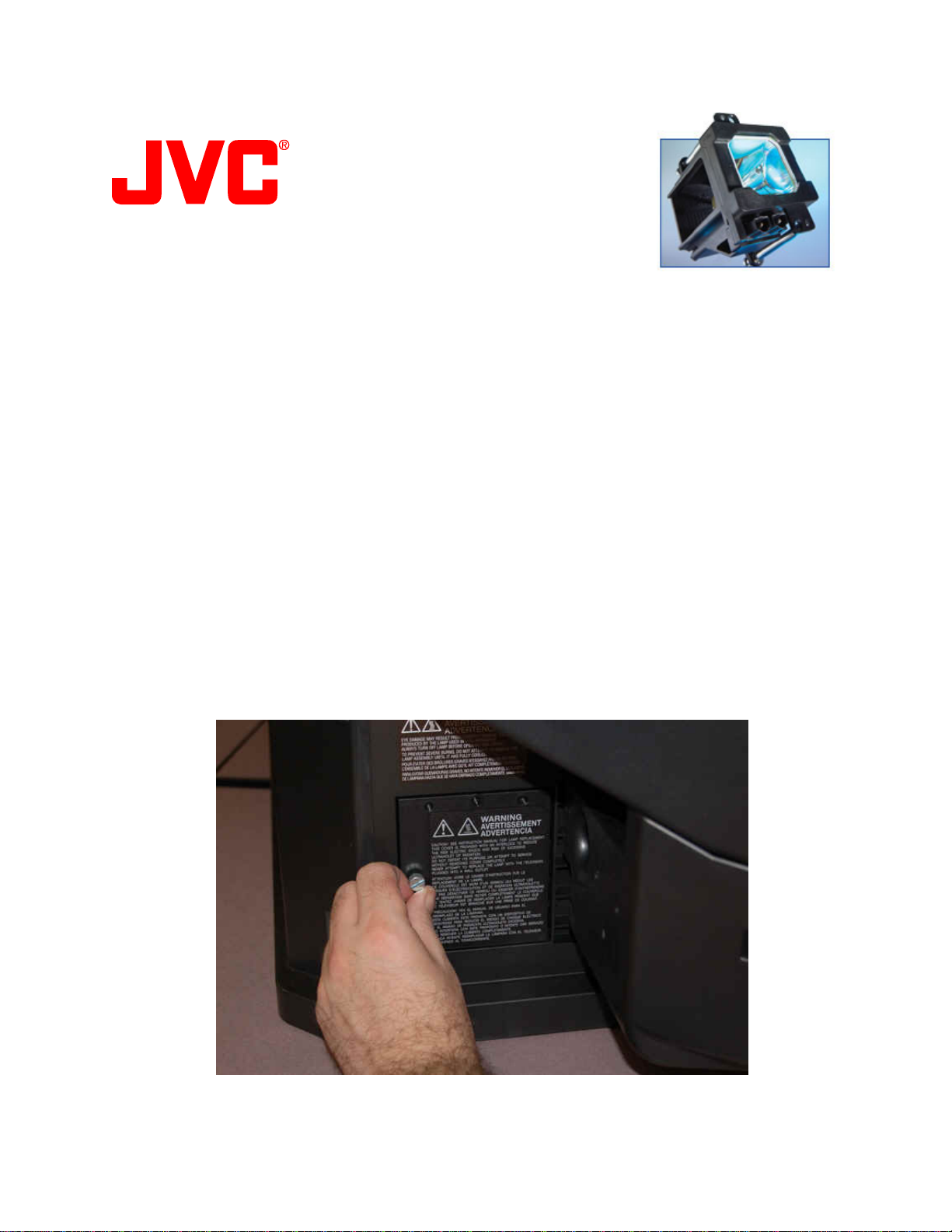

Remove The Lamp Cover.

To access the lamp you will need to remove the lamp

cover.

You can use a coin or screwdriver to

turn and loosen the screw.

Once fully loosened you can remove the cover.

Step 5

of 13

Loosen The Screws Holding The Lamp.

Using a Philips head type screwdriver,

loosen the two screws fastening the lamp.

Step 6

of 13

Remove The Old Lamp.

Remove the lamp by raising the handle and gently

pull the lamp straight out.
