COLOUR TELEVISION INSTRUCTIONS

FARBFERNSEHGERÄT BEDIENUNGSANLEITUNG

TELEVISEUR COULEUR MANUEL D’INSTRUCTIONS

KLEURENTELEVISIE GEBRUIKSAANWIJZING

TELEVISOR A COLOR MANUAL DE INSTRUCCIONES

TELEVISORE A COLORI ISTRUZIONI

TELEVISOR A CORES INSTRUÇÕES

AV-32Z25EU

AV-28Z25EU

ENGLISH

DEUTSCH

FRANÇAIS

NEDERLANDS

CASTELLANO

ITALIANO

PORTUGUÊS

LCT1242-001A-U_Cover.fm Page 1 Wednesday, August 21, 2002 9:53 AM

ENGLISH

AV-32/28Z25EUY / LCT1242-001A-U / English

Thank you for buying this JVC colour television.

To make sure you understand how to use your new TV, please read this manual thoroughly before you

begin.

Avoid improper installation and never position the unit where good

ventilation is unattainable.

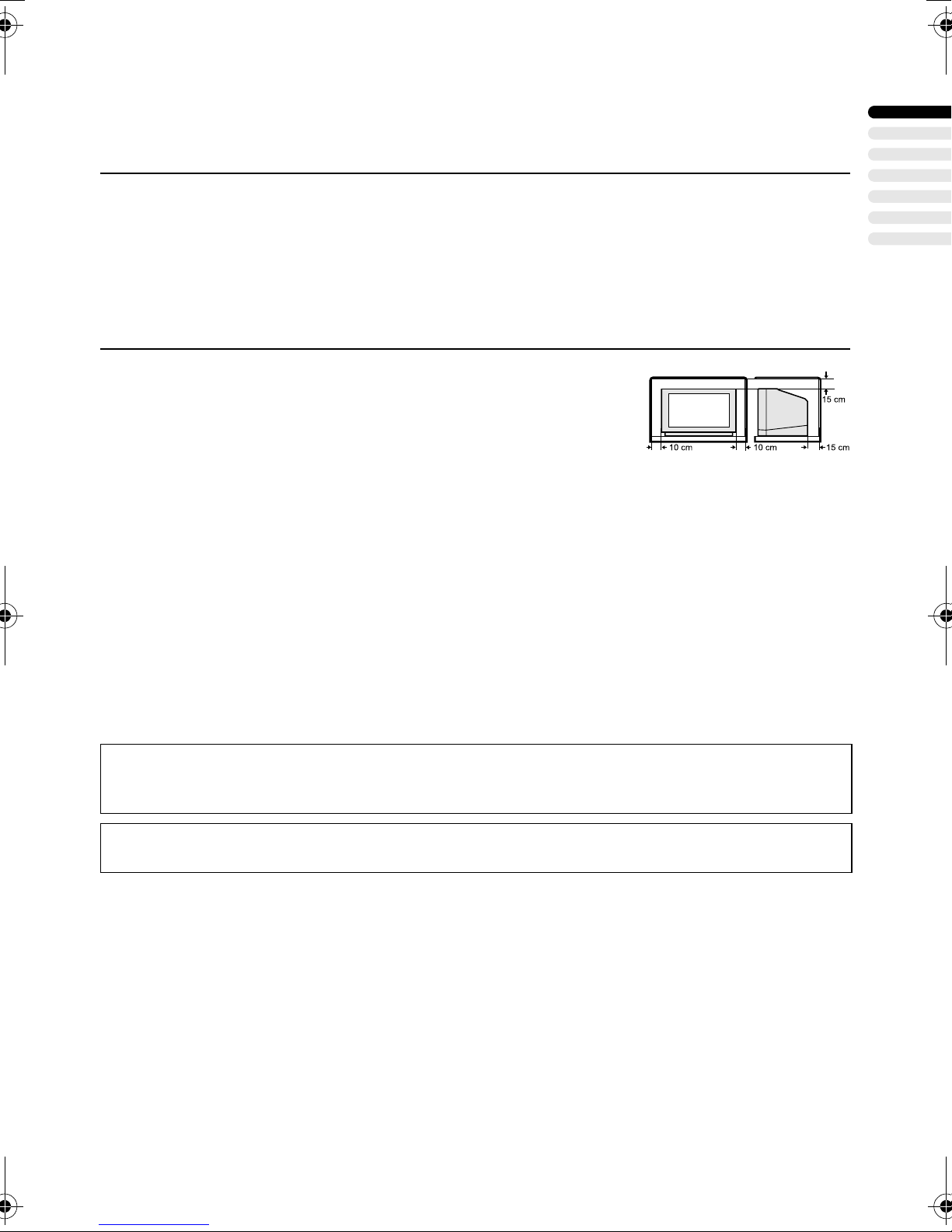

When installing this television, distance recommendations must be

maintained between the floor and wall, as well as installation in a tightly

enclosed area or piece of furniture.

Adhere to the minimum distance guidelines shown for safe operation.

Failure to heed the following precautions may result in damage to the TV or

remote control.

DO NOT block the TV’s ventilation openings or holes.

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be

able to get out.)

DO NOT place anything on top of the TV.

(such as cosmetics or medicines, flower vases, potted plants, cups, etc.)

DO NOT allow objects or liquid into the cabinet openings.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

DO NOT place any naked flame sources, such as lighted candles, on the TV.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION:

• Operate only from the power source specified

(AC 220 – 240 V, 50 Hz) on the unit.

• Avoid damaging the AC plug and power cord.

• When you are not using this unit for a long

period of time, it is recommended that you

disconnect the power cord from the main

outlet.

• The main power button on the TV does not

fully isolate the TV from the AC supply. If you

are not going to use this TV for a long period

of time, be sure to disconnect the AC plug from

the AC socket.

The surface of the TV screen is easily damaged. Be very careful with it when handling the TV.

Should the TV screen become soiled, wipe it with a soft dry cloth. Never rub it forcefully.

Never use any cleaner or detergent on it.

In the event of a fault, unplug the unit and call a service technician. Do not attempt to repair it

yourself or remove the rear cover.

AV32&28Z25EU_Eng.fm Page 1 Thursday, August 8, 2002 5:48 PM

AV-32/28Z25EUY / LCT1242-001A-U / English

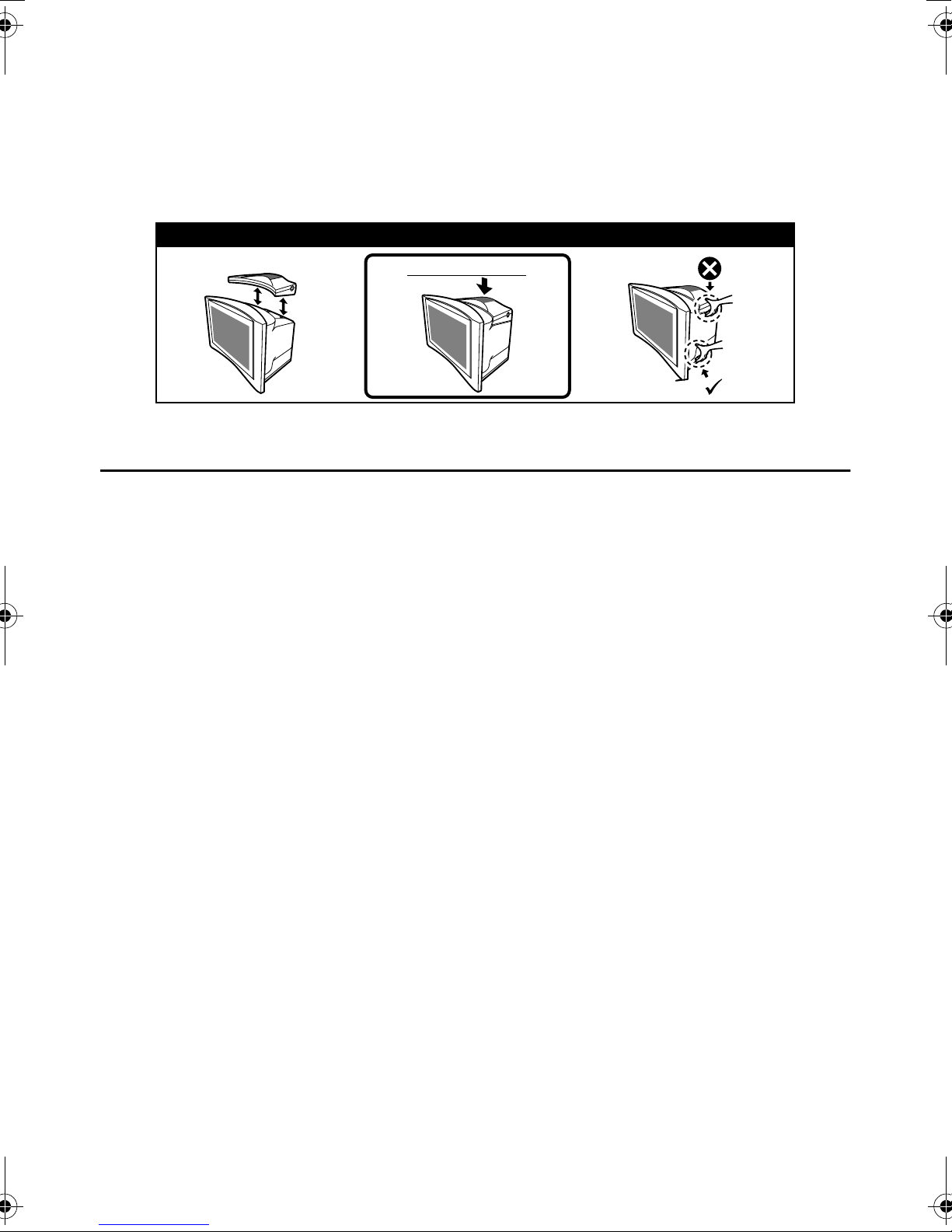

Caution

• The woofer unit is mounted on the TV. Always move the TV and woofer unit together when

removing the TV from the box, or when moving the woofer unit.

• If the TV is tilted during movement the woofer unit may fall. Be careful to keep the TV level

when moving it.

• Do not grip the woofer unit when moving the TV.

• Do not place objects on the woofer unit duct.

CONTENTS

Setting up your TV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

TV buttons and functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Remote control buttons and functions . . . . . . . . . . . . . . . . . . . . . . 9

Teletext function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Using the TV’s menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Additional menu operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Additional preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

CH/CC numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

LIFTING CAUTION

KEEP STAY UNIT

FREE WOOFER UNIT

AV32&28Z25EU_Eng.fm Page 2 Thursday, August 8, 2002 5:48 PM

ENGLISH

AV-32/28Z25EUY / LCT1242-001A-U / English

Setting up your TV

Caution

• Turn off all the equipment including the TV before connecting anything.

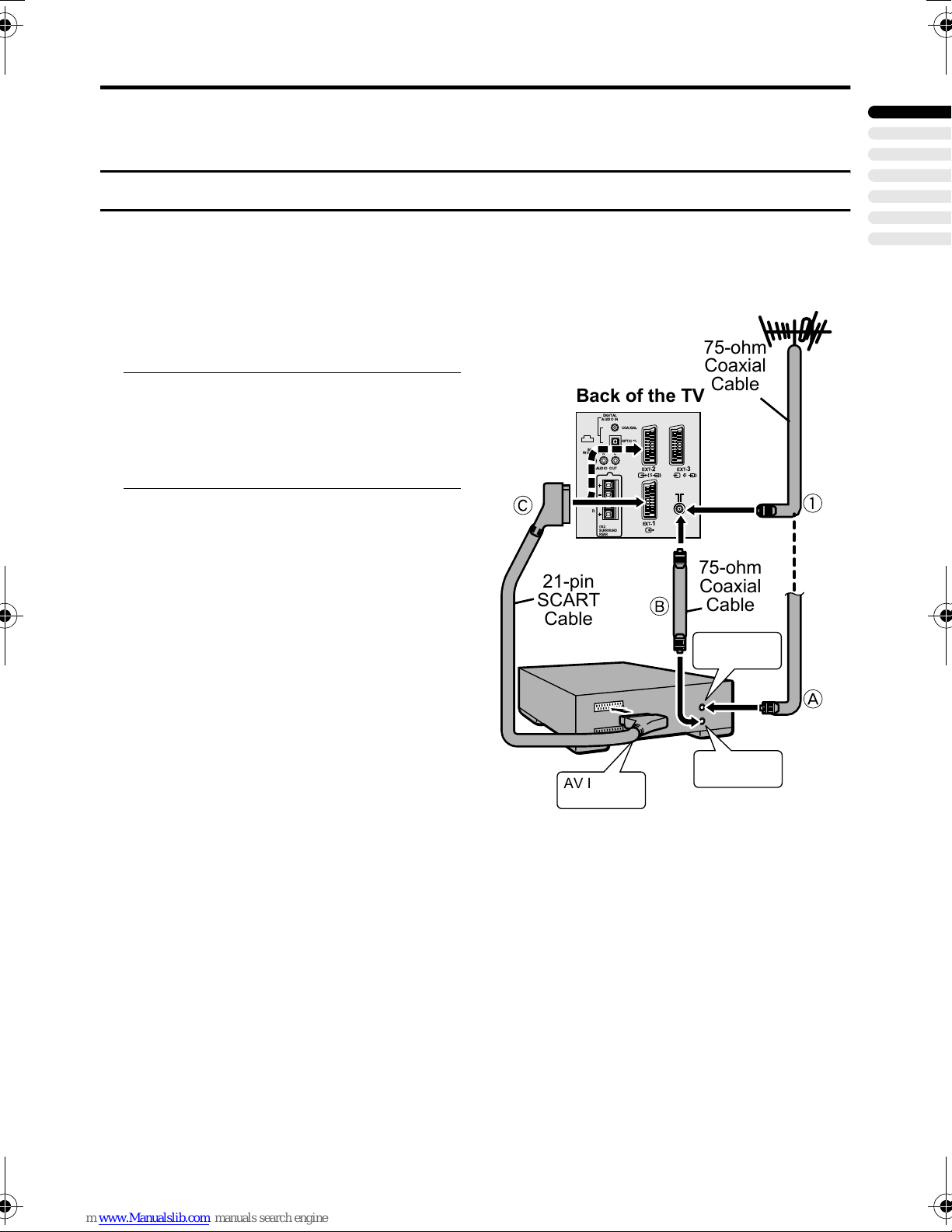

Connecting the aerial and VCR

• The connecting cables are not provided.

• For further details, refer to the manuals provided with the devices to be connected.

If connecting a VCR, follow A

A→

B→C

If not connecting a VCR, follow 1

To operate T-V LINK functions, a T-V

LINK compatible VCR must be connected to

the EXT-2 terminal on the TV. For details

about T-V LINK functions, see “T-V LINK

FUNCTIONS” on page 6.

• A video can be viewed from the VCR

without performing C. For details, refer

to your VCR instruction manual.

• To connect additional external devices,

please see “Connecting the external

devices” on page 42.

• To connect additional audio equipments,

see “Using additional audio equipments”

on page 44.

• To connect a device (such as DVD player)

with the digital output terminal for Dolby

Digital, see “Listening to Dolby Digital

audio” on page 44.

• When a decoder is connected to a T-V

LINK compatible VCR, set the

DECODER (EXT-2) function to ON. For

details, see “Using the DECODER (EXT-

2) function” on page 41. Otherwise, you

will not be able to view scrambled

channels.

EXT-1

EXT-2

EXT-3

AUDIO OUT

SURROUND

REAR

SUB

WOOFER

OPTICAL

DIGITAL

AUDIO IN

COAXIAL

75-ohm

Coaxial

Cable

21-pin

SCART

Cable

Back of the TV

75-ohm

Coaxial

Cable

AV IN/OUT

Terminal

To Aerial

Output

To Aerial

Input

VCR

Aerial

AV32&28Z25EU_Eng.fm Page 3 Thursday, August 8, 2002 5:48 PM

Setting up your TV

AV-32/28Z25EUY / LCT1242-001A-U / English

Rear Panel

1Woofer terminal (page 46)

2AUDIO OUT terminal (page 45)

3SURROUND REAR terminal (page 45)

4EXT-1 terminal (pages 3, 28, 42)

5EXT-2 terminal (pages 3, 6, 28, 42)

6EXT-3 terminal (pages 28, 42)

7Aerial socket (page 3)

DIGITAL AUDIO IN terminal (pages 28, 44)

Connecting the power cord to

the AC outlet

Caution

• Operate only from the power source specified

(AC 220 – 240 V, 50 Hz) on the unit.

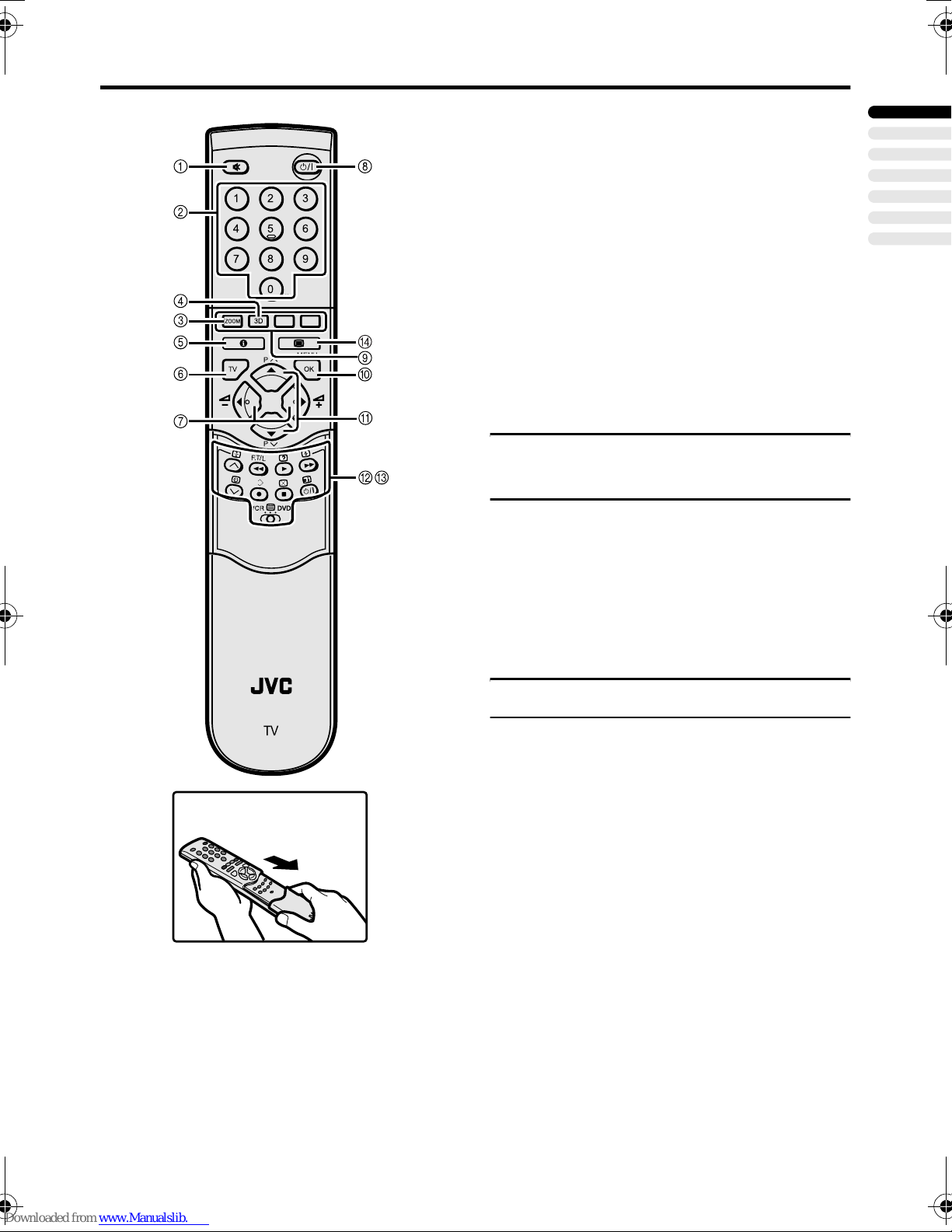

Putting the batteries into the

Remote control

Use two AAA/R03 dry cell batteries.

Insert the batteries from the -end, making

sure the +and -polarities are correct.

• Follow the warnings printed on the

batteries.

• Battery life is about six months to one

year, depending on your frequency of use.

• The batteries we supply are only for

setting up and testing your TV, please

replace them as soon as necessary.

• If the remote control does not work

properly, replace the batteries.

Initial settings

When the TV is first turned on, it enters the

initial setting mode, and the JVC logo is

displayed. Follow the instructions on the on-

screen display to make the initial settings.

1 Press the Main power button on the

The Power lamp lights red (for power on),

then green (for TV on) and the JVC logo

is displayed.

• If the power lamp stays red and does

not change to green:

Your TV is in the standby mode. Press

the #(Standby) button on the remote

control to turn your TV on.

• The JVC logo does not appear when

your TV has been turned on once. In

this case, use the “LANGUAGE” and

“AUTO PROGRAM” functions to

make the initial settings. For details,

see “INSTALL” on page 33.

EXT-1

EXT-2EXT-3

AUDIO OUT

SURROUND

REAR

SUB

WOOFER

OPTICAL

DIGITAL

AUDIO IN

COAXIAL

TV OK

Blue

button

Main power

button

Power lamp

AV32&28Z25EU_Eng.fm Page 4 Thursday, August 8, 2002 5:48 PM

Setting up your TV

ENGLISH

AV-32/28Z25EUY / LCT1242-001A-U / English

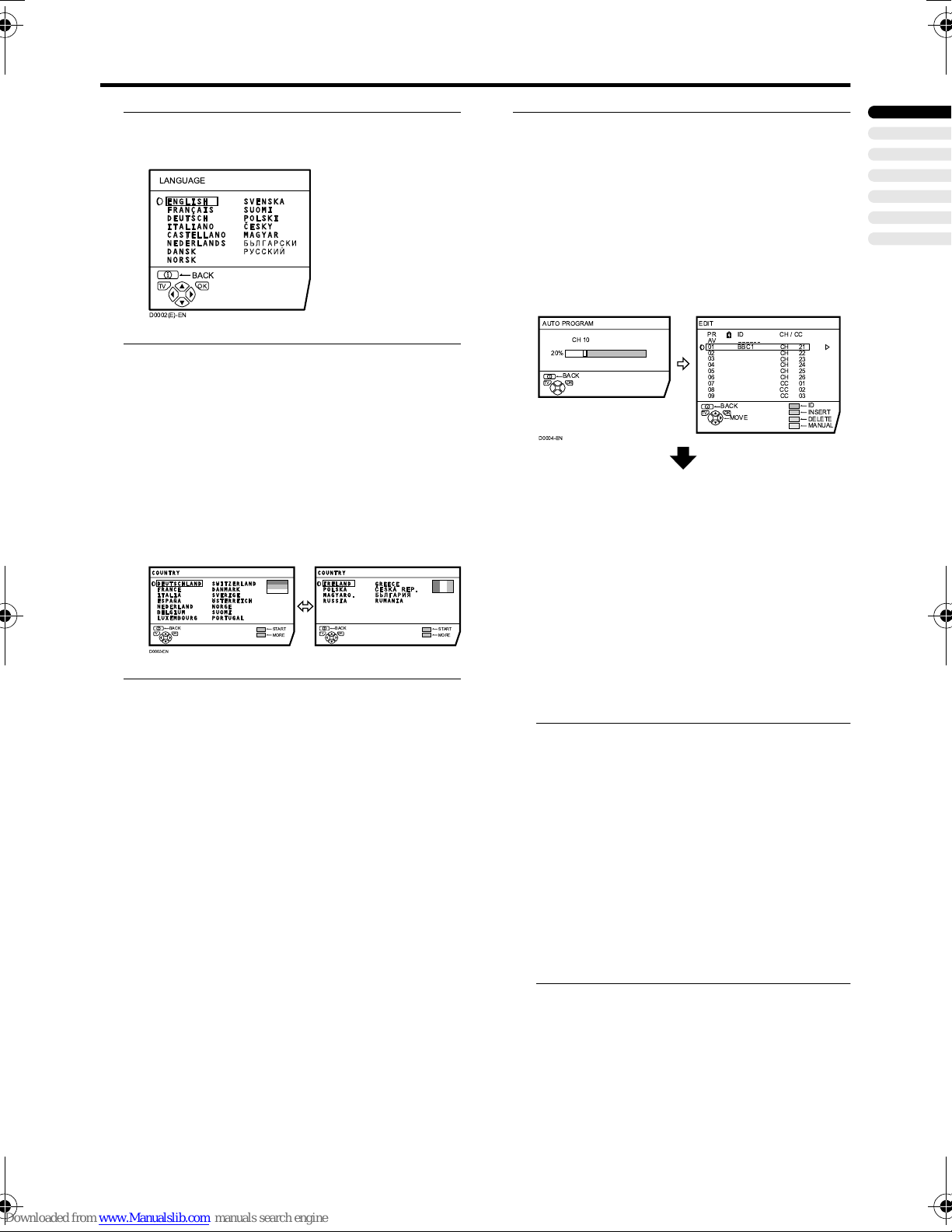

2 Press the a

abutton

The LANGUAGE menu appears.

3 Press the 5

5and 6

6buttons to

choose ENGLISH. Then press the

abutton

English is set for the on-screen display

description. The COUNTRY menu

appears as a sub-menu of the AUTO

PROGRAM function.

There are two COUNTRY menus.

Pressing the yellow button changes the

COUNTRY menu as follows:

4 Press the 5

5and 6

6buttons to

choose the country where you are

now located

5 Press the blue button to start the

AUTO PROGRAM function

The AUTO PROGRAM menu appears

and received TV channels are

automatically registered in the

Programme numbers (PR).

• To cancel the AUTO PROGRAM

function:

Press the bbutton.

After the TV channels have been

registered in the Programme

numbers (PR), the EDIT menu

appears

• You can proceed to edit the

Programme numbers (PR) using the

EDIT/MANUAL function. For details,

see “EDIT/MANUAL” on page 34.

• If you do not need to use the EDIT/

MANUAL function, go to the next

step.

If “ACI START/ACI SKIP” appears

in the AUTO PROGRAM menu:

You can use the ACI (Automatic Channel

Installation) function to decode the ACI

data and complete the registration of all

the TV channels in a short period of time.

For details of the ACI function and how to

use it, refer to “Using the ACI function”

on page 39.

If you don’t want to use the ACI function,

press the 6buttons to choose ACI

SKIP and then press a.

D0002(E)-EN

BACK

LANGUAGE

TV OK

BACK

START

TV OK

BACK

START

TV OK

D0003-EN

BACK

TV OK

EDIT

CH / CC

PR ID

BBC1 CH

INSERT

DELETE

MANUAL

CH 10

AUTO PROGRAM

20%

D0004-EN

MOVE

BACK

TV OK

AV32&28Z25EU_Eng.fm Page 5 Saturday, August 24, 2002 10:19 AM

Setting up your TV

AV-32/28Z25EUY / LCT1242-001A-U / English

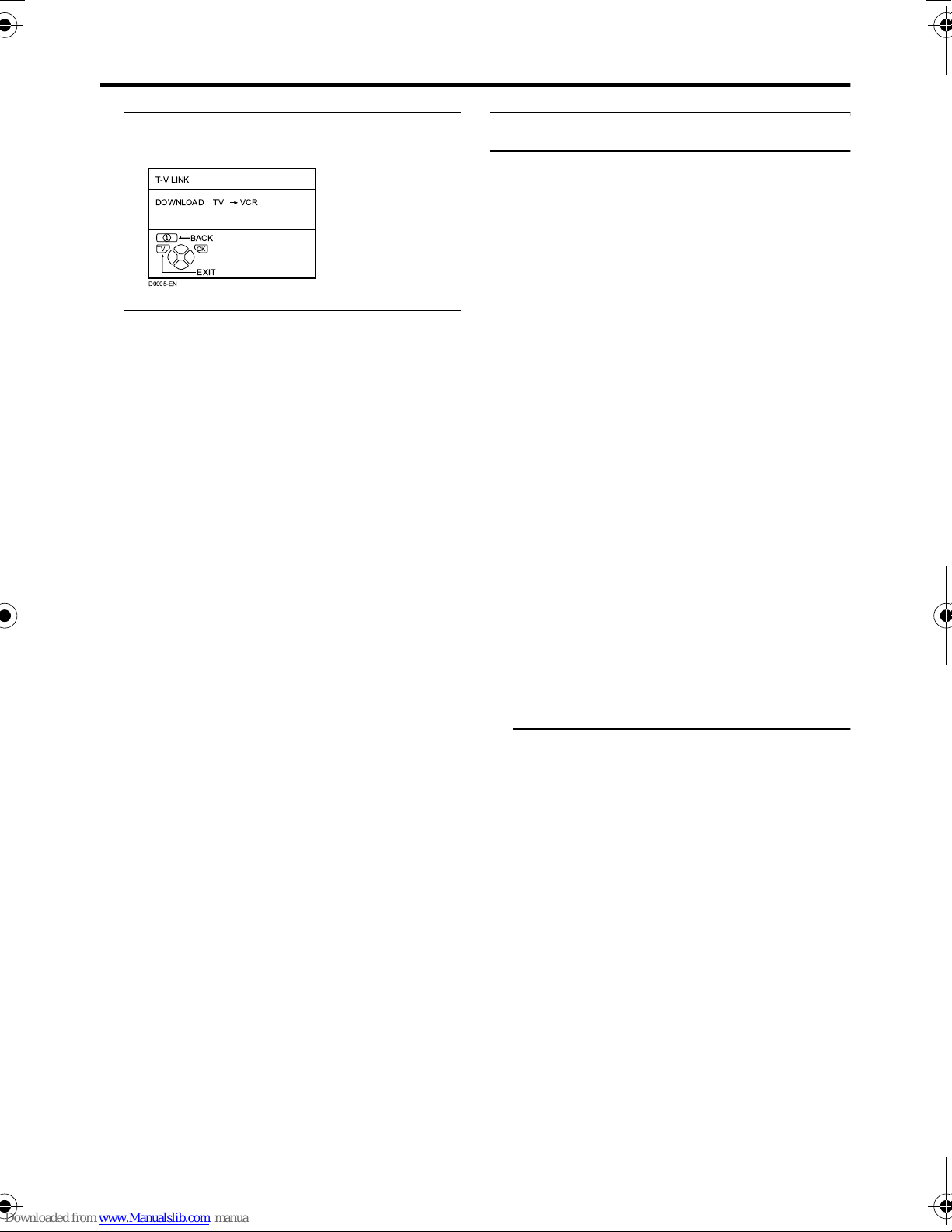

6 Press the a

abutton to display the

T-V LINK menu

7 If you do not have a T-V LINK

compatible VCR connected:

Press the bbutton to exit the T-V LINK

menu.

The T-V LINK menu disappears.

If you have a T-V LINK compatible

VCR connected to the EXT-2

terminal:

Follow the operating procedure

“Downloading the data to VCR” on

page 40 to transmit the Programme

number (PR) data.

Now, the initial settings are complete,

and you can watch the TV

• When your TV can detect the TV channel

name from the TV channel broadcast

signal, it automatically registers the TV

channel name (ID) to the Programme

number (PR) in which the TV channel has

been registered.

• If a TV channel you want to view is not

set to a Programme number (PR),

manually set it using the MANUAL

function. For details, see “EDIT/

MANUAL” on page 34.

• The TV channel is not registered in

Programme number PR 0 (AV). When

you want to register a TV channel to PR 0

(AV), manually set it using the

MANUAL function. For details, see

“EDIT/MANUAL” on page 34.

T-V LINK FUNCTIONS

When a T-V LINK compatible VCR is

connected to the EXT-2 Terminal on the TV,

it is easier to set up the VCR and to view

videos. T-V LINK uses the following

features:

To use T-V LINK functions:

A T-V LINK compatible VCR is necessary.

The VCR must be connected to the EXT-2

terminal on the TV by a fully wired SCART

cable.

A “T-V LINK compatible VCR” means a

JVC VCR with the T-V LINK logo or a VCR

with one of the following logos. However,

these VCRs may support some or all of the

features described below. For details, refer to

your VCR instruction manual.

“Q-LINK” (a trademark of Panasonic

Corporation)

“Data Logic” (a trademark of Metz

Corporation)

“Easy Link” (a trademark of Phillips

Corporation)

“Megalogic” (a trademark of Grundig

Corporation)

“SMARTLINK” (a trademark of Sony

Corporation)

D0005-EN

BACK

DOWNLOAD TV VCR

T-V LINK

TV OK

EXIT

AV32&28Z25EU_Eng.fm Page 6 Thursday, August 8, 2002 5:48 PM

Setting up your TV

ENGLISH

AV-32/28Z25EUY / LCT1242-001A-U / English

Pre-set Download

Download the registered data on the TV

channels from the TV to the VCR.

The Preset Download function automatically

begins when the initial setting is complete or

whenever the AUTO PROGRAM or EDIT/

MANUAL operations are performed.

• This function can be operated via VCR

operation.

When “FEATURE NOT AVAILABLE” is

displayed:

If “FEATURE NOT AVAILABLE” is

displayed, the download was not performed

correctly. Before trying to download again,

ensure the following:

• The VCR power is turned on.

• The VCR is T-V LINK compatible.

• The VCR is connected to the EXT-2

terminal.

• The SCART cable is fully wired.

Direct Rec

“What You See Is What You Record”

You can record to VCR the images that you

are currently viewing on TV by a simple

operation. For details, read the manual for

your VCR. Operate via the VCR. “VCR IS

RECORDING” is displayed.

In the following conditions, the VCR

will stop recording if the TV is turned

off, if the TV channel or input is

switched, or if the menu is displayed

on the TV:

• When recording images from an external

device connected to the TV.

• When recording a TV channel after it has

been unscrambled on a decoder.

• When recording a TV channel by using

the TV’s output because that TV channel

cannot be properly received on the VCR’s

tuner.

• When the VCR is not ready (for example,

when there is no tape inserted), “NO

RECORDING” is displayed.

• Operation via the TV is not possible.

• Generally, the VCR cannot record a TV

channel that cannot be received properly

by the VCR’s tuner, even though you can

view that TV channel on the TV.

However, some VCRs can record a TV

channel by using the TV’s output if that

channel can be viewed on the TV, even

though the TV channel cannot be received

properly by the VCR’s tuner. For details,

refer to your VCR instruction manual.

TV Auto Power On/VCR Image

View

When the VCR starts playing, the TV

automatically turns on and the images from

EXT-2 terminal are displayed on the screen.

When the VCR menu is operated, the TV

automatically turns on and the images from

EXT-2 terminal are displayed on the screen.

• This function does not operate if your

TV’s main power is turned off. Set your

TV’s main power to on (standby mode).

AV32&28Z25EU_Eng.fm Page 7 Thursday, August 8, 2002 5:48 PM

AV-32/28Z25EUY / LCT1242-001A-U / English

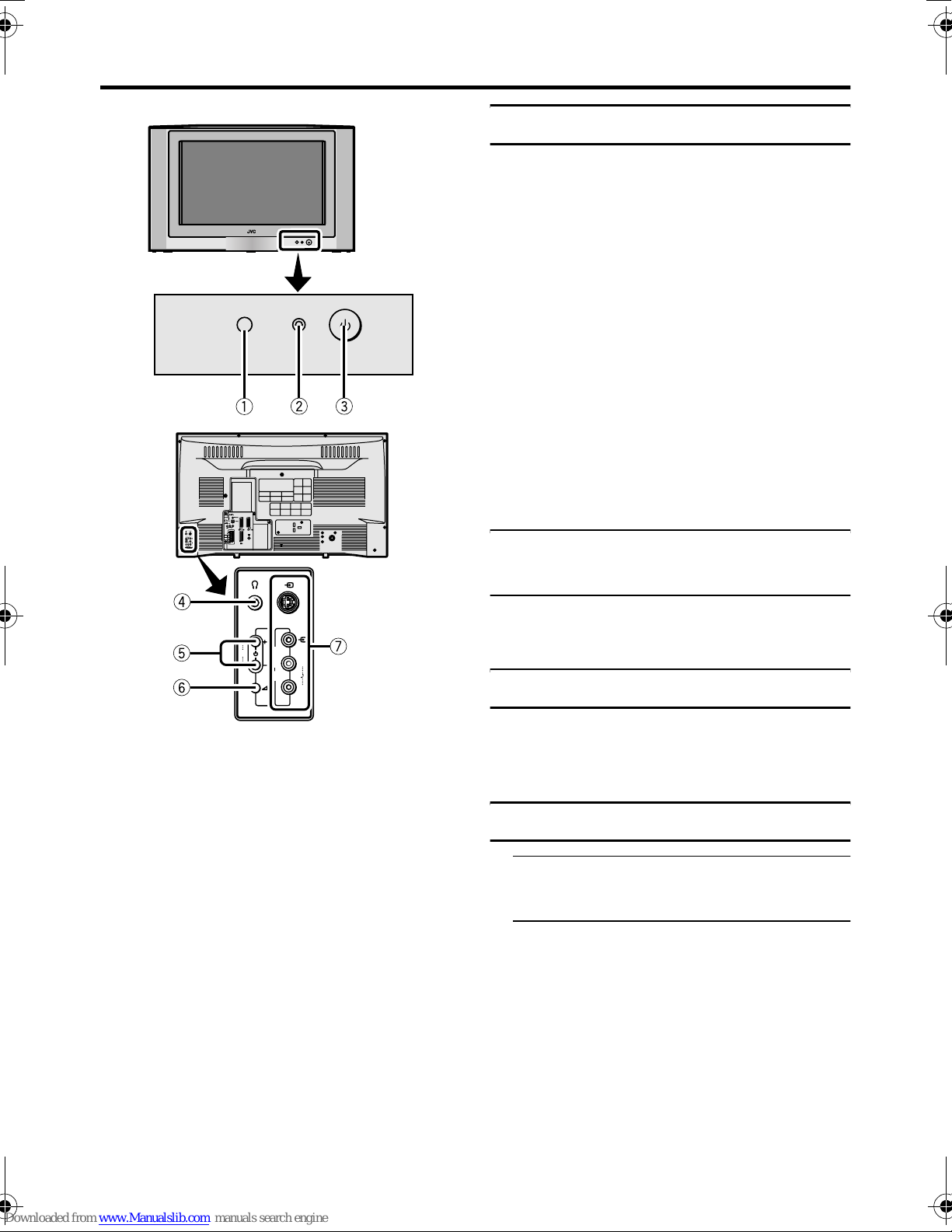

TV buttons and functions

Refer to the pages in parentheses for details.

1Remote control sensor

2Power lamp (pages 4, 8)

3Main power button (pages 4, 8)

4Headphone jack (mini jack) (page 42)

5P pbuttons/ qbuttons (page 8)

6r(Volume) button (page 8)

7EXT-4 terminal (pages 28, 42)

Turn the Main power on

Press the Main power button on the

TV.

The Power lamp lights red and your TV is in

the standby mode.

• If the Power lamp lights green, the TV is

already on.

To turn the Main power off:

Press the Main power button again.

The Power lamp goes off.

Caution

• The main power button on the TV does

not fully isolate the TV from the AC

supply. If you are not going to use this TV

for a long period of time, be sure to

disconnect the AC plug from the AC

socket.

Turn the TV on from standby

mode

Press the P p

pbuttons to turn the TV

on from standby mode

Choose a TV channel

Press the P p

pbuttons to choose a

programme number (PR) or an EXT

terminal

Adjust the volume

1 Press the r

r(Volume) button

The volume level indicator appears.

2 Press the q

qbuttons while the

volume level indicator is displayed

EXT-1

EXT-2EXT-3

AUDIO OUT

SURROUND

REAR

SUB

WOOFER

OPTICAL

DIGITAL

AUDIOIN

COAXIAL

AV32&28Z25EU_Eng.fm Page 8 Thursday, August 8, 2002 5:48 PM

ENGLISH

AV-32/28Z25EUY / LCT1242-001A-U / English

Remote control buttons and functions

1Muting button

2Number buttons

3ZOOM button

43D button

5Information button

6bbutton

75buttons

8Standby button

9Colour buttons

0abutton

-6buttons

=VCR/DVD/Teletext control button

~VCR PDVD switch

!g(Text) button

Turn the TV on or off from

standby mode

Press the #

#(standby) button to turn

the TV on or off.

When the TV is turned on, the power lamp

changes from red to green.

• The power can be turned on by pressing

the bbutton, 6buttons or Number

buttons.

Choose a TV channel

Use the number buttons:

Enter the programme number (PR)

of the channel using the number

buttons.

Example:

•PR6→press 6

• PR12 →press 1and 2

Use the 6

6buttons:

Press the 6

6buttons to choose

the programme number (PR) you

want.

123

456

789

TV OK

F.T/L

AV32&28Z25EU_Eng.fm Page 9 Thursday, August 8, 2002 5:48 PM

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels JVC TV

JVC

JVC AV-29RS(C-AU) Manuel utilisateur

JVC

JVC AV-2586ME Manuel utilisateur

JVC

JVC LT-20DJ5SGE Manuel utilisateur

JVC

JVC AV-21QT5BU Manuel utilisateur

JVC

JVC AV-21BX16S Manuel utilisateur

JVC

JVC AV-14A3, AV-14F3, AV-1435, AV- Manuel utilisateur

JVC

JVC AV-21Y314 Manuel utilisateur

JVC

JVC AV-32F475/Y Manuel utilisateur

JVC

JVC LT-32WX84 Manuel utilisateur

JVC

JVC I' Art AV-27F802 Manuel utilisateur

JVC

JVC AV-21KT1BPF Manuel utilisateur

JVC

JVC AV-32360 Manuel utilisateur

JVC

JVC LT-37S60BU Manuel utilisateur

JVC

JVC AV-48WP30 Manuel utilisateur

JVC

JVC AV-14FMT3, AV-21DMT3, AV-21LMT Manuel utilisateur

JVC

JVC PD-42DX6BJ Manuel utilisateur

JVC

JVC AV-14KG11, AV-14KG21, AV-14UG1 Manuel utilisateur

JVC

JVC AV-14F13/PH Manuel utilisateur

JVC

JVC AV28BT7EEB Manuel utilisateur

JVC

JVC LT-26HG45EAQ Manuel utilisateur

JVC

JVC InteriArt T-V LINK AV-32H4SU Manuel utilisateur

JVC

JVC AV-32430/M Manuel utilisateur

JVC

JVC I'Art Pro AV-32S565 Manuel utilisateur

JVC

JVC AV-25MT35/P Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
