JVC AV-321802 Manuel utilisateur

AC@

COLORTELEVISION

USER’SGUIDE

Formodels:

Al/-321802

AV-32F702

A V-27F802

AV-27F702

Illustration of AV-27F802 and RM-C301 G

Serial Number Model Number

LCT0821-00 1C-A

0301 -TN-JII-JIM

IMPORTANT SAFETY PRECAUTIONS

CAUllON:To reduce the risk of electric shock

Do not remove cover (or back).

No user serviceable parts inside.

Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol,

within an equilateral triangle is intended to alert

the user to the presence of uninsulated “dan-

gerous voltage” within the product’s enclosure

that may be of sufficient magnitude to consti-

tute a risk of electric shock to persons.

The exclamation point within an equilateral tri-

angle is intended to alert the user to the pres-

ence of important operating and maintenance

(servicing) instructions in the literature accom-

panying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT

EXPOSE THIS TV SET TO RAIN OR MOISTURE.

CAUTION: TO INSURE PERSONAL SAFETY, OBSERVE THE

FOLLOWING RULES REGARDING THE USE OF

THIS UNIT.

1. Operate only from the power source specified on the unit.

2. Avoid damaging the AC plug and power cord.

3. Avoid Improper installation and never position the unit where good

ventilation is unattainable.

4. Do not allow objects or liquid into the cabinet openings.

5. In the event of trouble, unplug the unit and call a service technician.

Do not attempt to repair it yourself or remove the rear cover.

Changes or modifications not approved by JVC could void the warranty.

* When you don’t use this TV set for a long period of time, be sure to

disconnect both the power plug from the AC outlet and antenna for

your safety.

* To prevent electric shock do not use this polarized plug with an

extension cord, receptacle or other outlet unless the blades can be

fully inserted to prevent blade exposure.

IMPORTANT SAFEGUARDS

CAUTION:

Please read and retain for your safety.

Electrical energy can perform many useful functions, This TV set has been engineered

and manufactured to assure your personal safety. But improper use can result in poten-

tial electrical shock or fire hazards. In order not to defeat the safeguards incorporated in

this TV set, observe the following basic rules for its installation, use and servicing.

And also follow all warnings and instructions marked on your TV set.

INSTALLATION

Your TV set is equipped with a polarized AC line plug (one blade of the plug is wider

than the other).

(POLARIZED-TYPE)

This safety feature allows the plug to fit into the power outlet only one way. Should

you be unable to insert the plug fully into the outlet, try reversing the plug.

Should it still fail to fit, contact your electrician.

Operate the TV set only from a power source as indicated on the TV set or refer to the

operating instructions for this information. If you are not sure of the type of power

supply to your home, consult your TV set dealer or local power company. For battery

operation, refer to the operating instructions.

Overloaded AC outlets and extension cords are dangerous, and so are frayed power

cords and broken plugs. They may result in a shock or fire hazard. Call your service

technician for replacement.

Do not allow anything to rest on or roll over the power cord, and do not place the TV

set where power cord is subject to traffic or abuse. This may result in a shock or fire

hazard.

Do not use this TV set near water - for example, near a bathtub, washbowl, kitchen

sink, or laundry tub, in a wet basement, or near swimming pool, etc.

If an outside antenna is connected to the TV set, be sure the antenna system is

grounded so as to provide some protection against voltage surges and built-up static

charges. Section 810 of the National Electrical Code provides information with

respect to proper grounding of the mast and supporting structure, grounding of the

lead-in wire to an antenna discharge unit, size of grounding conductors, location of

antenna discharae unit, connection requirements for the qroundino electrode.

7 An outside antenna system should not be located in the vicinity of overhead power

lines or other electric light or power circuits, or where it can fall into such power lines

or circuits. When installing an outside antenna system, extreme care should be taken

to keep from touching such power lines or circuits as contact with them might be

fatal.

EXAMPLE OF ANTENNA GROUNDING

AS PER NATIONAL ELECTRICAL CODE

ANTENNA

LEAD IN

wIf?E

ELECtRODESYSTEM

NEC- NATIOM4LELECIRIC CODE (NEC AR-IICLE 258, PART H)

8 TV sets are provided with ventilation openings in the cabinet to allow heat generated

during operation to be released.

Therefore:

- Never block the bottom ventilation slots of a portable TV set by placing it on a

bed, sofa, rug, etc.

- Never place a TV set in a “built-in” enclosure unless proper ventilation is provided.

- Never cover the openings with a cloth or other material.

- Never place the TV set near or over a radiator or heat register.

9 To avoid personal injury:

-Do not place a TV set on a sloping shelf unless properly secured.

- Use only a cart or stand recommended by the TV set manufacturer.

- Do not try to roll a cart with small casters across thresholds or deep pile carpets.

- Wall or shelf mounting should follow the manufacturer’s instructions and should

use a mounting kit approved by the manufacturer.

USE

IO Caution children about dropping or pushing objects intothe TV set through cabinet openings.

Some internal parts carry hazardous voltages and contact can resultin a fire or electrical shock.

Unplug the TV set from the wall outlet before cleaning. Do not use liquid or an

aerosol cleaner.

Never add accessories to a TV set that has not been designed for this purpose.

Such additions may result in a hazard.

13 For added protection of the TV set during a lightning storm or when the TV set is to be left

unattended for an extended period of time, unplug it from the wall outlet and disconnect

the antenna. This will prevent damage to product due to lightning storms or power line

surges.

14 A TV set and cart combination should be moved with

care. Quick stops excessive force, and uneven sur-

faces may cause the TV set and cart combination to

overturn.

SERVICE

15 Unplug this TV set from the wall outlet and refer servicing to qualified service per-

sonnel under the following conditions:

A. When the power cord or plug is damaged or frayed.

B. If liquid has been spilled into the TV set.

C. If the TV set has been exposed to rain or water.

D. If the TV set does not operate normally by following the operating instructions.

Adjust only those controls that are covered in the operating instructions as

improper adjustment of other controls may result in damage and will often require

extensive work by a qualified technician to restore the TV set to normal operation.

E. If the TV set has been dropped or damaged in any way.

F.When the TV set exhibits a distinct change in performance - this indicates a

need for service.

16 Do not attempt to service this TV set yourself as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified

service personnel.

17 When replacement parts are required, have the service technician verify in writing

that the replacement parts he uses have the same safety characteristics as the orig-

inal parts. Use of manufacturers specified replacement parts can prevent fire,

shock, or other hazards.

18 Upon completion of any service or repairs to this TV set, please ask the service techni-

cian to perform the safety check described in the manufacturers service literature.

19 When a TV set reaches the end of its useful life, improper disposal could result in a pic-

ture tube implosion. Ask a qualified service technician to dispose of the TV set.

20 Note to CATV system installer.

This reminder is provided to call the CATV system installers attention to Article 820-

40 of the NEC that provides guidelines for proper grounding and, in particular, spec-

ifies that the cable ground shall be connected to the grounding system of the build-

ing, as close to the point of cable entry as practical.

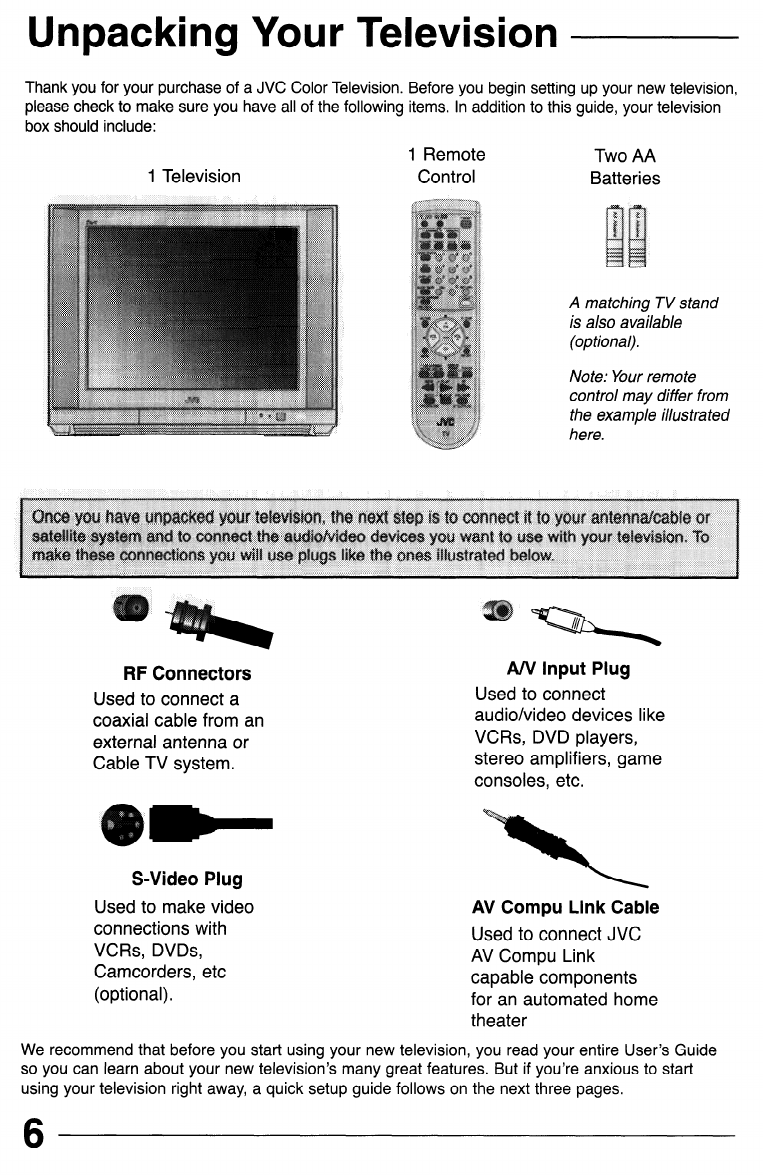

Unpacking Your Television

Thank you for your purchase of a JVC Color Television. Before you begin setting up your new television,

please check to make sure you have all of the following items. In addition to this guide, your television

box should include:

1 Remote Two AA

1 Television Control Batteries

A matching TV stand

is also available

(optional).

Note: Your remote

control may differ from

the example illustrated

here.

RF Connectors

Used to connect a

coaxial cable from an

external antenna or

Cable TV system.

AN Input Plug

Used to connect

audio/video devices like

VCRs, DVD players,

stereo amplifiers, game

consoles, etc.

S-Video Plug

Used to make video

connections with

VCRs, DVDs,

Camcorders, etc

(optional).

AV Compu Link Cable

Used to connect JVC

AV Compu Link

capable components

for an automated home

theater

We recommend that before you start using your new television, you read your entire User’s Guide

so you can learn about your new television’s many great features. But if you’re anxious to start

using your television right away, a quick setup guide follows on the next three pages.

Getting Started

These quick setup pages will provide you, in three easy steps, with the basic information you need

to begin using your new television right away. This information includes basic instructions on

operating your remote control, making a simple cable/antenna and optional VCR connection and,

finally, information on programming your television’s Auto Tuner.

If you have questions, or for more detailed information on any of these steps, please consult other

sections of this manual.

Step One -The Remote Control

The remote control is the key to operating your television’s many great features. Before you can

operate your remote control, you first need to install the batteries (included).

Slide the cover on the back of the remote down towards the bottom of the remote control. Insert two

batteries (included) carefully noting the “+” and ‘I-” markings, placing the “-” end in the unit first.

Slide the cover back into place.

Basic Operation

Turn the television on and off by pressing the POWERbutton at the top right corner of the remote.

Key Feature Buttons

The four key feature buttons at the center of the remote can be used for basic operation of the

television. The top and bottom buttons will scan forward and back through the available channels.

The right and left buttons will turn the volume up or down. These buttons are also marked with four

arrows and are also used with JVC’s onscreen menu system. You will need to use these buttons

later in the Quick Setup.

The next step is to connect your television to an antenna or cable.

Proceed to Step Two iKF

StepTwo - Making Basic Connections

Next you will need to connect your television to an antenna or cable system. The most basic

antenna/cable connection is shown below. For more detailed connections, such as ones where a

cable box is required, see pages 11 to 13.

WALL

CABLE or ANTENNA

Cable/RF connector

Illustration of AW27F802

1) Connect an RF cable out from the wall outlet in to the RF Input on the back of the TV.

You may also wish to connect a VCR at this point. A basic VCR connection is shown below. For

detailed instructions on connecting a other components or a home theater system, see pages 14 to 16.

Note: A VCR is not required to operate your television.

AV Cables/Plugs

Illustration of AV-27F802 1 1 ’ I

1) Connect the yellow video cable out from the VCR’s Video Output, in to the TV’s Video Input

jack, OR connect an S-Video cable from the VCR’s S-Video output, to the TV’s S-Video input.

2) Connect the white audio cable out from the VCR’s Left Audio Output, in to the TV’s Left Audio

Input Jack.

3) Connect the red audio cable out from the VCR’s Right Audio Output, in to the TV’s Right

Audio Input jack.

Finally, once you have finished your connections, plug the power cord into the nearest power outlet

and turn on the television.

Proceed to Step Three @iiF

StepThree -The Plug In Menu

When you turn your television on for the first time the Plug In Menu will appear. This menu sets

some of the basic settings for your television. A complete description of the Plug In Menu can be

found starting on page 22. We recommend you complete the Plug In Menu items before you start

using your television. But to begin watching your television right away you only need to run the Auto

Tuner Setup. This lets your television learn the channels it is able to receive. To run the Auto Tuner

Setup follow the steps below.

Press the AV buttons to move to AUTO TUNER SETUP

Press the 4) buttons to begin AUTO TUNER SETUP

To choose CABLE

(if you are connected to a cable system) or AIR (if you use

an antenna)

AV To move to START

0 To

start Auto Tuner Setup

The Auto Tuner will now memorize all of the clear, active channels your television can

receive. This will take one or two minutes.

The Auto Tuner is finished when the message PROGRAMMING OVER! appears onscreen.

Your Quick Setup is now complete. You can now begin watching your television, or you can continue on

in this guide for more information on connecting audio/video devices, programming your remote control,

or using the JVC onscreen menu system to customize your television viewing experience.

The Quick Setup

is complete

Table of Contents

Quick Setup Guide m w m w 7

CONNECTIONS

Cable and VCR Connections. . . . . . . 11

Connecting to a DVD Player . . . . , . . 14

Connecting to an External Amplifier . . . 15

Connecting to a Camcorder . . . . . . , 15

Connecting to JVC AV Compu Link . , . 16

GETTING STARTED

Remote Control

Remote Control Basics. . . . . 17

Changing the Batteries. . . . . 17

Remote Programming . . . . . . . . . . 18

CATV and Satellite Codes. . . . . . . . . 18

VCR Codes, , . . . . , . . . . . , . . . 19

DVD Codes, . . . . . . . . . . . . . . . 20

MENU FUNCTIONS

Using the Guide ............. 21

Plug In Menu

Introduction. ......... 22

Language. .......... 22

Auto Tuner Setup ....... 22

Auto Clock Set. ........ 23

Manual Clock Set ....... 24

Finish. ............. 24

Channel Summary. ........... 25

V-Chip. .................. 26

Set Lock Code. ........ 33

Picture Settings

Tint. .............. 34

Color. ............. 34

Picture ......... 34

Bright ............. 34

Detail ............. 34

Noise Muting ......... 35

Set Video Status ........ 35

Sound Settings

Bass .............. 36

Treble ............. 36

Balance ............ 36

MTS (Multi-channel Sound) 36

General Iterns

On/Off Timer. ......... 37

TV Speaker .......... 38

Audio Out ........... 38

V4 Component-W

V2 Component-In ....... 39

Closed Caption ........ 39

BUTTON FUNCTIONS

Menu. .................. 40

Exit and PIP Off. ............. 40

Display .................. 40

Video Status ............... 41

Sleep Timer. ............... 41

Hyper Surround ............. 41

Muting .................. 41

BBE. ................... 42

lOO+ ................... 42

Return+. ................. 42

Input. .................. 42

VCR Buttons ............... 43

DVD Buttons ............... 43

TV/CATV Switch ............. 43

VCR/DVD Switch ............. 43

Light. .................. 43

PIP (Picture-In-Picture)

Introduction. ......... 44

On/Move. ........... 44

Freeze. ............ 45

Swap. ............. 45

Channel +/-. ......... 45

Source. ............ 45

APPENDICES

Troubleshooting . . . . . . . , . . . . . 46

Warranty . . . . . . . . . . . . . . . . . 47

Authorized Service Centers . , . . . . . 49

Search Codes. , . . . . . . . . . . . . . 50

Specifications. . . , . . . . . . . , . . . 51

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels JVC TV

JVC

JVC InteriArt T-V LINK AV-32H4SU Manuel utilisateur

JVC

JVC AV-14FT14 Manuel utilisateur

JVC

JVC AV-21D31, AV-20N31, AV-14F31, Manuel utilisateur

JVC

JVC AV-28BT8EEB Manuel utilisateur

JVC

JVC AV 32230 Manuel utilisateur

JVC

JVC HV-29JH24 Manuel utilisateur

JVC

JVC AV-24WT2EN Manuel utilisateur

JVC

JVC LT-32VAF5035 Manuel utilisateur

JVC

JVC AV-14F703 Manuel utilisateur

JVC

JVC I' Art AV-27F702 Manuel utilisateur

JVC

JVC AV-28R370KE Manuel utilisateur

JVC

JVC I'Art Pro AV-56WP94 Guide d'installation et d'utilisation

JVC

JVC AV-27530/SC Manuel utilisateur

JVC

JVC AV-30W777/S Guide de l'administrateur

JVC

JVC AV-28PH4N Manuel utilisateur

JVC

JVC AV-21P8 Manuel utilisateur

JVC

JVC AV-2956BE Manuel utilisateur

JVC

JVC AV-28KH1BUF Manuel utilisateur

JVC

JVC AV-21RM4SN Manuel utilisateur

JVC

JVC AV-21F1EG Manuel utilisateur

JVC

JVC AV-28KH1BUF Manuel utilisateur

JVC

JVC AV-20420/SA Manuel utilisateur

JVC

JVC AV-29L6SU, AV-29L6BU Manuel utilisateur

JVC

JVC PD-42WX84SJ Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
