JVC AV-2988SE Manuel utilisateur

INSTRUCTIONS

GGT0120-001A-H

AV-2988SE

AV-2986ME

AV-2986SE

AV-2956BE

AV-2956ME

AV-2586ME

AV-2186ME

AV-2156BE

AV-2156ME

COLOUR TELEVISION EQUALIZER • CINEMA SURROUND • COMPONENT INPUT

Contents

Knowing your TV’s features .......................................................3

Remote control buttons and basic functions ..............................4

TV buttons and functions............................................................6

Setting up your TV......................................................................7

Basic setting for picture ..............................................................9

Advanced setting for picture..................................................... 11

Original features for picture ......................................................12

Basic setting for sound .............................................................14

Advanced setting for sound......................................................15

DVD Menu................................................................................16

Customized setting...................................................................17

TV channel presetting ..............................................................19

Additional preparation ..............................................................22

Troubleshooting........................................................................23

Speciﬁcations .............................................................Back cover

GGT0120-001A-H-EN.indd 1GGT0120-001A-H-EN.indd 1 03.05.2006 14:26:26 Uhr03.05.2006 14:26:26 Uhr

15 cm

10 cm 10 cm 15 cm

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE

THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO ENSURE PERSONAL SAFETY, OBSERVE THE

FOLLOWING RULES REGARDING THE USE OF THIS TV.

1 Operate only from the power source indicated on the rear of the TV.

2 Avoid damaging the power cord and mains plug. When unplugging the

TV, grasp the mains plug. Do not pull on the power cord.

3 Never block or cover the ventilation openings.

Never install the TV where good ventilation is unattainable.

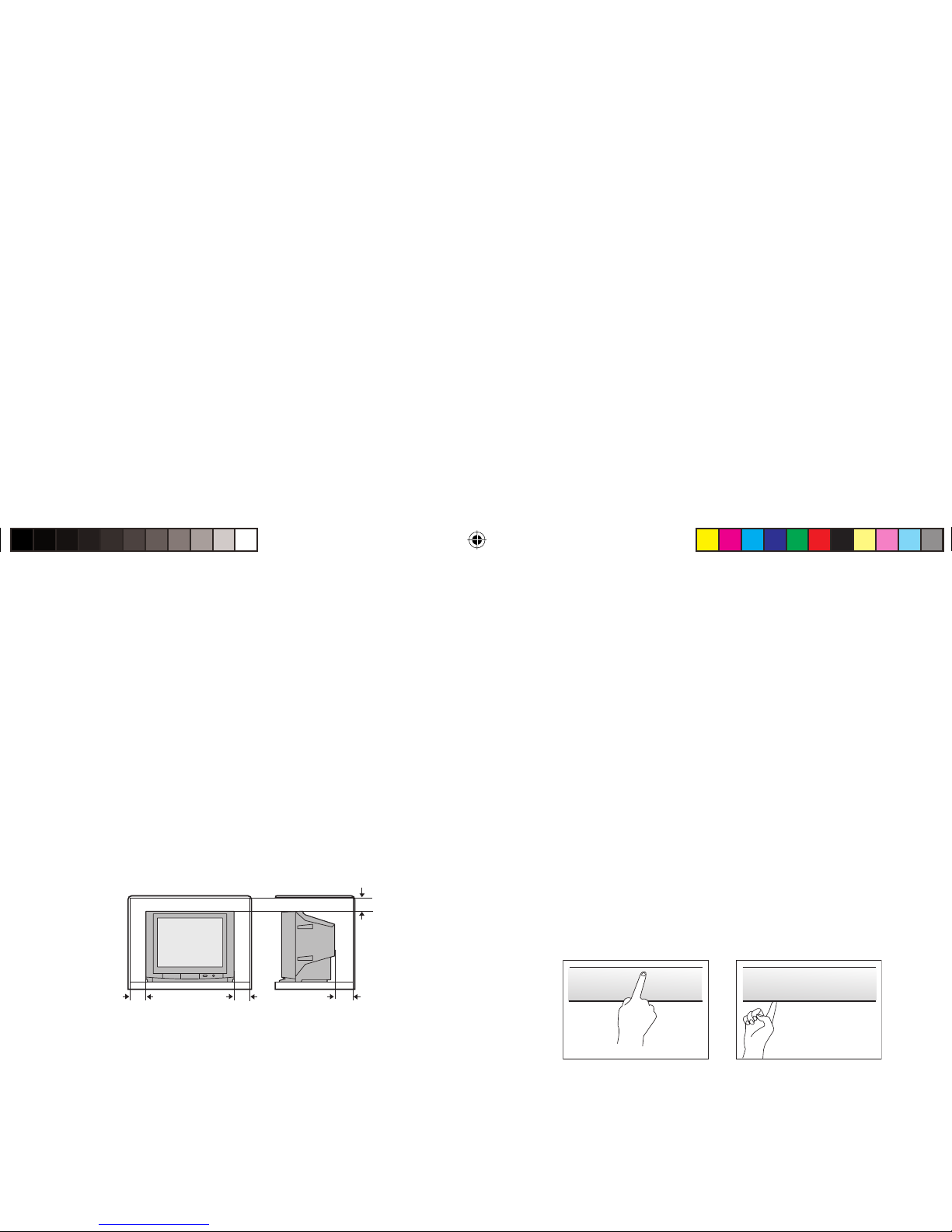

When installing this TV, leave spaces for ventilation around the TV of

more than the minimum distances as shown.

4 Do not allow objects or liquid into the cabinet openings.

5 In the event of a fault, unplug the unit and call a service technician.

Do not attempt to repair it yourself or remove the rear cover.

6 The surface of the TV screen is easily damaged. Be very careful with it

when handling the TV. Should the TV screen become soiled, wipe it with

a soft dry cloth. Never rub it forcefully. Never use any cleaner or detergent

on it.

7 This TV can be turned on/off power by connecting/disconnecting the AC

plug into AC outlet. While this TV is being installed, enough space should

be reserved for connection/disconnecting the AC plug into AC outlet by

hand.

8 The apparatus shall not be exposed to dripping or splashing and that

no objects ﬁlled with liquids, such as vases, shall be placed on the

apparatus.

WARNING: <AV-21M, AV-25M, AV-29M, AV-21B, AV-29B Series>

YOU CAN DETACH THE PROTECT SHEET ON THE TOP

AND BOTTOM OF FRONT FRAME IF YOU NEEDED.

THE FRONT BUTTON DOOR OF THE TV SHOULD BE

PULLED OUT FROM ITS BOTTOM. DO NOT PRESS THE

UPPER PART, OR YOUR FINGER MAY BE PINCHED.

Thank you for buying this JVC colour television.

To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.

✓

PULL PULL

GGT0120-001A-H-EN.indd 2GGT0120-001A-H-EN.indd 2 03.05.2006 14:26:27 Uhr03.05.2006 14:26:27 Uhr

Knowing your TV’s features

EXIT

Conﬁrm your TV’s functions

Some functions written in this instruction manual may not be available for your TV.

Please see the chart below and check the functions that are equipped for your TV’s model number.

The model number is indicated at the rear of your TV. When you press a button concerned to a function that is not available

for your TV, it does not work and the logo “Ø” appears on the screen.

Main features

DVD MENU Just connect DVD player to the television. The television will detect DVD signal and display

picture on the screen automatically and you can adjust pictures and sound while you are

watching DVD as your desire. When disconnect DVD player, the television will display the

previous channel.

MaxxBass MaxxBass enhances bass sound that cannot be reproduced by normal speakers to be

heard by our ears.

PIP (Picture In Picture) You can view two screens (Main picture and Sub picture) at the same time.

TELETEXT You can view teletext programmes which are broadcasted by some TV channels. Teletext

programme is an infromation in text form.

FAVORITE CH (Channel) You can register up to four favorite channels for quick recall with one press.

A2/NICAM

( STEREO / I.II )

You can listen the stereo sound or billingal sound from TV programme broadcasting by A2

or NICAM Sound-multiplex system.

AI ECO SENSOR TV detects the brightness of your room and automatically adjust the picture brightness to

a suitable level for a better eyecare.

ECO MODE You can adjust TV screen contrast according to the brightness of your room to suitable

level for a better eyecare.

AI VOLUME TV adjusts the volume automatically to the same level for all TV channels to avoid sudden

change of the volume when selecting different TV channels or selecting Video Mode.

TINT You can adjust TINT setting for all colour systems, including PAL.

No.

Model No.

Function

AV-2988SE

AV-2986ME

AV-2986SE

AV-2956BE

AV-2956ME

AV-2586ME

AV-2186ME

AV-2156BE

AV-2156ME

1, 2PIP control buttons (Green label) O O O ——OO——

— MaxxBass O O O — O O O — O

— PICTURE TILT O O O O O ————

3AI ECO SENSOR O O O —OOO—O

3ECO MODE ———O——— O—

GGT0120-001A-H-EN.indd 3GGT0120-001A-H-EN.indd 3 03.05.2006 14:26:28 Uhr03.05.2006 14:26:28 Uhr

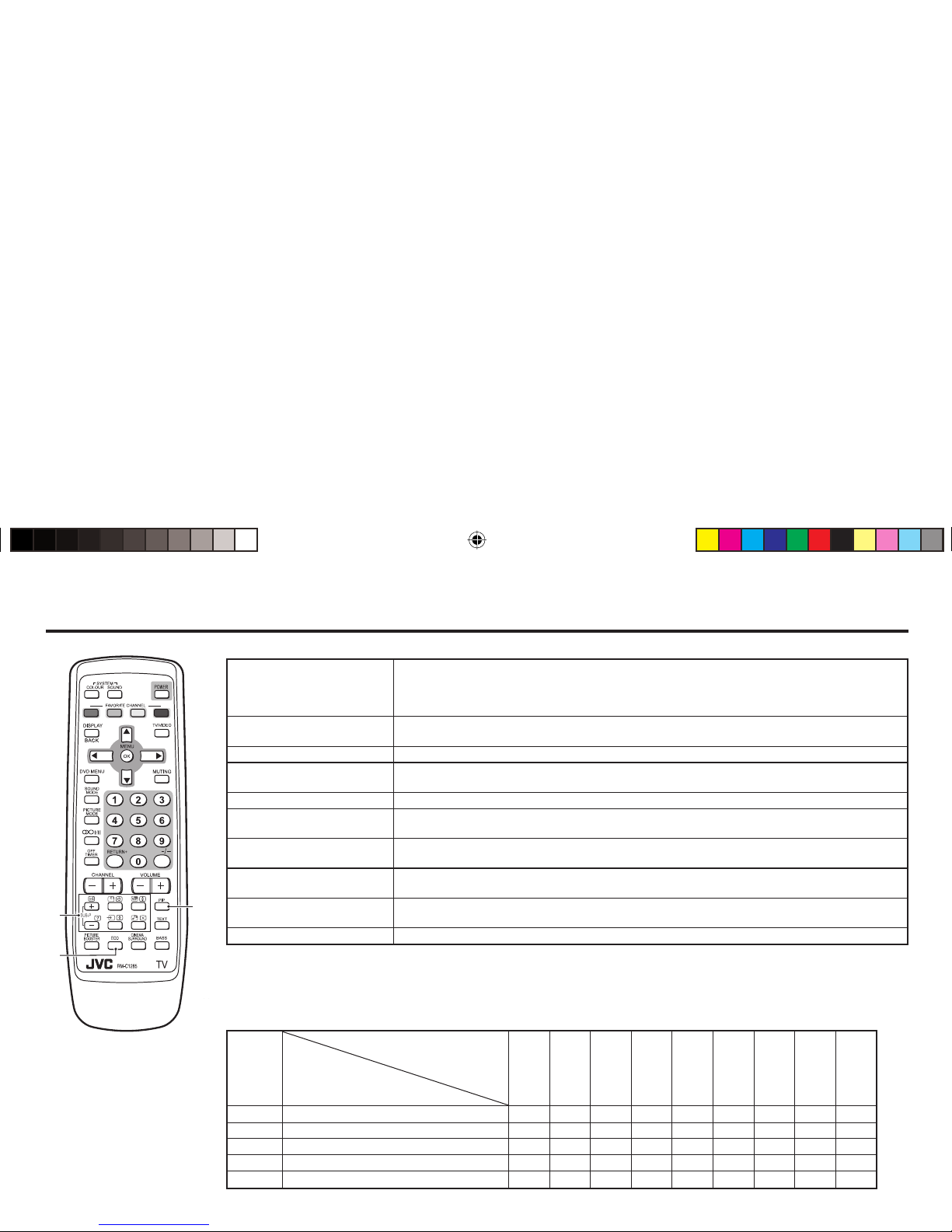

Remote control buttons and basic functions

EXIT

No. Press To

1POWER Turn on or off the TV from standby mode.

2MENU/OK Display menu and conﬁrm selected function.

35/ ∞/ 2/ 3Select and adjust menu function.

4CHANNEL -/+ Select the desired channel number.

5VOLUME -/+ Adjust the volume level.

6TV/VIDEO

EXIT

Select TV or video terminal input.

On the other hand, you can use this button to EXIT from the menu.

7MUTING Turn off the volume.

Press this button again to resume the volume.

8DISPLAY

/BACK

Display the programme number or video terminal number, stereo/bilingual broadcast system and

PR list (channel list) on the screen.

You can select the channel using the PR list.

1Press the DISPLAY button once to display the PR list.

2Press 5/ ∞/ 2/ 3buttons to choose a channel, then press the MENU/OK button.

You can conﬁrm the favorite channels in the PR list. The channels set to favorite channels are

indicated with coloured mark.

On the other hand, you can use this button to return to the previous menu.

90~9, -/-- Select the programme number. For two digits programme number, press -/--, then press the

number button.

!RETURN+ a) Return to the frequently view channel with one touch.

1Choose the channel you want to register.

2Press and hold RETURN+ button until “RETURN PLUS PROGRAMMED!” appears.

To cancel, press and hold RETURN+ button until “RETURN PLUS CANCELED!” appears.

b) Return to the previously viewed channel, if you have not set or have cancelled the Return

channel as above.

"FAVORITE

CHANNEL

(colour buttons: red,

green, yellow, blue)

1. Choose the TV channel you want to register then press and hold a colour button until

“PROGRAMMED! ■" appears.

2. To register other favorite channels, repeat step 1.

To recall the favorite channel, press the corresponding colour button.

When the TV is in Text function or MENU mode, the favorite channel function is not available.

When the TV is in PIP function, the favorite channel function cannot register but can recall the

favorite channel.

GGT0120-001A-H-EN.indd 4GGT0120-001A-H-EN.indd 4 03.05.2006 14:26:29 Uhr03.05.2006 14:26:29 Uhr

Remote control buttons and basic functions (continued)

The following chart shows locations of functions in menus. In this manual,

location of a function is described as follows:

Note: Some functions have the 4th menus as the sub-menus.

How to operate menus and menus locations

To Operation Note

Display the MENU Press the MENU/OK button 2.

PICTURE MENU is displayed on

ﬁrst press.

To exit the MENU,

press the DISPLAY/

BACK button 8or

choose EXIT menu

or TV/VIDEO/EXIT

button 6.

Choose a Top

Press 2/3buttons 3to choose

a menu title when the cursor is

pointing at MENU.

—

Choose a 2nd

Press 5/∞buttons 3to choose a

2nd menu title.

Press ∞button 3

to display the next

functions.

Display the 3rd

Press 5/∞buttons 3to choose a

2nd menu title. Then press MENU/

OK button 2.

Return to the

previous menu

Press the DISPLAY/BACK button

8.—

Choose the setting

of a function

Press 5/∞buttons 3to choose

a function. Then press the 2/3

buttons 3to change the setting.

Press the TV/ VIDEO/

EXIT button 6to exit

from the menu.

Adjust the effect

level of a function

Press 5/∞buttons 3to choose

a function. Then press the 2/3

buttons 3to adjust the effect

level.

Display the sub

menu of a function.

Press the 5/∞buttons 3to

choose a function. Then press

MENU/OK button 2to display

the sub menu.

—

MENU Top menu 2nd menu

Top menu 3rd menuMENU 2nd menu

Top menu 2nd menu Location 3nd menu Location

MENU PICTURE PICTURE MODE P.9 – –

PICTURE SETTING P.10 CONTRAST P.10

BRIGHT P.10

SHARP P.10

COLOUR P.10

TINT P.10

WHITE BALANCE P.10 – –

VNR P.17 – –

SOUND STEREO/

I■II

P. 1 5––

AI VOLUME P.15 ––

SOUND MODE P.14 ––

EQUALIZER P.15 ––

BALANCE P.14 ––

CINEMA SURROUND

P.15 ––

MaxxBass P.15 ––

FEATURES DVD MENU P.16

AUTO SIGNAL DETECT

P.16

DVD PICTURE MODE

P.16

DVD THEATER STATUS

P.16

DVD SOUND MODE

P.16

ON TIMER P.17 PR P.17

ON TIMER P.17

OFF TIMER P.17 ––

CHILD LOCK P.17 ––

COMPRESS (16:9)

P.11 ––

AI ECO SENSOR/

ECO MODE

P.11 ––

INSTALL AUTO PROGRAM P.19 ––

EDIT/MANUAL P.19 DELETE, MOVE,

MANUAL, INSERT

P.19-

P.20

COLOUR SYSTEM P.9 ––

LANGUAGE P.17 LANGUAGE P.17

TEXT LANGUAGE P.13 TEXT LANGUAGE P.13

VIDEO-2 SETTING P.18 ––

BLUE BACK P.11 ––

PICTURE TILT P.11 ––

BEEP P.18 ––

GGT0120-001A-H-EN.indd 5GGT0120-001A-H-EN.indd 5 03.05.2006 14:26:31 Uhr03.05.2006 14:26:31 Uhr

TV buttons and functions

The illustrations shown below is for AV-2156BE and AV-2988SE only, which are used for explanation purpose.

Your TV may not look exactly the same as illustrated.

POWER

TV/VIDEO

MENU/OK

CHANNEL

VOLUME

RVL/MONO

IN(VIDEO-3)

Front of the TV

AV-2988SE

Rear of the TV

AV-2988SE

POWER

VOLUME

CHANNEL

L / MONO

IN (VIDEO-3)

,-/./

6

/6%2

-/./

/54054

6)$%/ #/-0/.%.4

6)$%/

).054

AV-2156BE

No. Button/terminal Description Page

1L(main power) Press to turn on or turn off the TV’s main power. –

2POWER lamp Indicate the TV’s status. –

No colour : TV’s main power is being turned off.

Red : TV’s main power is being turned on.

Blink :

While the TV is in standby mode, ON TIMER funciton is in used.

While the TV is in turn on mode , OFF TIMER function is in used.

Note: When you turn off the power switch while TV is in standby mode,

the power lamp will go off in 10 -15 seconds.

When you operate the TV, POWER Lamp will be blink.

3ECO sensor –

4Remote control sensor –

5TV/VIDEO

Press to select TV or Video terminal input or exit from menu.

–

6VOLUME -/+ Press to adjust the volume level. –

7CHANNEL -/+

Press to select the desired channel (Both of RF and Video input.)

–

8MENU/OK Press to display the menu. –

9IN (VIDEO-3) Video and audio input jacks for VIDEO-3 mode. 22

!Headphone jack. 22

"Aerial socket. 7

#OUTPUT Video and audio output jacks. (The component video

signal cannot be output.)

$COMPONENT

(VIDEO-2) INPUT

Video or component video, and audio input jacks for VIDEO-2

mode. You can select the input signal by setting the “VIDEO-2

SETTING” function (see page 18).

%VIDEO-1 INPUT

Video or S-VIDEO, and audio input jacks for VIDEO-1 mode.

How to operate the menus with the TV button

TV button Work as same as the button on

the remote control unit Note

MENU MENU/OK button To display main menu and exit menu after

ﬁnish setting.

CHANNEL -/+ ∞/5button To select menu function.

VOLUME -/+ 2/3button To choose a Top menu and adjust the

desired menu function.

GGT0120-001A-H-EN.indd 6GGT0120-001A-H-EN.indd 6 03.05.2006 14:26:32 Uhr03.05.2006 14:26:32 Uhr

2Connecting the main plug to the AC outlet.

Setting up your TV

CAUTION

• Turn off the equipment including the TV before connecting.

VHF/UHF outdoor aerial

75-ohm coaxial cable (not supplied)

1Connecting the aerial cable.

3Inserting batteries into the remote control.

Insert two batteries by following the +and -polarities

and inserting the -end ﬁrst.

CAUTION:

Follow the cautions printed on the batteries.

Notes:

• Use AA/R6/UM-3 dry cell batteries.

• If the remote control does not work properly, ﬁt

new batteries. The supplied batteries are for testing,

not regular use.

4Turn on the TV by pressing the main power button.

JVC logo appears on the screen.

L/MONO

OVER

/MONO

OUTPUT

VIDEO-1 COMPONENT

(VIDEO-2)

INPUT

Rear of TV

AV-2156BE

VHF/UHF outdoor aerial

VCR

If you connect a VCR, connect the aerial output jack of your VCR and

the aerial jack on the TV with aerial cable. Then connect the output

jacks of your VCR and the VIDEO-1 input jacks of the TV with the

video cable (or S-VIDEO cable if available) and audio cables. For

details, see the manual of your VCR.

The illustration shown is just a sample. It may not be same as your TV.

JVC logo will appear on the screen again at the phase of “SETUP

TOUR RESTART?” function. Then the initial setting can be performed

according to page 8.

Note:

While in the INSTALL menu with the cursor pointing at INSTALL, pressing

the blue button will also display the JVC logo.

GGT0120-001A-H-EN.indd 7GGT0120-001A-H-EN.indd 7 03.05.2006 14:26:35 Uhr03.05.2006 14:26:35 Uhr

5Making the initial settings

Set up your TV by pressing MENU/OK button or waiting for 15 seconds, then operate the TV by following the steps

below:

• Press 5/∞button to

select your desired

language.

• Press 5/∞button to

select your desired

Teletext language

group. For details,

see page 13.

• TV will start searching

for the channels.

To stop AUTO

PROGRAM, press

MENU/OK button.

Setting up your TV (continued)

• To complete the initial

setting, press the

MENU/OK button. To

edit the channel list,

see page 19.

• “SETUP TOUR

RESTART?” will be

displayed.

Press the MENU/OK

button to cancel

the SETUP TOUR

RESTART function.

If you want to make

initial settings again

when the next time

you turn on the TV,

press the Red button

to activate the SETUP

TOUR RESTART

function.

LANGUAGE TEXT LANGUAGE

MENU : OK

DISPLAY : BACK

TV/VIDEO : EXIT

TEXT LANGUAGE

MENU : OK

DISPLAY : BACK

TV/VIDEO : EXIT

AUTO PROGRAM

MENU : OK

22%

EDIT

MENU : OK

MOVE

■

INSERT

■

DELETE

■

MANUAL

■

PR CH/CC

1 CH 04

2 CH 76

3 CH 78

4 CH 05

5 CH 28

6 CH 10

AUTO PROGRAM

MENU : NO

SETUP TOUR RESTART?

■

: YES

GROUP–1

GROUP–2

GROUP–3

ENGLISH

êìëëäàâ

ìKPA∫HCúKA

When turn on the TV at

the next time

GGT0120-001A-H-EN.indd 8GGT0120-001A-H-EN.indd 8 03.05.2006 14:26:37 Uhr03.05.2006 14:26:37 Uhr

COLOUR SYSTEM

You can select the appropriate colour system when the picture is

not clear or no colour appears.

Press the COLOUR SYSTEM button to select a setting.

To operate this function with a menu:

For the colour system in each country or region, see the table below:

PICTURE MODE

You can choose the desired picture setting with one-touch.

Press the PICTURE MODE button to select a setting.

SOFT Softens contrast and sharpness.

BRIGHT Heightens contrast and sharpness.

STANDARD Standard picture setting.

USER You can change this picture setting as you like.

Select USER and adjust following items in the

PICTURE SETTING menu. (CONTRAST, BRIGHT,

SHARP, COLOUR, TINT)

When you select VIDEO-2 Mode, you cannot adjust SHARP.

When you set DVD THEATER STATUS in DVD MENU to ON, you

cannot adjust PICTURE MODE.

To operate this function with a menu:

To return the USER setting to default, press the blue button when

the PICTURE SETTING menu is displayed.

Basic setting for picture

AUTO PAL SECAM NTSC3.58

NTSC4.43

MENU INSTALL menu COLOUR SYSTEM



MENU PICTURE menu PICTURE MODE



Area Country or Region System

Asia, Middle

East

Bahrain, Kuwait, Oman, Qatar, United Arab Emirates,

Yemen, etc.

Indonesia, Malaysia, Singapore, Thailand, India, etc.

PAL

China, Vietnam, etc. PAL

Hong Kong, etc. PAL

Islamic Republic of Iran, Lebanon, Saudi Arabia, etc. SECAM

Philippines, Taiwan, Myanmar, etc. NTSC

Europe

Russia, etc. SECAM

Czech Republic, Poland, etc. PAL

Germany, Holland, Belgium, etc. PAL

UK, etc. PAL

Oceania Australia, New Zealand, etc. PAL

Africa

Republic of South Africa, etc. PAL

Nigeria, etc. PAL

Egypt, Morocco, etc. SECAM

About the basic operations of the menu, please see the “How to

operate menus and menus locations” on page 5.

GGT0120-001A-H-EN.indd 9GGT0120-001A-H-EN.indd 9 03.05.2006 14:26:37 Uhr03.05.2006 14:26:37 Uhr

PICTURE SETTING

You can adjust the desired picture setting when selecting USER in

PICTURE MODE.

1Select USER in PICTURE MODE under PICTURE menu.

2Select PICTURE SETTING in PICTURE menu, then adjust the

setting.

CONTRAST 2: Lower contrast 3: Higher contrast

BRIGHT 2: Darker 3: Brighter

SHARP 2: Softer 3: Higher

COLOUR 2: Lighter 3: Deeper

TINT 2: Reddish 3: Greenish

When you select VIDEO-2 Mode, you cannot adjust SHARP.

Basic setting for picture (continued)

WHITE BALANCE

You can change the white balance of the picture to better match

the type of video being viewed.

Select WHITE BALANCE in the PICTURE menu, then choose the

desired setting.

NORMAL Normal white balance.

COOL Bluish white.

WARM Reddish white.

When you set DVD THEATER STATUS in DVD MENU to ON, you

cannot adjust WHITE BALANCE.

MENU PICTURE menu WHITE BALANCE

MENU PICTURE menu PICTURE MODE

USER



MENU PICTURE menu PICTURE SETTING



About the basic operations of the menu, please see the “How to

operate menus and menus locations” on page 5.

GGT0120-001A-H-EN.indd 10GGT0120-001A-H-EN.indd 10 03.05.2006 14:26:38 Uhr03.05.2006 14:26:38 Uhr

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels JVC TV

JVC

JVC AV28X10EK Manuel utilisateur

JVC

JVC I'Art Pro AV-32S565 Manuel utilisateur

JVC

JVC InteriArt AV-28Z25EU Manuel du système

JVC

JVC HD-56FH97 - 56" Rear Projection TV Manuel utilisateur

JVC

JVC AV-20N3 Manuel utilisateur

JVC

JVC PD-Z50DX4/S Manuel utilisateur

JVC

JVC AV-21P4(BK) Manuel utilisateur

JVC

JVC AV-14F33 Manuel utilisateur

JVC

JVC AV-2108WE/BSK Manuel utilisateur

JVC

JVC AV21BJ8ENS Manuel utilisateur

JVC

JVC InteriArt HV-32P37SUE Manuel utilisateur

JVC

JVC AV-21FT Manuel utilisateur

JVC

JVC InteriArt Natural Vision T_V LINK AV32X25EU Manuel utilisateur

JVC

JVC AV-28T5BK/P Manuel utilisateur

JVC

JVC PD-35D30ES Manuel utilisateur

JVC

JVC AV-24WT2EN Manuel utilisateur

JVC

JVC AV-28R370KE Manuel utilisateur

JVC

JVC AV-21U3 Manuel utilisateur

JVC

JVC LT-32FX77 Manuel utilisateur

JVC

JVC AV-25BT6ENS Manuel utilisateur

JVC

JVC AV-29BH11EES Manuel utilisateur

JVC

JVC HD-58DL8J Manuel utilisateur

JVC

JVC InteriArt AV-21QT4BU Manuel utilisateur

JVC

JVC InteriArt LT-20A55SJ Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
